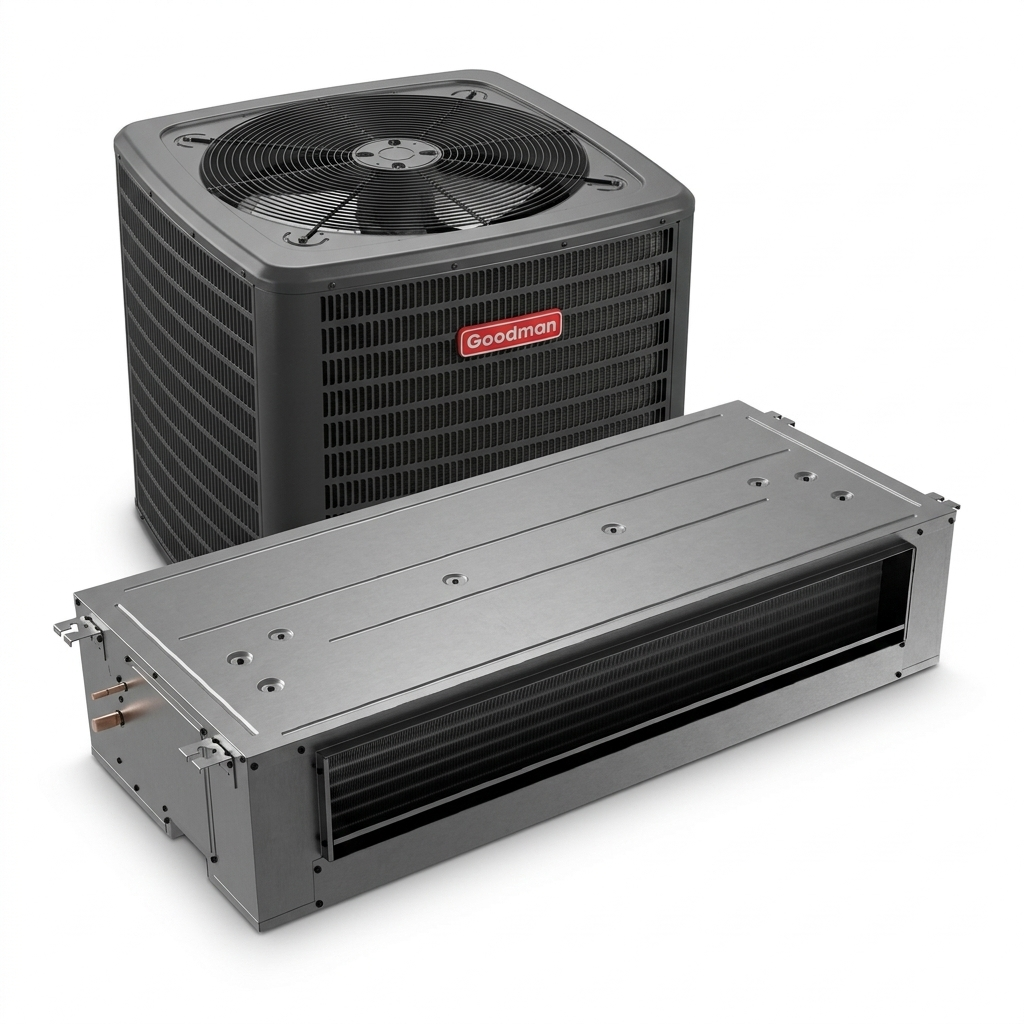

Goodman 2 Ton 14.3 SEER2 R32 Heat Pump System w/ 5kW Heat - R454B Inverter - Ceiling-Mounted

SKU ACST24LU1305 + GLZS4MA2410 Slim Duct14.3 SEER2208-230V, 208-240V
$3,640.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Rated
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 2 Ton 14.3 SEER2 R32 Heat Pump System w/ 5kW Heat - R454B Inverter - Ceiling-Mounted

Product Overview

Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACST series Ceiling Mounted Air Handler is designed for use with R-32 refrigerant and intended for homes where a traditional air handler will not fit.

Features

  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified; ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • 10 Year Parts Warranty with online registration

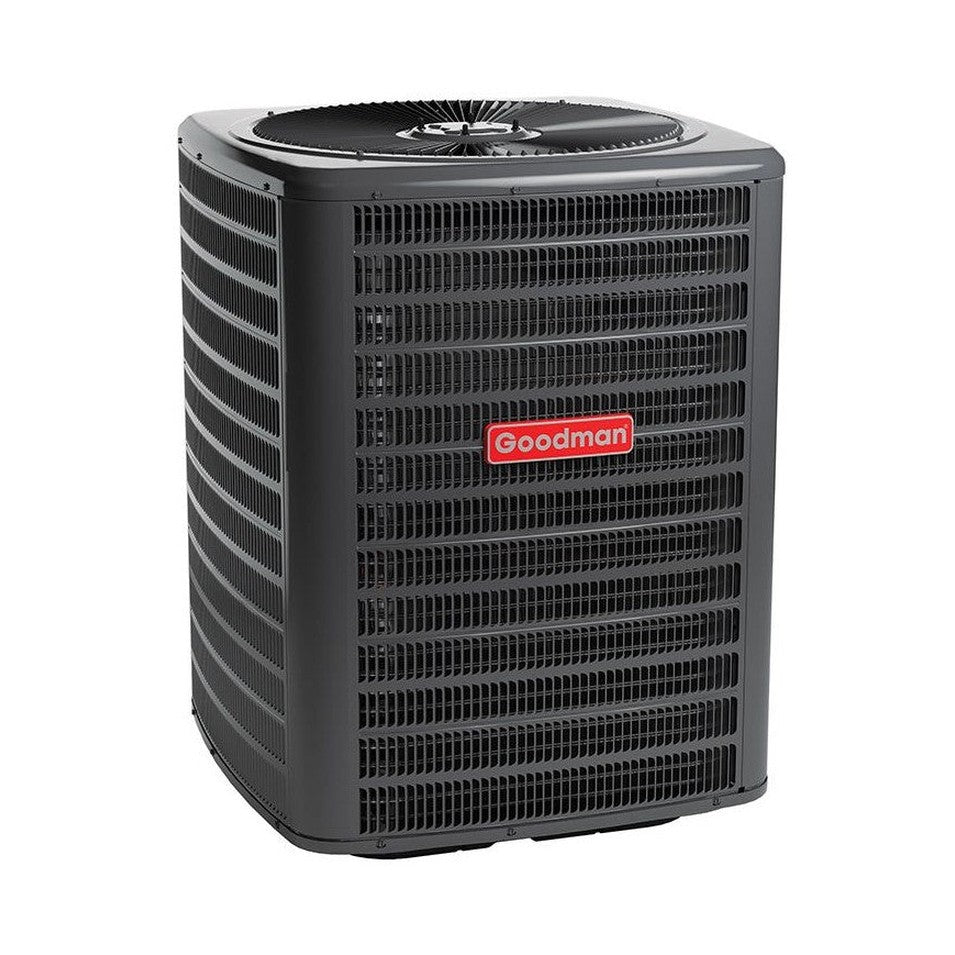

Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser Multi-Family R32 Single Stage

The unit features a high-efficiency scroll compressor with Smart-Shift technology for quiet defrosting. It includes an enhanced aluminum fin coil, a single-speed PSC fan motor, and factory-installed components such as a bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy gauge access, and is fully charged for 15 feet of tubing. Additional features include a contactor with a lug connection, ground lug connection, extended-life capacitors, and it is AHRI Certified and ETL Listed.

The unit features a removable grille-style top design that complies with UL 60335-2-40 standards. It is protected by a steel louver coil guard and housed in a heavy-gauge galvanized-steel cabinet with an attractive Architectural Gray powder-paint finish, approved for 500-hour salt-spray exposure. The design includes top and side maintenance access. When properly anchored, the unit meets the 2023 Florida Building Code requirements for hurricane-type winds.

  • High-efficiency scroll compressor
  • R32 Freon,  meets the 2025 refrigerant change guidelines
  • Smart-Shift technology for quiet defrost
  • Enhanced aluminum fin coil with 5 mm (1.5T-3.5 Ton) and 7 mm diameter tubes (4.0-5.0 Ton)
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler
  • High- and low-pressure switches
  • Service valves with easy gauge access
  • Fully charged for 15 feet of tubing
  • Contactor with lug connection and ground lug
  • Extended-life capacitors
  • AHRI Certified; ETL Listed
  • Removable grille-style top (UL 60335-2-40 compliant)
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-paint finish (500-hour salt-spray approved)
  • Top and side maintenance access
  • Meets 2023 Florida Building Code for hurricane-type winds when properly anchored

Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser Multi-Family R32 Single Stage

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Product Benefits (ACST24LU1305)

  • Factory installed TXV for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified
  • Suitable for both front and bottom return
  • Factory installed casing
  • UL 2-40 cerified
  • ETL Listed
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access

Product Features (ACST24LU1305)

  • Factory installed TXV for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified
  • Suitable for both front and bottom return
  • Factory installed casing
  • UL 2-40 cerified
  • ETL Listed
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features (ACST24LU1305)

  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • Suitable for both front and bottom return
  • Factory installed casing

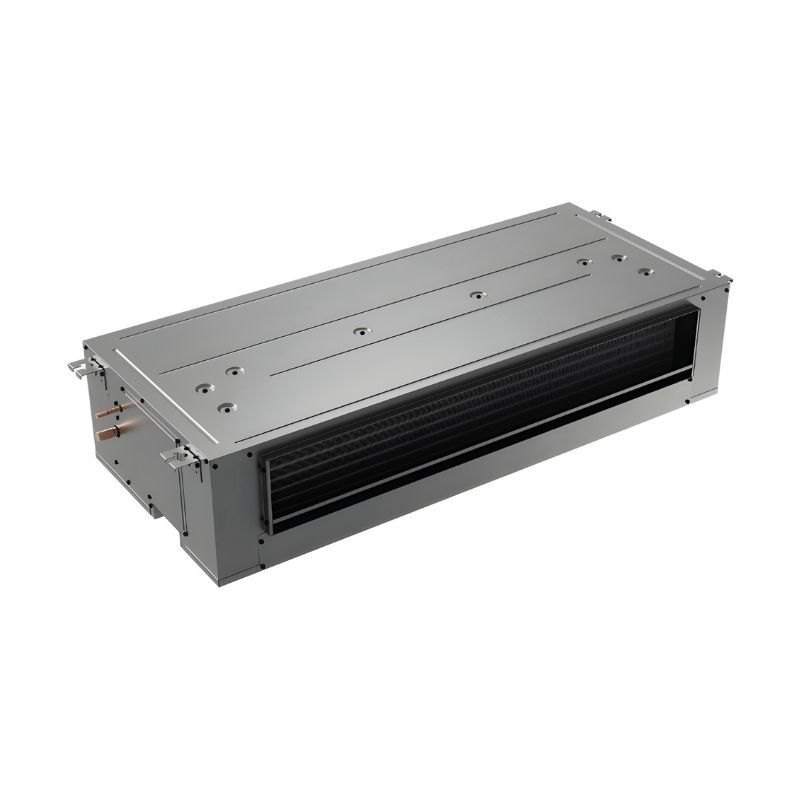

Technical Specifications - ACST24LU1305

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family ACST
series name ACST
family description Ceiling mount Air HAndler
installation type Ducted Ceiling Mounted
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051719491
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 24000 Btu/H
produced in us Yes
indoor blower fla 2 A
max overcurrent protection 30/30 A
max voltage 253 V
min circuit amps 25.1/28.5 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 6.7 in
dimensions blower width 8.06 in
dimensions unit depth 22.2 in
dimensions unit height 11 in
dimensions unit width 54-1/5 in
evap coil face area ft 2.34
evap motor rpm 1550 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 97 lb
blower motor horsepower 1/4 metric hp
tonnage 2
tonnage range 2
factory std refrigerant charge 0 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 51.50 in
dimensions case height 10.00 in
dimensions case width 23.00 in
dimensions distribution unit depth 51.5 in
dimensions distribution unit height 10 in
dimensions distribution unit width 23 in
dimensions pallet depth 52.00 in
dimensions pallet height 45.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 51.50 in
dimensions shipping unit height 10.00 in
dimensions shipping unit width 23.00 in
distribution shipping volume unit 11845 in³
shipping volume unit 11845.000 in³
truck factor 0.0000
volume case 11845.000 in³
volume distribution shipping unit 11845 in³
weight case 85.090 lb
weight distribution shipping unit 85.09 lb
weight shipping unit 85.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GLZS4MA2410)

  • Meets the 2023 M1 Test Standards

Product Features (GLZS4MA2410)

  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
  • Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contractor with lug connection
  • Ground lug connection
  • Capacitors with extended life

Cabinet Features (GLZS4MA2410)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).

Technical Specifications - GLZS4MA2410

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZS4M
series name GLZSM4
model efficiency 14.3 SEER2
family description Energy-Efficient Multi-Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 3 Tons
installation type Ducted
communication feature No
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051689701
item stocking unit of measure uom EA
pallet qty 2
eer2 hsvtc 12.5
energy star certified No
heating capacity nominal 24000 Btu/H
hspf 2 hsvtc 7.8
seer 2 hsvtc 15.2
produced in us No
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 20 A
max voltage 253 V
min circuit amps 13.8 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 10.2 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 32.5 in
dimensions unit width 29 in
expansion device TXV
sound pressure high cooling 69 dBA
weight unit 160 lb
cooling capacity rated 23800 Btu/H
heating capacity rated 22000 Btu/H
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 70 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 34.50 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 34.5 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 34.50 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 34.50 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 31567.5 in³
shipping volume unit 31567.500 in³
truck factor 0.0000
volume case 31567.500 in³
volume distribution shipping unit 31567.5 in³
weight case 170.000 lb
weight distribution shipping unit 170 lb
weight shipping unit 170.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.

Customer Reviews Reviews & ratings Open verified customer feedback for this product.
