Home Goodman

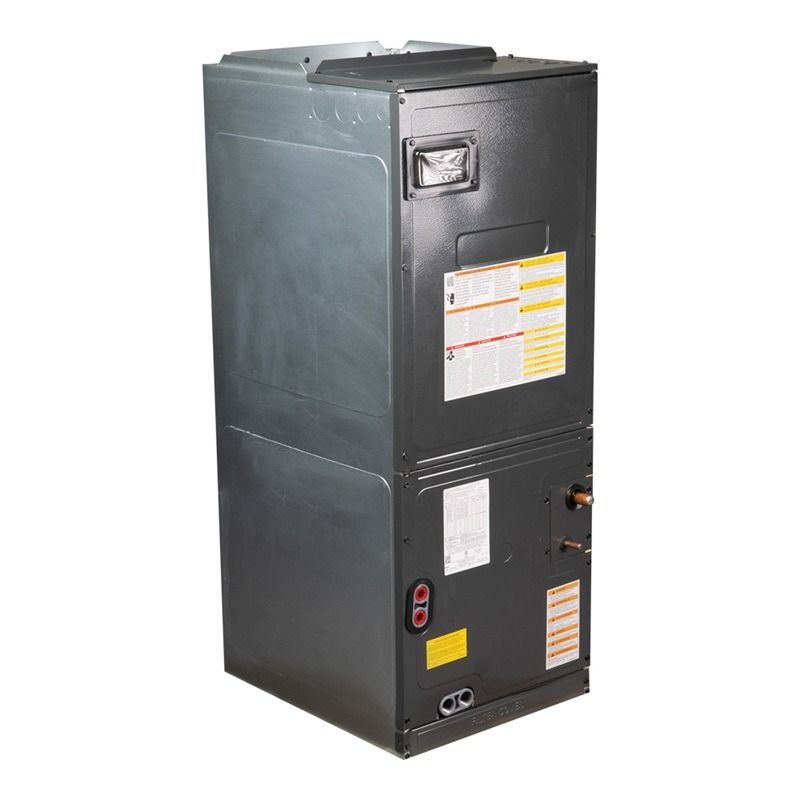

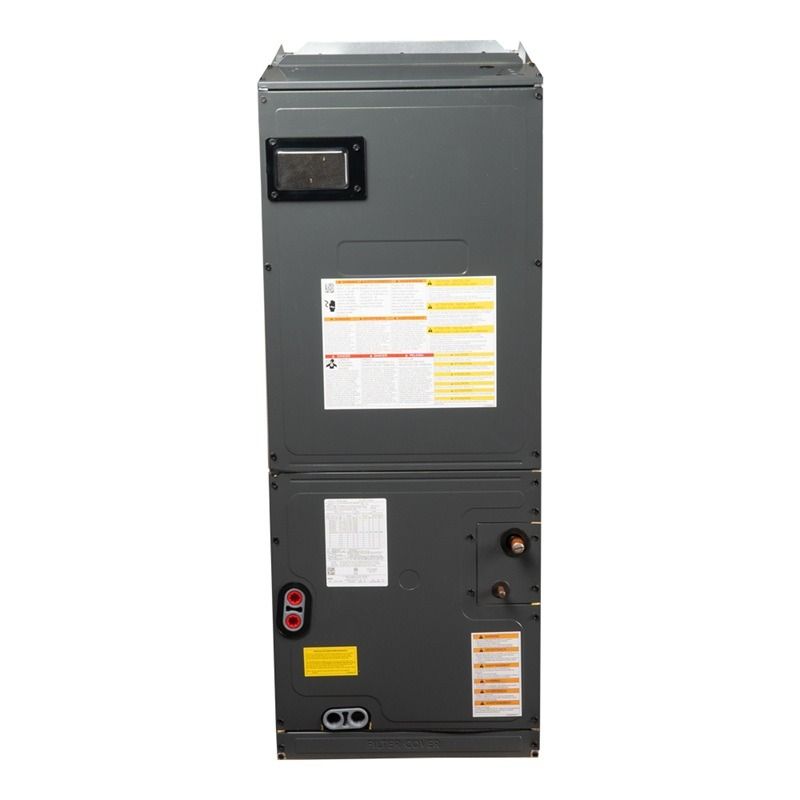

Goodman 2.5 Ton Multi-Positional Air Handler - R32

SKU AMST30BU1300 Multi Position Air Handlers208-240V
$1,635.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 2.5 Ton Multi-Positional Air Handler - R32

Product Overview

OVERVIEW

The Goodman AMST30BU1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

QUICK FACTS

  • 2.5 ton air handler
  • Electric heat compatible
  • Optimized for use with R-32 refrigerant
  • Multi-speed, direct drive ECM blower motor
  • Multi-positional (upflow, downflow, or horizontal)

2.5 Tons

The Goodman AMST30BU1300 air handler is rated for an output of 2.5 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.

Warranty

The AMST30BU1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.

Durability and Reliability

With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMST30BU1300 air handler is durable in design, making it a reliable solution for your home.

Installation and Maintenance

The Goodman AMST30BU1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.

Enhanced Comfort

The AMST30BU1300 air handler lives up to Goodman's comfort expectations with its multi-speed ECM motor, which provides a more precise and efficient temperature control.

Product Benefits

  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, 9-speed ECM motor
  • Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • AHRI Certified
  • ETL Listed

Product Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, 9-speed ECM blower motor
  • Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  • All-aluminum evaporator coil with high-performance coated fin stock
  • Coil mounting track for quick repositioning
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified
  • ETL listed

Cabinet Features

  • Rigid SmartFrame cabinet
  • Horizontal or vertical configuration capabilities
  • 21” depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Technical Specifications - AMST30BU1300

sku AMST30BU1300
weight (in lbs) 129.000000
brand/manufacturer Goodman
product features New Refrigerant Compliant
blower motor Multi-Speed Direct Drive ECM Motor
maximum cfm 1185
horsepower 0.75 HP
electric backup heat capabilities (optional) 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts
refrigerant R32
liquid valve size 3/8"
suction valve size 3/4"
electrical 208/240v 1 Phase 60Hz
max breaker size 15 Amps
min. breaker size 5.6 Amps
tonnage 2.5 Ton
connection 3/4" FPT
height 53 7/16"
width 17 9/16"
depth 21"
warranty 10 Years Parts with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AMST_32
series name AMST
family description Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
installation type Ducted Multi-position
communication feature No
export control classification number eccn EAR99
universal product code upc 663051689169
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
cooling capacity nominal 36000 Btu/H
produced in us Yes
indoor blower fla 4.5 A
max overcurrent protection 15 A
max voltage 253 V
min circuit amps 5.6 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 6 in
dimensions unit depth 21 in
dimensions unit height 53-7/16 in
dimensions unit width 17-9/16 in
evap motor rpm 1050 r/min
expansion device TXV
motor speed type Nine Speed ECM
number of speeds 9
weight unit 129 lb
blower motor horsepower 3/4 metric hp
tonnage range 2;5
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 23.00 in
dimensions case height 57.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 23 in
dimensions distribution unit height 57.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 46.00 in
dimensions pallet height 57.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 23.00 in
dimensions shipping unit height 57.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 24466.25 in³
shipping volume unit 24466.250 in³
truck factor 0.0000
volume case 24466.250 in³
volume distribution shipping unit 24466.25 in³
weight case 131.000 lb
weight distribution shipping unit 131 lb
weight shipping unit 131.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
