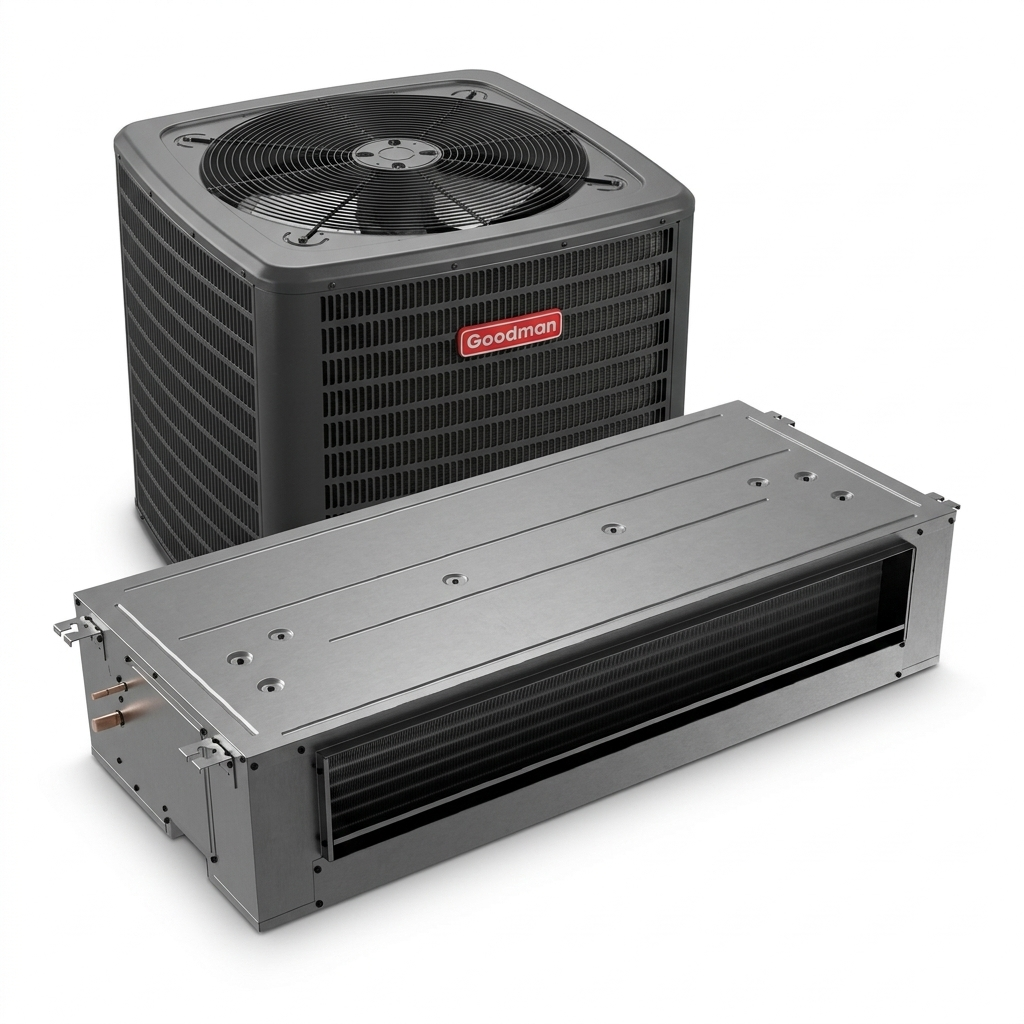

Product Overview
Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACST series Ceiling Mounted Air Handler is designed for use with R-32 refrigerant and intended for homes where a traditional air handler will not fit.
Features
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- AHRI Certified; ETL Listed
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- 10 Year Parts Limited Warranty with online registration
OVERVIEW
At one of the higher efficiencies on the market, the Goodman GLZS5BA3010 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GLZS5BA3010 is considered a good all-around choice for many applications.
Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Designed to cover a small to medium house in average climates
- 2.5 Ton, 15.2 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
2.5 Ton
The Goodman GLZS5BA3010 heat pump is rated for 2.5 tons, which is normally enough to cover a small to medium house in average climates. A heat pump coil or air handler is required for this condenser to function, and some indoor units will be larger in tonnage than this condenser in some bundles to maintain the unit's overall efficiency.
15.2 SEER2
With its high-end 15.2 SEER2 efficiency rating, the GLZS5BA3010 is designed to save you money over the entire life of the unit. 15.2 SEER2 units will save you about 12% more in energy bills over a 14.3 SEER2 condenser, making this upgrade a smart upgrade to save you money over time with a small increase in your initial investment in the condenser.
Efficiency Choices for Every Climate
Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 39% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.
Warranty
The GLZS5BA3010 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet on the GLZS5BA3010 heat pump is designed to be durable in harsh conditions. With its baked-on polyester coat of paint, the unit is approved for up to 500 hours of salt spray. The enhanced durability and paint coat makes the GLZS5BA3010 compliant with 2010 Florida building codes for unit integrity for hurricane-like winds when the unit is properly anchored. For reliability, there is also a built-in bi-flow filter drier that lowers general wear-and-tear on the internals of the unit.
Installation and Maintenance
In order to provide a faster and less expensive installation, the Goodman GLZS5BA3010 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels - one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.
Comfort in Mind
The Goodman company has always promoted enhanced comfort, higher efficiency, and lower cost to all of its units. With SmartShift technology and an enhanced sound insulation structure, the GLZS5BA3010 is whisper-quiet, allowing Goodman to continue to follow its goals in achieving the best comfort levels possible at a low cost.
Why Buy at
is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.
Product Benefits (ACST30LU1306)
- Factory installed TXV for heat pump and cooling-only applications
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- AHRI Certified
- Suitable for both front and bottom return
- Factory installed casing
- UL 2-40 cerified
- ETL Listed
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
Product Features (ACST30LU1306)
- Factory installed TXV for heat pump and cooling-only applications
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- AHRI Certified
- Suitable for both front and bottom return
- Factory installed casing
- UL 2-40 cerified
- ETL Listed
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features (ACST30LU1306)
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- Suitable for both front and bottom return
- Factory installed casing

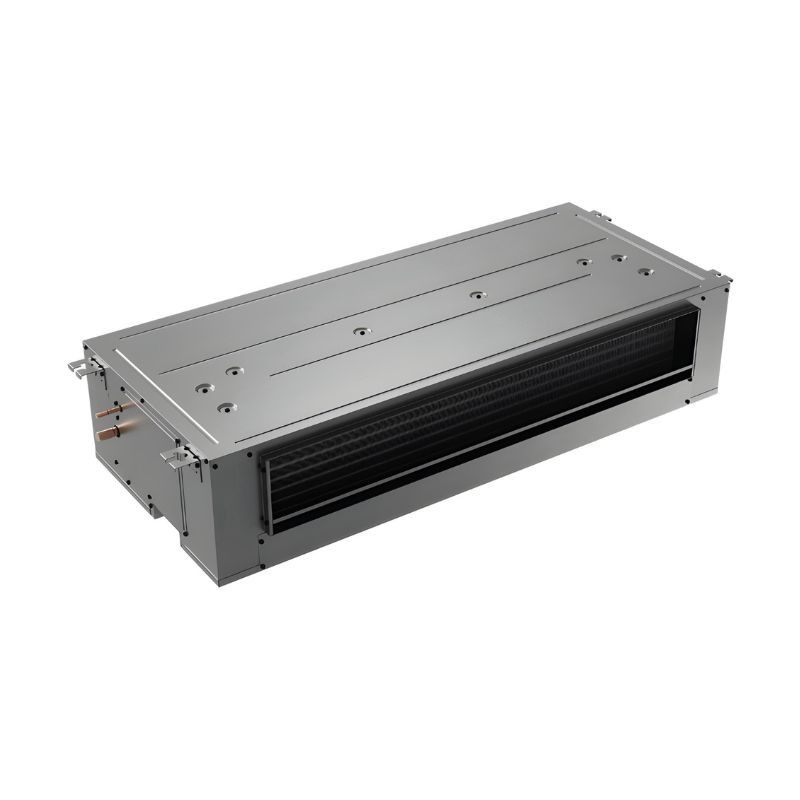

Technical Specifications - ACST30LU1306
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | ACST |
| series name | ACST |
| family description | Ceiling mount Air HAndler |
| installation type | Ducted Ceiling Mounted |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051719538 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| us hts code | 8415.90.8025 |
| cooling capacity nominal | 30000 Btu/H |
| produced in us | No |
| indoor blower fla | 2 A |
| max overcurrent protection | 30/35 A |
| max voltage | 253 V |
| min circuit amps | 29.6/33.8 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| dimensions blower diameter | 6.7 in |
| dimensions blower width | 8.06 in |
| dimensions unit depth | 22.2 in |
| dimensions unit height | 11 in |
| dimensions unit width | 54-1/5 in |
| evap coil face area ft | 2.34 |
| evap motor rpm | 1550 r/min |
| expansion device | TXV |
| motor speed type | Multi Speed ECM |
| number of speeds | 5 |
| weight unit | 97 lb |
| blower motor horsepower | 1/4 metric hp |
| tonnage | 2.5 |
| tonnage range | 2.5 |
| factory std refrigerant charge | 0 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 51.50 in |
| dimensions case height | 10.00 in |
| dimensions case width | 23.00 in |
| dimensions distribution unit depth | 51.5 in |
| dimensions distribution unit height | 10 in |
| dimensions distribution unit width | 23 in |
| dimensions pallet depth | 52.00 in |
| dimensions pallet height | 45.00 in |
| dimensions pallet width | 46.00 in |
| dimensions shipping unit depth | 51.50 in |
| dimensions shipping unit height | 10.00 in |
| dimensions shipping unit width | 23.00 in |
| distribution shipping volume unit | 11845 in³ |
| shipping volume unit | 11845.000 in³ |
| truck factor | 0.0000 |
| volume case | 11845.000 in³ |
| volume distribution shipping unit | 11845 in³ |
| weight case | 85.090 lb |
| weight distribution shipping unit | 85.09 lb |
| weight shipping unit | 85.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GLZS5BA3010)
- Meets the 2023 M1 Test Standards
Product Features (GLZS5BA3010)
- High-efficiency scroll compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
- Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
- Single-speed PSC condenser fan motor
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Fully enclosed contactor
- Ground lug connection
- Capacitor with extended life
Cabinet Features (GLZS5BA3010)
- Removable grille style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

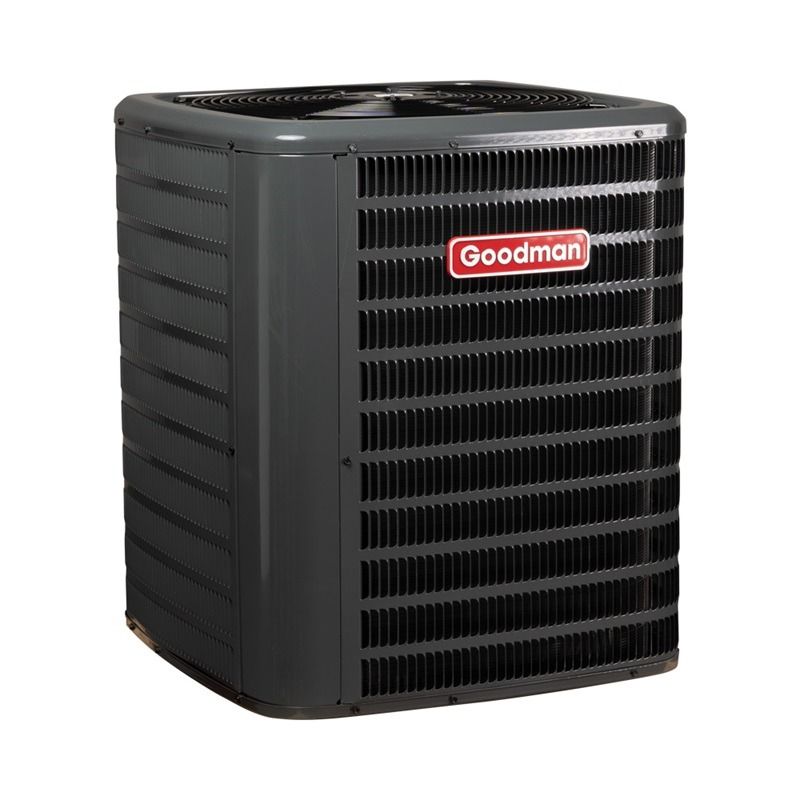

Technical Specifications - GLZS5BA3010
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLZS5B |
| series name | GLZS5B |
| model efficiency | 15.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16 SEER2 & 8.2 HSPF2 |
| installation type | Ducted |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051737655 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 12.5 |
| energy star certified | Yes |
| heating capacity nominal | 30000 Btu/H |
| hspf 2 hsvtc | 7.8 |
| hspf ducted | 7.8 |
| seer 2 hsvtc | 15.2 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -20 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 25 A |
| min circuit amps | 17.1 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 12.9 A |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 39.5 in |
| dimensions unit width | 35-1/2 in |
| expansion device | TXV |
| sound pressure high cooling | 73 dBA |
| weight unit | 215 lb |
| heating capacity rated | 28600 Btu/H |
| tonnage | 2.5 |
| additional refrigerant charge oz ft | 0.55 lb |
| factory std refrigerant charge | 94 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 42.00 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 57498 in³ |
| shipping volume unit | 57498.000 in³ |
| truck factor | 0.0000 |
| volume case | 57498.000 in³ |
| volume distribution shipping unit | 57498 in³ |
| weight case | 229.000 lb |
| weight distribution shipping unit | 229 lb |
| weight shipping unit | 229.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- ACST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- ACST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- ACST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- ACST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
Loading accessories…
We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.
SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.
Shipping & Delivery
We will prepare your order within 24–48 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION
Please be informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery.
To AVOID delays, please make sure the phone number in your order details is accurate and one where you can be reached. You may also contact the carrier directly using your tracking number to schedule your delivery.
It is your responsibility to ensure a safe and secure delivery environment. We are not liable for any packages that are stolen or lost after delivery is confirmed.
Please verify your shipping address carefully. Changes to your shipping address after the freight has been shipped may result in additional fees of 15% or more, depending on freight weight and dimensions.
SMALLWARES INFORMATION
Smaller items such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves may be shipped via FedEx without a signature requirement if ordered individually.
It is your responsibility to ensure a safe delivery location. We are not liable for packages lost or stolen after delivery confirmation. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING
Please inspect your boxes carefully upon delivery. Shipments should arrive shrink-wrapped and on a pallet. If you notice any damage or signs of mishandling (such as a crushed box or forklift puncture), write comments on the delivery receipt before signing, even if the damage appears minor.
Contact us immediately if any issues arise so we can assist you promptly.
SMS Delivery Notifications
If you opted into SMS notifications, we may send you order updates or delivery reminders by text message. Message frequency may vary. Message and data rates may apply. Text STOP to opt out. Text HELP for assistance.
For more details, see our Privacy Policy.
Loading technical data…
