A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

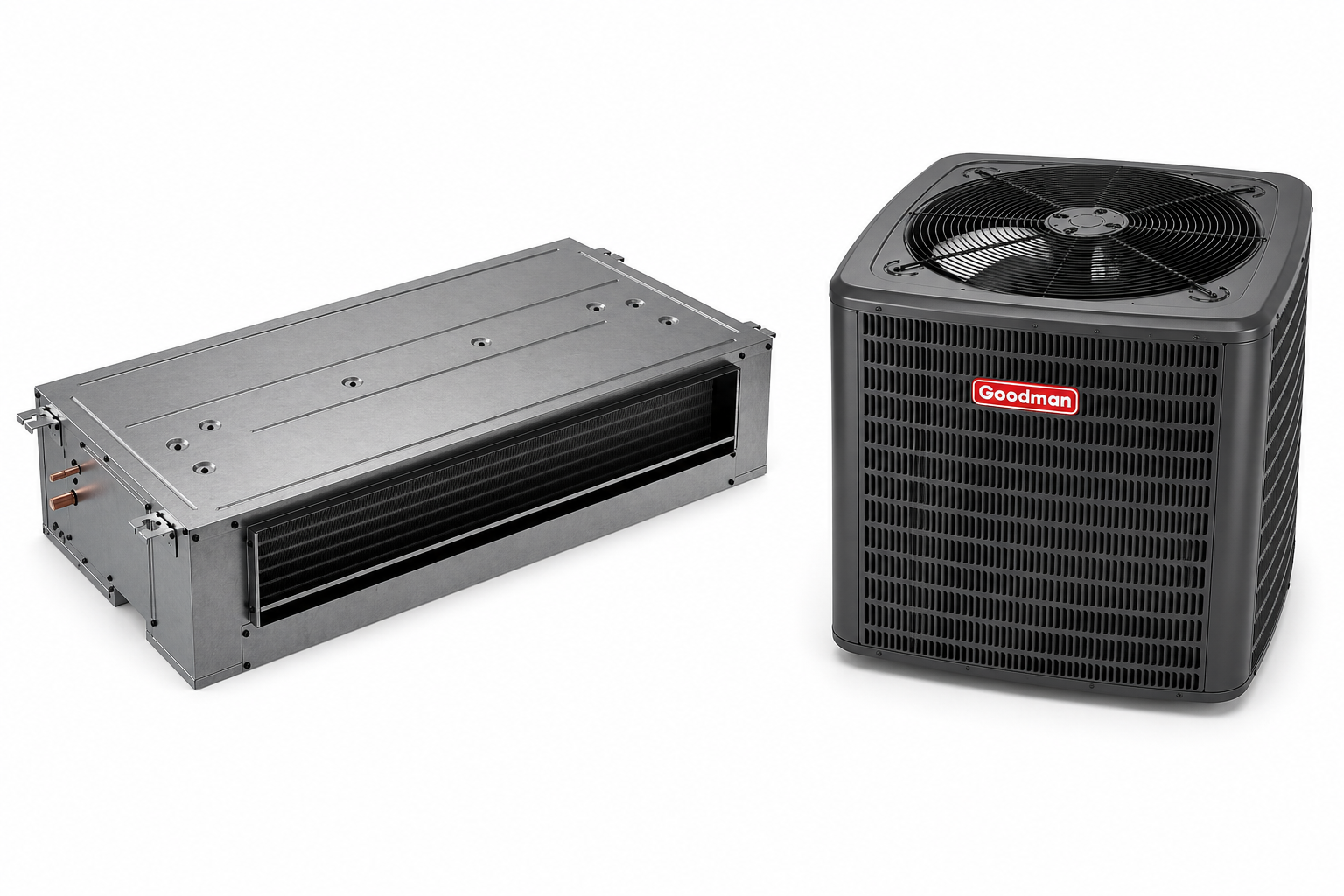

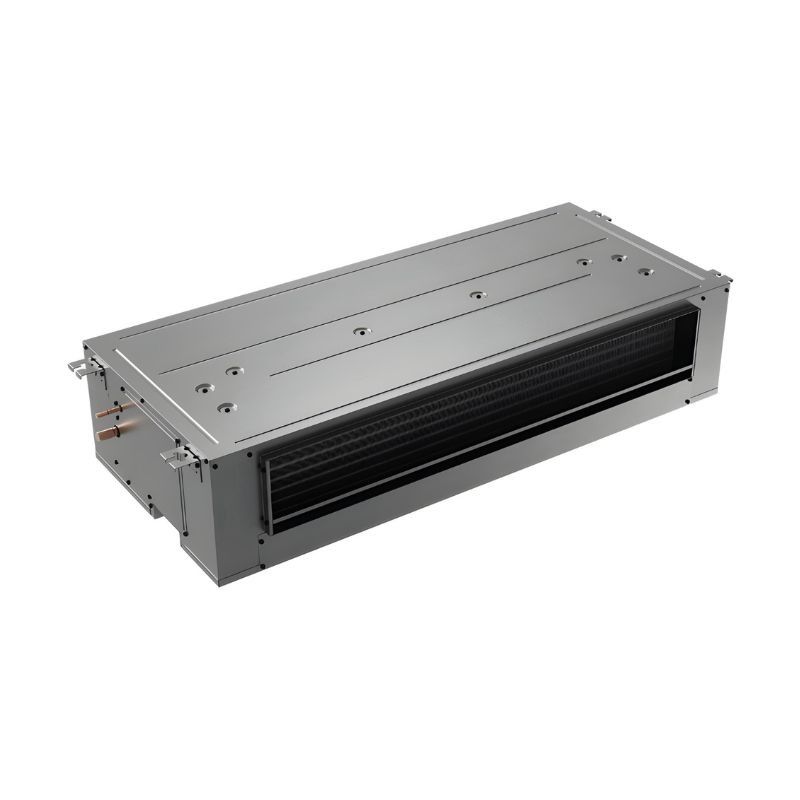

Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACST series Ceiling Mounted Air Handler is designed for use with R-32 refrigerant and intended for homes where a traditional air handler will not fit.
Features
Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA3010 is no exception, with its durability, reliability, and one of the highest efficiencies available.

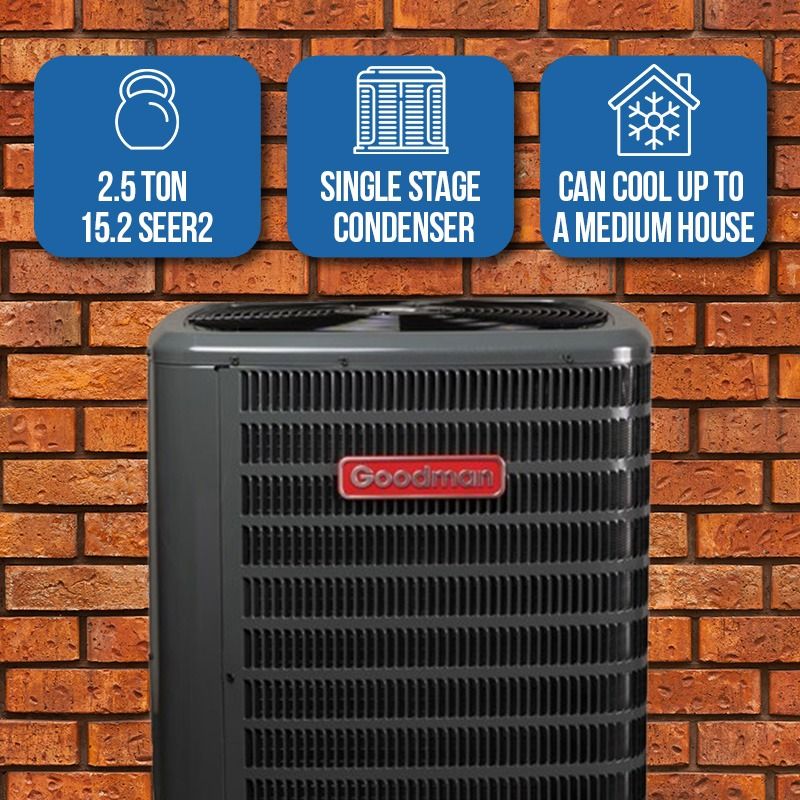

The GLXS5BA3010 AC-only condenser is 2.5 tons, normally enough to cover up to a small to medium house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
The GLXS5BA3010 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
The GLXS5BA3010 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA3010 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
For easier maintenance, Goodman designed the GLXS5BA3010's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA3010 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Superior comfort has always been the primary goal for Goodman. The GLXS5BA3010 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | ACST |
| series name | ACST |
| family description | Ceiling mount Air HAndler |
| installation type | Ducted Ceiling Mounted |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051719538 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| us hts code | 8415.90.8025 |
| cooling capacity nominal | 30000 Btu/H |
| produced in us | No |
| indoor blower fla | 2 A |
| max overcurrent protection | 30/35 A |
| max voltage | 253 V |
| min circuit amps | 29.6/33.8 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| dimensions blower diameter | 6.7 in |
| dimensions blower width | 8.06 in |
| dimensions unit depth | 22.2 in |
| dimensions unit height | 11 in |
| dimensions unit width | 54-1/5 in |
| evap coil face area ft | 2.34 |
| evap motor rpm | 1550 r/min |
| expansion device | TXV |
| motor speed type | Multi Speed ECM |
| number of speeds | 5 |
| weight unit | 97 lb |
| blower motor horsepower | 1/4 metric hp |
| tonnage | 2.5 |
| tonnage range | 2.5 |
| factory std refrigerant charge | 0 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 51.50 in |
| dimensions case height | 10.00 in |
| dimensions case width | 23.00 in |
| dimensions distribution unit depth | 51.5 in |
| dimensions distribution unit height | 10 in |
| dimensions distribution unit width | 23 in |
| dimensions pallet depth | 52.00 in |
| dimensions pallet height | 45.00 in |
| dimensions pallet width | 46.00 in |
| dimensions shipping unit depth | 51.50 in |
| dimensions shipping unit height | 10.00 in |
| dimensions shipping unit width | 23.00 in |
| distribution shipping volume unit | 11845 in³ |
| shipping volume unit | 11845.000 in³ |
| truck factor | 0.0000 |
| volume case | 11845.000 in³ |
| volume distribution shipping unit | 11845 in³ |
| weight case | 85.090 lb |
| weight distribution shipping unit | 85.09 lb |
| weight shipping unit | 85.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS5 |
| series name | GLXS5B |
| model efficiency | 15.2 SEER2 |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735484 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 72 °F |
| rated cooling condition room db | 80 °F |
| rated cooling condition room wb | 67 °F |
| compressor rla | 11.5 A |
| max overcurrent protection | 25 A |
| min circuit amps | 15.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 39.5 in |
| dimensions unit width | 35-1/2 in |
| sound pressure high cooling | 72.5 dBA |
| tonnage | 2.5 |
| factory std refrigerant charge | 87 oz |
| pipe size gas | 3/4 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 79 ft |
| standard line set length vertical | 50 ft |
| valve size liquid o d | 3/8 in |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 42.00 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 57498 in³ |
| shipping volume unit | 57498.000 in³ |
| truck factor | 0.0000 |
| volume case | 57498.000 in³ |
| volume distribution shipping unit | 57498 in³ |
| weight case | 217.000 lb |
| weight distribution shipping unit | 217 lb |
| weight shipping unit | 217.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Technical Data
Loading technical data…
Product FAQs
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
