Click image to zoom
A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

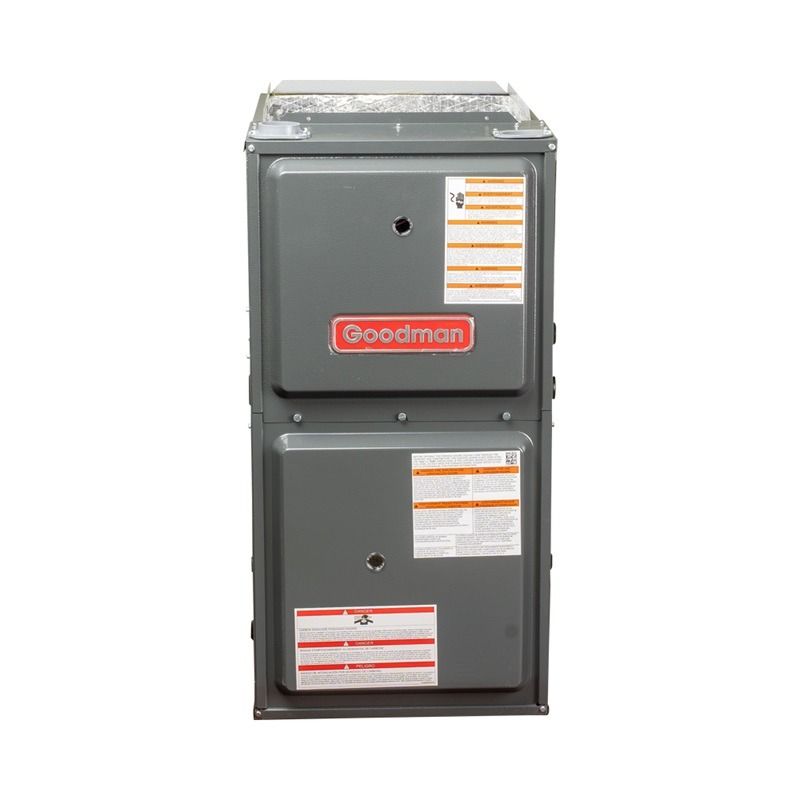

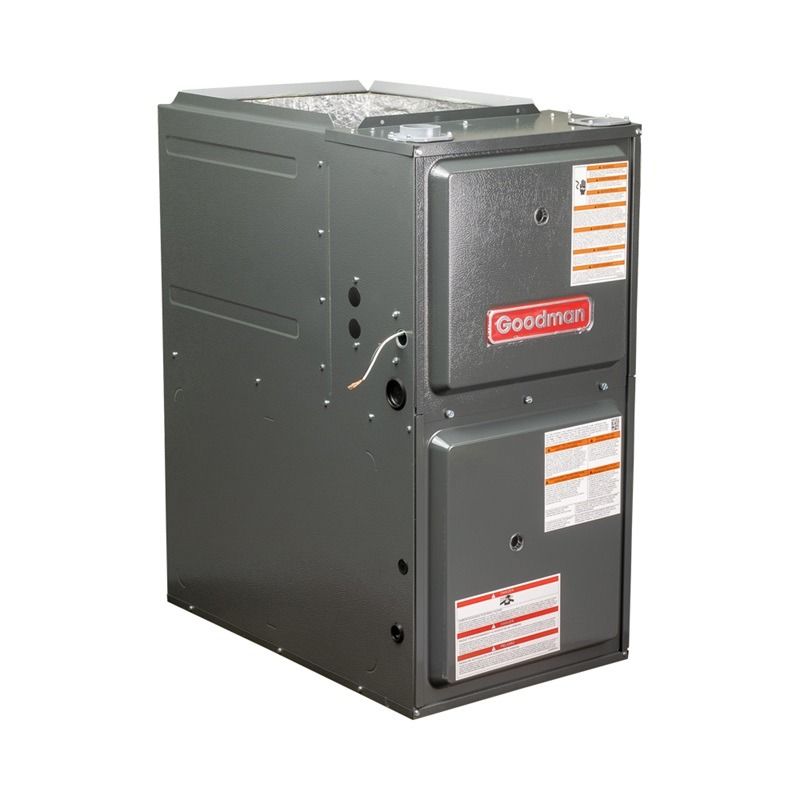

As a high-efficiency system, the GR9T961005CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GR9T961005CN is a good way to go if you want to lower your gas bill.
Heating up to a medium to large house in normal conditions, the GR9T961005CN Goodman gas furnace has an input of 100,000 BTU's and an output of 96,000 BTU's. The output in this case is determined by taking the input times the efficiency rating.
The GR9T961005CN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.
With a two stage burner, the GR9T961005CN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.
With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
The exterior casing on the GR9T961005CN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.
The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GR9T961005CN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GR9T961005CN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.
Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.
| sku | GR9T961005CN |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GR9T96 |
| series name | GR9T96 |
| short description | Goodman 96 % AFUE Gas Furnace Multi Speed ECM, Two Stage |
| family description | Two-Stage Multi-Speed ECM Gas Furnace up to 96% AFUE |
| product description | 96% multi spd ecm uf fur |
| cooling btu | 60,000 |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 14.4 A |
| zone compatibility | Multi Zone |
| height | 34-1/2 in |
| width | 21 in |
| depth | 28-7/8 in |
| weight | 140 lb |
| warranty | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 0.96 |
| product class pim | Gas Furnace |
| model efficiency | 0.96 |
| installation type | Ducted |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051686762 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 96 % |
| cooling capacity nominal | 60000 Btu/H |
| installation configuration | Upflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 35-65 °F |
| temperature rise range low fire | 30-60 °F |
| max overcurrent protection | 25 A |
| min circuit amps | 14.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1699 ft³/min |
| air flow rate low heating | 1138 ft³/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 10 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 21 in |
| heat exchanger type | Gas |
| motor speed type | Multi Speed ECM |
| nox burner type | Low NOx |
| weight unit | 140 lb |
| blower motor horsepower | 1 metric hp |
| high fire input capacity | 100000 Btu |
| high fire output capacity | 97000 |
| low fire input capacity | 70000 |
| low fire output capacity | 67900 |
| gas valve type | Two Stage |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 22.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 22 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 44.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 22.00 in |
| distribution shipping volume unit | 25410 in³ |
| shipping volume unit | 25410.000 in³ |
| truck factor | 0.0000 |
| volume case | 25410.000 in³ |
| volume distribution shipping unit | 25410 in³ |
| weight case | 141.000 lb |
| weight distribution shipping unit | 140.09 lb |
| weight shipping unit | 141.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
