Home Aurora, Hyper
South Mini Splits | Daikin Hyper Heat Aurora 3-Zone Ductless Mini Split AC & Heat Pump w/ Drain Heat Pan 40000 BTU (7K+9K+18K), Wall Mount Units, 230V - R32

Click image to zoom

Aurora, Hyper

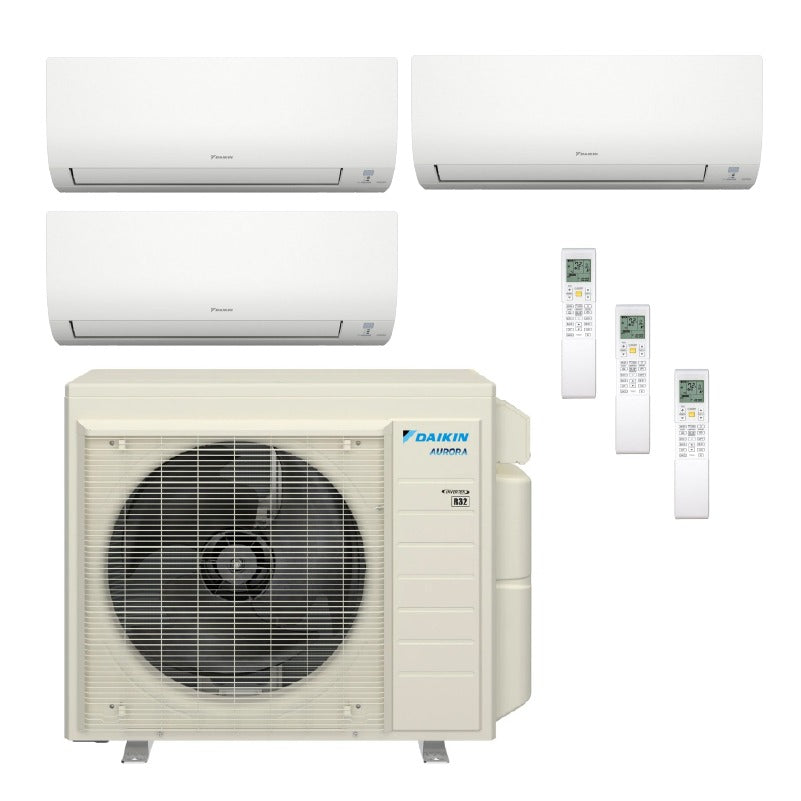

Daikin Hyper Heat Aurora 3-Zone Ductless Mini Split AC & Heat Pump w/ Drain Heat Pan 40000 BTU (7K+9K+18K), Wall Mount Units, 230V - R32

SKU CTXV07AVJU9 + FTXV09AVJU9 + FTXV18AVJU9 + 5MXTH40AVJU9 Wall Mount20.0 SEER2208-230V
Leave a Review
$8,950.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

Daikin
Support Number
(866) 588-6454
Visit brand site
Product Overview Full product description Read the longer product copy, features, and application notes.
Daikin
Daikin Hyper Heat Aurora 3-Zone Ductless Mini Split AC & Heat Pump w/ Drain Heat Pan 40000 BTU (7K+9K+18K), Wall Mount Units, 230V - R32

Product Overview

This Daikin 3 zone-Zone Aurora,Hyper System offers maximum efficiency and is built for the most extreme hot or cold climates. 5MXTH40AVJU9 + CTXV07AVJU9 + FTXV09AVJU9 + FTXV18AVJU9 is the perfect solution for year-round heating and cooling in up to 3 zone spaces.

  • Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
  • Variable Speed Inverter Compressor
  • Cooling Range 14° - 115° F
  • Continuous heating operation as low as -13F° (-25°C)
  • Quick and easy installation
  • Precision temperature control for individual rooms
  • Space-saving design
  • Quiet operation
  • Intelligent Defrost Mode

Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler - R32 | 230V

The Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler is a versatile and energy-efficient solution for single zone and multi zone heating and cooling systems. Designed to pair with up to 4-ton heat pumps, this unit delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2, ensuring exceptional energy savings and reliable performance for both residential and light commercial applications.

Key Features:

Flexible Multi-Zone Operation:

  • Supports 2, 3, 4, and 5-zone multi-port systems for tailored comfort
  • Operates efficiently within a wide range of conditions:
    • MXM Heating: 5°F to 60°F
    • MXT Heating: -13°F to 60°F
    • Cooling: 14°F to 115°F
  • Delivers 100% heating capacity at 5°F (MXT Enhanced Capacity only)
  • Delivers 100% cooling capacity at 104°F (MXT Capacity only)

Exceptional Energy Efficiency and Performance:

  • Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for superior energy efficiency
  • Precharged for up to 131 ft of liquid line, streamlining installation

Advanced Technology:

  • Self-diagnostics with a digital display for easy maintenance and troubleshooting
  • Features Auto Restart to resume operation seamlessly after power outages
  • Includes Auto Changeover for effortless transition between heating and cooling

Quiet and Durable Design:

  • Indoor sound pressure as low as 24 dB(A) for whisper-quiet operation
  • Outdoor sound pressure as low as 52 dB(A), ensuring minimal noise
  • Anti-corrosion treatment on the heat exchanger enhances durability and extends lifespan

User-Friendly Features:

  • Operates with outdoor unit quiet mode for reduced noise levels

Warranty Coverage:

  • Limited 12-Year Parts Warranty ensures reliable long-term performance
  • Extended 12-Year Labor Warranty provides comprehensive coverage

The Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler combines energy efficiency, advanced technology, and a quiet design to provide superior comfort and reliability. Perfect for multi-zone systems, it delivers optimal performance in all seasons, making it an excellent choice for year-round comfort.

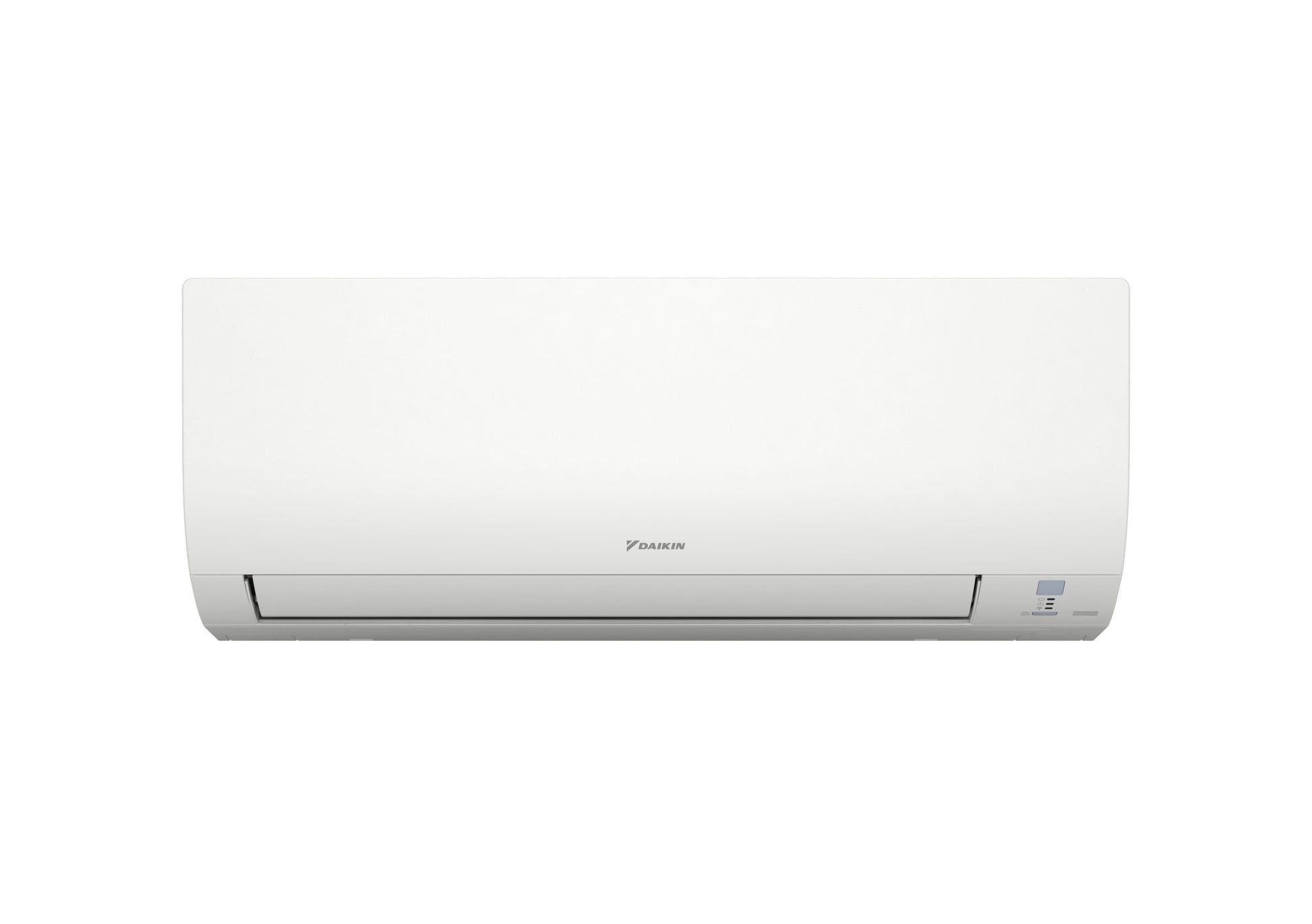

Daikin Aurora 9,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 9,000 BTU Wall Mount Air Handler is an advanced, energy-efficient heating and cooling solution for single-zone applications. With R32 refrigerant, a powerful heat pump, and built-in WiFi functionality, this unit delivers reliable comfort even in extreme temperatures while maximizing energy efficiency and performance.

Key Features:

Exceptional Heating & Cooling Efficiency:

  • Supports 0.75 Ton to 2 Ton Heat Pump Systems
  • Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
  • Capable of maintaining:
    • 100% heating capacity at 5°F
    • 100% cooling capacity at 104°F
  • Operates effectively within a wide temperature range:
    • Heating: -13°F to 64.4°F
    • Cooling: 50°F to 114.8°F

Advanced Technology:

  • Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
  • Features Self Diagnostics with a digital display for simplified maintenance
  • Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
  • Equipped with Auto Fan Speed Control for consistent and optimized airflow

Durable and Quiet Design:

  • Anti-Corrosion Treatment on the heat exchanger enhances durability and longevity
  • Quiet operation for both indoor and outdoor units ensures minimal noise during use

Flexible Installation and Operation:

  • Precharged for up to 49 ft of liquid line, streamlining installation
  • Max piping capabilities:
    • 09/12 MBH models: 66 ft length, 49 ft height
    • 15 MBH models: 98 ft length, 66 ft height
    • 18/24 MBH models: 99 ft length, 66 ft height
  • Low ambient cooling down to 5°F with field setting and air adjustment grille

User-Friendly Features:

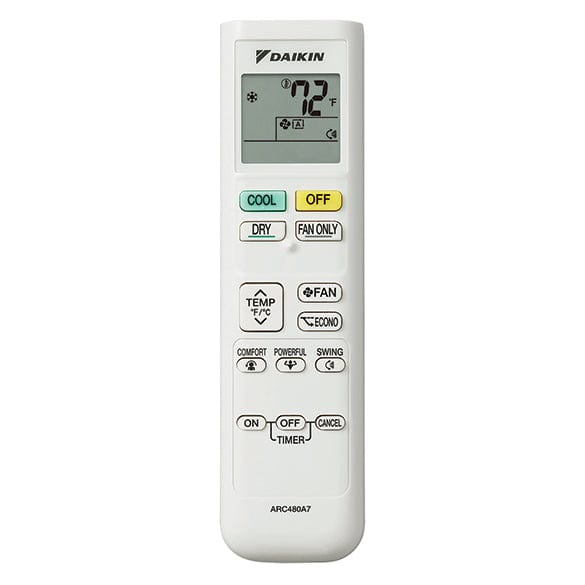

  • Includes a Wireless Backlit IR Remote Controller for convenient operation
  • Auto Restart functionality resumes operation after power outages

Warranty Coverage:

  • Limited 12-Year Parts Warranty ensures reliable performance

The Daikin Aurora 9,000 BTU Wall Mount Air Handler combines advanced technology, durable design, and superior energy efficiency. Perfect for single-zone systems, it delivers year-round comfort even in extreme temperatures, making it an excellent choice for residential and light commercial applications.

Daikin Aurora 18,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 18,000 BTU Wall Mount Air Handler is a high-performance, energy-efficient solution for single zone and multi zone heating and cooling applications. Featuring advanced R32 refrigerant, built-in WiFi, and robust heat pump technology, this unit ensures reliable comfort in extreme temperatures while maintaining quiet operation and exceptional energy efficiency.

Key Features:

Exceptional Heating & Cooling Performance:

  • Supports 0.75 Ton to 2 Ton Heat Pump Systems
  • Delivers up to 21 SEER2 and up to 10.5 HSPF2 for superior energy efficiency
  • Capable of:
    • 100% heating capacity at 5°F
    • 100% cooling capacity at 104°F
  • Operates within a wide temperature range:
    • Heating: -13°F to 64.4°F
    • Cooling: 50°F to 114.8°F

Advanced Technology:

  • Built-in WiFi (wall mount unit only) for seamless remote control and connectivity
  • Self-diagnostics with a digital display for simplified maintenance and troubleshooting
  • Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
  • Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow

Durable and Quiet Design:

  • Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
  • Quiet operation for both indoor and outdoor units minimizes noise disruptions

Flexible Installation and Operation:

  • Precharged for up to 49 ft of liquid line, simplifying installation
  • Max piping capabilities:
    • 09/12 MBH models: 66 ft length, 49 ft height
    • 15 MBH models: 98 ft length, 66 ft height
    • 18/24 MBH models: 99 ft length, 66 ft height
  • Low ambient cooling capability down to 5°F with field setting and air adjustment grille

User-Friendly Features:

  • Includes a Wireless Backlit IR Remote Controller for convenient operation
  • Features Auto Restart functionality to resume operation automatically after power interruptions

Warranty Coverage:

  • Limited 12-Year Parts Warranty ensures long-term reliability
  • Extended 12-Year Labor Warranty provides comprehensive protection

The Daikin Aurora 18,000 BTU Wall Mount Air Handler is the perfect combination of energy efficiency, advanced technology, and reliable performance. Ideal for single zone and multi zone systems, it delivers year-round comfort in extreme temperatures, making it a superior choice for residential and light commercial applications.

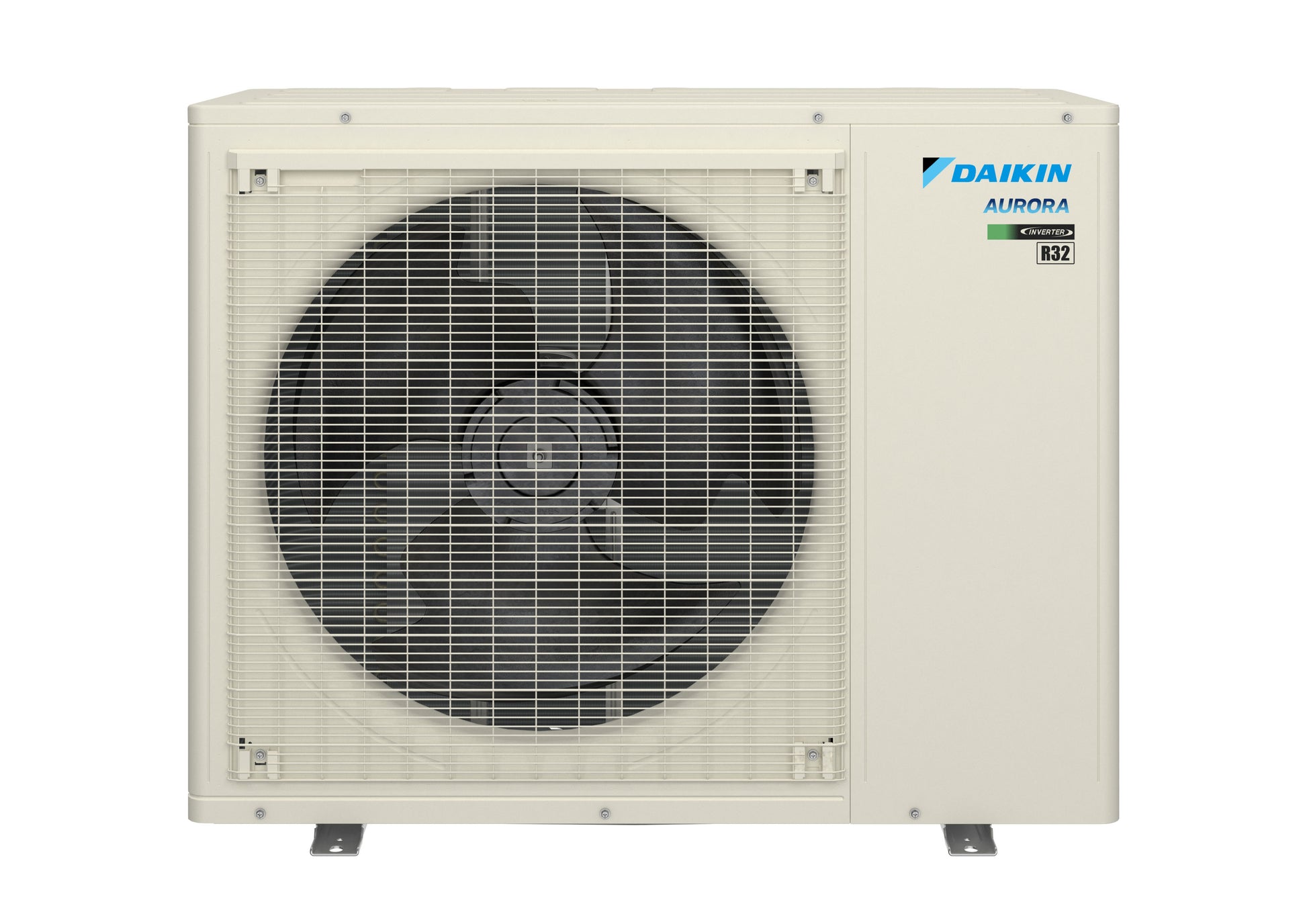

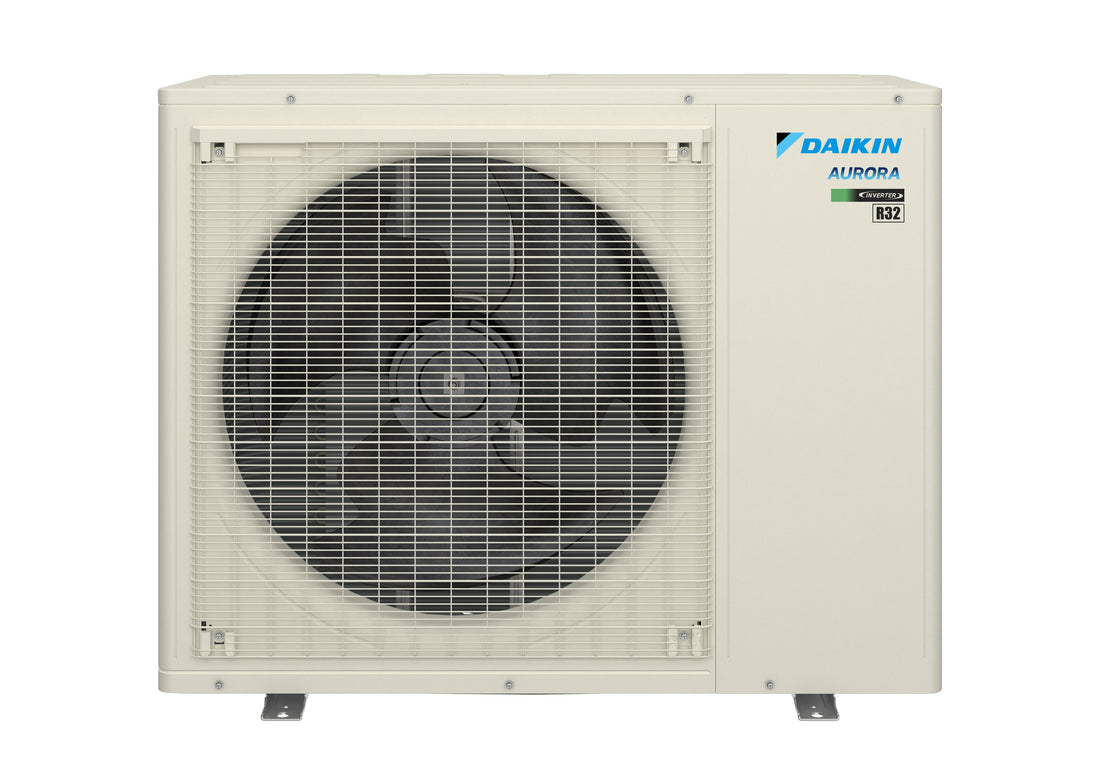

Technical Specifications — 5MXTH40AVJU9

sku 5MXTH40AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Heat Pump
system family Multi-Split
function category Heat Pump
product type Equipment
unit type Outdoor
product family 5MXTH_AVJU9
series name Multi Split Heat Pump Outdoor
short description Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump
product description 3.3-Ton R-32, 5 port aurora multi dph 40k
cooling btu 40,000
heating btu 40,000
seer2 20
decibel level (dba) 55 dBA
refrigerant R-32
compressor type Swing
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 40 A
min. breaker size 38.6 A
tonnage 3.5
btu/tonnage 40,000 BTU/3.5 Ton
min/max outdoor temp for heating -13 °F to 75.2 °F
min/max outdoor temp for cooling 14 °F to 114.8 °F
zone compatibility Multi Zone
height 34-1/4 in
width 46-7/8 in
depth 18-1/8 in
weight 221 lb
safety information Proposition 65 Label: Yes
ahri reference number 217747243

Technical Specifications — CTXV07AVJU9

sku CTXV07AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Fan Coil
system family Multi-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CTXV_AVJU9
series name Multi-Split Fan Coil Indoor R-32
short description Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description 0.5 Ton Wall Mounted Unit
product description 1/2 Ton Wall Mounted Unit - R-32
decibel level (dba) 40 dBA
refrigerant R-32
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
tonnage 0.5
zone compatibility Multi Zone
height 11-1/4 in
width 30-5/16 in
depth 8-3/4 in
weight 19 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Technical Specifications — FTXV09AVJU9

sku FTXV09AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Fan Coil
system family Multi-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTXV_AVJU9
series name Multi-Split Fan Coil Indoor
short description Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description 3/4 Ton Wall Mount R-32
decibel level (dba) 43 dBA
refrigerant R-32
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
tonnage 0.75
zone compatibility Multi Zone
height 11-1/4 in
width 30-5/16 in
depth 8-3/4 in
weight 19 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Technical Specifications — FTXV18AVJU9

sku FTXV18AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Fan Coil
system family Multi-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTXV_AVJU9
series name Multi-Split Fan Coil Indoor
short description Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description 1.5 Ton Wall Mount - R-32
decibel level (dba) 48 dBA
refrigerant R-32
liquid line 1/4 in
suction line 1/2 in
electrical 208-230 V | 60 Hz | 1 Ph
zone compatibility Multi Zone
height 11-5/8 in
width 39 in
depth 10-3/8 in
weight 27 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes
