Home 18,000 BTU Aurora, Hyper
South Mini Splits | Daikin Hyper Heat Aurora 2-Zone Ductless Mini Split AC & Heat Pump w/ Drain Heat Pan 18000 BTU (12K+12K), Wall Mount Units, 230V - R32

Click image to zoom

Aurora, Hyper

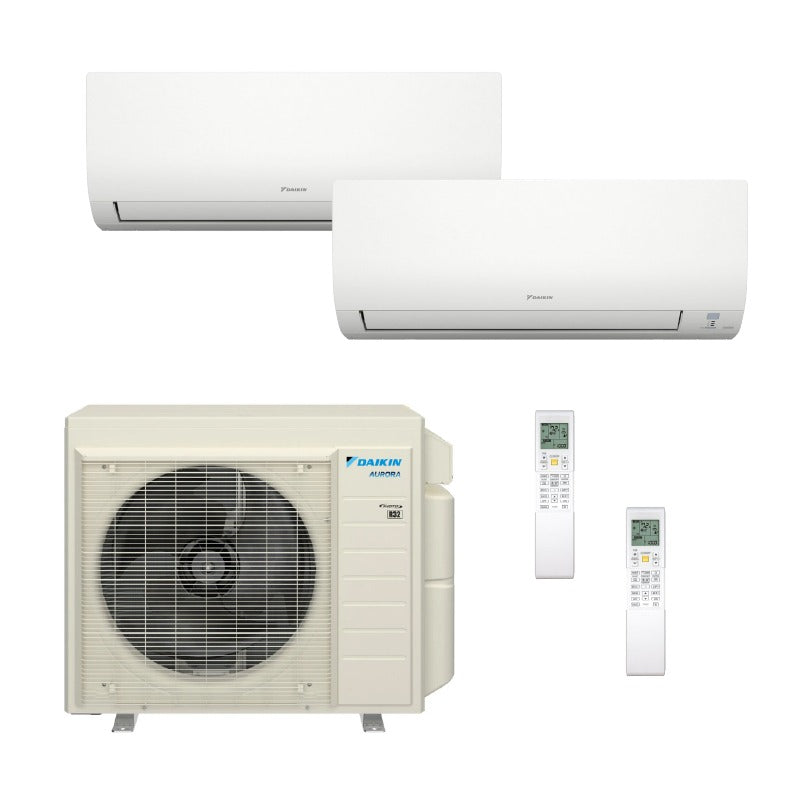

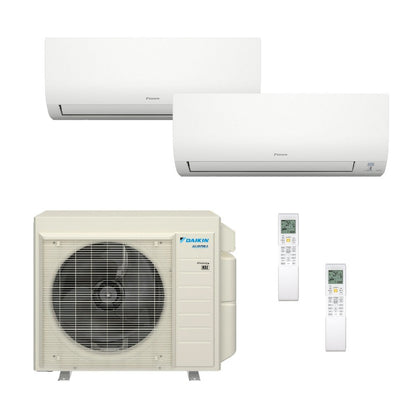

Daikin Hyper Heat Aurora 2-Zone Ductless Mini Split AC & Heat Pump w/ Drain Heat Pan 18000 BTU (12K+12K), Wall Mount Units, 230V - R32

SKU 2X FTXV12AVJU9 + 2MXTH18AVJU9 Wall Mount21.0 SEER2208-230V
Leave a Review
$5,509.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K-18K room setups:
  • Large bedrooms
  • Living rooms
  • Garages
  • Additions
18,000 BTU
Cooling
18,000 BTU
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

Daikin
Support Number
(866) 588-6454
Visit brand site
Product Overview Full product description Read the longer product copy, features, and application notes.
Daikin
Daikin Hyper Heat Aurora 2-Zone Ductless Mini Split AC & Heat Pump w/ Drain Heat Pan 18000 BTU (12K+12K), Wall Mount Units, 230V - R32

Product Overview

This Daikin 2 zone-Zone Aurora,Hyper System offers maximum efficiency and is built for the most extreme hot or cold climates. 2MXTH18AVJU9 + 2X FTXV12AVJU9 is the perfect solution for year-round heating and cooling in up to 2 zone spaces.

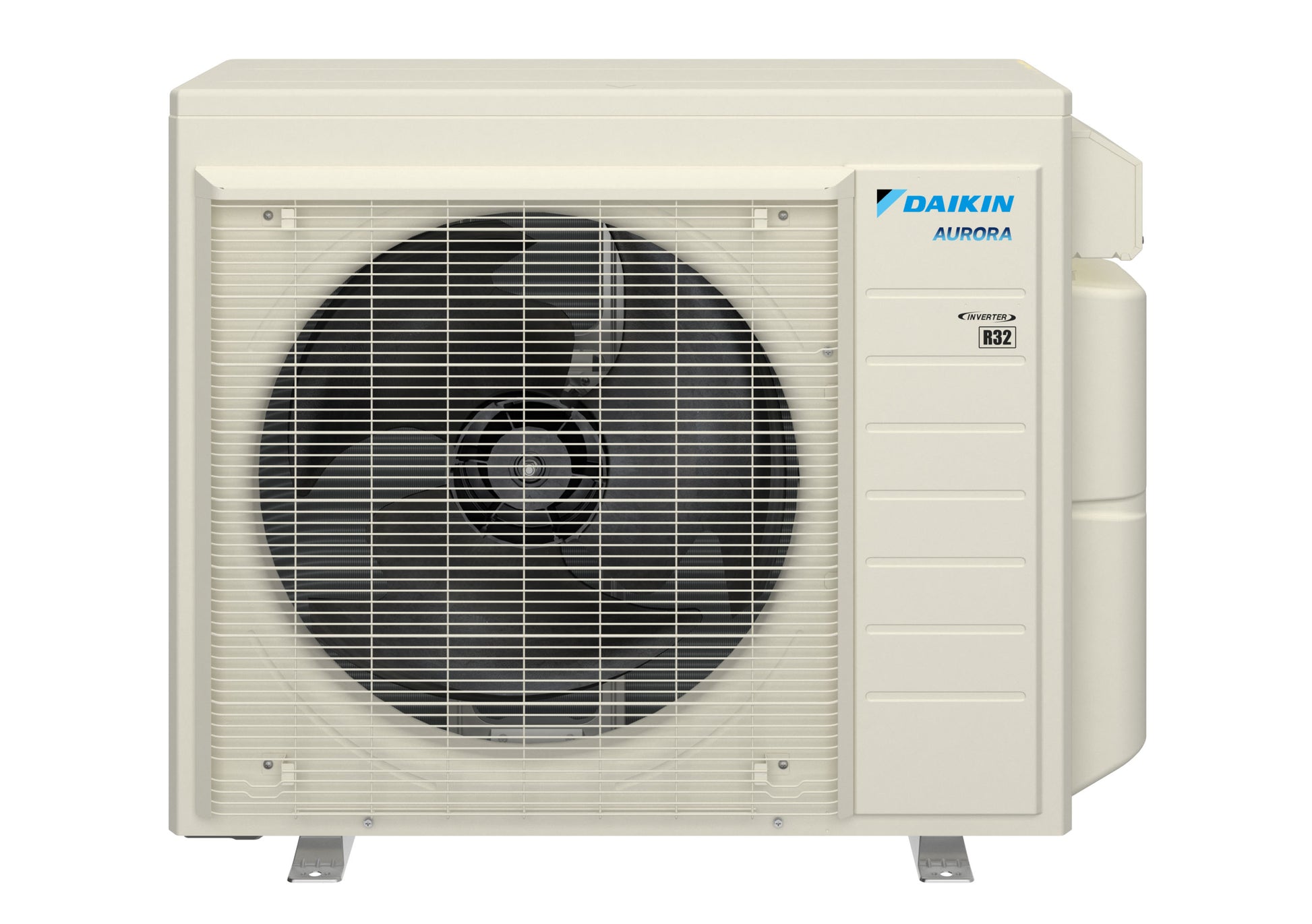

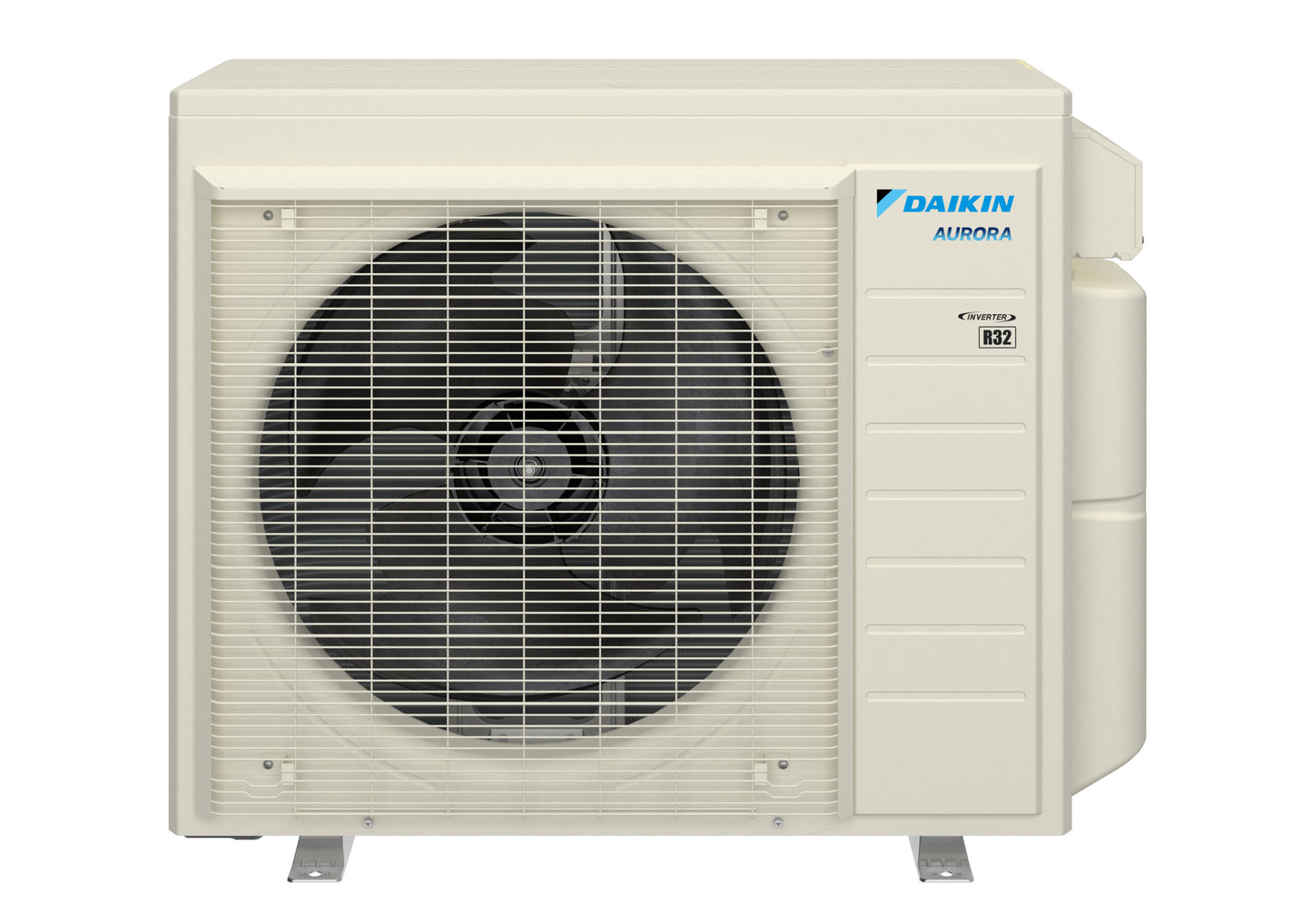

Daikin 2MXTH18AVJU9 — 2-Zone AURORA Multi-Zone Condenser (18,000 BTU)

The Daikin 2MXTH18AVJU9 is a compact, high-efficiency 2-zone multi-split heat pump condenser from Daikin’s AURORA/MXTH family, engineered to deliver reliable year-round heating and cooling for two independently controlled indoor units. Designed for versatility and quiet operation, this condenser uses R-32 refrigerant and an inverter compressor to provide precise temperature control, and simplified zoning for homes or light commercial spaces.

  • Model: 2MXTH18AVJU9
  • Nominal Capacity: 18,000 BTU (1.5 ton)
  • Zones / Indoor Units: 2 (requires exactly two indoor units)
  • Refrigerant: R-32 (lower global warming potential)
  • Drain Pan Heater: Included (model variant includes drain pan heater for cold-climate protection)

Key benefits: The 2MXTH18AVJU9 brings Daikin’s proven reliability and inverter technology to multi-zone applications. Owners get individual room control, improved part-load efficiency for lower energy bills, quieter outdoor operation, and reduced refrigerant charge compared with older refrigerants. The included drain pan heater improves outdoor durability in freezing climates, and the R-32 refrigerant helps lower environmental impact.

  • Zoning flexibility: Mix and match compatible Daikin indoor units (wall-mounted, cassette or small ducted units) — total combined indoor capacity must not exceed the maximum connected capacity for the outdoor unit.
  • Part-load savings: Variable speed inverter operation typically yields substantial efficiency gains at typical operating conditions versus fixed-speed systems.
  • Quiet design: Engineered to minimize vibration and airborne noise from the outdoor unit.
  • Durability features: Corrosion-resistant cabinet design and drain pan heater.
  • Drain Pan:Prevents freeze/thaw drainage issues in cold climates, as well as preventing the growth of potential mold.

Installation & service notes: This condenser is intended to be installed by qualified HVAC contractors

  • Electrical: 208/230V single phase supply required — confirm breaker size and supply wiring per local code and Daikin installation instructions.
  • Piping: Use approved line set sizing for selected indoor units; follow Daikin piping diagrams and vacuum/brazing procedures.
  • Commissioning: Verify system communication to each indoor unit, perform leak checks, and follow manufacturer startup sequence for optimal performance.

Warranty & support: Backed by Daikin’s 12-year limited parts warranty and supported through Daikin’s distributor and contractor network. Refer to the product manual and your reseller for specific warranty terms applicable to your region and installer registration requirements.

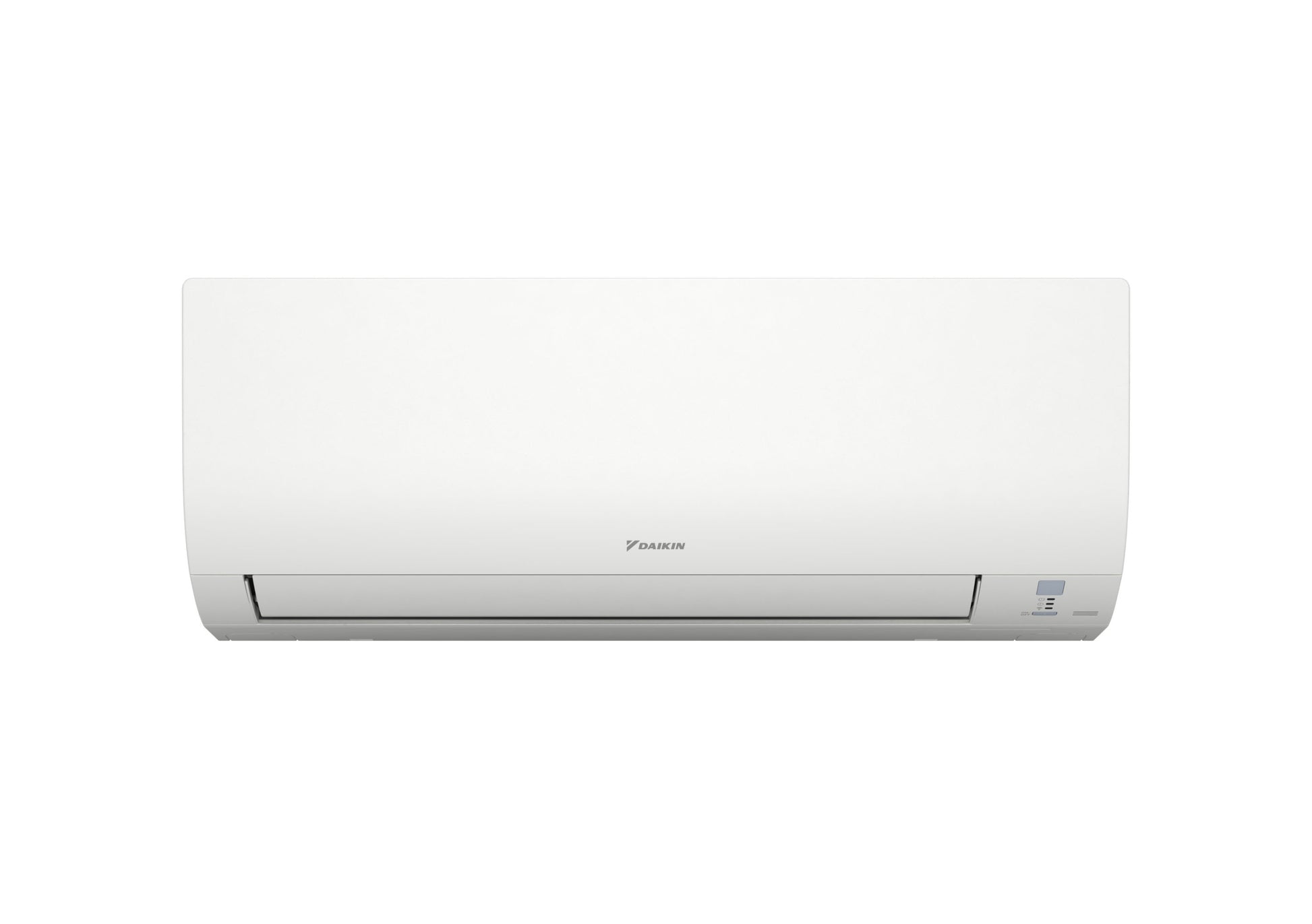

Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V

The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.

Key Features:

Superior Heating & Cooling Performance:

  • Supports 0.75 Ton to 2 Ton Heat Pump Systems
  • Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
  • Maintains:
    • 100% heating capacity at 5°F
    • 100% cooling capacity at 104°F
  • Operates effectively within a wide temperature range:
    • Heating: -13°F to 64.4°F
    • Cooling: 50°F to 114.8°F

Advanced Technology:

  • Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
  • Self-diagnostics with a digital display for easy maintenance and troubleshooting
  • Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
  • Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow

Durable and Quiet Design:

  • Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
  • Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions

Flexible Installation and Operation:

  • Precharged for up to 49 ft of liquid line, simplifying installation
  • Max piping capabilities:
    • 09/12 MBH models: 66 ft length, 49 ft height
    • 15 MBH models: 98 ft length, 66 ft height
    • 18/24 MBH models: 99 ft length, 66 ft height
  • Low ambient cooling capability down to 5°F with field setting and air adjustment grille

User-Friendly Features:

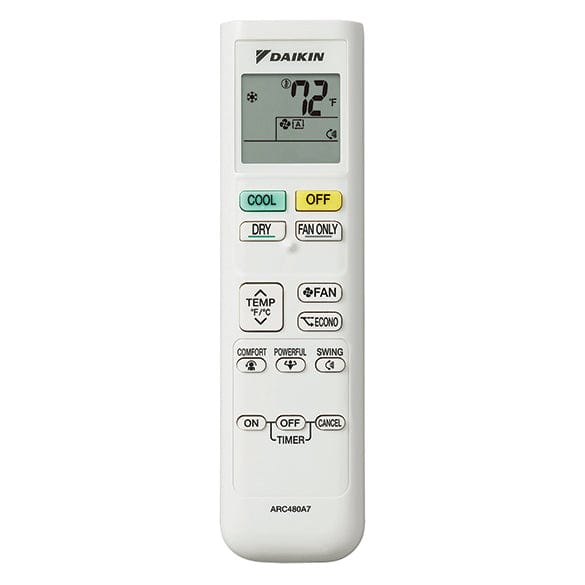

  • Comes with a Wireless Backlit IR Remote Controller for convenient operation
  • Includes Auto Restart functionality to resume operation automatically after power interruptions

Warranty Coverage:

  • Limited 12-Year Parts Warranty for reliable performance
  • Extended 12-Year Labor Warranty for comprehensive protection

The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.

Technical Specifications — 2MXTH18AVJU9

sku 2MXTH18AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Heat Pump
system family Multi-Split
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family 2MXTH_AVJU9
series name Aurora R-32 Multi Split With Drain Pan Heater
short description Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump
family description Aurora R-32 2 Zone Multi Split With Drain Pan Heater
product description Aurora R-32 2 Zone Multi Split With Drain Pan Heater
cooling btu 17,200
heating btu 18,000
seer2 21
decibel level (dba) 52 dBA
refrigerant R-32
compressor type Swing
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 20 A
min. breaker size 19.6 A
tonnage 1.5
btu/tonnage 17,200 BTU/1.5 Ton
min/max outdoor temp for heating -13 °F to 75.2 °F
min/max outdoor temp for cooling 14 °F to 114.8 °F
zone compatibility Multi Zone
height 29-1/2 in
width 34-1/4 in
depth 12-5/8 in
weight 140 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Technical Specifications — FTXV12AVJU9

sku FTXV12AVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Multi-Split Fan Coil
system family Multi-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTXV_AVJU9
series name Multi-Split Fan Coil Indoor
short description Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
family description R-32 0.75 - 2.0 Ton Wall Mounted Unit
product description 1 Ton Wall Mount R-32
decibel level (dba) 45 dBA
refrigerant R-32
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
tonnage 1
zone compatibility Multi Zone
height 11-1/4 in
width 30-5/16 in
depth 8-3/4 in
weight 19 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes
