Product Overview
This Daikin 2 zone-Zone Aurora,Hyper System offers maximum efficiency and is built for the most extreme hot or cold climates. 2MXT18AVJU9 + CTXV07AVJU9 + FTXV15AVJU9 is the perfect solution for year-round heating and cooling in up to 2 zone spaces.

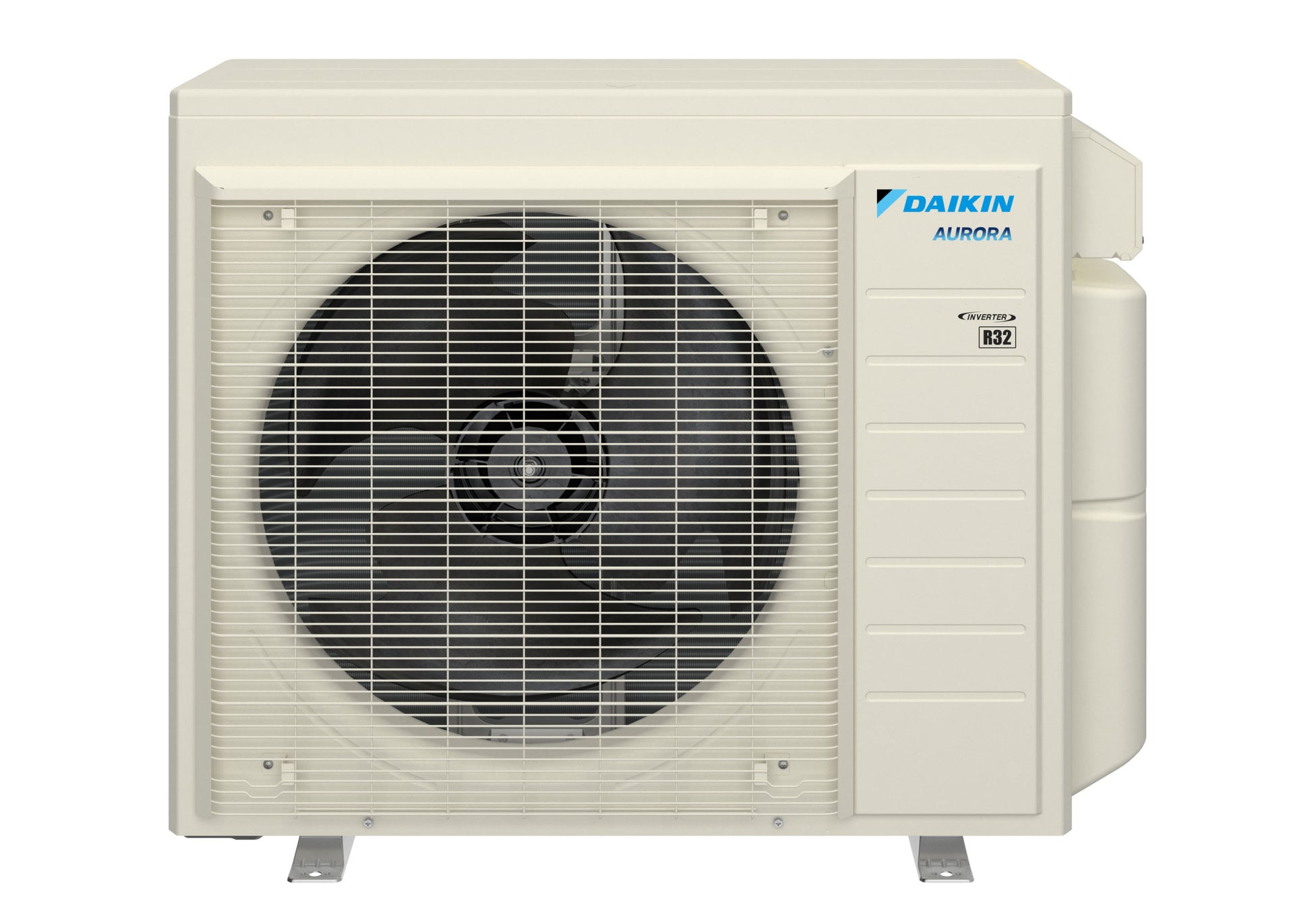

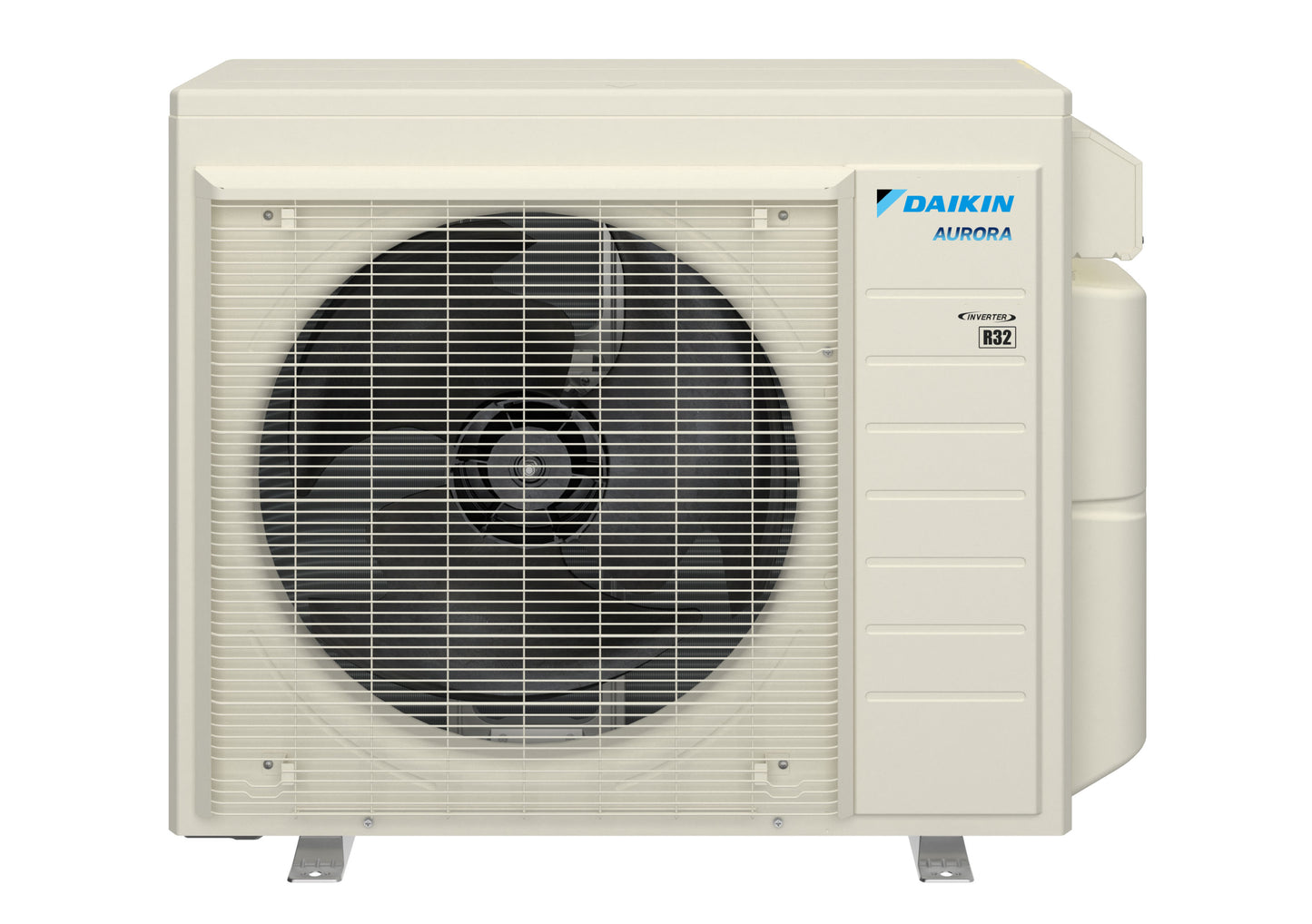

Daikin 2MXT18AVJU9 — 2-Zone Multi-Zone Condenser (18,000 BTU)
The Daikin 2MXT18AVJU9 is a compact, high-efficiency 2-zone multi-split heat pump condenser from Daikin’s MXT Series, designed to provide reliable year-round comfort for up to two independently controlled indoor units. Using R-32 refrigerant and inverter technology, it delivers quiet, energy-efficient performance ideal for residential or light commercial spaces.
- Model: 2MXT18AVJU9
- Nominal Capacity: 18,000 BTU (1.5 ton)
- Zones / Indoor Units: 2 (requires exactly two indoor units)
- Refrigerant: R-32 (lower global warming potential)
Key benefits: The 2MXT18AVJU9 combines Daikin’s inverter-driven compressor technology with flexible zoning capability. Enjoy individual room temperature control, excellent part-load efficiency, and quiet outdoor operation — all while reducing environmental impact through R-32 refrigerant use.
- Zoning flexibility: Compatible with a range of Daikin indoor units, including wall-mounted, ceiling cassette, and ducted models. Total combined indoor capacity must be within the system’s rated limits.
- Energy efficiency: Variable-speed inverter technology adjusts output to maintain comfort while minimizing energy consumption.
- Quiet operation: Engineered to reduce noise and vibration for a more peaceful outdoor environment.
- Durability: Features a corrosion-resistant cabinet and high-quality components for long-term reliability.
Installation & service notes: This condenser should be installed by a qualified HVAC professional.
- Electrical: 208/230V single-phase supply required — confirm breaker size and wiring per Daikin installation manual and local code.
- Piping: Use appropriate line set sizes and follow Daikin’s refrigerant piping and installation guidelines.
- Commissioning: Ensure communication between indoor units, perform leak testing, and follow Daikin’s startup procedures for optimal system performance.
Warranty & support: Covered by Daikin’s 12-year limited parts warranty and supported through Daikin’s authorized distributor and contractor network. Refer to the product manual or reseller for full warranty details and registration requirements.

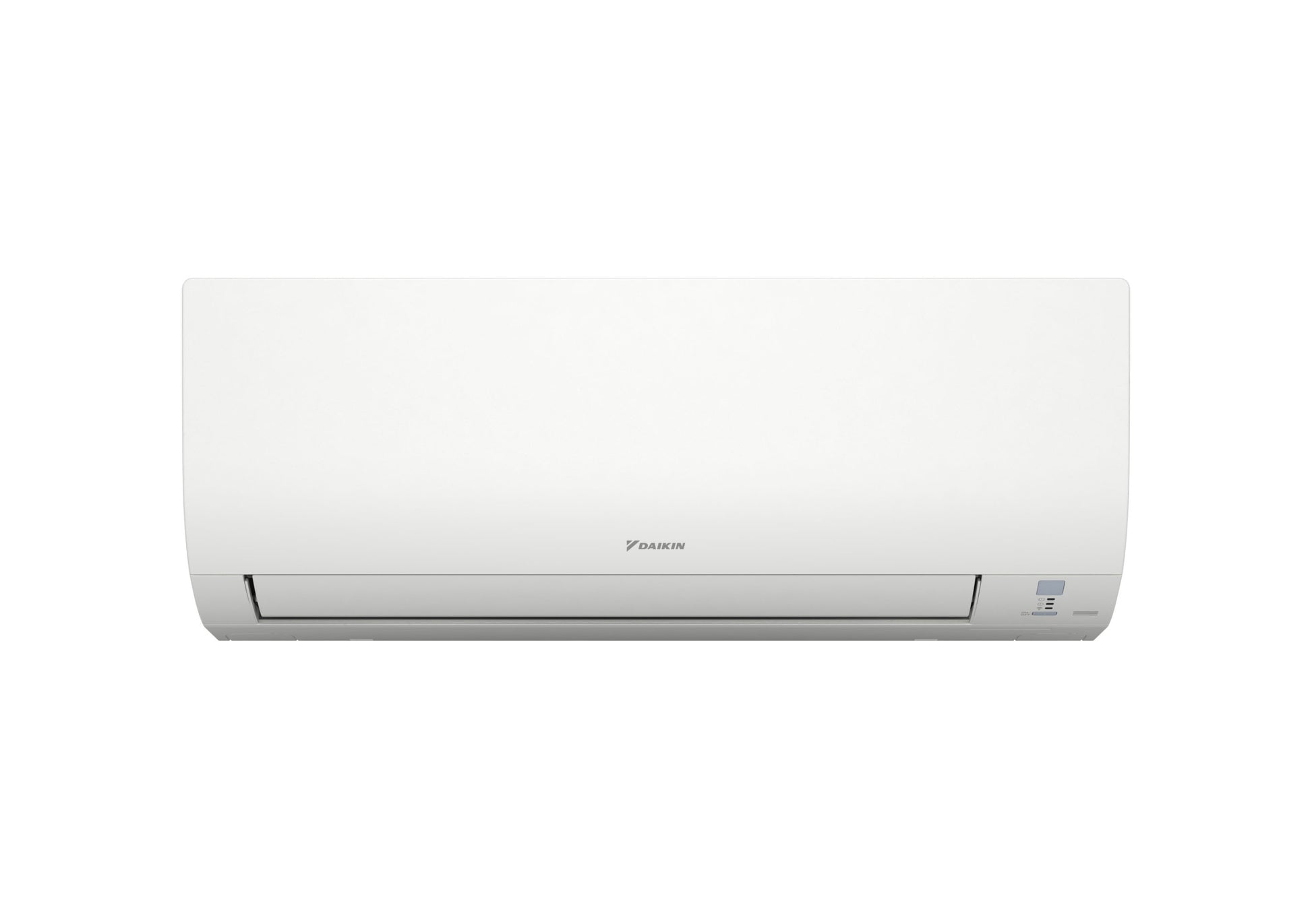

Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler - R32 | 230V
The Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler is a versatile and energy-efficient solution for single zone and multi zone heating and cooling systems. Designed to pair with up to 4-ton heat pumps, this unit delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2, ensuring exceptional energy savings and reliable performance for both residential and light commercial applications.
Key Features:
Flexible Multi-Zone Operation:
- Supports 2, 3, 4, and 5-zone multi-port systems for tailored comfort
- Operates efficiently within a wide range of conditions:
- MXM Heating: 5°F to 60°F
- MXT Heating: -13°F to 60°F
- Cooling: 14°F to 115°F
- Delivers 100% heating capacity at 5°F (MXT Enhanced Capacity only)
- Delivers 100% cooling capacity at 104°F (MXT Capacity only)
Exceptional Energy Efficiency and Performance:
- Delivers up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for superior energy efficiency
- Precharged for up to 131 ft of liquid line, streamlining installation
Advanced Technology:
- Self-diagnostics with a digital display for easy maintenance and troubleshooting
- Features Auto Restart to resume operation seamlessly after power outages
- Includes Auto Changeover for effortless transition between heating and cooling
Quiet and Durable Design:
- Indoor sound pressure as low as 24 dB(A) for whisper-quiet operation
- Outdoor sound pressure as low as 52 dB(A), ensuring minimal noise
- Anti-corrosion treatment on the heat exchanger enhances durability and extends lifespan
User-Friendly Features:
- Operates with outdoor unit quiet mode for reduced noise levels
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures reliable long-term performance
- Extended 12-Year Labor Warranty provides comprehensive coverage
The Daikin 7,000 BTU Multi-Zone Wall Mount Air Handler combines energy efficiency, advanced technology, and a quiet design to provide superior comfort and reliability. Perfect for multi-zone systems, it delivers optimal performance in all seasons, making it an excellent choice for year-round comfort.
Daikin Aurora 15,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 15,000 BTU Wall Mount Air Handler is a versatile and energy-efficient solution for single zone and multi zone heating and cooling systems. Featuring advanced R32 refrigerant, built-in WiFi, and robust heat pump technology, this unit ensures reliable comfort in both extreme heat and cold while maintaining quiet operation and exceptional energy efficiency.
Key Features:
Exceptional Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Achieves up to 21 SEER2 and up to 10.5 HSPF2 for superior energy efficiency
- Capable of:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates across a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless remote control and connectivity
- Self-diagnostics with a digital display for simplified maintenance and troubleshooting
- Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger for enhanced durability and extended lifespan
- Quiet operation for both indoor and outdoor units, minimizing noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:

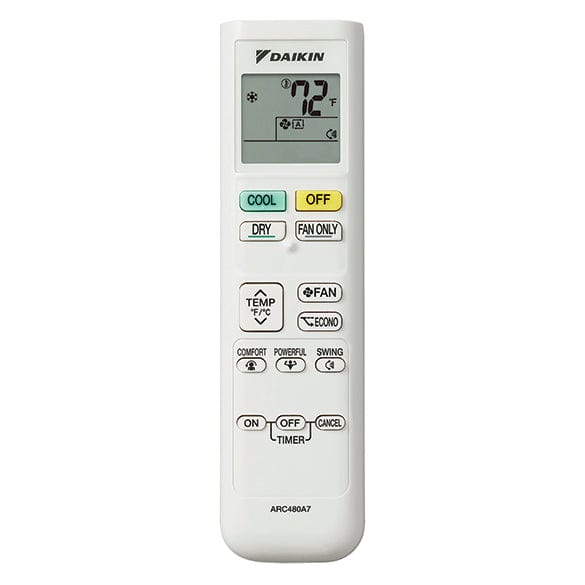

- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Features Auto Restart functionality, resuming operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures long-term reliability
- Extended 12-Year Labor Warranty provides comprehensive protection
The Daikin Aurora 15,000 BTU Wall Mount Air Handler is the perfect combination of energy efficiency, advanced technology, and reliable performance. Ideal for single zone and multi zone systems, it delivers year-round comfort in extreme temperatures, making it a superior choice for residential and light commercial applications.
Technical Specifications — 2MXT18AVJU9
| sku | 2MXT18AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | 2MXT_AVJU9 |
| series name | AURORA Multi |
| short description | Daikin AURORA Multi Series Outdoor Multi-Split Heat Pump, |
| family description | 1.5 Ton 2-Port Heat Pump Cold Climate |
| product description | Daikin AURORA R-32 1.5-Ton, 2-Port Heat Pump, Ductless ODU |
| cooling btu | 17,200 |
| heating btu | 18,000 |
| seer2 | 21 |
| decibel level (dba) | 52 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 18.7 A |
| tonnage | 1.5 |
| btu/tonnage | 17,200 BTU/1.5 Ton |
| min/max outdoor temp for heating | -13 °F to 60 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 29-1/2 in |
| width | 34-1/4 in |
| depth | 12-5/8 in |
| weight | 139 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 214837760 |
Technical Specifications — CTXV07AVJU9
| sku | CTXV07AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor R-32 |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | 0.5 Ton Wall Mounted Unit |
| product description | 1/2 Ton Wall Mounted Unit - R-32 |
| decibel level (dba) | 40 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 0.5 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV15AVJU9
| sku | FTXV15AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1.25 Ton Wall Mount R-32 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1.25 |
| zone compatibility | Multi Zone |
| height | 11-5/8 in |
| width | 39 in |
| depth | 10-3/8 in |
| weight | 27 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-AG-EM_EDUS122404 - MXT Capa
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Engineering Data Manual (English) - EM-EDUS122404A_MXT-A_MXTH-A
- Engineering Data Manual (English) - EM-EM_EDUS122404-MXTCapa
- Installation Manual (English) - IM-IM_234MXM_2MXT_2MXTH
- Installation Manual (French) - IM-02_FR_3P740830-1B
- Installation Manual (Spanish) - IM-ES_IM_234MXM_2MXT_2MXTH
- Installation Manual (English) - IM-01_EN_3P741458-1G-FTXV09-12
- Installation Manual (English) - IM-IM_3P741458-1C-FTXV09-12
- Operation Manual (English) - OM-OM - 01_EN_CTXVFTXV09-12
- Installation Manual (English) - IM-3P741458-2D-FTXV15-24
- Installation Manual (English) - IM-EN_3P741458-2G FTXV15-24
- Operation Manual (English) - OM-EN_3P741457-2K FTXV15-24
