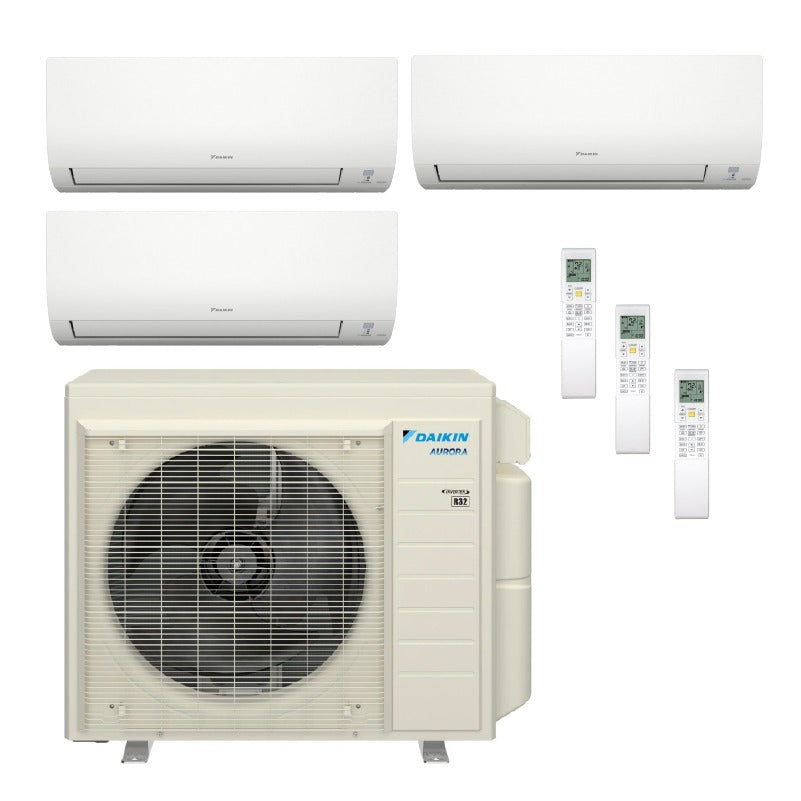

Product Overview
This Daikin 3 zone-Zone Aurora System offers maximum efficiency and is built for the most extreme hot or cold climates. 5MXM48AVJU9 + FTXV09AVJU9 + FTXV12AVJU9 + FTXV18AVJU9 is the perfect solution for year-round heating and cooling in up to 3 zone spaces.
- Single fan, low cabinet height for simple installation without impacted view
- Continuous heating operation as low as 5F° (-15°C) at 70% capacity

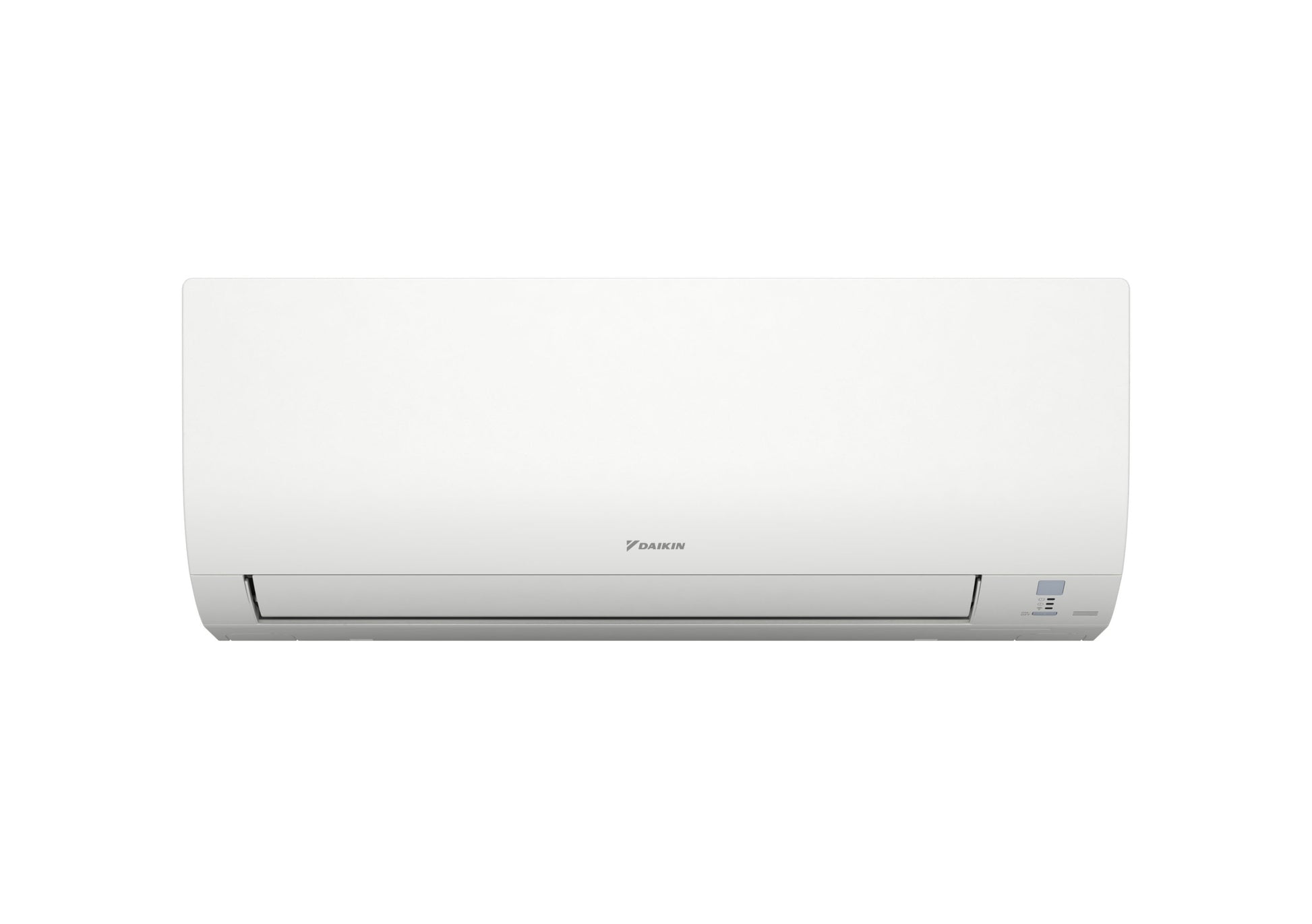

Daikin Aurora 9,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 9,000 BTU Wall Mount Air Handler is an advanced, energy-efficient heating and cooling solution for single-zone applications. With R32 refrigerant, a powerful heat pump, and built-in WiFi functionality, this unit delivers reliable comfort even in extreme temperatures while maximizing energy efficiency and performance.
Key Features:
Exceptional Heating & Cooling Efficiency:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Capable of maintaining:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Features Self Diagnostics with a digital display for simplified maintenance
- Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control for consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and longevity
- Quiet operation for both indoor and outdoor units ensures minimal noise during use
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, streamlining installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling down to 5°F with field setting and air adjustment grille
User-Friendly Features:

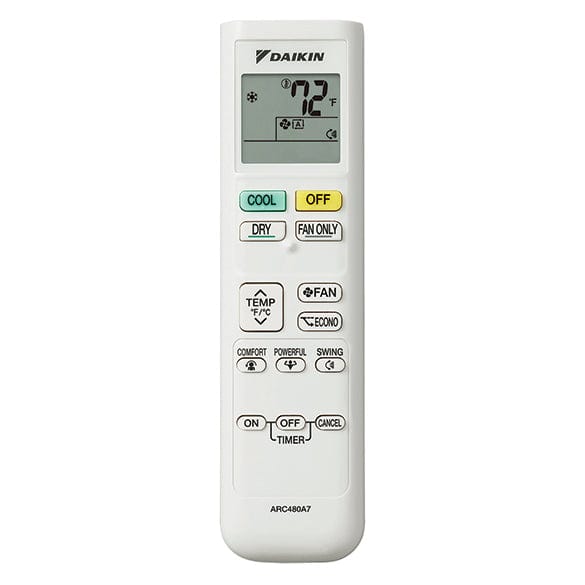

- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Auto Restart functionality resumes operation after power outages
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures reliable performance
The Daikin Aurora 9,000 BTU Wall Mount Air Handler combines advanced technology, durable design, and superior energy efficiency. Perfect for single-zone systems, it delivers year-round comfort even in extreme temperatures, making it an excellent choice for residential and light commercial applications.
Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Maintains:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Self-diagnostics with a digital display for easy maintenance and troubleshooting
- Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
- Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Comes with a Wireless Backlit IR Remote Controller for convenient operation
- Includes Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty for reliable performance
- Extended 12-Year Labor Warranty for comprehensive protection
The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.
Daikin Aurora 18,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 18,000 BTU Wall Mount Air Handler is a high-performance, energy-efficient solution for single zone and multi zone heating and cooling applications. Featuring advanced R32 refrigerant, built-in WiFi, and robust heat pump technology, this unit ensures reliable comfort in extreme temperatures while maintaining quiet operation and exceptional energy efficiency.
Key Features:
Exceptional Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for superior energy efficiency
- Capable of:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless remote control and connectivity
- Self-diagnostics with a digital display for simplified maintenance and troubleshooting
- Multiple modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
- Quiet operation for both indoor and outdoor units minimizes noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Features Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures long-term reliability
- Extended 12-Year Labor Warranty provides comprehensive protection
The Daikin Aurora 18,000 BTU Wall Mount Air Handler is the perfect combination of energy efficiency, advanced technology, and reliable performance. Ideal for single zone and multi zone systems, it delivers year-round comfort in extreme temperatures, making it a superior choice for residential and light commercial applications.

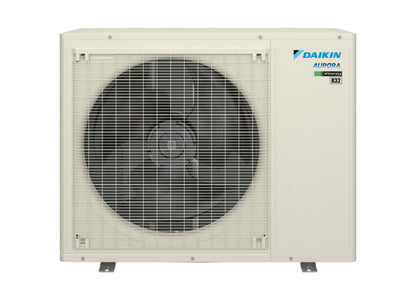

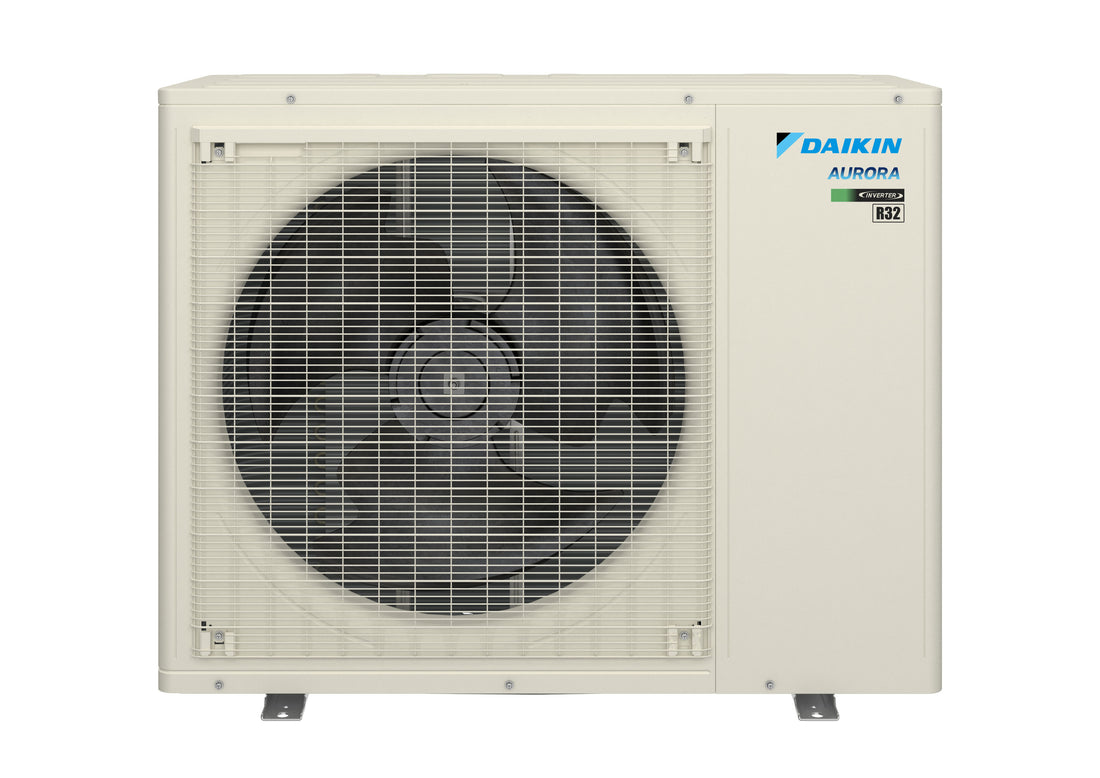

Technical Specifications — 5MXM48AVJU9
| sku | 5MXM48AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| product family | 5MXM_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | R-32 Standard Multi - 5 Port Heat Pump, Ductless ODU 4 Ton |
| cooling btu | 46,000 |
| heating btu | 48,500 |
| seer2 | 20 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 40 A |
| min. breaker size | 38.1 A |
| tonnage | 4 |
| btu/tonnage | 46,000 BTU/4 Ton |
| min/max outdoor temp for heating | 5 °F to 75 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 219 lb |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV09AVJU9
| sku | FTXV09AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 3/4 Ton Wall Mount R-32 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV12AVJU9
| sku | FTXV12AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1 Ton Wall Mount R-32 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV18AVJU9
| sku | FTXV18AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1.5 Ton Wall Mount - R-32 |
| decibel level (dba) | 48 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| zone compatibility | Multi Zone |
| height | 11-5/8 in |
| width | 39 in |
| depth | 10-3/8 in |
| weight | 27 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Engineering Data Manual (English) - EM-EDUS122403A_MXM-A
- Installation Manual (English) - IM-01_EN_3P795496-1
- Installation Manual (French) - IM-02_FR_3P795496-1
- Installation Manual (Spanish) - IM-03_ES_3P795496-1
- Installation Manual (English) - IM-01_EN_3P741458-1G-FTXV09-12
- Installation Manual (English) - IM-IM_3P741458-1C-FTXV09-12
- Operation Manual (English) - OM-OM - 01_EN_CTXVFTXV09-12
- Installation Manual (English) - IM-3P741458-2D-FTXV15-24
- Installation Manual (English) - IM-EN_3P741458-2G FTXV15-24
- Operation Manual (English) - OM-EN_3P741457-2K FTXV15-24
Loading accessories…
We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.
SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.
Shipping & Delivery
We will prepare your order within 24–48 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION
Please be informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery.
To AVOID delays, please make sure the phone number in your order details is accurate and one where you can be reached. You may also contact the carrier directly using your tracking number to schedule your delivery.
It is your responsibility to ensure a safe and secure delivery environment. We are not liable for any packages that are stolen or lost after delivery is confirmed.
Please verify your shipping address carefully. Changes to your shipping address after the freight has been shipped may result in additional fees of 15% or more, depending on freight weight and dimensions.
SMALLWARES INFORMATION
Smaller items such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves may be shipped via FedEx without a signature requirement if ordered individually.
It is your responsibility to ensure a safe delivery location. We are not liable for packages lost or stolen after delivery confirmation. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING
Please inspect your boxes carefully upon delivery. Shipments should arrive shrink-wrapped and on a pallet. If you notice any damage or signs of mishandling (such as a crushed box or forklift puncture), write comments on the delivery receipt before signing, even if the damage appears minor.
Contact us immediately if any issues arise so we can assist you promptly.
SMS Delivery Notifications
If you opted into SMS notifications, we may send you order updates or delivery reminders by text message. Message frequency may vary. Message and data rates may apply. Text STOP to opt out. Text HELP for assistance.
For more details, see our Privacy Policy.
Loading technical data…
