Product Overview

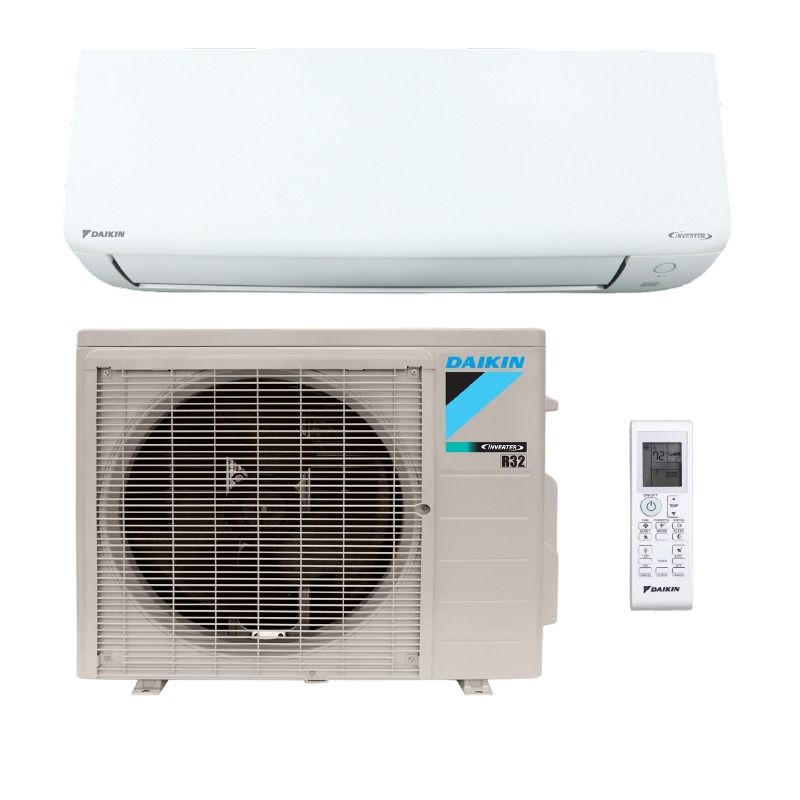

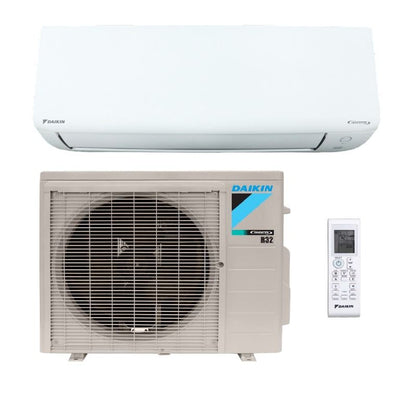

Daikin 9,000 BTU Oterra Single Zone Mini Split Heat Pump Condenser - R32 | 115V
9,000 BTU Daikin Oterra Mini Split Heat Pump Condenser - R32 | 115V
The 9,000 BTU Daikin Oterra Mini Split Heat Pump Condenser offers efficient and reliable heating and cooling for single-zone wall-mount systems. Designed with advanced R32 refrigerant and a Daikin Swing Compressor with Inverter, this unit ensures energy savings, quiet operation, and long-lasting performance for residential and light commercial applications.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 1 Ton Heat Pump Systems
- Delivers up to 20 SEER2, 12 EER2, and 9 HSPF2 for superior energy efficiency

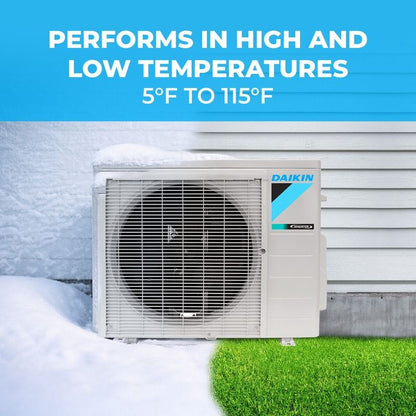

- Operates across a broad temperature range:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Equipped with a Daikin Swing Compressor with Inverter for precise and energy-efficient operation
- Features Auto Defrost, Auto Fan Speed, and Auto Restart for seamless operation
- Offers advanced comfort settings like Energy Saving Function and Programmable Dry Function
- Includes *NEW Easy Install WiFi* for convenient remote control
Quiet and User-Friendly Design:
- Ensures Indoor Unit Quiet Operation for minimal noise
- Features Wide Angle Louvers and Vertical Auto Swing for optimized airflow
- Includes Sleep Mode for enhanced nighttime comfort
Durable and Hygienic:
- Equipped with a Mold Proof Air Filter for cleaner air quality
- Includes a Removable Drain Pan for easy maintenance
- Built with Flare-less Joint Connection and a 15A Circuit Breaker for safe and reliable installation
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures dependable performance
The 9,000 BTU Daikin Oterra Mini Split Heat Pump Condenser combines advanced technology, energy efficiency, and quiet operation to deliver superior year-round comfort. Perfect for single-zone systems, this unit provides smart WiFi controls, durable construction, and user-friendly features for optimized heating and cooling performance.
Daikin 9,000 BTU Oterra Single Zone Wall Mount Mini Split Air Handler - R32 | 115V
Daikin Oterra 9,000 BTU Wall Mount Air Handler - R32 | 115V
The Daikin Oterra 9,000 BTU Wall Mount Air Handler is an energy-efficient and reliable solution for single-zone heating and cooling applications. Powered by a Daikin Swing Compressor with Inverter and utilizing eco-friendly R32 refrigerant, this unit provides consistent performance, quiet operation, and advanced features to ensure comfort year-round in residential and commercial spaces.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 1 Ton Heat Pump Systems
- Achieves up to 20 SEER2, 12 EER2, and 9 HSPF2 for excellent energy efficiency
- Operates across a wide temperature range for year-round comfort:
- Cooling: 50°F to 114.8°F
- Heating: 5°F to 64.4°F
Advanced Technology:
- Features Daikin Swing Compressor with Inverter for precise and efficient operation
- Includes Auto Defrost, Auto Fan Speed, and Auto Restart functionality for seamless performance
- Equipped with Energy Saving Function and Programmable Dry Function to optimize energy usage
- *NEW Easy Install WiFi* capability for enhanced control and convenience
Enhanced Comfort:
- Wide Angle Louvers and Vertical Auto Swing ensure even airflow distribution
- Features Sleep Mode for optimized comfort during the night
- Quiet operation from the indoor unit minimizes disruption in living or working spaces
Durable and Easy to Maintain:
- Equipped with a Mold Proof Air Filter for improved air quality
- Removable Drain Pan for easy cleaning and maintenance
- Flare-less joint connection simplifies and secures installation
Reliable Design:
- Operates with a 15A Circuit Breaker for dependable performance
- Limited 12-Year Parts Warranty ensures peace of mind
- Extended 12-Year Labor Warranty provides comprehensive coverage
The Daikin Oterra 9,000 BTU Wall Mount Air Handler is a premium choice for efficient and reliable heating and cooling in single-zone systems. Combining advanced features, durable construction, and user-friendly controls, it provides year-round comfort with minimal maintenance and maximum convenience.
Technical Specifications — RXQ09ASBU9
| sku | RXQ09ASBU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXQ_ASBU9 |
| series name | Daikin Oterra 115V |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75-1 Ton Daikin Oterra 115V Heat Pump |
| product description | Daikin Oterra 115V Heat Pump Ductless ODU 0.75 Ton |
| cooling btu | 9,000 |
| heating btu | 10,900 |
| decibel level (dba) | 48 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 14.9 A |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |
| height | 21-15/16 in |
| width | 26-9/16 in |
| depth | 11-3/16 in |
| weight | 59 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 20 |
Technical Specifications — FTXQ09ASBU9
| sku | FTXQ09ASBU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXQ_ASBU9 |
| series name | Daikin Oterra 115V |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32- 0.75-1 Ton Wall mounted unit Heat Pump |
| product description | Daikin Oterra 115V R-32 -- 9K Indoor High Wall Unit |
| cooling btu | 9,000 |
| heating btu | 10,900 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 115 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 18 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-FTXQ_ASBU9-RXQ_ASBU9
- Installation Manual (English) - IM-RXQ_ASBU9-English
- Installation Manual (English) - IM-Signa-Flareless-Adaptor-FTX
- Installation Manual (French) - IM-RXQ_ASBU9-French
- Installation Manual (Spanish) - IM-RXQ_ASBU9-Sapnish
- Installation Manual (English) - IM-BRP084A61-WIFI-Adaptor-Eng
- Installation Manual (English) - IM-FTXQ_ASBU9-English
- Installation Manual (French) - IM-BRP084A61-WIFI-Adaptor-Fren
- Installation Manual (French) - IM-FTXQ_ASBU9-French
- Installation Manual (Spanish) - IM-BRP084A61-WiFi-Adaptor-Span
- Installation Manual (Spanish) - IM-FTXQ_ASBU9-Spanish
- Operation Manual (English) - OM-FTXQ_ASBU9-English
- Operation Manual (French) - OM-FTXQ_ASBU9-French
- Operation Manual (Spanish) - OM-FTXQ_ASBU9-Spanish
