Product Overview

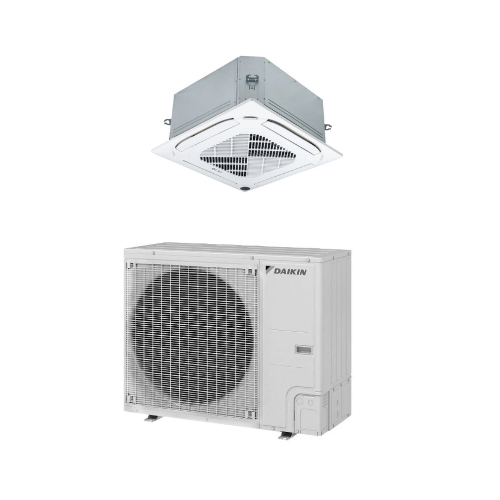

Daikin 42K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA42AAVJU
The Daikin SkyAir 42,000 BTU Single Zone Heat Pump is engineered for exceptional heating and cooling performance in larger residential and light commercial spaces. Featuring a robust 3.5-ton capacity and eco-friendly R-32 refrigerant, this unit delivers efficient climate control with a reduced environmental footprint.
Key Features
- 3.5 Ton High-Capacity Performance – Ideal for large rooms, open-concept areas, or commercial zones requiring powerful, reliable temperature control
- Energy-Efficient R-32 Refrigerant – Provides improved energy efficiency with a lower global warming potential than traditional refrigerants
- 10-Year Limited Parts & Compressor Warranty – Industry-leading warranty coverage for long-term reliability and peace of mind
- Optional Drain Pan Heater – Prevents ice buildup in cold weather, ensuring consistent performance year-round
- Quiet and Rugged Design – Designed for quiet operation and durability in harsh environmental conditions
Daikin 42K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA42AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

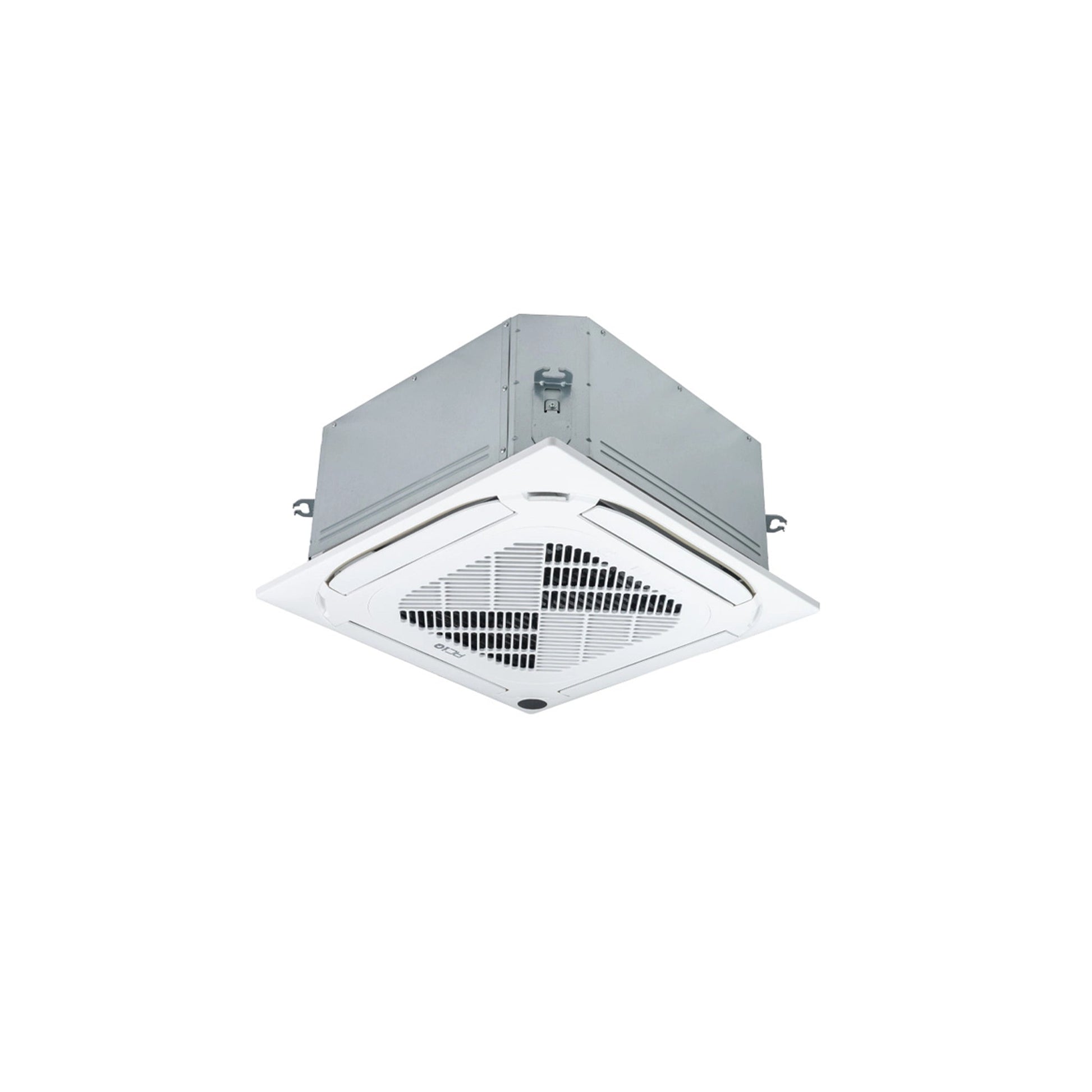

Daikin 42,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA42AAVJU
The Daikin 42,000 BTU SkyAir Ceiling Cassette Air Handler delivers high-capacity cooling performance in a compact, flush-mounted ceiling unit. Operating with energy-efficient R-32 refrigerant, this indoor air handler integrates seamlessly with ventilation and leak detection systems. It offers optional self-cleaning and high-efficiency filters to ensure superior air quality and minimize long-term maintenance needs. Built for large spaces in residential and light commercial settings, this system offers quiet operation, flexible control, and reliability.
Key Features
- 42,000 BTU Cooling Capacity for Large Zones or Open Areas
- Operates with R-32 Refrigerant for Higher Efficiency and Lower Environmental Impact
- Ceiling Cassette Mount Design for Space-Saving Installation
- Refrigerant Leak Detection Compatibility with Alarms, Dampers, and Monitoring
- Optional Self-Cleaning Filter Reduces Maintenance Intervals
- High-Efficiency Filter Options for Enhanced Filtration
- Ventilation Connection Kit Available
- Max Overcurrent Protection: 15 A
- Designed for Residential or Light Commercial Use
This air handler is ideal for applications that require discreet performance and advanced air quality features, offering the flexibility and capacity to handle large spaces with efficiency and precision.
Daikin 42,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA42AAVJU
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 years | 10 years | 10 years |
Technical Specifications — FCA42AAVJU
| sku | FCA42AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 3.5-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 47 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.6 A |
| height | 11-11/32 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |

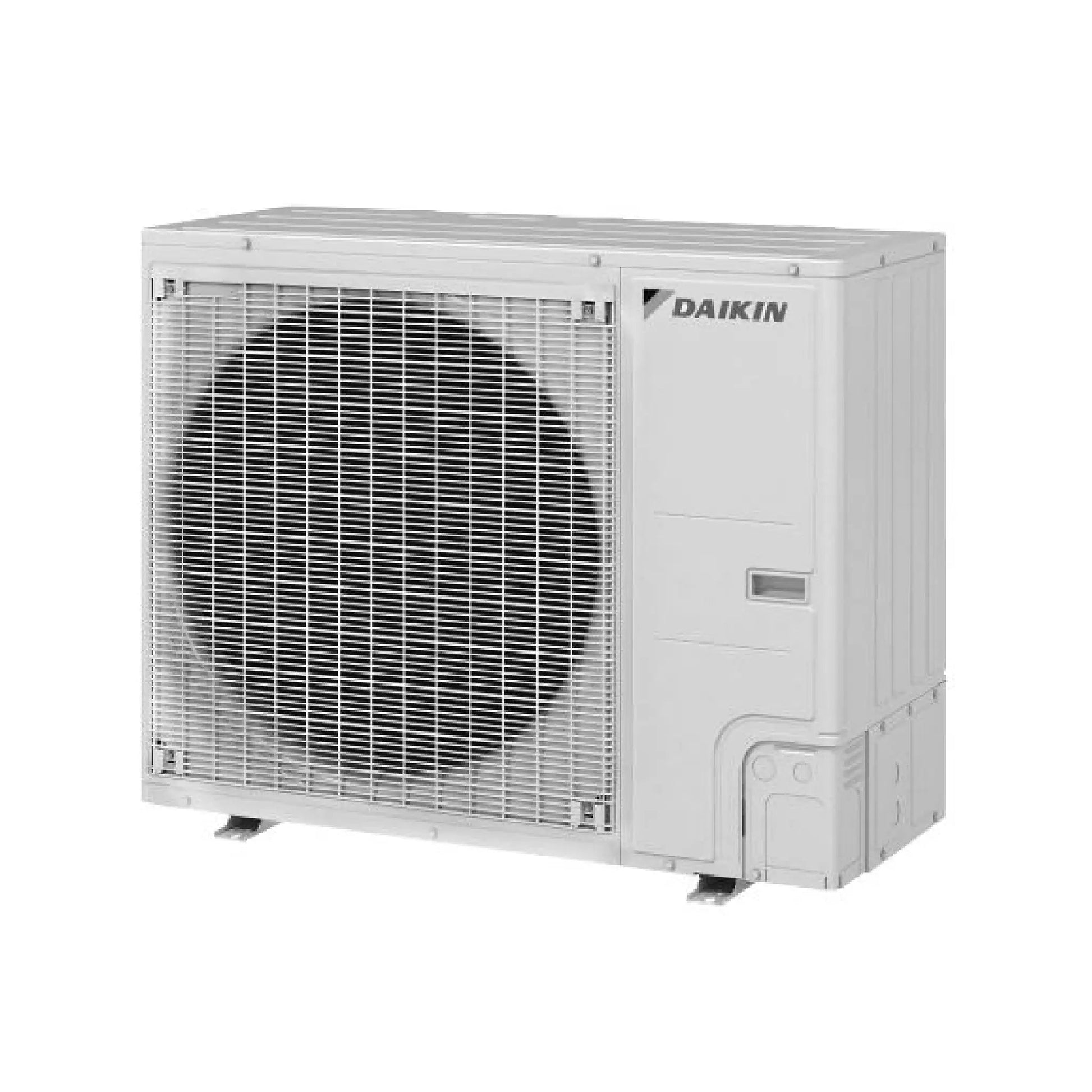

Technical Specifications — RZA42AAVJU
| sku | RZA42AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 3.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
