A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

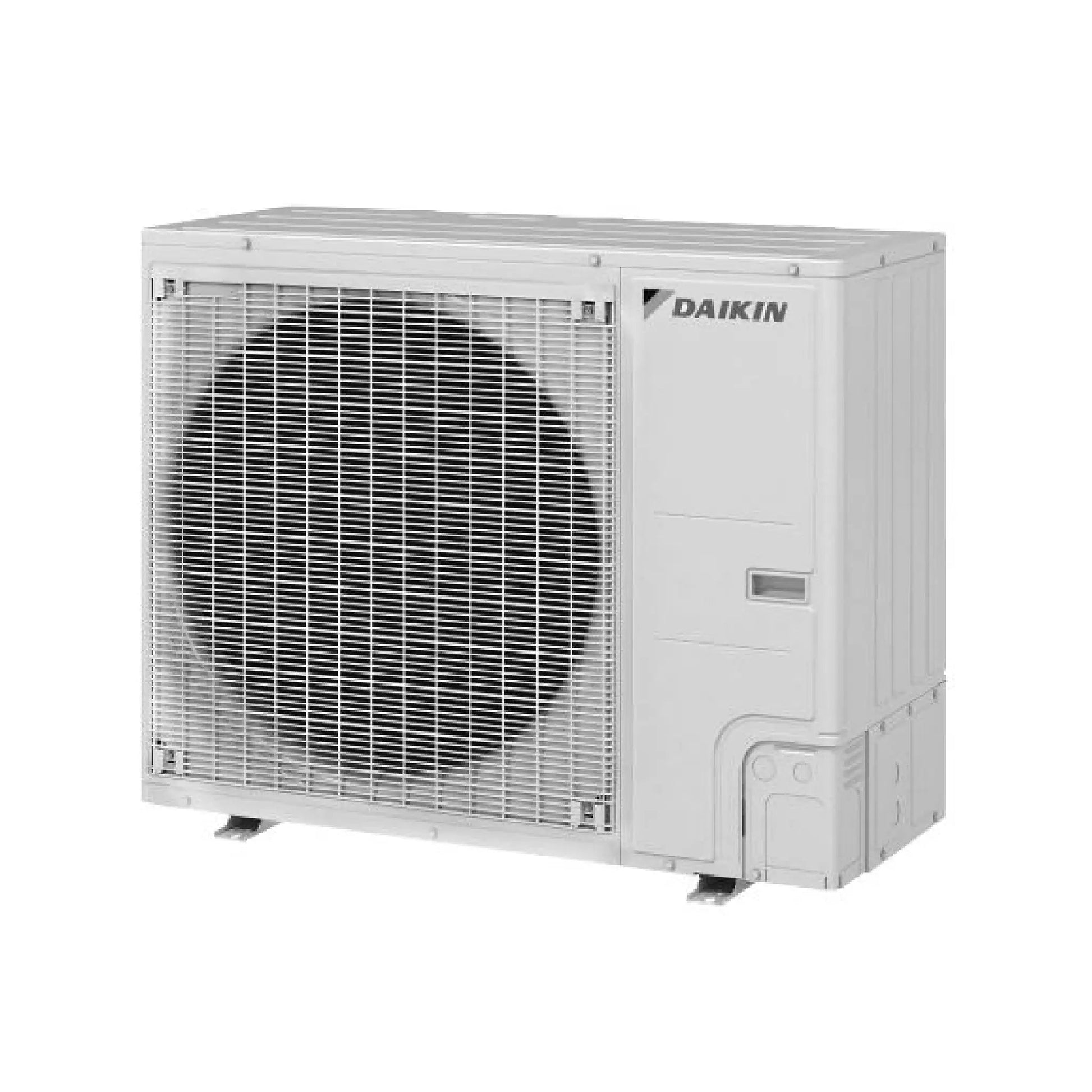

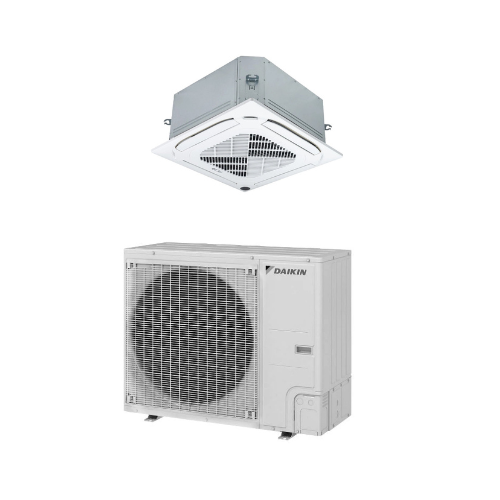

The Daikin SkyAir 36,000 BTU Single Zone Heat Pump is a high-performance HVAC solution designed for larger residential or light commercial spaces. With a powerful 3.0-ton capacity and eco-friendly R-32 refrigerant, this outdoor unit provides reliable heating and cooling while reducing environmental impact and energy consumption.
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

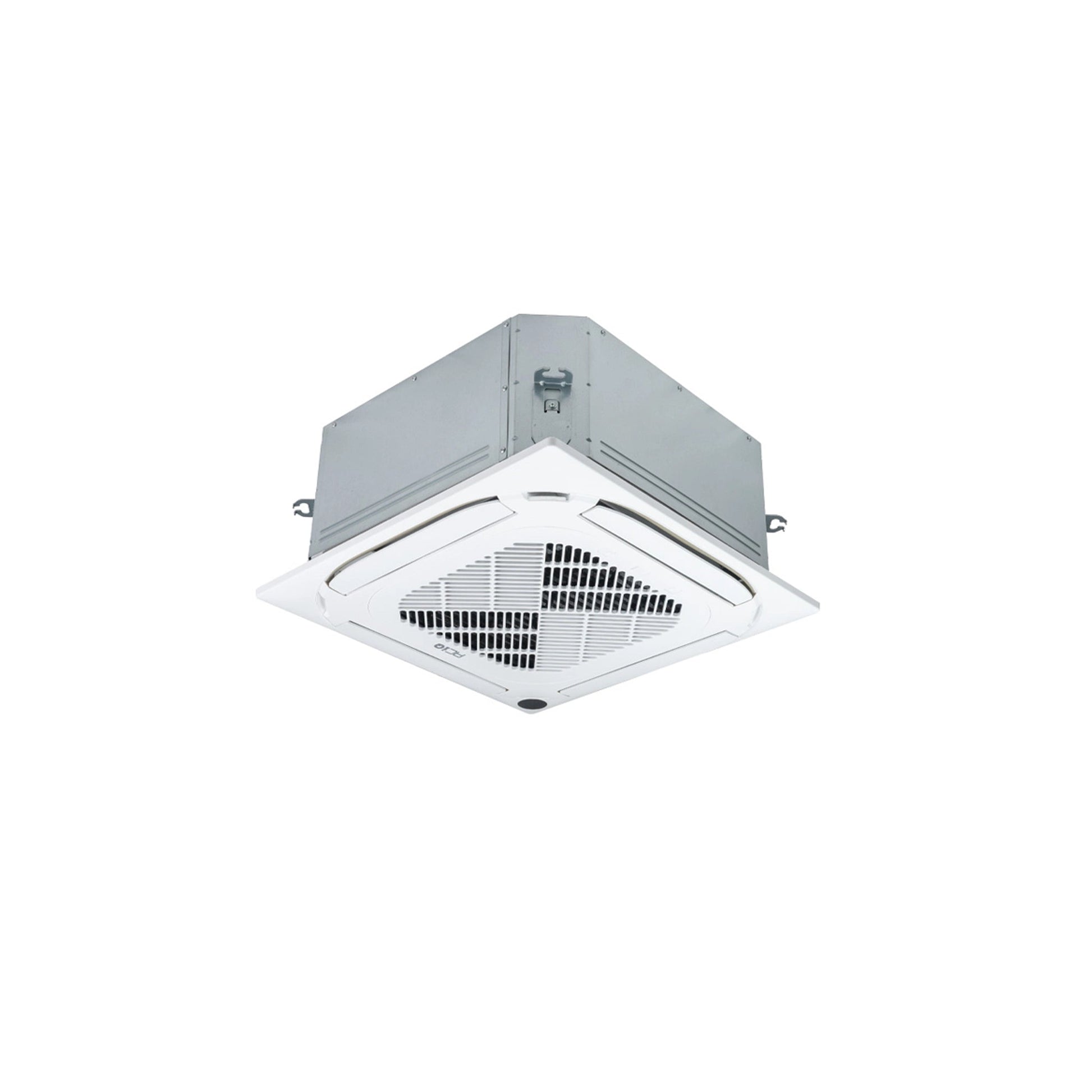

Designed for powerful performance and energy efficiency, the Daikin 36,000 BTU SkyAir Ceiling Cassette Air Handler offers discreet ceiling-mounted comfort for larger zones. With R-32 refrigerant, this unit features advanced integration with ventilation and leak detection systems for improved safety and indoor air quality. Optional high-efficiency and self-cleaning filters reduce airborne contaminants and minimize ongoing maintenance requirements.
This high-capacity unit is ideal for applications that require concealed installation with enhanced ventilation control, minimal upkeep, and reliable year-round performance.
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 years | 10 years | 10 years |
| sku | FCA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 3.0-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 47 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.6 A |
| height | 11-11/32 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| sku | RZA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 3.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
