Skyair Series

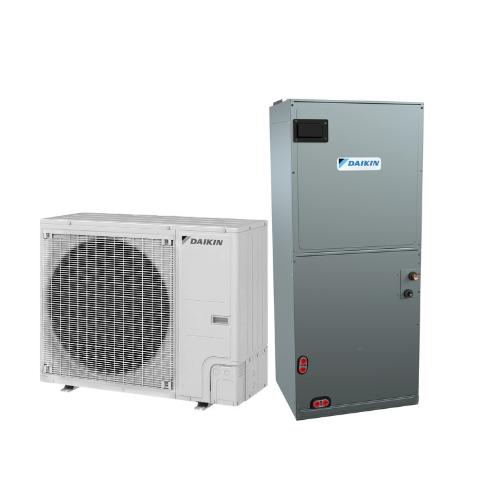

Daikin 36,000 BTU Skyair High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System - R32 | 230V
$11,171.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 36K room setups:
- Open floor plans
- Large garages
- Light commercial
- Multi-room areas
- 36,000 BTU
- Cooling
- 36,000 BTU
- Heating
- See specs
- Quiet Inside
- Efficient
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
Daikin
- Support Number
- (866) 588-6454
- Official Site
- Daikin Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
Daikin
Daikin 36,000 BTU Skyair High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System - R32 | 230V
Product Overview

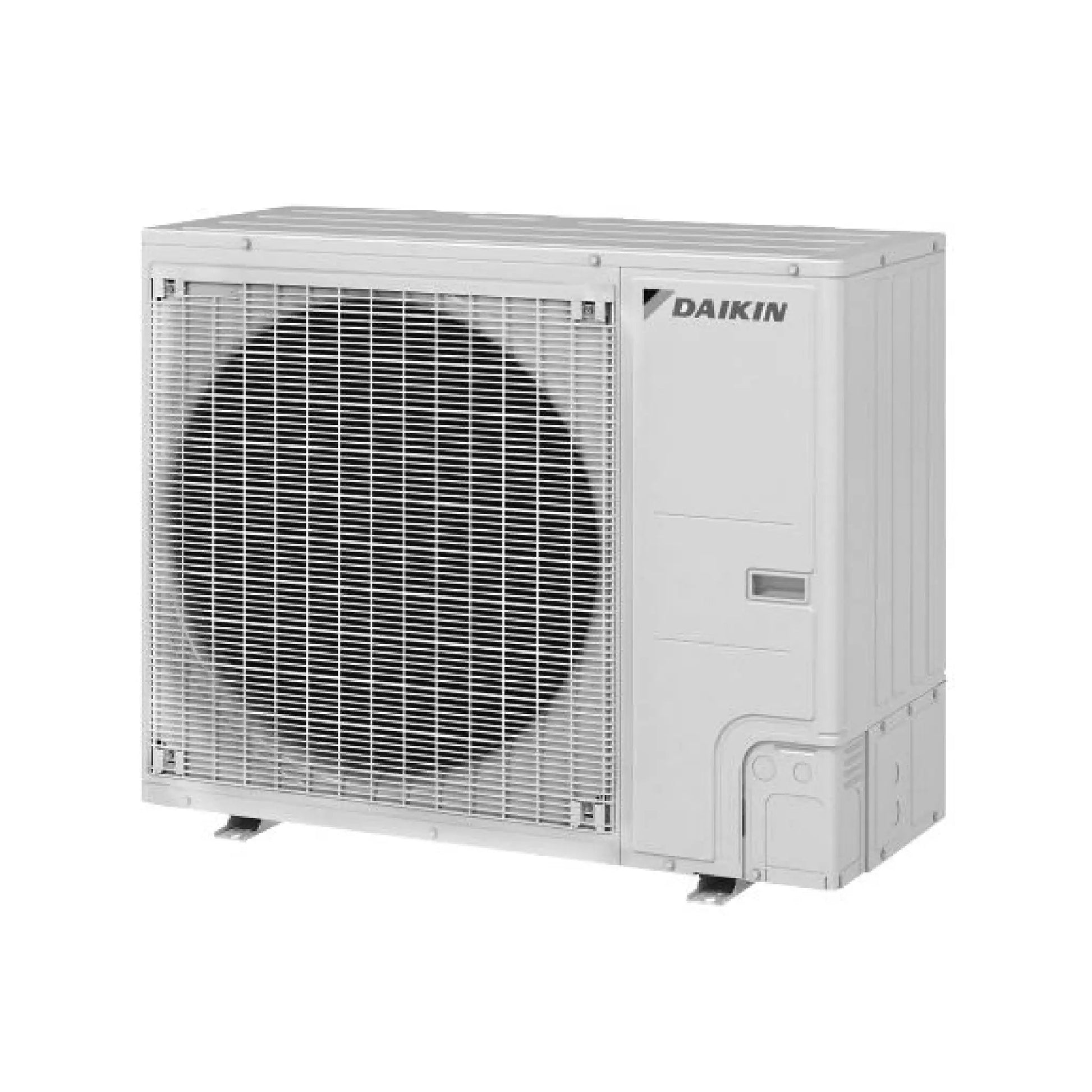

Daikin 36K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA36AAVJU
The Daikin SkyAir 36,000 BTU Single Zone Heat Pump is a high-performance HVAC solution designed for larger residential or light commercial spaces. With a powerful 3.0-ton capacity and eco-friendly R-32 refrigerant, this outdoor unit provides reliable heating and cooling while reducing environmental impact and energy consumption.
Key Features
- 3.0 Ton Capacity for Larger Spaces – Perfect for open layouts or big rooms that require powerful, efficient climate control
- Eco-Friendly R-32 Refrigerant – Delivers enhanced efficiency with lower global warming potential compared to traditional refrigerants
- 10-Year Limited Parts and Compressor Warranty – Supported by Daikin’s industry-leading warranty coverage for long-term reliability
- Optional Drain Pan Heater – Helps prevent freezing in cold climates, ensuring consistent performance year-round
- Quiet, Durable Design – Engineered for silent operation and built to withstand demanding weather conditions and daily use
Daikin 36K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA36AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

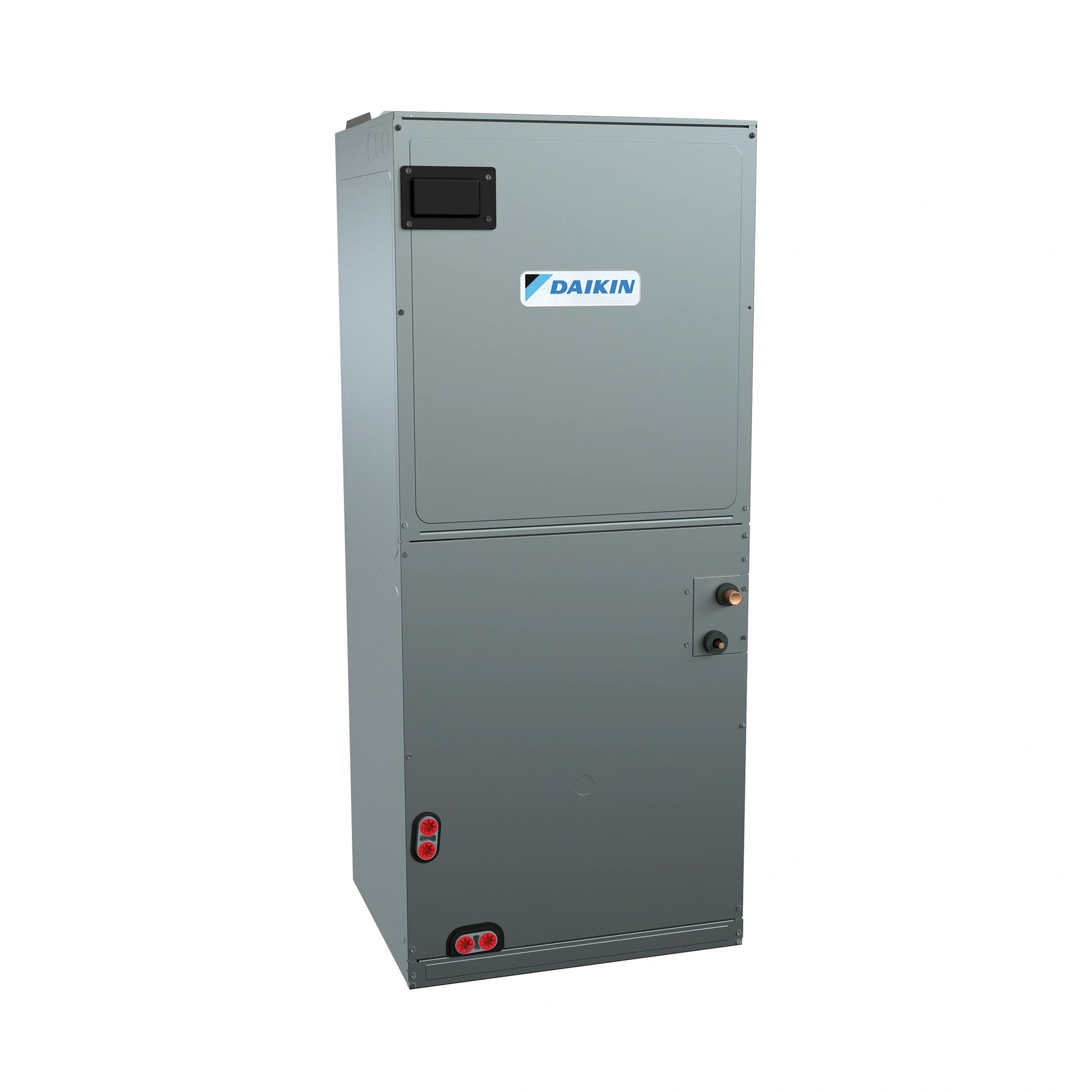

Daikin 36K BTU SkyAir Mini Split Air Handler Multi Position Single Zone R32 FTA36AAVJUA
The Daikin 36K BTU SkyAir Mini Split Air Handler is a high-performance, energy-efficient HVAC solution designed for single-zone applications in residential and light commercial environments. With its flexible multi-position installation, advanced airflow control, and compatibility with eco-friendly R-32 refrigerant, this unit offers superior comfort, reliability, and indoor air quality. Whether for new construction or retrofit projects, it's built to meet today’s demanding indoor climate needs.
Key Product Features:
- All-aluminum coil provides enhanced heat transfer efficiency and long-lasting durability
- Engineered for less than 2% air leakage to maximize energy efficiency and airflow performance
- Supports external static pressure up to 0.9 in. w.g. for advanced ducting flexibility and airflow control
- Optional outside air integration improves indoor air quality and meets ventilation code requirements
- Factory-integrated refrigerant leak detection ensures system safety and reduces maintenance risk
- Factory-installed disconnect option (D-Model) offers faster installation and service convenience
- Anti-corrosion treatment on the heat exchanger extends equipment life in coastal and harsh environments
Daikin 36K BTU SkyAir Mini Split Air Handler Multi Position Single Zone R32 FTA36AAVJUA
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 12 years | 12 years | 12 years |
Technical Specifications — FTA36AAVJUA
| sku | FTA36AAVJUA |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FTA_AAVJUA |
| series name | SkyAir FTA Multi Position Air Handler |
| short description | SkyAir Indoor Fan Coil |
| family description | R-32 1.5 - 4 Ton Inverter Multi Position Air Handler |
| product description | Sky-Air R32 3.0 ton Multi-Position Air Handler |
| decibel level (dba) | 51.6 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 4.9 A |
| height | 45 in |
| width | 17-1/2 in |
| depth | 21 in |
| weight | 118 lb |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA36AAVJU
| sku | RZA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 3.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
