A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

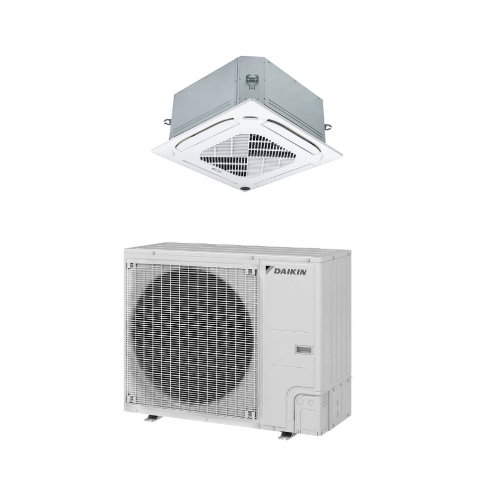

The Daikin SkyAir 30,000 BTU Single Zone Heat Pump is a high-capacity, energy-efficient system designed to meet the demands of larger spaces. Ideal for both residential and light commercial environments, this 2.5-ton R-32 unit provides reliable heating and cooling with advanced technology for quiet, consistent operation.
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

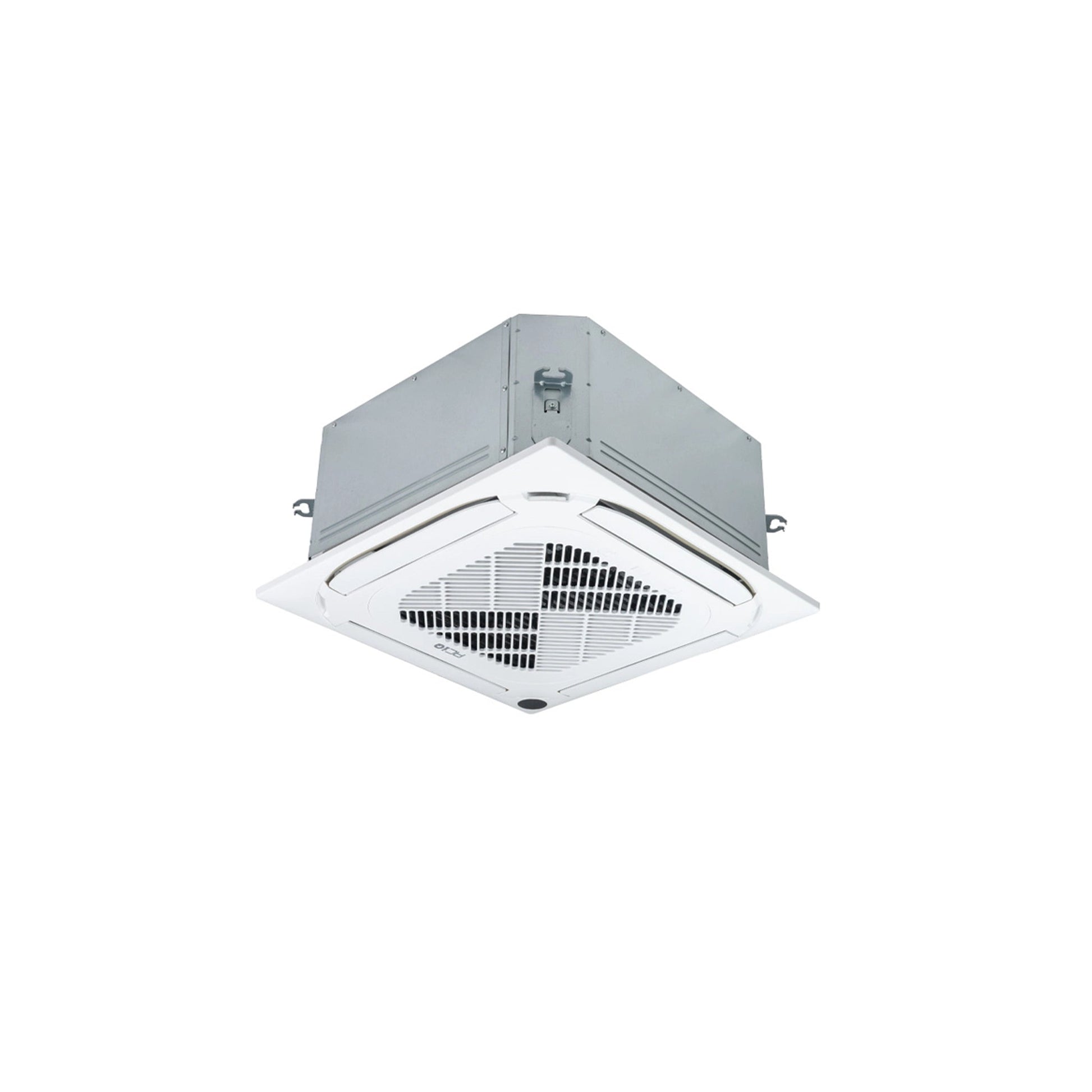

The Daikin 30,000 BTU SkyAir Ceiling Cassette Air Handler delivers powerful, energy-efficient performance while maintaining a sleek and compact ceiling-mounted design. Compatible with R-32 refrigerant, this unit supports integrated leak detection and ventilation control systems, making it ideal for both residential and light commercial applications. Optional self-cleaning and high-efficiency filters further improve indoor air quality and reduce maintenance costs.
Designed for flexibility and reliable performance, this air handler fits discreetly into ceiling installations and offers optional filtration and ventilation accessories for enhanced comfort and control.
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 Years | 10 Years | 10 Years |
| sku | FCA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 2.5-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 42 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.0 A |
| height | 11-11/32 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |

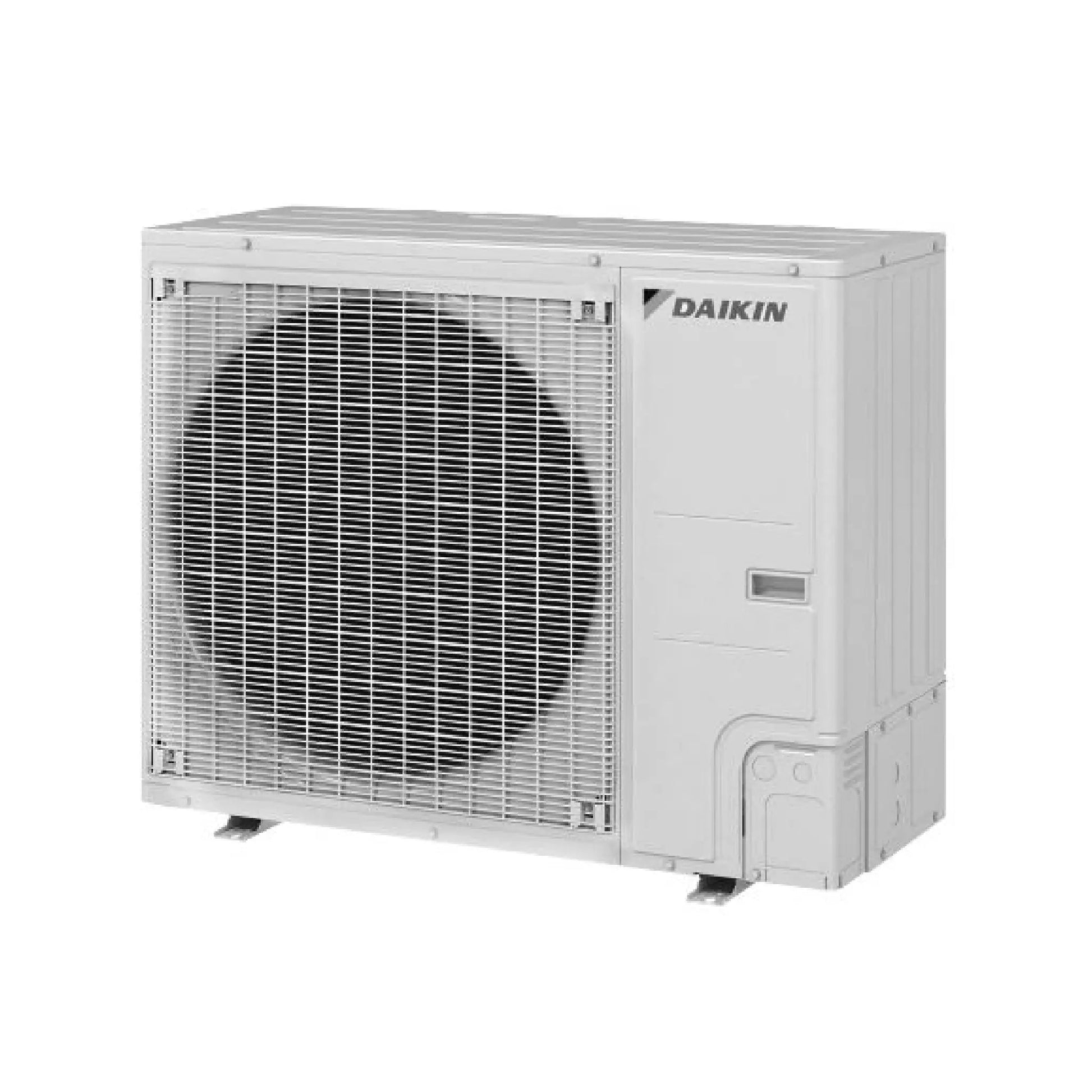

| sku | RZA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 2.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
