Product Overview

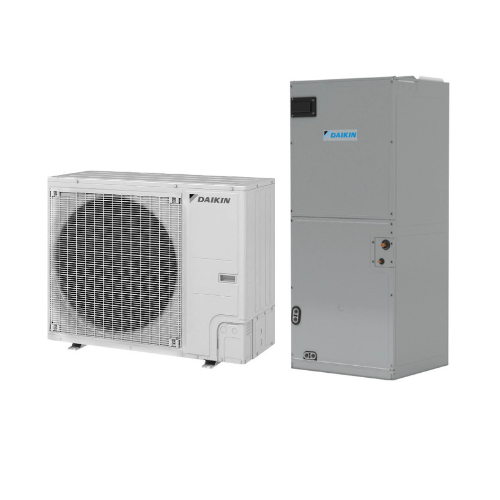

Daikin 30K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA30AAVJU
The Daikin SkyAir 30,000 BTU Single Zone Heat Pump is a high-capacity, energy-efficient system designed to meet the demands of larger spaces. Ideal for both residential and light commercial environments, this 2.5-ton R-32 unit provides reliable heating and cooling with advanced technology for quiet, consistent operation.
Key Features
- High-Capacity, Single Zone Comfort – Ideal for larger rooms or open spaces needing precise, energy-efficient temperature control
- Environmentally Friendly R-32 Refrigerant – Offers lower global warming potential and enhanced system performance
- 10-Year Limited Parts and Compressor Warranty – Supported by Daikin’s leading warranty for peace of mind and long-term protection
- Optional Drain Pan Heater – Prevents freezing in cold weather to maintain uninterrupted operation in winter conditions
- Engineered for Reliability – Built with high-quality components and sound-reducing technology to ensure quiet, dependable performance in any climate

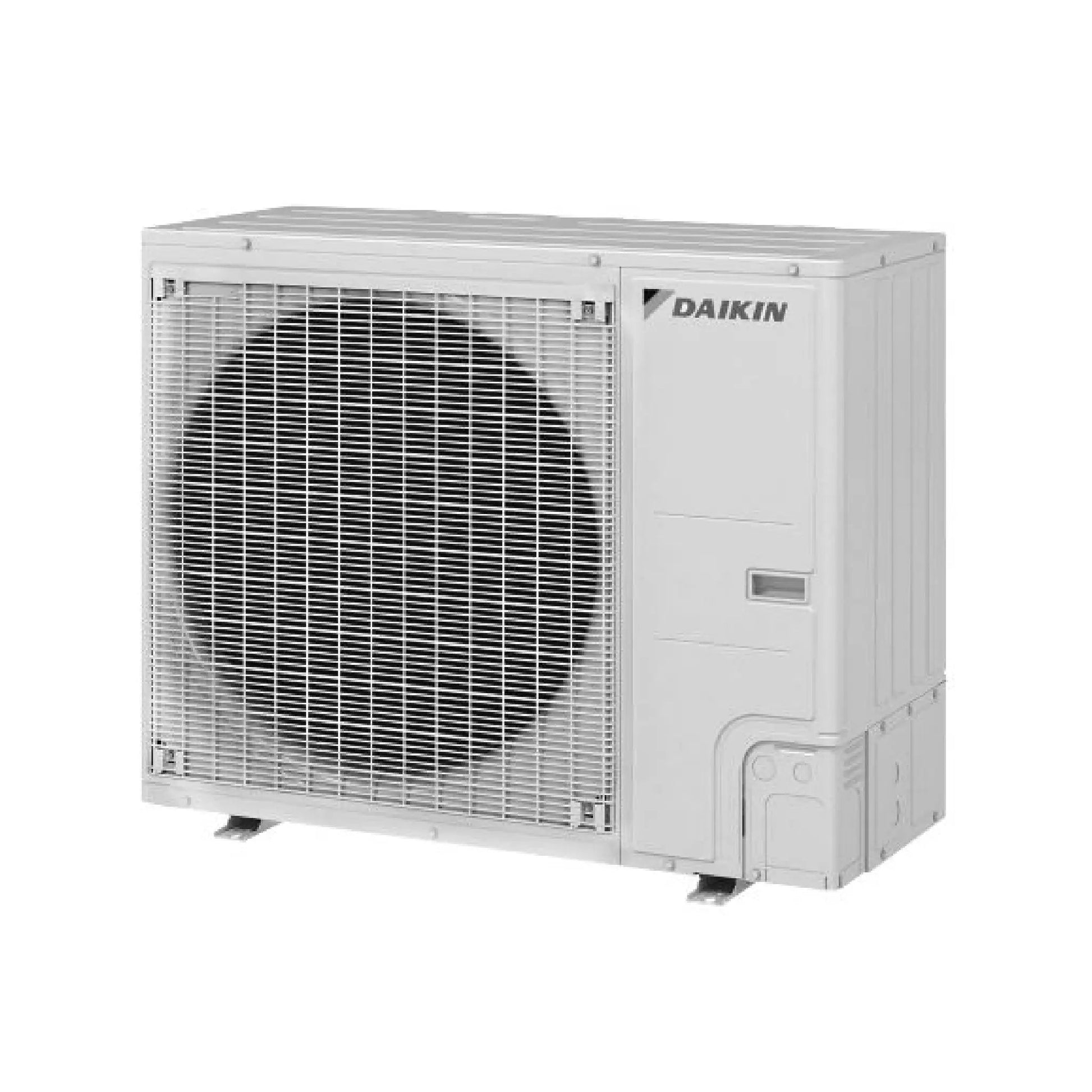

Daikin 30K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA30AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

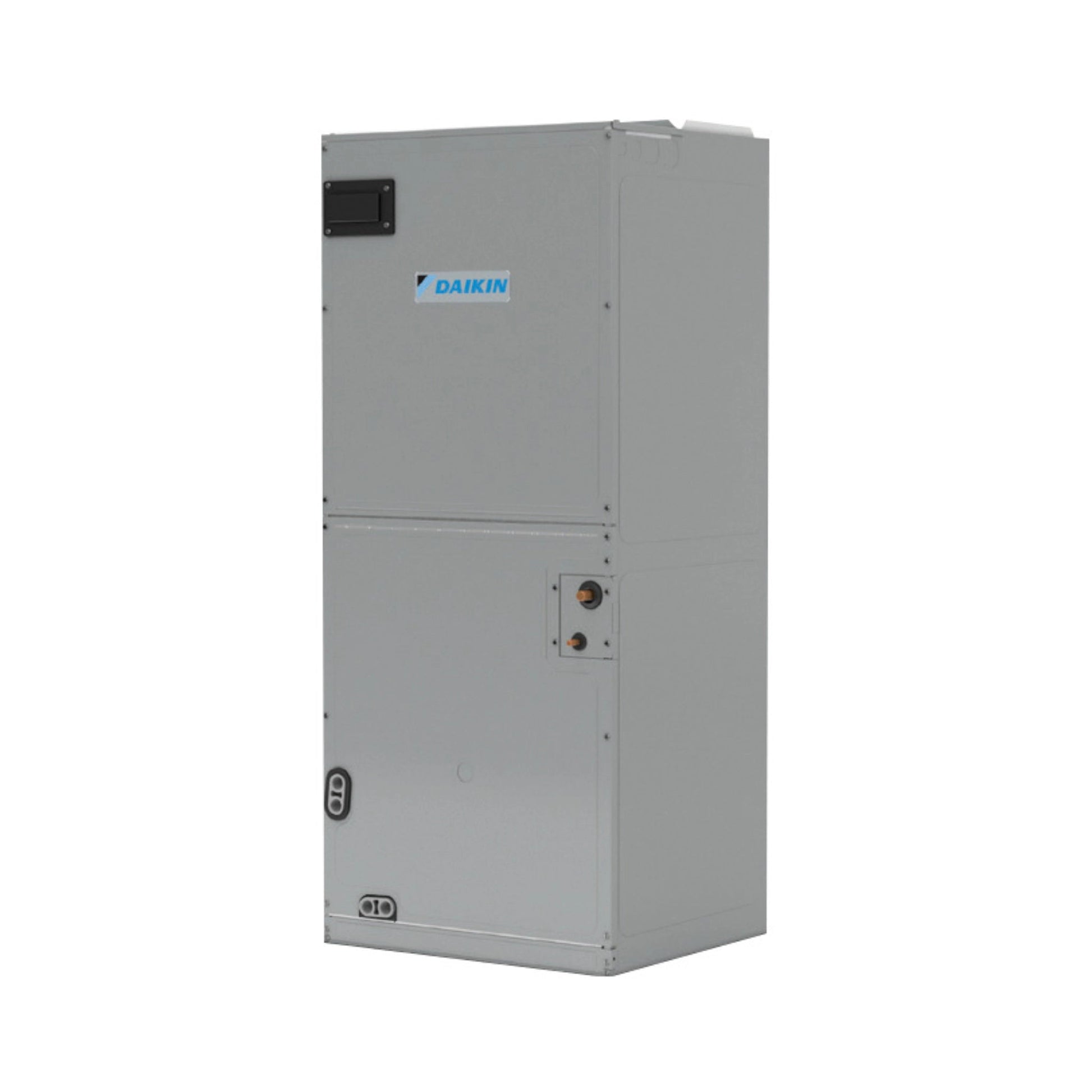

Daikin 30K BTU SkyAir Mini Split Air Handler Multi Position With Disconnect FTA30AAVJUD
This ductless mini-split system features an 30,000 BTU indoor multi-position air handler designed for single-zone applications. Compatible with 208/230V power supplies and using eco-friendly R-32 refrigerant, it delivers efficient cooling and heating performance with flexible installation options. Engineered for minimal air leakage and equipped with advanced features, this air handler is ideal for residential and light commercial HVAC systems requiring reliable and quiet operation.
Key Product Features:
- All-aluminum coil enhances heat transfer efficiency and corrosion resistance
- Less than 2% air leakage ensures optimal airflow and energy efficiency
- Supports external static pressure up to 0.9 in. w.g. for flexible ductwork and enhanced airflow control
- Optional outside air integration improves indoor air quality and ventilation compliance
- Factory-integrated refrigerant leak detection system enhances safety and maintenance
- Factory-installed disconnect option (D-Model) simplifies installation and servicing
- Anti-corrosion treatment on heat exchanger extends equipment durability in harsh environments
Daikin 30K BTU SkyAir Mini Split Air Handler Multi Position With Disconnect FTA30AAVJUD
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 12 years | 12 years | 12 years |
Technical Specifications — FTA30AAVJUD
| sku | FTA30AAVJUD |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FTA_AAVJUD |
| series name | FTA Multi Position Air Handler w/Disconnect |
| short description | SkyAir Indoor Fan Coil |
| family description | R-32 1.5 - 4 Ton Inverter Multi Position Air Handler (w/Disconnect) |
| product description | Sky-Air R32 2.5 ton Multi-Position Air Handler |
| decibel level (dba) | 51.6 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 4.9 A |
| height | 45 in |
| width | 17-1/2 in |
| depth | 21 in |
| weight | 118 lb |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA30AAVJU
| sku | RZA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 2.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
