Product Overview
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.

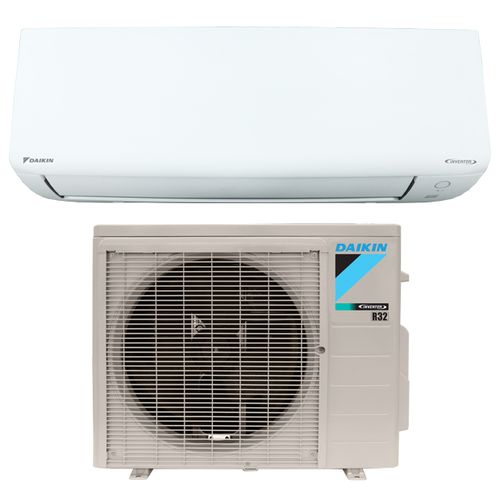

This product is a mini split package that includes both an indoor unit and outdoor unit.
Indoor Unit Description (FTKF24BVJU9)
Benefits:
- R-32 Easy, Proven, Efficient, Available
- Inverter Technology Reduces Energy Cost
- Uniform Air Circulation
- Optimal Comfort
- Quiet Operations
- Clean and Purified Indoor Air
- Easy to Clean
- Worry Free operation
Features:
- Inverter
- Power-airflow Dual Flaps
- Wide Angle Louvers
- Vericle Auto-Swing (Up and Down)
- Auto Fan Speed
- Quiet Operation
- Auto Defrosting
- Automatic Operation
- Programme Dry Function
- Fan Only Mode
- Sleep mode
- R/C with backlight & Signal Receiving Sign
- Catechin Filter/Green Tea Filter
- Titanium Apatite Air-Purifying Filter
- Wipe Clean Flat Panel
- Auto Restart (after power failure)
- Self-Diagnosis

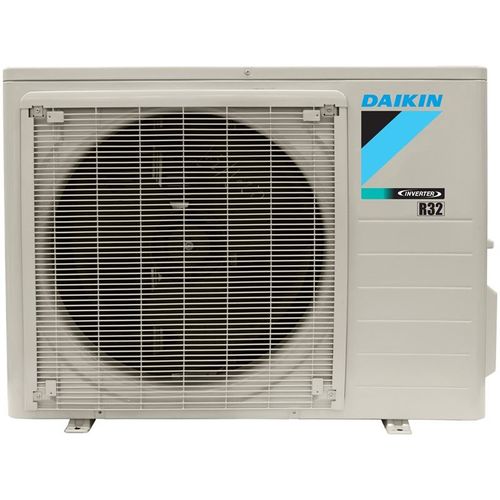

Outdoor Unit Description (RKF24BVJU9)
Benefits:
- R-32- Proven, Easy, Efficient, Available
- Energy Savings
- Long lasting heat exchanger
- Whisper quiet with specially designed airflow pattern
- Effective cooling throughout the space
- Control via a user-friendly remote control
- 12 year warranty
- Energy Efficient
- Discreet wall mount
Features:
- Inverter Powerful Operation
- Anti Corrosion Treatment of Heat Exchanger
- Wide Angle Louvers
- Vertical Auto Swing (up and Down)
- Auto Fan Speed
- Indoor Unit Quiet Operations
- Energy Saving Function
- Sleep mode
- Indoor unit ON/OFF button
- R/C with Backlight
- Catechin Filter/Green Tea Filter
- Titanium Apatite Air Purifying Filter
- Auto restart (after power failure)
- Extended operation to -4F with facility setting and wind baffles
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.
Technical Specifications — RKF24BVJU9
| sku | RKF24BVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Air Conditioner |
| system family | Mini-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RKF_BVJU9 |
| series name | Daikin OTERRA |
| short description | Series Outdoor Mini-Split Air Conditioner, Single Zone |
| family description | 0.75-2 Ton Single Split Air Conditioner 21 SEER2 |
| product description | R-32 2-Ton, Cooling only, Ductless ODU Daikin OTERRA |
| cooling btu | 22,400 |
| decibel level (dba) | 54 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 21.4 A |
| tonnage | 2 |
| btu/tonnage | 22,400 BTU/2 Ton |
| min/max outdoor temp for cooling | 50 °F to 122 °F |
| zone compatibility | Single Zone |
| height | 29-1/2 in |
| width | 34-1/4 in |
| depth | 12-5/8 in |
| weight | 113 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTKF24BVJU9
| sku | FTKF24BVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTKF_BVJU9 |
| series name | Daikin OTERRA |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32 3/4 - 2 Ton Wall mounted unit cooling only |
| product description | R-32 Daikin OTERRA 2 Ton AC only mini Split Indoor unit |
| cooling btu | 22,400 |
| decibel level (dba) | 52 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 2 |
| btu/tonnage | 22,400 BTU/2 Ton |
| min/max outdoor temp for cooling | 50 °F to 122 °F |
| height | 11-5/8 in |
| width | 39-3/8 in |
| depth | 10-3/8 in |
| weight | 28 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-FTKF-FTXF_BVJU9-RKF-RXF_BVJ
- Installation Manual (English) - IM-RXF-RKF18-24_BVJU9
- Installation Manual (French) - IM-RKF-RXF-18-24-BVJU9-French
- Installation Manual (Spanish) - IM-RKF-RXF18-24_BVJU9-Spanish
- Installation Manual (English) - IM-FTKF-FTXF-18-24_BVJU9
- Installation Manual (French) - IM-FTKF-FTXF18-24_BVJU9-French
- Installation Manual (Spanish) - IM-FTKF-FTXF18-24_BVJU9-Spanis
- Operation Manual (English) - OM-FTXF-FTKF18-24_BVJU9
- Operation Manual (French) - OM-FTXF-FTKF18-24_BVJU9-FR
- Operation Manual (Spanish) - OM-FTXF-FTKF18-24_BVJU9-ES
