Product Overview

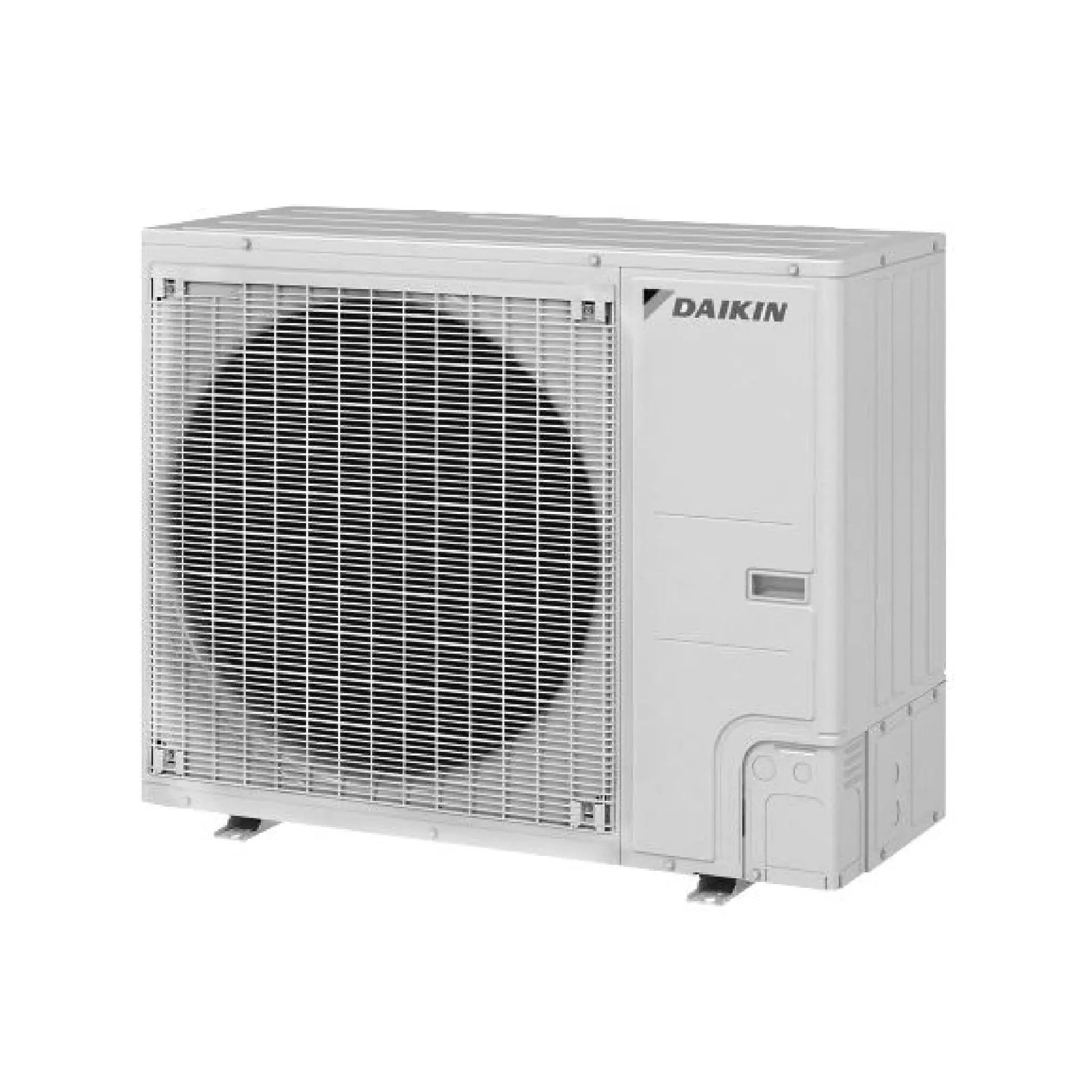

Daikin 18K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA18AAVJU
The Daikin SkyAir Advance 18,000 BTU Outdoor Heat Pump is a high-performance, single-zone HVAC solution designed for year-round comfort and energy efficiency. Built for both light commercial and residential use, this 1.5-ton outdoor unit utilizes R-32 refrigerant to deliver powerful heating and cooling while minimizing environmental impact.
Key Features
- Energy-Efficient R-32 Refrigerant – Offers enhanced performance with lower global warming potential, making it a more environmentally responsible option
- Single Zone, Targeted Comfort – Ideal for cooling or heating individual rooms or areas that require dedicated temperature control
- 10-Year Limited Parts and Compressor Warranty – Provides long-term protection and peace of mind with Daikin's reliable warranty coverage
- Optional Drain Pan Heater – Supports cold-climate operation by preventing drain pan freezing in low temperatures
- Quiet, Durable Design – Built with noise-reduction components and weather-resistant materials for long-lasting, quiet operation in varying conditions
Daikin 18K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA18AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

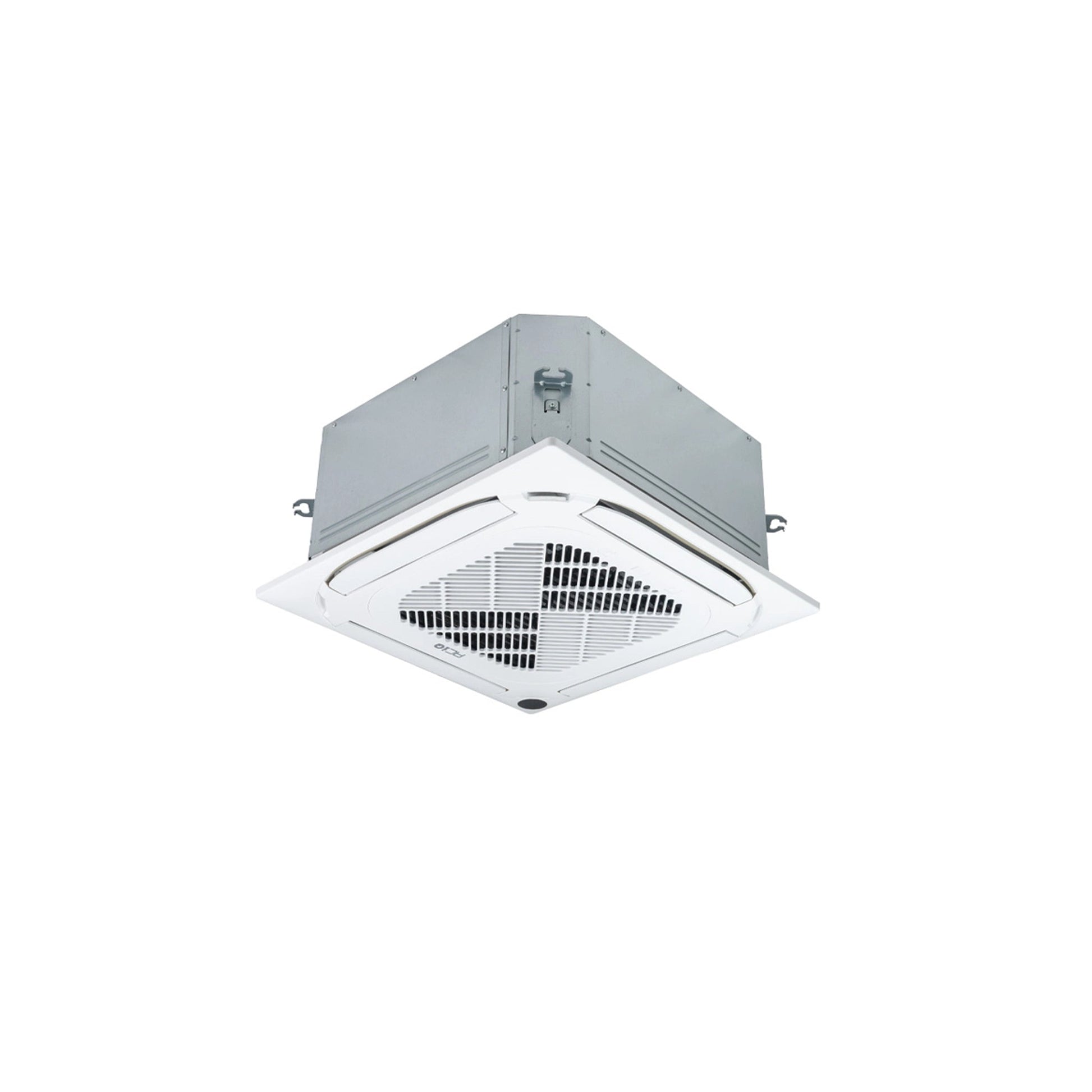

Daikin 18,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA18AAVJU
The Daikin 18,000 BTU SkyAir Ceiling Cassette Air Handler is a powerful and discreet indoor unit designed to deliver superior comfort and energy efficiency. Ideal for commercial or large residential environments, this ceiling-mounted air handler integrates seamlessly with SkyAir systems to provide quiet, even airflow and advanced air quality management. With optional self-cleaning filtration and ventilation connectivity, this unit ensures efficient operation and minimal maintenance over time.
Key Features
- 18,000 BTU ceiling cassette air handler for ductless mini-split systems
- Compatible with Daikin SkyAir outdoor units for high-efficiency performance
- R-32 refrigerant for eco-friendly and efficient operation
- Refrigerant leak detection compatible with ventilation, dampers, and monitoring systems
- Optional self-cleaning filter panel reduces maintenance and enhances air quality
- High-efficiency filter options available for improved indoor air performance
- Ventilation connection kit available for advanced airflow integration
- 10-year limited parts and compressor warranty
Engineered for quiet operation and long-term dependability, the Daikin SkyAir Ceiling Cassette air handler provides flexible comfort solutions for open office spaces, classrooms, and retail environments. Its low-profile design allows for seamless ceiling integration without compromising performance or accessibility.
Daikin 18,000 BTU SkyAir Ceiling Cassette Air Handler Mini Split R32 FCA18AAVJU
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 10 years | 10 years | 10 years |
Technical Specifications — FCA18AAVJU
| sku | FCA18AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FCA_AAVJU |
| series name | FCA |
| short description | SkyAir Indoor Fan Coil |
| family description | 1.5 tp 4.0 Ton SkyAir Ceiling Mounted Round Flow Cassette |
| product description | R32 - 1.5-Ton Roundflow Sensing Cassette Unit |
| decibel level (dba) | 38 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 0.5 A |
| height | 9-11/16 in |
| width | 33-1/16 in |
| depth | 33-1/16 in |
| weight | 51 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — RZA18AAVJU
| sku | RZA18AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 1.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 19.8 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
