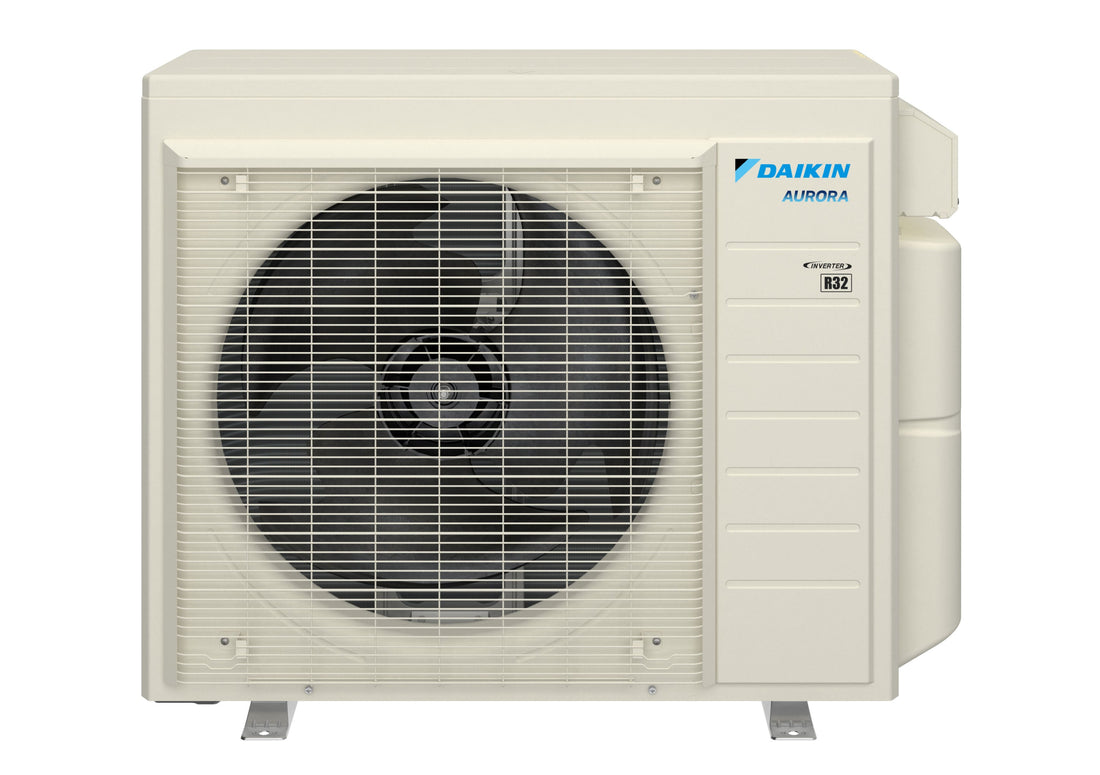

Daikin 18,000 BTU MXT Multi-Zone Mini Split Heat Pump Hyper Heat Condenser - R32 | 230V

Daikin 2MXT18AVJU9 — 2-Zone Multi-Zone Condenser (18,000 BTU)

The Daikin 2MXT18AVJU9 is a compact, high-efficiency 2-zone multi-split heat pump condenser from Daikin’s MXT Series, designed to provide reliable year-round comfort for up to two independently controlled indoor units. Using R-32 refrigerant and inverter technology, it delivers quiet, energy-efficient performance ideal for residential or light commercial spaces.

• Model: 2MXT18AVJU9
• Nominal Capacity: 18,000 BTU (1.5 ton)
• Zones / Indoor Units: 2 (requires exactly two indoor units)
• Refrigerant: R-32 (lower global warming potential)

Key benefits: The 2MXT18AVJU9 combines Daikin’s inverter-driven compressor technology with flexible zoning capability. Enjoy individual room temperature control, excellent part-load efficiency, and quiet outdoor operation — all while reducing environmental impact through R-32 refrigerant use.

• Zoning flexibility: Compatible with a range of Daikin indoor units, including wall-mounted, ceiling cassette, and ducted models. Total combined indoor capacity must be within the system’s rated limits.
• Energy efficiency: Variable-speed inverter technology adjusts output to maintain comfort while minimizing energy consumption.
• Quiet operation: Engineered to reduce noise and vibration for a more peaceful outdoor environment.
• Durability: Features a corrosion-resistant cabinet and high-quality components for long-term reliability.

Installation & service notes: This condenser should be installed by a qualified HVAC professional.

• Electrical: 208/230V single-phase supply required — confirm breaker size and wiring per Daikin installation manual and local code.
• Piping: Use appropriate line set sizes and follow Daikin’s refrigerant piping and installation guidelines.
• Commissioning: Ensure communication between indoor units, perform leak testing, and follow Daikin’s startup procedures for optimal system performance.

Warranty & support: Covered by Daikin’s 12-year limited parts warranty and supported through Daikin’s authorized distributor and contractor network. Refer to the product manual or reseller for full warranty details and registration requirements.
