Product Overview

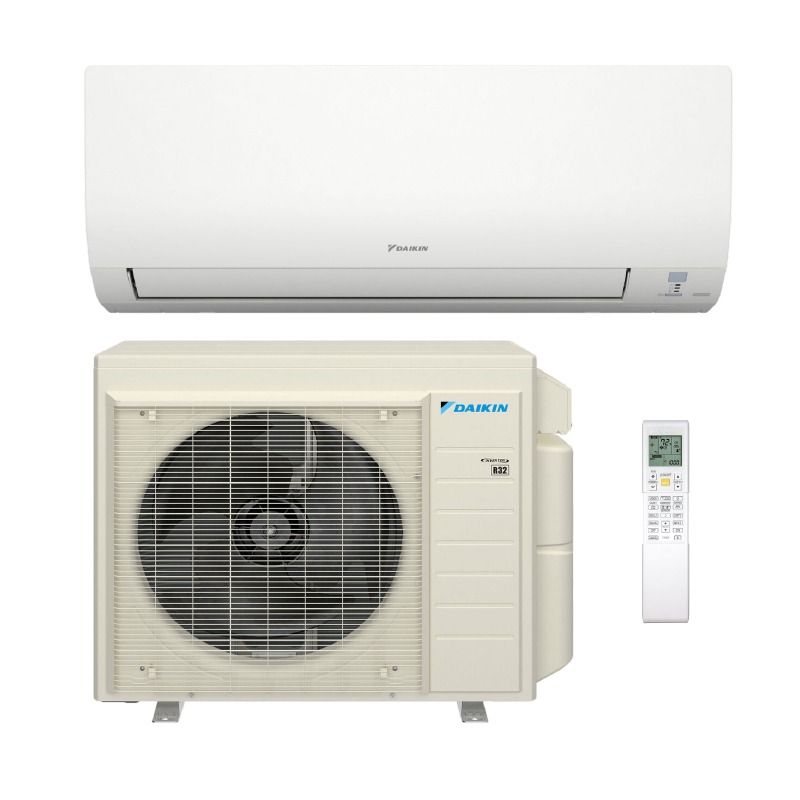

Daikin 12,000 BTU Aurora Single Zone Mini Split Heat Pump Condenser - R32 | 230V
12,000 BTU Daikin Aurora Mini Split Heat Pump Condenser - R32 | 230V
The 12,000 BTU Daikin Aurora Mini Split Heat Pump Condenser delivers high-performance heating and cooling with advanced energy efficiency. Featuring R32 refrigerant and an inverter-driven compressor, this system ensures optimal comfort, low energy consumption, and whisper-quiet operation. Ideal for single-zone wall-mount, floor-mount, and concealed duct systems, it provides reliable climate control in extreme weather conditions.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and 10.5 HSPF2 for exceptional energy efficiency
- Maintains 100% heating capacity at 5°F for extreme cold climates
- Provides 100% cooling capacity at 104°F for consistent summer performance
- Operating temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Features Built-in WiFi (Wall Mount Unit Only) for remote control via the Daikin Comfort Control App
- Equipped with Self Diagnostics and a digital display for easy troubleshooting
- Offers multiple operation modes: Econo Mode, Dry Function, and Powerful Mode
- Provides Auto Fan Speed Control for consistent airflow management
Durable and Weather-Resistant Construction:
- Precharged for up to 49 ft of liquid line for easier installation
- Includes Anti-Corrosion Treatment on the heat exchanger for enhanced longevity
- Allows Low Ambient Cooling - with field settings and an air adjustment grille, operation extends down to 5°F
Quiet and User-Friendly Design:
- Ensures Indoor and Outdoor Unit Quiet Operation for minimal noise disturbance
- Includes a Wireless Backlit IT Remote Controller for easy control and adjustments
- Provides Auto Restart after power failures for continuous operation
Flexible Installation Options:
- Max piping for 09/12 MBH: 66' length, 49' height
- Max piping for 15 MBH: 98' length, 66' height
- Max piping for 18/24 MBH: 99' length, 66' height
Warranty Coverage:
- Limited 12-Year Parts Warranty for long-term reliability
- Extended 12-Year Labor Warranty for added peace of mind
The 12,000 BTU Daikin Aurora Mini Split Heat Pump Condenser is designed for those who need high-efficiency, reliable heating and cooling in any climate. With smart controls, durable construction, and whisper-quiet operation, this system provides year-round comfort and maximum energy savings.
Daikin 12,000 BTU Aurora Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Aurora 12,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 12,000 BTU Wall Mount Air Handler is a versatile, energy-efficient heating and cooling solution for single zone and multi zone applications. Featuring advanced R32 refrigerant, built-in WiFi, and a robust heat pump, this unit delivers reliable comfort even in extreme temperatures while ensuring quiet operation and superior energy savings.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for outstanding energy efficiency
- Maintains:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates effectively within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Self-diagnostics with a digital display for easy maintenance and troubleshooting
- Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for customizable comfort
- Equipped with Auto Fan Speed Control to ensure consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and extends lifespan
- Offers quiet operation for both indoor and outdoor units, minimizing noise disruptions
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Comes with a Wireless Backlit IR Remote Controller for convenient operation
- Includes Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty for reliable performance
- Extended 12-Year Labor Warranty for comprehensive protection
The Daikin Aurora 12,000 BTU Wall Mount Air Handler combines advanced features, durable design, and exceptional energy efficiency. Designed for single zone and multi zone systems, it ensures year-round comfort in extreme temperatures, making it an ideal choice for both residential and light commercial applications.
Technical Specifications — RXT12AVJU9
| sku | RXT12AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXT_AVJU9 |
| series name | AURORA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2.0 Ton AURORA R-32 Split Heat Pump Up to 21.0 SEER2 / 10.5 HSPF2 / 12.2 EER2 |
| product description | 20.0 SEER2, Heat Pump, Ductless ODU, 1.0 Ton, Daikin AURORA R-32 |
| cooling btu | 10,600 |
| heating btu | 13,500 |
| decibel level (dba) | 50 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 14.6 A |
| tonnage | 1 |
| btu/tonnage | 10,600 BTU/1 Ton |
| min/max outdoor temp for heating | -13 °F to 60 °F |
| min/max outdoor temp for cooling | 50 °F to 115 °F |
| zone compatibility | Single Zone |
| height | 21-15/16 in |
| width | 26-6/16 in |
| depth | 11-3/16 in |
| weight | 72 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV12AVJU9
| sku | FTXV12AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 1 Ton Wall Mount R-32 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| zone compatibility | Multi Zone |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EDUS092401 AURORA R32 Pair
- Installation Manual (English) - IM-IM_RXT-09-12_AVJU9
- Installation Manual (English) - IM-RXP09-12-RXV09-12-ENG
- Installation Manual (French) - IM-FR_IM_RXT-09-12_AVJU9
- Installation Manual (Spanish) - IM-03_ES_3P740832-1E
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Installation Manual (English) - IM-01_EN_3P741458-1G-FTXV09-12
- Installation Manual (English) - IM-IM_3P741458-1C-FTXV09-12
- Operation Manual (English) - OM-OM - 01_EN_CTXVFTXV09-12
