Cooper&Hunter Single-Zone R410A 9K BTU 115V Olivia Midnight Series Black High Wall Single Head, Wall-Mount Air Conditioning Unit for Heat Pump Mini Split Inverter System 0.75 Ton 23 SEER2 w/ Wi-Fi, Optional Install Kit - CH-B09OLVWM-115VI + CH-ES09-115VO

Cooper&Hunter Single-Zone R410A 9K BTU 115V Olivia Midnight Series Black High Wall Single Head, Wall-Mount Air Conditioning Unit for Heat Pump Mini Split Inverter System 0.75 Ton 23 SEER2 w/ Wi-Fi, Optional Install Kit - CH-B09OLVWM-115VI + CH-ES09-115VO

SKU: CH-B09OLVWM-115VI + CH-ES09-115VO + Wi-Fi Adapter (17310900A05963)

Free Shipping on orders above $300

No Sales Tax *Except Texas

Automatic Discounts applied at Check Out

In stock, ready to ship

Price
Regular price $515.00
Sale price $515.00 Regular price $713.85
Sale Sold out
Size

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter Single-Zone 9,000 BTU 115V Olivia Midnight Series Black High Wall, Single Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 0.75 Ton 23 SEER2 w/ Wi-Fi, Optional Install Kit - CH-B09OLVWM-115VI + CH-ES09-115VO


Summary

The Olivia Midnight Series Single Zone Ductless Mini Split Systems we offer have options of 16ft, 25ft, and 50ft kits. Has a sleek black design that offers a distinguished and sharp look and feel. Paired with style and innovative features. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 26.4 SEER2. This system will both heat and cool your home or office effectively down to -13°F for Standard units, and even down to -22°F for Hyper units.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection. The Olivia indoor wall-mounted series is an incredible option as a single or multi-zone mini split unit!


Included in Your Order:

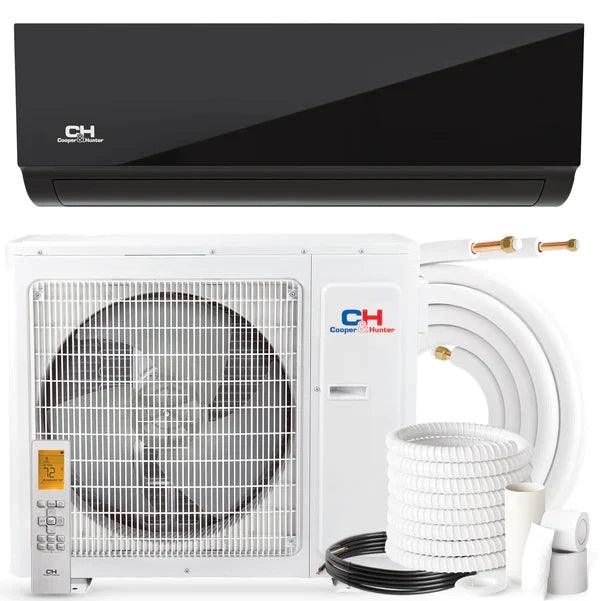

Cooper & Hunter Single Zone Ductless Mini Split System (9,000 BTU Inverter with Heat Pump)

Outdoor Unit: 9,000 BTU (1pc) – Model: CH-ES09-115VO

Indoor Unit: 9,000 BTU (1pc with remote) – Model: CH-B09OLVWM-115VI

Wi-Fi Adapter

Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.

Wireless Remote Control

Installation Manual

User's Manual

Manufacturer Warranty


Key Features:

  • Sleek Black Design
  • Auto-Swing for horizontal
    louvers
  • Genius Core ultra-low
    compressor speed of 12Hz
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function
  • Eco Mode
  • Follow Me Mode
  • Remote Control included
  • Smart Kit ready with downloadable C&H remote app

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.


Other Single Zone Olivia Systems

Olivia Standard Wall Mounts SKU's
6,000 BTU Olivia Single Zone with Optional Installation Kit 230V

CH-B06MOLVWM-230VI + CH-HPR06F9-230VO

9,000 BTU Olivia Single Zone with Optional Installation Kit 115V
CH-B09OLVWM-115VI + CH-ES09-115VO
12,000 BTU Olivia Single Zone with Optional Installation Kit 115V CH-B12OLVWM-115VI + CH-ES12-115VO
9,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-B09MOLVWM-230VI + CH-ES09-230VO
12,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-B12MOLVWM-230VI + CH-ES12-230VO
18,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-B18MOLVWM-230VI + CH-ES18-230VO
24,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-B24MOLVWM-230VI + CH-ES24-230VO
Olivia Hyper (Withstands Ambient Temperatures down to -23°F) SKU's
6,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-B06MOLVWM-230VI + CH-HPR06F9-230VO
9,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-B09MOLVWM-230VI + CH-HPR09-230VO
12,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-B12MOLVWM-230VI + CH-HPR12-230VO
18,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-B18MOLVWM-230VI + CH-HPR18-230VO
24,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-B24MOLVWM-230VI + CH-HPR24-230VO

Regular Olivia (White Wall Mounts in Hyper and Regular)

Link to Products

Multi-Zone Olivia Units

Link to Products

Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control

Technical Information

Indoor Unit: CH-B09OLVWM-115VI

Specification Details
System Type Single-zone unit
BTU Rated 9,000 BTU
Power Source 115V, 1Ph, 60Hz
Dehumidification Value 1.71 pints/day
Refrigerant Type R410A
Voltage Range (V) 103.5 - 126.5
Packing Dimensions (W x D x H in inches) 34.45 x 11.22 x 14.96
Controller RG10K-exclusive remote
Refrigerant Piping (Liquid / Gas side in inches) 1/4" / 1/2"
EER2 13.8
SEER2 23
Unit Net/Gross Weight (lbs) 18.96 / 24.47
Unit Dimensions (W x H x D in inches) 31.57 x 7.87 x 11.61
Operation Range - Heating (°F) 32 ~ 86
Operation Range - Cooling (°F) 60 ~ 90
Minimum Circuit Ampacity (MCA) 3A
Max. Fuse 15A
Indoor Noise Level (H/M/L dB) 41.5 / 36 / 24
Indoor Air Flow (CFM) 341.18 / 300.00 / 241.18 / 176.47
Drainage Water Pipe Diameter 5/8"


Outdoor Unit: CH-ES09-115VO

Specification Details
System Type Single-zone unit
BTU Rated 9,000 BTU
Power Source 115V, 1Ph, 60Hz
Dehumidification Value 1.71 pints/day
Max. Pipe Length (ft) 82.02
Refrigerant Type R410A
Voltage Range (V) 103.5 - 126.5
Packing Dimensions (W x D x H in inches) 34.92 x 13.27 x 24.02
Refrigerant Piping (Liquid / Gas side in inches) 1/4" / 1/2"
HSPF2-5 7.6
HSPF2-4 9.8
EER2 13.8
Cooling Capacity (Min/Max BTU/h) 9,000 (3,930~13,200)
SEER2 23
Unit Net/Gross Weight (lbs) 66.80 / 72.31
Unit Dimensions (W x H x D in inches) 30.12 x 11.93 x 21.85
Refrigerant Precharge (ft) 25
Outdoor Noise Level (dB) 54
Outdoor Air Flow (CFM) 794.12
Minimum Circuit Ampacity (MCA) 19A
Max. Fuse 25A
Max Height Difference between Indoor and Outdoor Units (ft) 32.81
Heating Capacity (Min/Max BTU/h) 10,000 (5,000~12,600)
COP 3.91
Ambient Temperature - Heating (°F) -13 ~ 75
Ambient Temperature - Cooling (°F) -13 ~ 122
Additional Refrigerant Charge (1/4" Liquid Line) 0.16


Certifications


Performance Data/Features

  • Auto-Swing for horizontal
    louvers
  • Genius Core ultra-low
    compressor speed of 12Hz
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function
    (Single-Zone only)
  • Eco Mode (Single-Zone only)
  • Follow Me Mode
  • Remote Control included
  • Smart Kit ready with downloadable C&H remote app

Manuals & Downloads

Brackets and Concrete Pads

Line covers

6000-9000 BTU Installation Kits

Disconnect Boxes and Electrical Whips 30 AMPS
