Cooper & Hunter Universal Floor/Ceiling 48,000 BTU, R454B, 230V 19.8 SEER Ductless Mini Split Air Conditioner With Wall Thermostat, Light Commercial Series, 4 TON Single Zone System,Optional Installation Kit. CH-RSH48LCFC + CH-R48LCU-230V0

Cooper & Hunter Universal Floor/Ceiling 48,000 BTU, R454B, 230V 19.8 SEER Ductless Mini Split Air Conditioner With Wall Thermostat, Light Commercial Series, 4 TON Single Zone System,Optional Installation Kit. CH-RSH48LCFC + CH-R48LCU-230V0

SKU: CH-RSH48LCFCI + CH-R4BLCU-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Apr 08

After you place the order, we will need to 1 day to prepare the shipment

Order Ready

Apr 10 - Apr 11

Order will start to be shipped.

Delivered

Apr 11 - Apr 16

Estimate arrival date: Apr 11 - Apr 16

Order in the next 22 Hours 14 Minutes 16 Seconds and You will receive your order between Apr 11 and Apr 16

Price
Regular price $4,004.00
Sale price $4,004.00 Regular price $3,423.00
save $-581.00
Sold out
INSTALLATION KIT
save $-581.00
save $-568.00
save $-551.00
save $-416.00

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

 More payment options

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Universal Floor/Ceiling 48,000 BTU, R454B, 230V 19.8 SEER Ductless Mini Split Air Conditioner With Wall Thermostat, Light Commercial Series, 4 TON Single Zone System,Optional Installation Kit. CH-RSH48LCFC + CH-R4BLCU-230V0

Summary

The Cooper&Hunter Universal Floor/Ceiling units provide a versatile cooling and heating solution, suitable for both ceiling and wall installations. These units are engineered for flexibility, allowing placement horizontally on ceilings or vertically on walls to meet diverse architectural needs.

Available in capacities of 18K, 24K, 36K, 48K, and 60K BTU/h, these systems are designed for both single-zone and multi-zone applications, offering high efficiency with ratings of up to 23 SEER. This adaptability makes them perfect for various settings, from residential to commercial spaces.

The installation is streamlined and discreet, ensuring the units blend seamlessly into any environment without compromising interior aesthetics. Additionally, these systems can operate efficiently in extreme conditions, heating effectively in ambient temperatures as low as -13°F for standard units and up to -22°F for Hyper Units.

Control options include a remote control and wall thermostat enhancing user comfort and ease of use. These features, combined with their flexible installation options, make the Universal Floor/Ceiling units an excellent choice for those seeking efficient and adaptable heating and cooling solutions.



Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

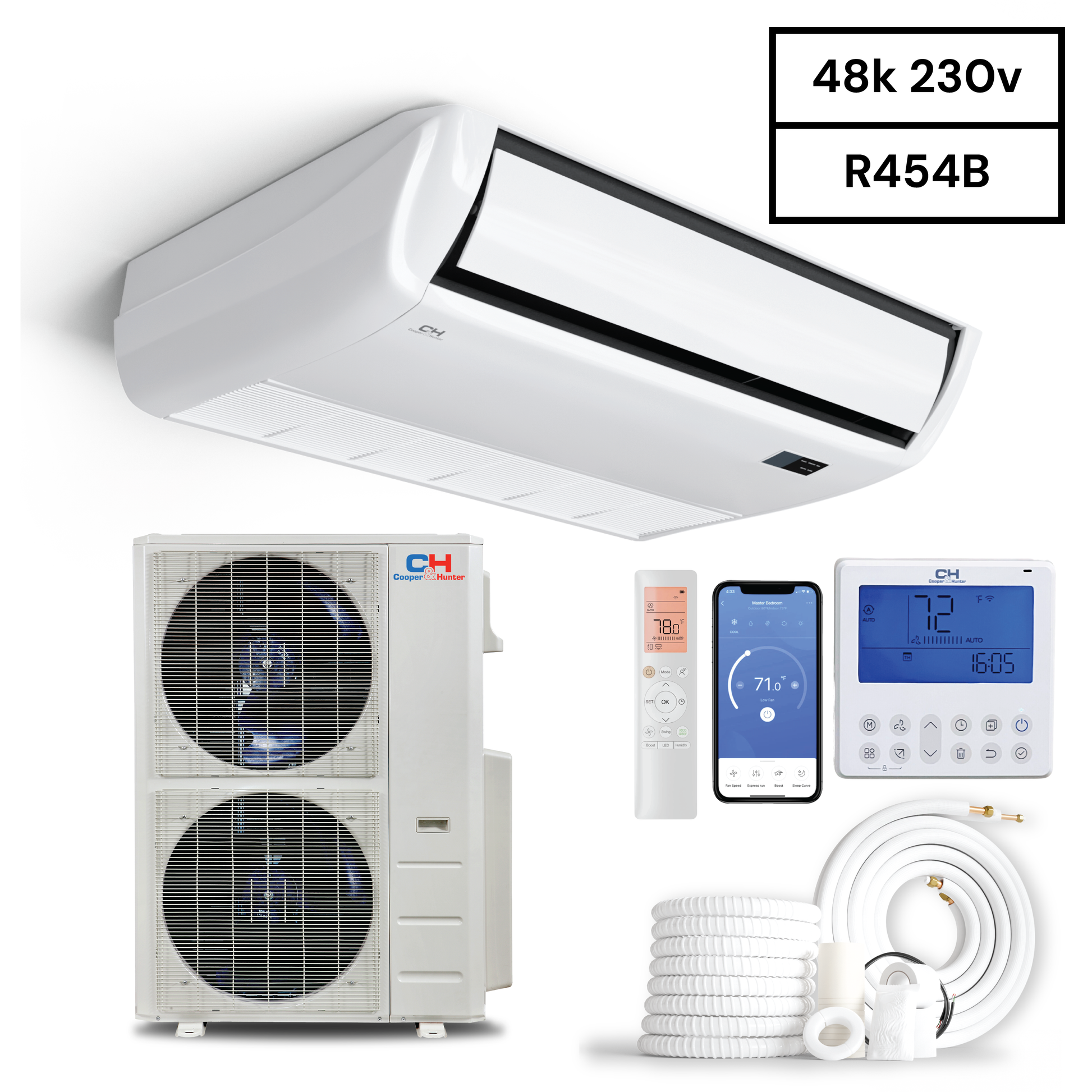

What's Included

  • Indoor Unit  CH-RSH48LCFCI  (48,000 BTU 230V Universal Floor/Ceiling Air Conditioning Unit)
  • Outdoor Unit  CH-R4BLCU-230V0 (48,000 BTU)

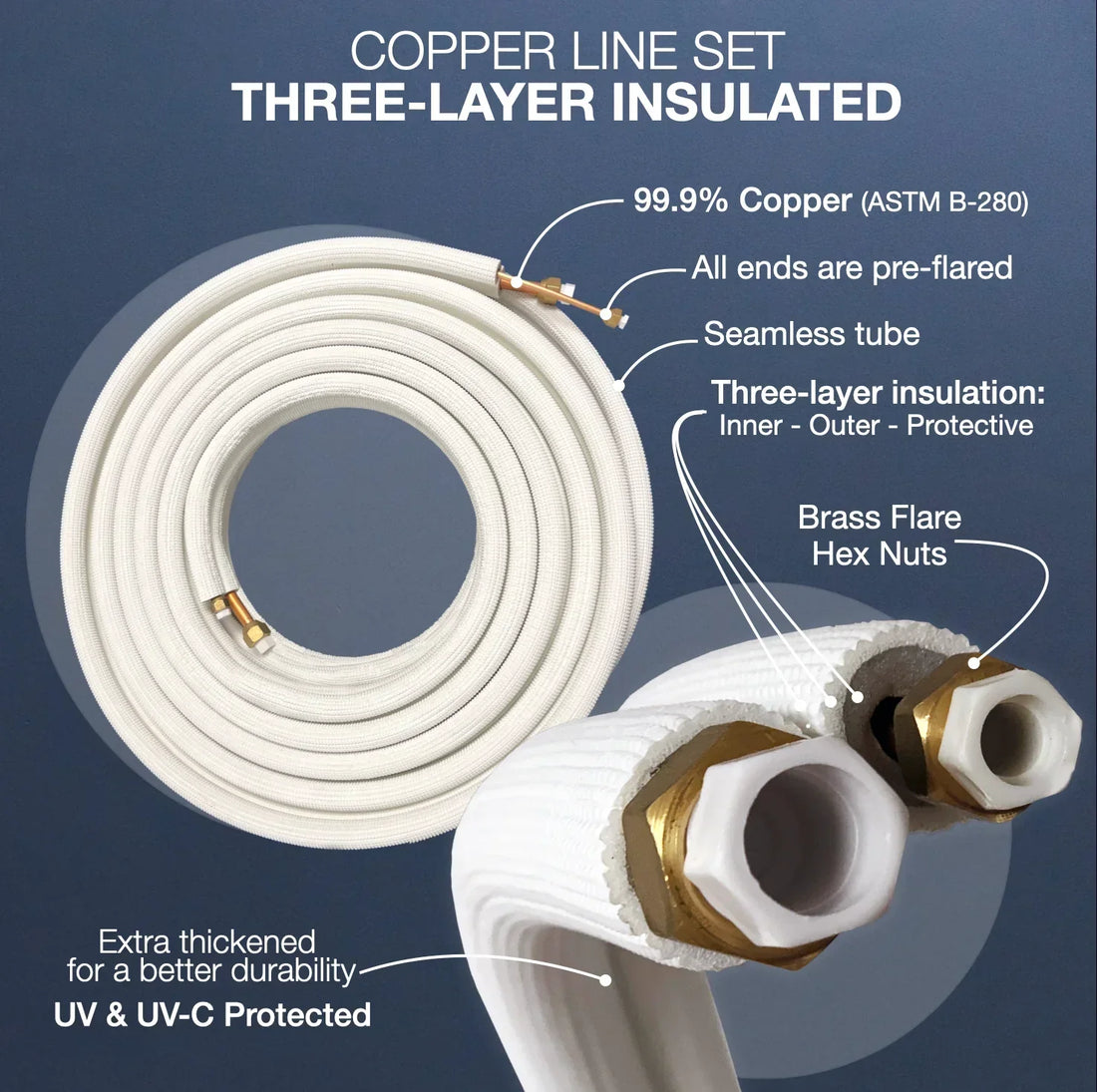

  • Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
  • Wireless Remote Control

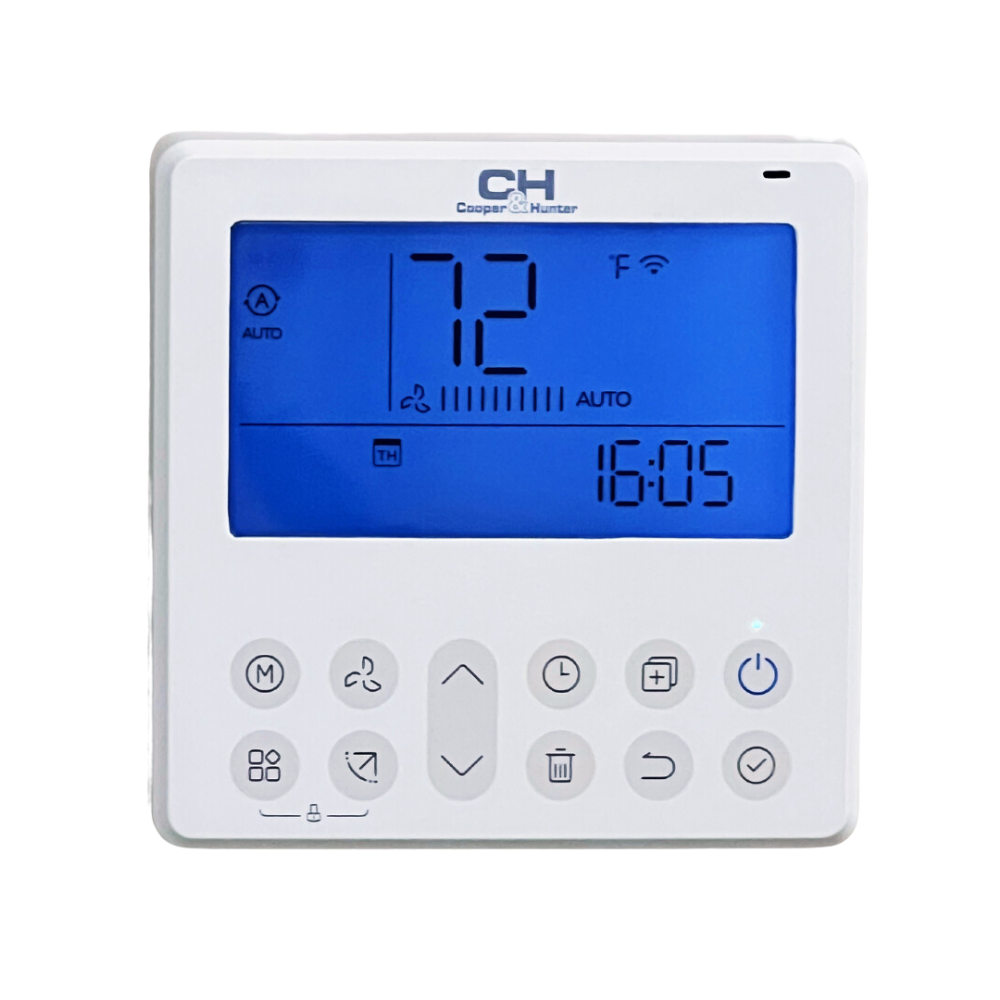

  • Thermostat included
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty



Universal Floor/Ceiling Systems (R454B Models)

(Standard and Hyper Heating Versions)

Capacity Standard Models Hyper Heating Models Voltage
18,000 BTU CH-RSH18MFC + CH-RES18-230VO CH-RSH18MFC + CH-RHP18-230VO 230V
24,000 BTU CH-RSH24MFC + CH-RES24-230VO CH-RSH24MFC + CH-RHP24-230VO 230V
36,000 BTU CH-RSH36LCFC + CH-R36LCU-230VO CH-RSH36LCFC + CH-RHP36LCU-230VO 230V
48,000 BTU CH-RSH48LCFC + CH-R48LCU-230VO CH-RSH48LCFC + CH-RHP48LCU-230VO 230V
60,000 BTU CH-RSH60LCFC + CH-R60LCU-230VO CH-RSH60LCFC + CH-RHP60LCU-230VO 230V

Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control



Technical Information

Indoor Unit CH-RSH48LCFC

Panek Model Numbers CH-RSH48LCFC
Power Supply Rated V,Ph,Hz 208/230.1.60
Rated Capacity
Cooling Btu/h 48,000
Heating Btu/h 50,000
Minimum Circuit Ampacity (MCA) A 3
Max. Fuse A 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 1353.8/1238.1/1083.0/ 800.5/665.1
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) N\A/53/49/39/34.5
Indoor

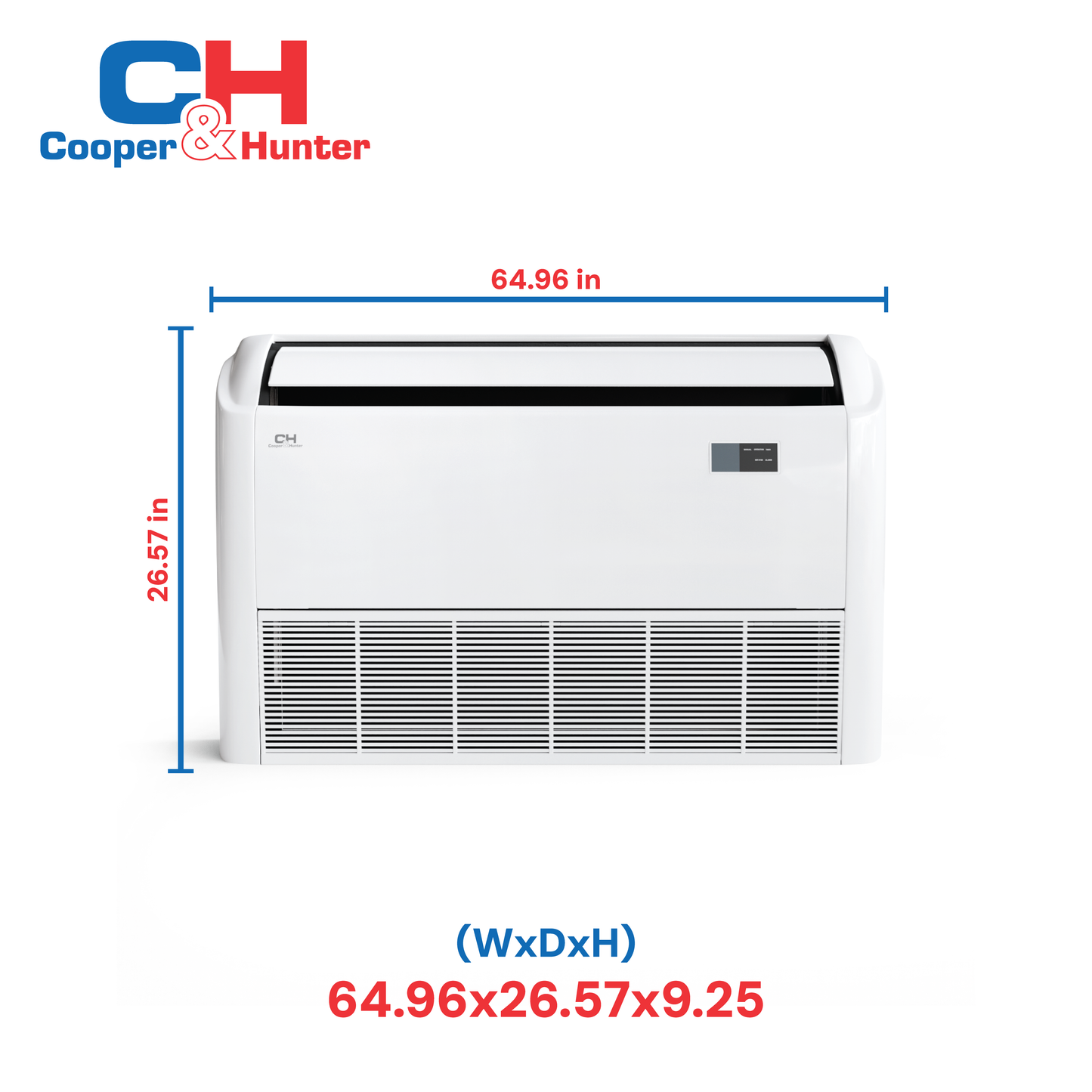

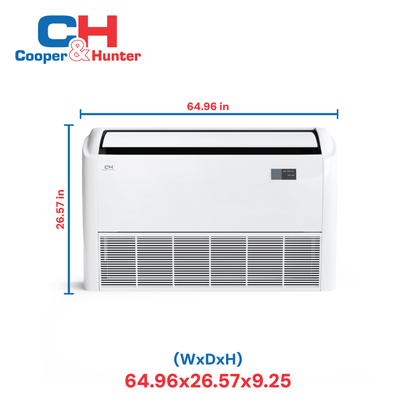

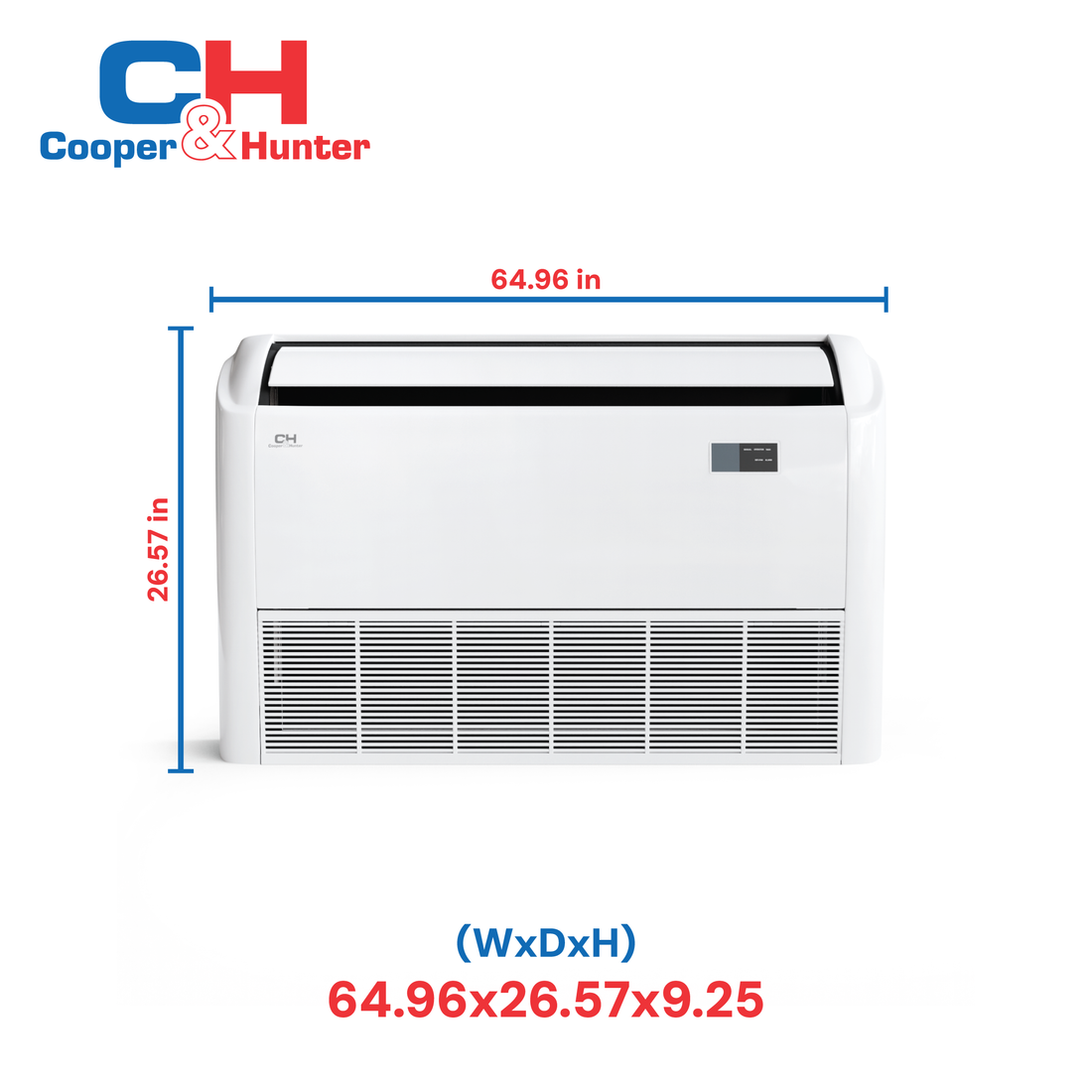

Dimension (WxDxH) inch 64.96x26.57x9.25
Packing (WxDxH) inch 67.91x29.72x12.52
Net/Gross Weight lbs. 89.07/105.16
Room Temperature
Cooling °F 60-90
Heating °F 32-86
Liquid Side/Gas Side inch 3/8"/3/4"

Outdoor Unit: CH-R4BLCU-230V0

Power Supply
Rated V, Ph, Hz 208/230,1,60
Voltage Range V 187-253
Cooling
Rated Capacity (Range) Btu/h 10,100-50,000
Rated Current A 22
EER2 Btu/h 9.5
SEER2 Btu/h 19.8
Heating at 47°F
Rated Capacity (Range) Btu/h 15,800-59,100
Rated Current A 22.6
COP W/W 2.82
HSPF4 10.2
HSPF5 7.8
Minimum Circuit Ampacity (MCA) A 39
Max. Fuse (Outdoor Unit) A 40
Outdoor Air Flow (Max.) CFM 4,237.90
Outdoor Noise Level (Sound Pressure) dB(A) 62.5

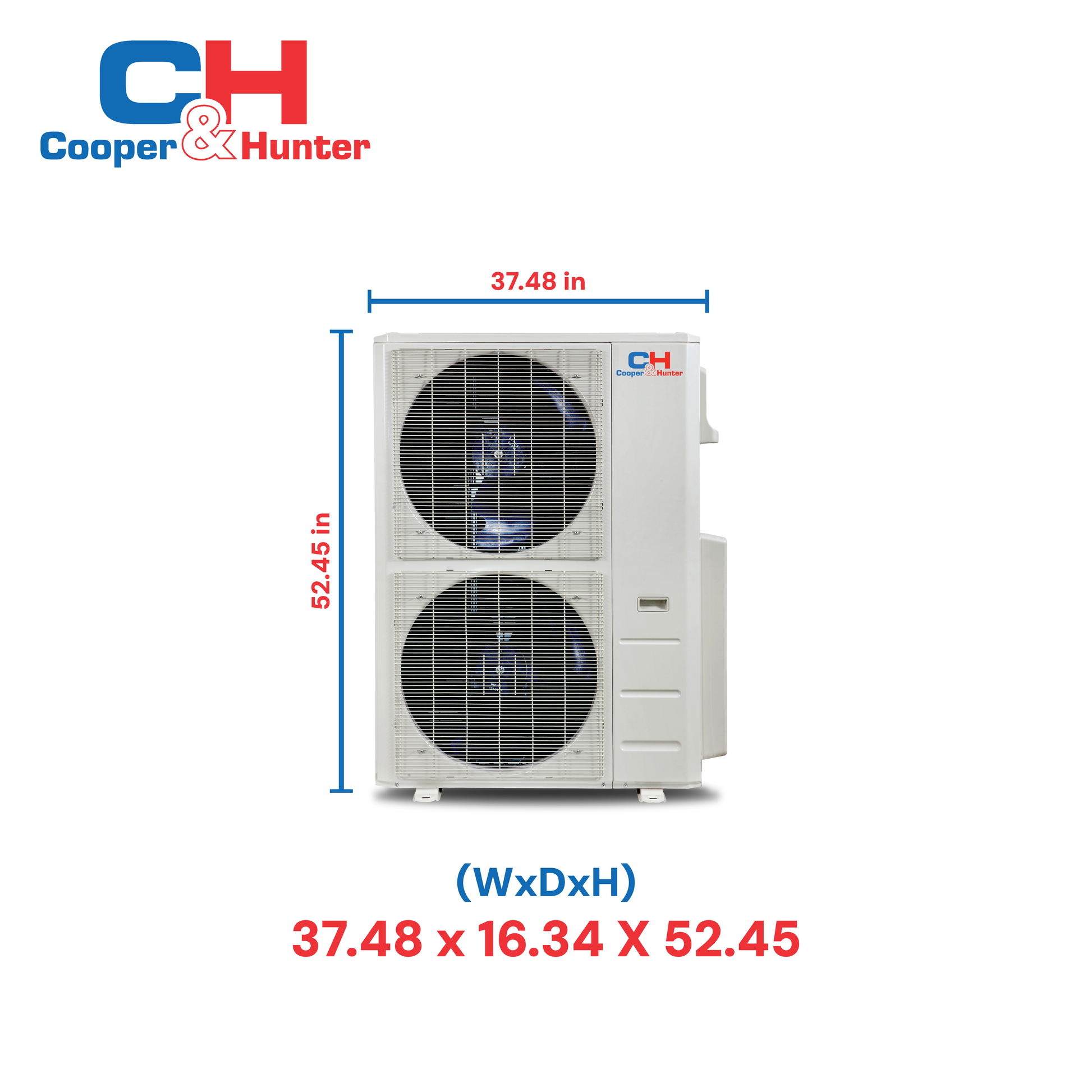

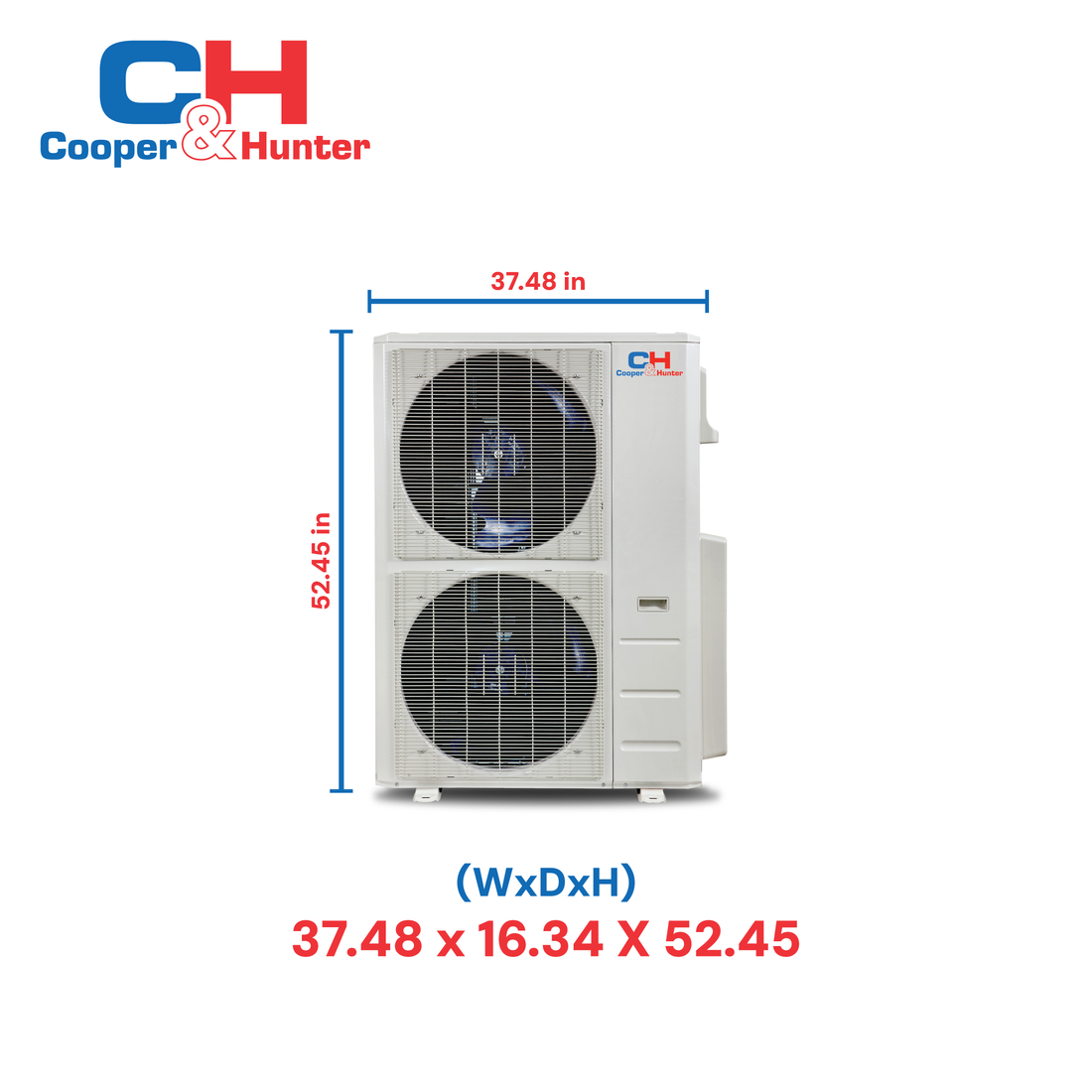

Dimension (W×D×H) inch 37.48x16.34x52.48
Packing (W×D×H) inch 43.11x19.49x57.48
Net/Gross Weight lbs. 208.78/239.86
Refrigerant Type / Charge oz. R4548/126.99
Refrigerant Precharge Length ft. 25
Additional Charge for Each ft. oz/ft 0.32
Design Pressure PSIG 550/340
Refrigerant Piping Liquid Side/Gas Side inch 3/8"/3/4"
Max. Pipe Length ft. 246
Max. Difference in Level ft. 98.4
Ambient Temperature
Cooling °F -13-122
Heating °F -13-75
Certifications
ETL TRUE
AHRI TRUE
Energy Star for Cold Climate TRUE
NEEP TRUE

Certifications

Performance Data/Features

  • Versatile Installation: Cooper&Hunter Universal Floor/Ceiling units are engineered for both ceiling and wall installations, capable of being placed horizontally or vertically to meet diverse architectural demands.

  • Broad Capacity Range: Available in 18K, 24K, 36K, 48K, and 60K BTU/h, these systems accommodate single-zone and multi-zone applications, making them suitable for both residential and commercial spaces.

  • High Efficiency: With an impressive SEER rating of up to 25, these units offer top-tier energy efficiency, reducing operational costs and environmental impact.

  • Streamlined and Discreet Design: The units are designed to integrate seamlessly into any setting, ensuring a discreet presence that does not disrupt interior aesthetics.

  • Extreme Weather Operation: Capable of operating effectively in ambient temperatures as low as -13°F for standard units and -22°F for Hyper Units, ensuring reliable heating even in harsh conditions.

  • Flexible Control Options: Control these units via remote control or wall thermostat, providing ease of use and enhanced user comfort.

  • Adaptable and Efficient: The flexibility in installation and control, combined with high efficiency and robust operation in various conditions, makes the Universal Floor/Ceiling units a prime choice for efficient and adaptable heating and cooling solutions.
