Cooper&Hunter, One-Way Ceiling Cassette 9,000 BTU 230V HYPER, 0.75 TON, Air Conditioning Unit, Heat Pump, Mini Split Inverter System, 24 SEER2, Wi-Fi Enabled Thermostat, Optional Installation Kit, CH-RSH06-12MCT1W (Dip Switch 9) + CH-RHP09-230V0

Cooper&Hunter, One-Way Ceiling Cassette 9,000 BTU 230V HYPER, 0.75 TON, Air Conditioning Unit, Heat Pump, Mini Split Inverter System, 24 SEER2, Wi-Fi Enabled Thermostat, Optional Installation Kit, CH-RSH06-12MCT1W (Dip Switch 9) + CH-RHP09-230V0

SKU: CH-RSH06-12MCT1W + CH-RHP09-230V0

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

Out of stock

Ordered

Apr 07

After you place the order, we will need to 1 day to prepare the shipment

Order Ready

Apr 09 - Apr 10

Order will start to be shipped.

Delivered

Apr 10 - Apr 15

Estimate arrival date: Apr 10 - Apr 15

Order in the next 06 Hours 48 Minutes 41 Seconds and You will receive your order between Apr 10 and Apr 15

Price
Regular price $2,422.42
Sale price $2,422.42 Regular price $2,202.20
save $-220.22
Sold out
Size
save $-220.22
save $-233.20
save $-258.72
save $-314.71

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

 More payment options
View full details

Cooper&Hunter, One-Way Ceiling Cassette 9,000 BTU 230V HYPER, 0.75 TON, Air Conditioning Unit, Heat Pump, Mini Split Inverter System, 24 SEER2, Wi-Fi Enabled Thermostat, Optional Installation Kit, CH-RSH06-12MCT1W (Dip Switch 9) + CH-RHP09-230V0



Summary

The Cooper&Hunter One-Way Ceiling Cassette offers unparalleled installation flexibility, making it the ideal choice for smaller spaces like homes, additions, conversions, or closets. Designed to provide precise directional cooling and heating, this unit allows customized settings tailored to the specific needs of your space. Measuring just 13.19 inches in width and 9 inches in depth, the One-Way Cassette fits snugly between structural ceiling beams and requires only 3-inch holes for conduits, ensuring a sleek and seamless installation.

Available in capacities of 6K, 9K, 12K, and 18K BTU/h, this model is compatible with both single and multi-zone applications. The discreet one-way airflow design seamlessly blends into any interior decor, providing a minimalist aesthetic while ensuring optimal air distribution throughout the room.

The Cooper&Hunter 9,000 BTU One-Way Ceiling Cassette Ductless Mini Split AC/Heating System comes with a Heat Pump, Smart Wall Thermostat, and optional choice of 16FT, 25FT, or 50FT Installation Kit. It operates on 208-230V, is ETL Intertek Approved, and AHRI Certified. This system is capable of heating even in ambient temperatures as low as -13°F for standard units, and as low as -22°F for Hyper Units, making it perfect for a variety of applications, from bedrooms and additions to living rooms and commercial spaces.

Additionally, the system features Whisper Technology for quiet operation and includes a drainage extension. Due to the size and weight, the system is shipped palletized with an arranged freight delivery service, which includes lift-gate service and delivery to curbside for residential addresses. Please verify your contact details before ordering to ensure a smooth delivery process.



Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

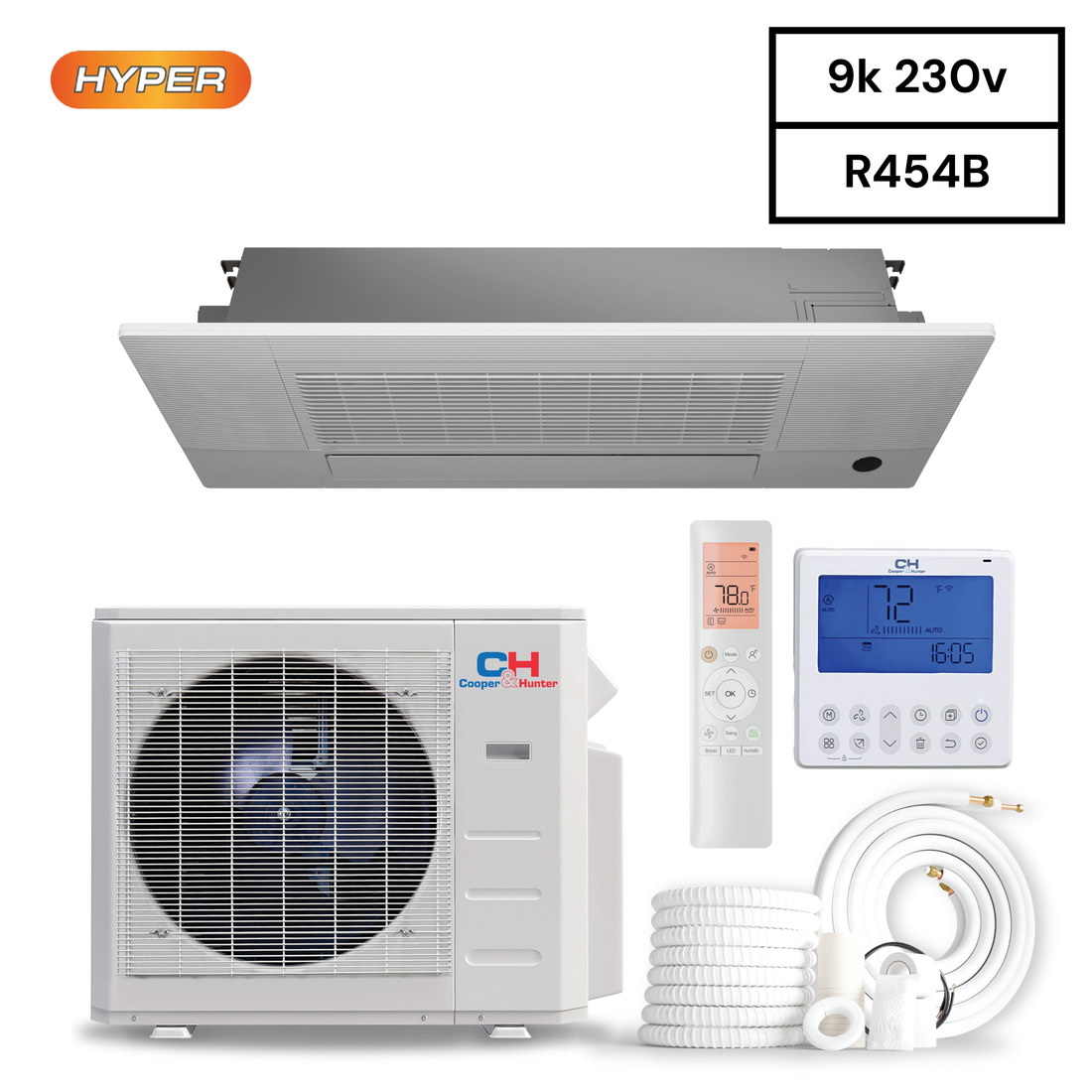

What's Included

  • Indoor - UnitCH-RSH06-12MCT1W (Dip Switch 9) (9,000 BTU One-Way Ceiling Cassette)
  • Outdoor Unit: 9,000 BTU (1pc) – CH-RHP09-230V0
  • Wi-Fi Enabled Thermostat
  • Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
  • Wireless Remote Control
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty



One-Way Cassette Standard Units

Capacity Standard Models (One-Way Cassette) HYPER Models (One-Way Cassette) Voltage
6,000 BTU CH-RSH06-12MCT1W (Dip Switch 6) + CH-RES06-230VO CH-RSH06-12MCT1W (Dip Switch 6) + CH-RHP06F9-230VO 230V
9,000 BTU CH-RSH06-12MCT1W (Dip Switch 9) + CH-RES09-230VO CH-RSH06-12MCT1W (Dip Switch 9) + CH-RHP09-230VO 230V
12,000 BTU CH-RSH06-12MCT1W (Dip Switch 12) + CH-RES12-230VO CH-RSH06-12MCT1W (Dip Switch 12) + CH-RHP12-230VO 230V
18,000 BTU CH-RSH18MCT1W + CH-RES18-230VO CH-RSH18MCT1W + CH-RHP18-230VO 230V


Sizing and Compatability:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.



Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control



Technical Information

Indoor Model Number: CH-RSH06-12MCT1W (Dip Switch 9)

Indoor Model CH-RSH06-12MCT1W (Dip Switch 9)
Power Supply Rated V, Ph, Hz 208/230,1.60
Rated Capacity
Heated 9,000
Cooling Btu/h 10,900
Minimum Circuit Ampacity (MCA) A 3
Max. Fuse A 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 353.2/312.0/282.5/ 247.2/176.6
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) CFM 38/36/33
Indoor

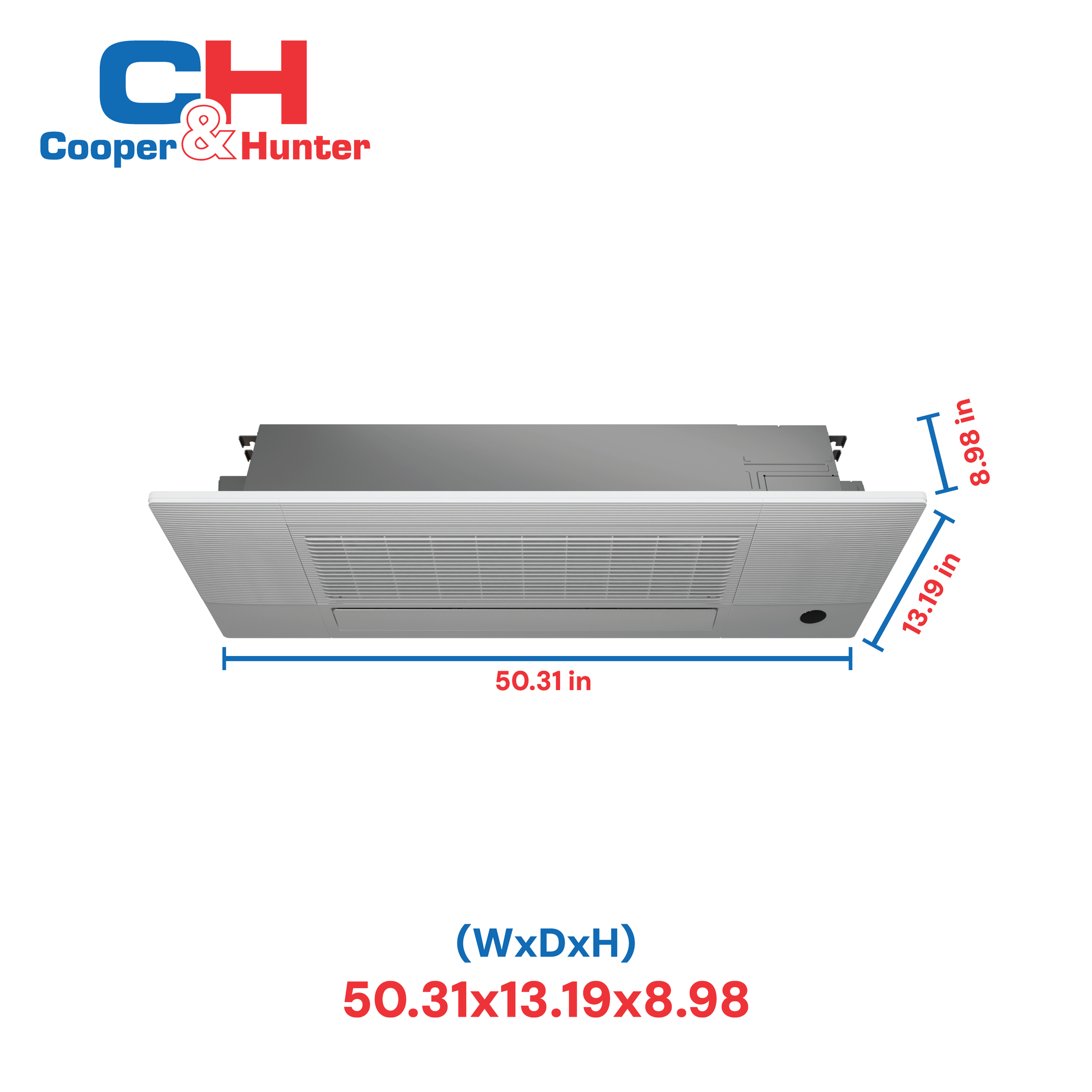

Dimensions inch 50.31x13.19x8.98
Packing inch 57.80x22.48x22:64
Net/Gross Weight lbs. 45.19/82.45
Room temperature
Cooling °F 60-90
Heating °F 32-86
Liquid Side/Gas Side Inch 1/4"/3/8"

Outdoor Model Number: CH-RHP09-230V0

Outdoor Model CH-RHP09-230V0
Power Supply
Rated V, Ph, Hz 208/230.1.60
Voltage Range V 187-253
Cooling
Rated Capacity (Range) Btu/h 4,000-12,900
Rated Current A 4.5
EER2 Btu/h 14.6
SEER2 Btu/h 24
Heating at 47°F
Rated Capacity (Range) Btu/h 3,800-13,900
Rated Current A 3.8
COP W/W 3.71
HSPF4 12.1
HSPF5 9.5
Minimum Circuit Ampacity A 15
Max. Fuse (Outdoor Unit) A 15
Outdoor Air Flow (Max.) CFM 1471.5
Outdoor Noise Level (Sound Pressure) dB(A) 54.5

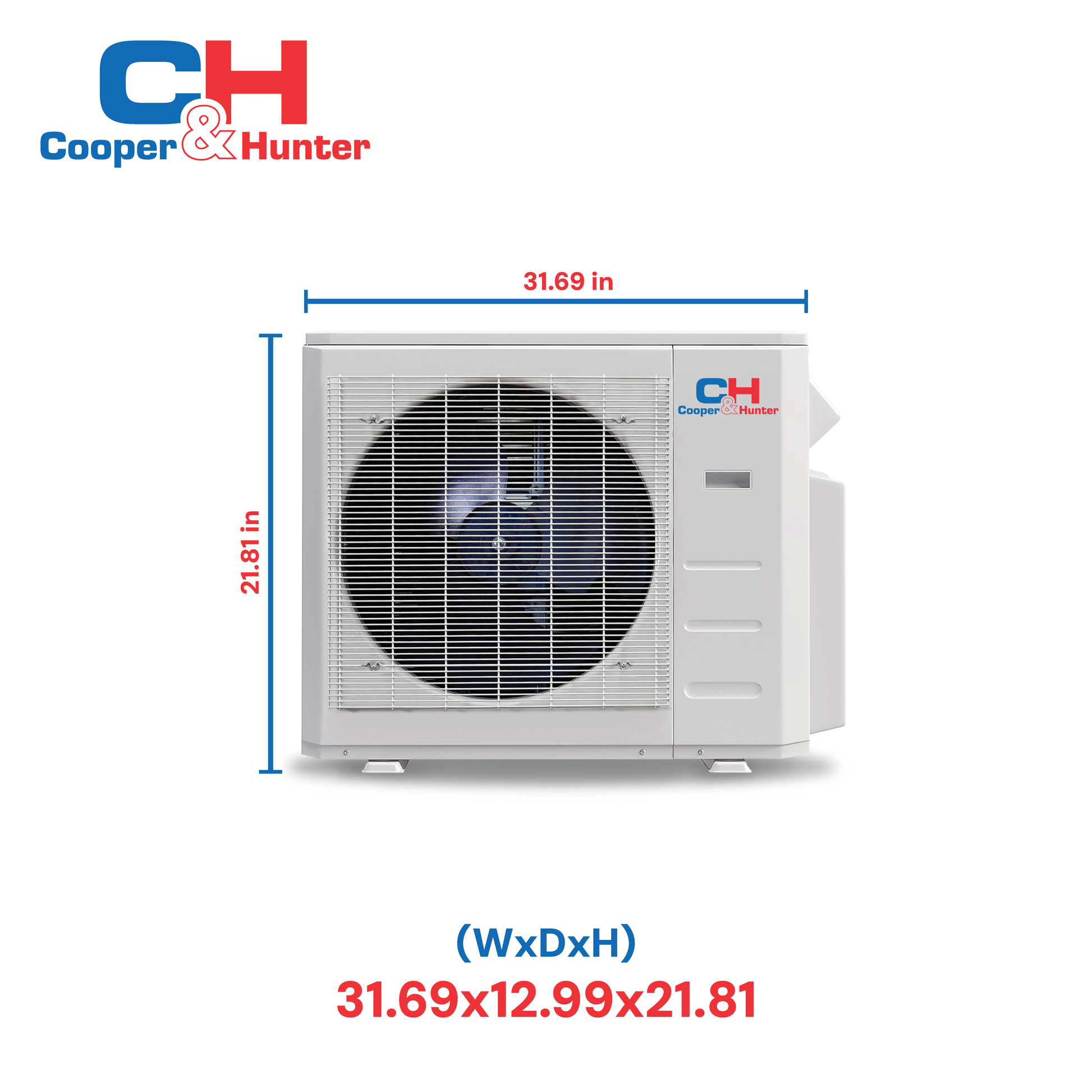

Dimension (W×D×H) inch 31.69x12.99x21 81
Packing (W×D×H) inch 36.02x14.57x24.21
Net/Gross Weight lbs. 72.75/78.70
Refrigerant Type / Charge oz. R454B/35.27
Refrigerant Precharge Length ft. 25
Additional Charge for Each ft. oz/ft 0.16
Design Pressure PSIG 550/340
Refrigerant Piping Liquid Side/Gas Side inch 1/4"/3/8"
Max. Pipe Length ft. 82.02
Max. Difference in Level ft. 49.21
Ambient Temperature
Cooling °F -22-122
Heating °F -22-75
Certifications
ETL TRUE
AHRI TRUE
Energy Star for Cold Climate
TRUE
NEEP TRUE



Certifications

Performance Data/Features

  • Unparalleled installation flexibility for smaller spaces
  • Precise directional cooling and heating
  • Fits snugly between structural ceiling beams (13.19" width, 9" depth)
  • Discreet one-way airflow design for optimal air distribution
  • Capacities available: 6K, 9K, 12K, and 18K BTU/h
  • Heat Pump with Smart Wall Thermostat ready with downloadable Cooper&Hunter App
  • Remote Control Included
  • Heating capable down to -13°F (Standard) / -22°F (Hyper Units)
  • Whisper Technology for quiet operation
  • ETL Intertek Approved, AHRI Certified
