Cooper & Hunter MIA Series, 1 Ton Air Conditioner and Heat Pump, R454B, 12,000 BTU Wall Mount Ductless Mini Split, 20.8 SEER Inverter System, 115V/60HZ, Single Head, Includes Wi-Fi, 16ft Installation Kit, CH-RLS12MIA-115VI + CH-RLS12MIA-115V0
Summary
The Cooper & Hunter MIA NY Series Mini Split Air Conditioner is a versatile, energy-efficient, and affordable ductless AC unit, designed to provide year-round comfort for homes, offices, and bedrooms. Available in 6,000, 9,000, 12,000, 18,000, and 24,000 BTU, this system is ideal for small to large spaces, ensuring quiet, efficient cooling and heating with its up to 22 SEER inverter technology.
This mini split AC unit is engineered for superior energy savings, offering precise temperature control while maintaining low power consumption. It operates efficiently in temperatures as low as 5°F, making it a reliable heating and cooling solution in all seasons.
Key Features:
- Mini Split Air Conditioner 12,000 BTU – Ideal for spaces up to 550 sq. ft.
- Energy-Saving Ductless AC – Reduces electricity costs with advanced inverter technology
- Wi-Fi Compatible – Control your AC remotely via smartphone
- Ultra-Quiet Operation – Perfect for bedrooms, offices, and living rooms
- Multiple Fan Speeds & Sleep Mode – Customizable airflow for optimal comfort
- Easy Installation – Includes a 16ft installation kit for convenience
- Works in Cold Climates – Operates effectively in temperatures as low as 5°F
With its sleek design, smart technology, and energy-efficient performance, the Cooper & Hunter MIA Series Mini Split AC is the perfect ductless HVAC solution for those seeking affordable, high-performance cooling and heating.
Important: With its high-efficiency SEER rating, the Cooper & Hunter MIA Series ensures year-round energy savings. This model includes a Toshiba-GMCC inverter compressor, protected by a 7-year warranty on the compressor and 5 years on parts. Warranty registration must be completed within 60 days of installation.

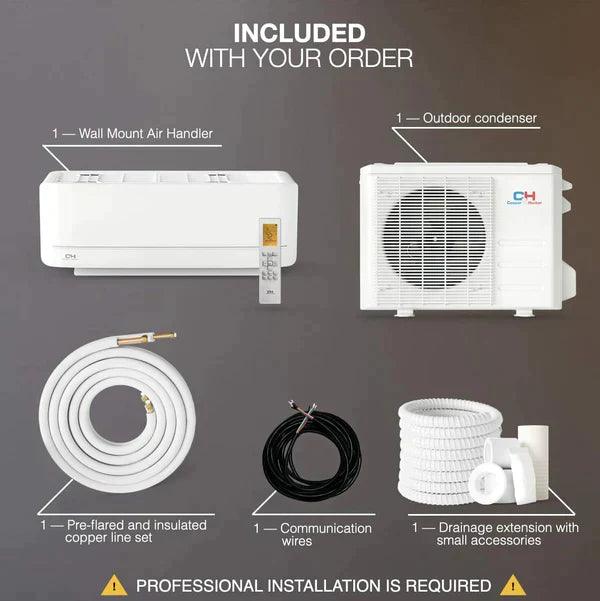

Included in Your Order:

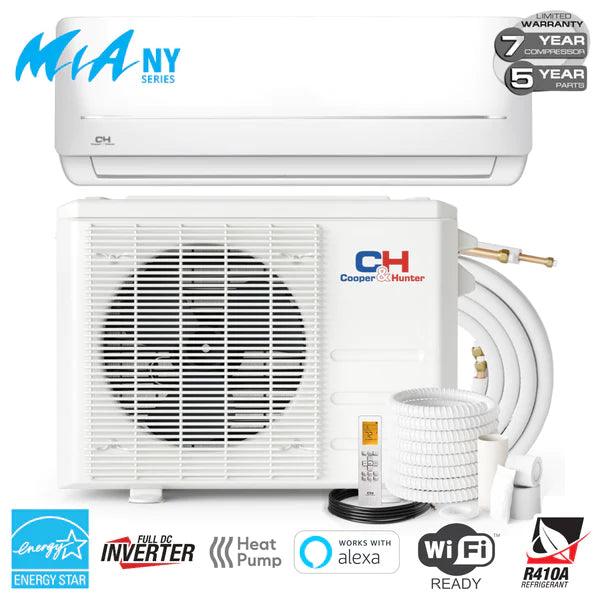

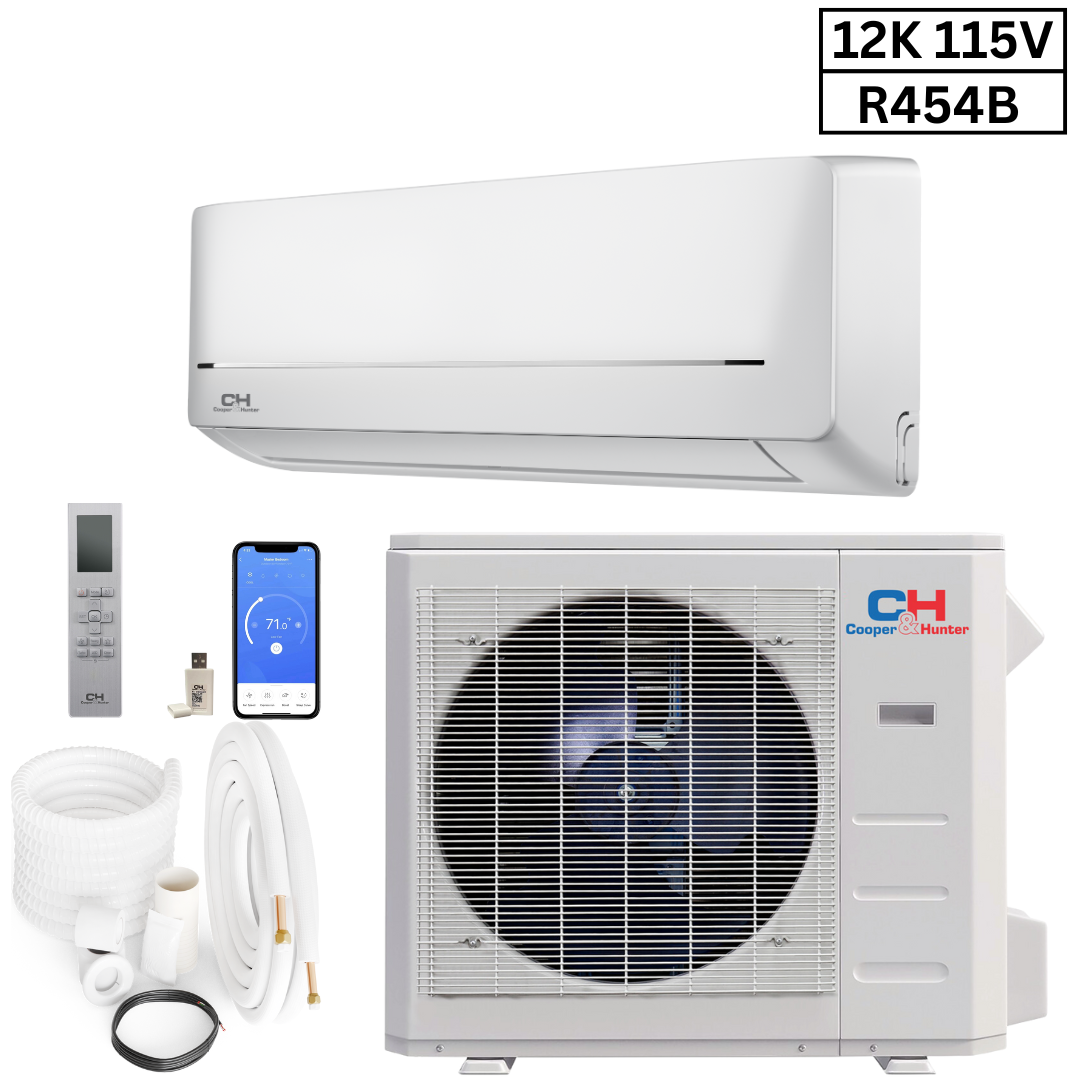

Cooper & Hunter Single Zone Ductless Mini Split System (12,000 BTU Inverter with Heat Pump)

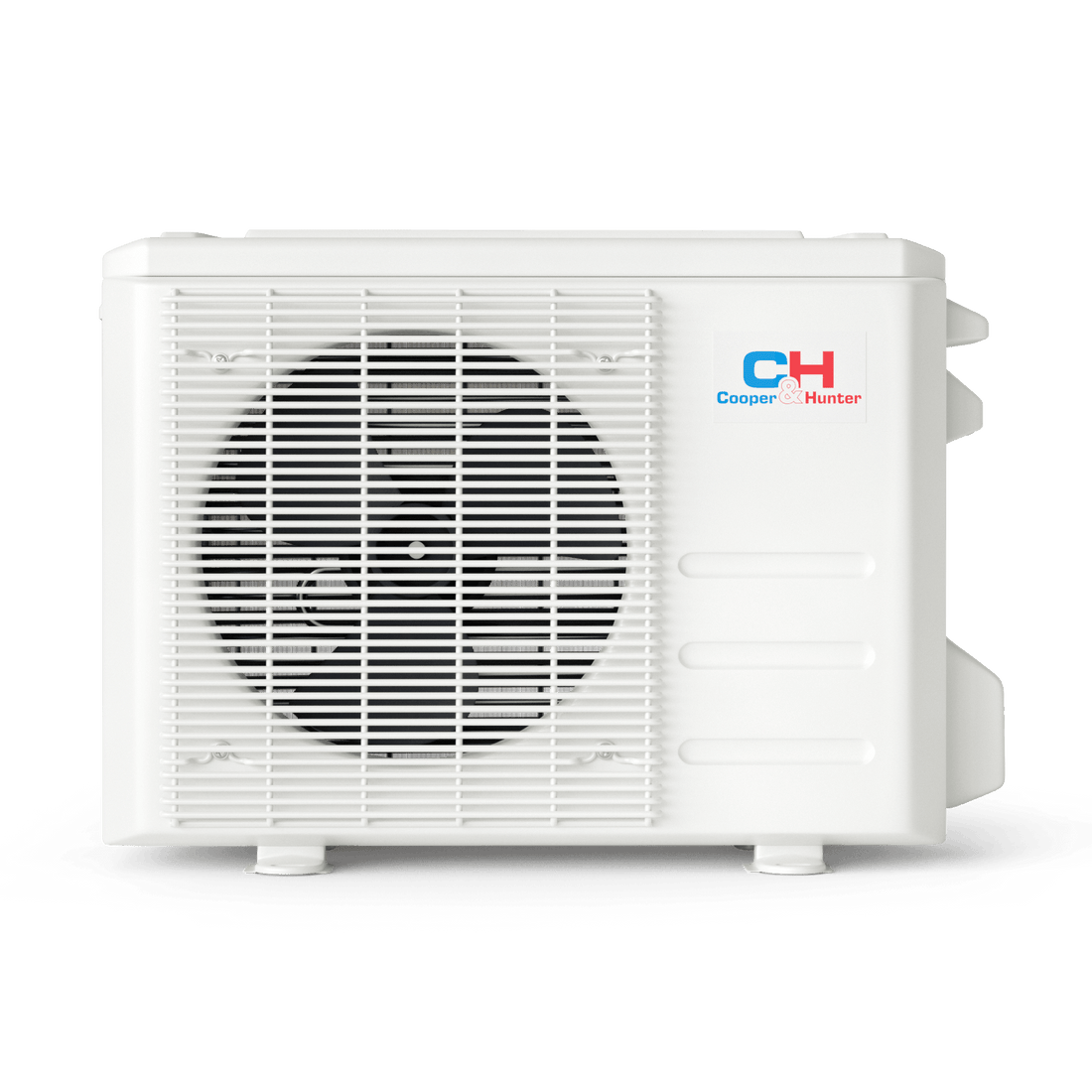

Outdoor Unit: 12,000 BTU (1pc) – Model: CH-RLS12MIA-115V0

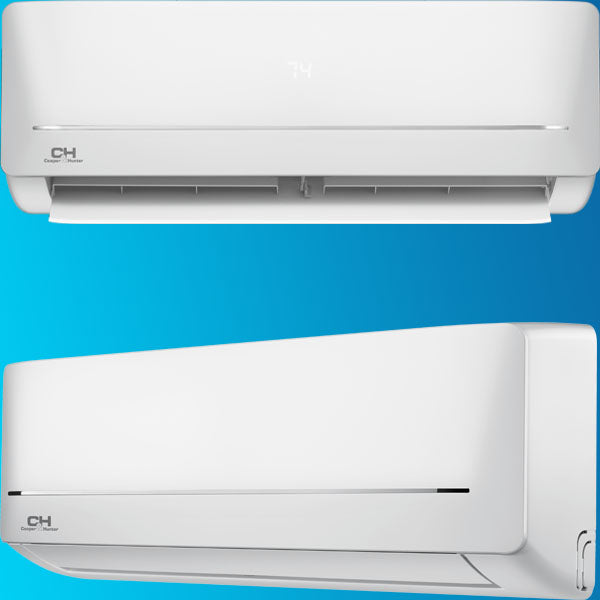

Indoor Unit: 12,000 BTU (1pc with remote) – Model: CH-RLS12MIA-115VI

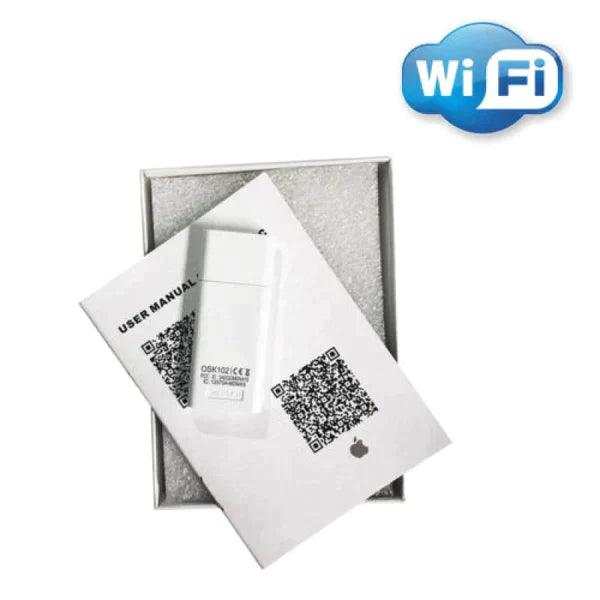

Wi-Fi Adapter
16ft Installation Kit
Key Features:
- 20.8 SEER efficiency for energy savings
- Toshiba-GMCC inverter compressor for reliable performance
- Quiet operation with low noise levels
- Wi-Fi adapter included for smart control
- Optional installation kit available
- 5°F low-temperature heating capability
Important

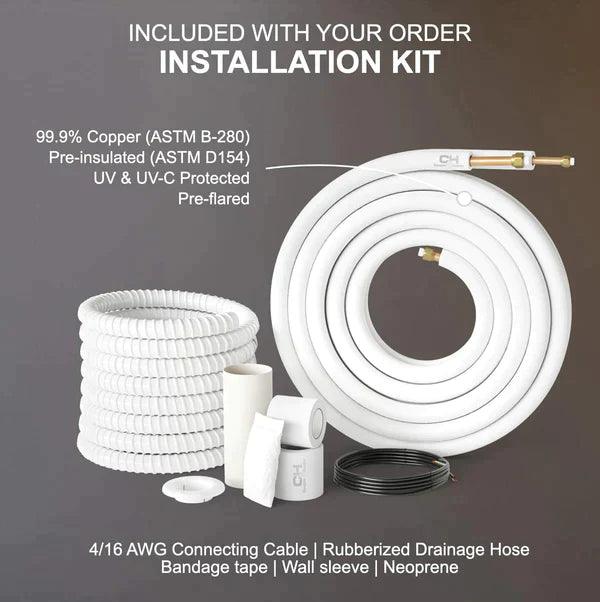

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
Other Single Zone MIA Systems
Capacity | SKU |
6,000 BTU 115V | |
9,000 BTU 115V | |
9,000 BTU 230V | |
12,000 BTU 115V | |
12,000 BTU 230V | |
18,000 BTU 230V | |
24,000 BTU 230V |
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
Technical Information
Indoor Unit Specifications: CH-RLS12MIA-115VI
Outdoor Unit Specifications: CH-RLS12MIA-115V0
Power Supply
|
Rated | V, Ph, Hz | 115,1,60 |
Voltage Range | V | 103.5-126.5 | |
Cooling
|
Rated Capacity (Range) | Btu/h | 2,200-12,300 |
Rated Current | A | 12.7 | |
EER2 | Btu/h | 10.1 | |
SEER2 | Btu/h | 21.2 | |
Heating at 47°F
|
Rated Capacity (Range) | Btu/h | 3,400-12,200 |
Rated Current | A | 11.7 | |
COP | W/W | 3.3 | |
HSPF4 | 8.7 | ||
HSPF5 | 6.7 | ||
Minimum Circuit Ampacity | A | 19 | |
Max. Fuse (Outdoor Unit) | A | 20 | |
Outdoor Air Flow (Max.) | CFM | 1,235.30 | |
Outdoor Noise Level (Sound Pressure) | dB(A) | 54 | |
Dimension (W×D×H) | inch | 30.12x11.93x21.85 | |
Packing (W×D×H) | inch | 34.84x14.76x23.81 | |
Net/Gross Weight | lbs. | 61.29/67.02 | |
Refrigerant Type / Charge | oz. | R454B/24.34 | |
Refrigerant Precharge Length | ft. | 25 | |
Additional Charge for Each ft. | oz/ft | 0.16 | |
Design Pressure | PSIG | 550/340 | |
Refrigerant Piping Liquid Side/Gas Side | inch | 1/4" /3/8" | |
Max. Pipe Length | ft. | 82 | |
Max. Difference in Level | ft. | 49.2 | |
Ambient Temperature
|
Cooling | °F | 5-122 |
Heating | °F | 5-75 | |
Certifications
|
ETL | TRUE | |
AHRI | TRUE | ||
Energy Star for Cold Climate | TRUE | ||
NEEP | TRUE |
Certifications
Performance Data/Features
- Sleek matte finish
- Turbo Function
- Silent Function
- LED Display
- Horizontal Auto Swing
- Timer
- Comfortable Sleep Mode
- Multiple Fan Speeds
- Self-Cleaning Function
- Follow Me Function
- Activated Carbon Filter
