Home 18,000 BTU Olivia, Hyper
Olivia, Hyper

Cooper&Hunter Hyper Heat Olivia Series 4-Zone Ductless Mini Split AC & Heat Pump -- 55000 BTU (4.6 Ton) Without Shut-off Valves, Wall Mount Units (9K+12K+18K+18K) BTU, Inverter Technology, 230V, Heating & Cooling

SKU CH-RHP55M-230VO + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI + 2X CH-R18MOLVWM-230VI Wall Mount22.2 SEER2208-230V
$7,162.94
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K room setups:
  • Small bedrooms
  • Home offices
  • Nurseries
  • Small additions
18,000 BTU
Cooling
18,000 BTU
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

Cooper&Hunter
Support Number
1 888-293-9252
Product Overview Full product description Read the longer product copy, features, and application notes.
COOPER & HUNTER — Olivia Series

Cooper&Hunter Hyper Heat Olivia Series 4-Zone Ductless Mini Split AC & Heat Pump -- 55000 BTU (4.6 Ton) Without Shut-off Valves, Wall Mount Units (9K+12K+18K+18K) BTU, Inverter Technology, 230V, Heating & Cooling

The Cooper & Hunter Olivia Series system features a 55000 BTU outdoor unit without cut-off valves paired with CH-RHP55M-230VO + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI + 2X CH-R18MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -22 F. The DC inverter heat pump provides independent control in 4 zones.

4 Zone(s) 55000 BTU Outdoor (without cut-off valves) SEER2 22.2 Heats to -22 F Outdoor SKU CH-RHP55M-230VO Outdoor noise: 65 dB(A) Indoor noise: 20 dB(A) Smart Kit Included 46°F Freeze Protection

Key features

Comfort & airflow

  • 4-zone independent temperature control
  • Auto-swing louvers (horizontal + vertical)
  • Follow Me mode (remote-based temperature sensing)
  • Turbo mode for rapid cooling/heating
  • Sleep mode + Timer On/Off scheduling
  • New user-friendly remote controller design

Efficiency & protection

  • High efficiency operation (22.2 SEER2)
  • Low-ambient performance down to -22 F
  • 46°F Freeze Protection
  • Self-Clean function (single-zone only, if equipped)
  • Without Shut-off Valves
  • Eco mode (single-zone only, if equipped)

Build & materials

  • TU1 copper tubes
  • Quiet operation (Outdoor as low as 65 dB(A); Indoor as low as 20 dB(A))

At-a-glance

Zoning
4 zones
Outdoor BTU
55000
SEER2
22.2
Low ambient
-22 F
Outdoor noise
65 dB(A)
Indoor noise
20 dB(A)
Outdoor SKU
CH-RHP55M-230VO
Smart control
Smart Kit Included
Shut-off Valves?
No Shut-off Valves

Warranty requires licensed HVAC installation and registration within 60 days (if required).

Control options

  • Smart Kit included with downloadable C&H app
  • Remote control included
  • Wall thermostat compatible (purchased separately, if supported by the model)

Outdoor technology

  • High-Frequency Racer Technology: helps the compressor reach maximum speed within ~6 seconds on startup
  • Electronic expansion valve: manages refrigerant flow for stable performance
  • Intelligent dusting switch: reverses the fan to help clear dust/sand/debris from the coil
  • Genius Core ultra-low compressor speed of 12Hz

Installation & electrical

  • Indoor line sizes (varies by head): 1/4"/3/8" | 1/4"/1/2"
  • Refrigerant precharge: N/A
  • Additional refrigerant charge (1/4 liquid line): N/A
  • Additional refrigerant charge (3/8 liquid line): N/A
  • Minimum circuit ampacity: 43
  • Max fuse / breaker: 45
  • Without Shut-off Valves

Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).

Product video

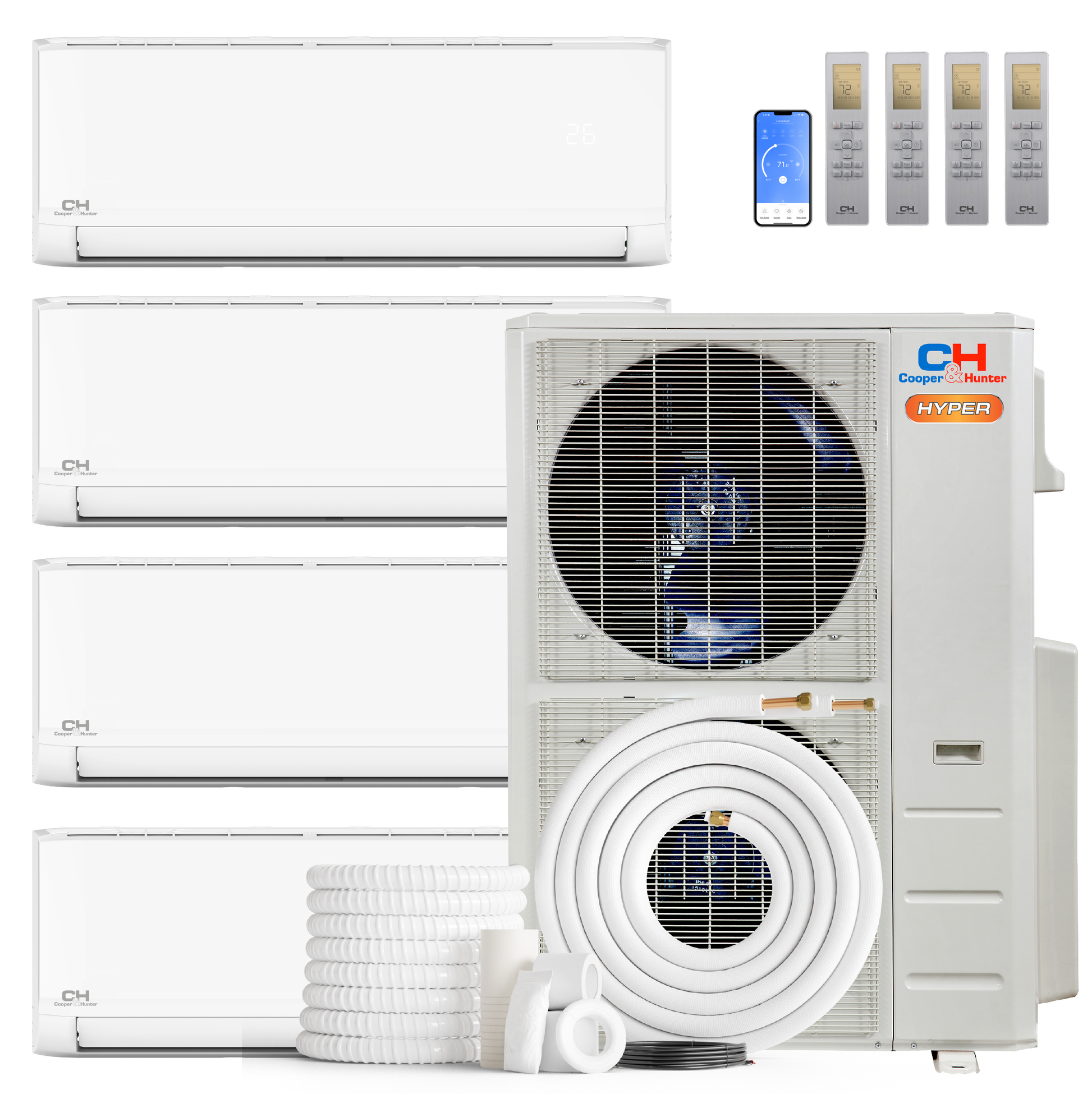

What’s included

Cooper & Hunter Olivia Series Ductless Mini Split System

Outdoor Unit: 55000 BTU (1 pc) — Model: CH-RHP55M-230VO (No-Shut-off Valves)

Indoor Units:

- 9,000 BTU (x1) — Model: CH-R09MOLVWM-230VI

- 12,000 BTU (x1) — Model: CH-R12MOLVWM-230VI

- 18,000 BTU (x2) — Model: CH-R18MOLVWM-230VI

  • Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
  • (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
  • Wireless Remote Controls (4 remotes)
  • Wi-Fi Adapter (17310900A05963)
  • Installation Manual
  • User's Manual
  • Manufacturer Warranty

Complete technical specifications — Indoor

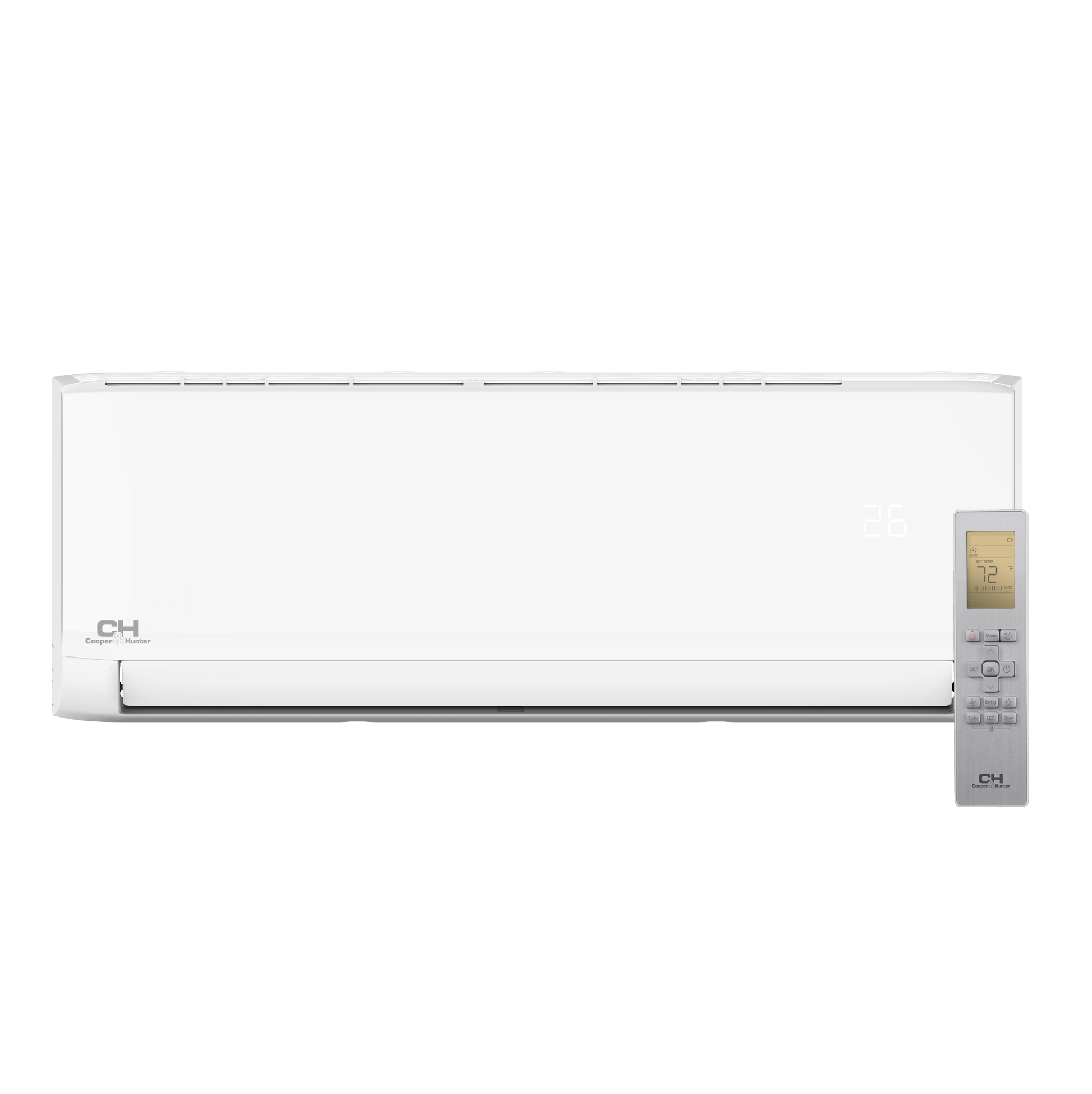

Indoor Unit Specifications — CH-R09MOLVWM-230VI

Indoor Model CH-R09MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 9,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0/ N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/39.5/33/24/20.5
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 15
SEER2 26
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57x7.87x11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 39.5/33/24
Indoor Air Flow 382.6 / 294.3 / 194.2 / 153
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R12MOLVWM-230VI

Indoor Model CH-R12MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 12,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0 / /
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/42/35.5/22.5/20
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 13.2
SEER2 24
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57 x 7.87 x 11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 42/35.5/22.5
Indoor Air Flow 382.6 / 294.3 / 194.2 / 15
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R18MOLVWM-230VI

Indoor Model CH-R18MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 18,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 759.3/500.3/441.4/ 370.8 / /
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) 54.5/45/40/24.5/20
Dimension (WxDxH) (in) 42.60x9.21x13.27
Packing (WxDxH) (in) 45.47x12.40x16.34
Net/Gross Weight (lb) 30.42/39.68
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/1/2"
EER2 13
SEER2 21.7
Unit Net/Gross weight 30.42/39.68
Unit dimensions (W*H*D) 42.60 x 9.21 x 13.27
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 45/40/24.5
Indoor Air Flow 759.3 / 500.3 / 441.4 / 370.8
Drainage water pipe diameter 5/8"

Submittals

Complete technical specifications — Outdoor

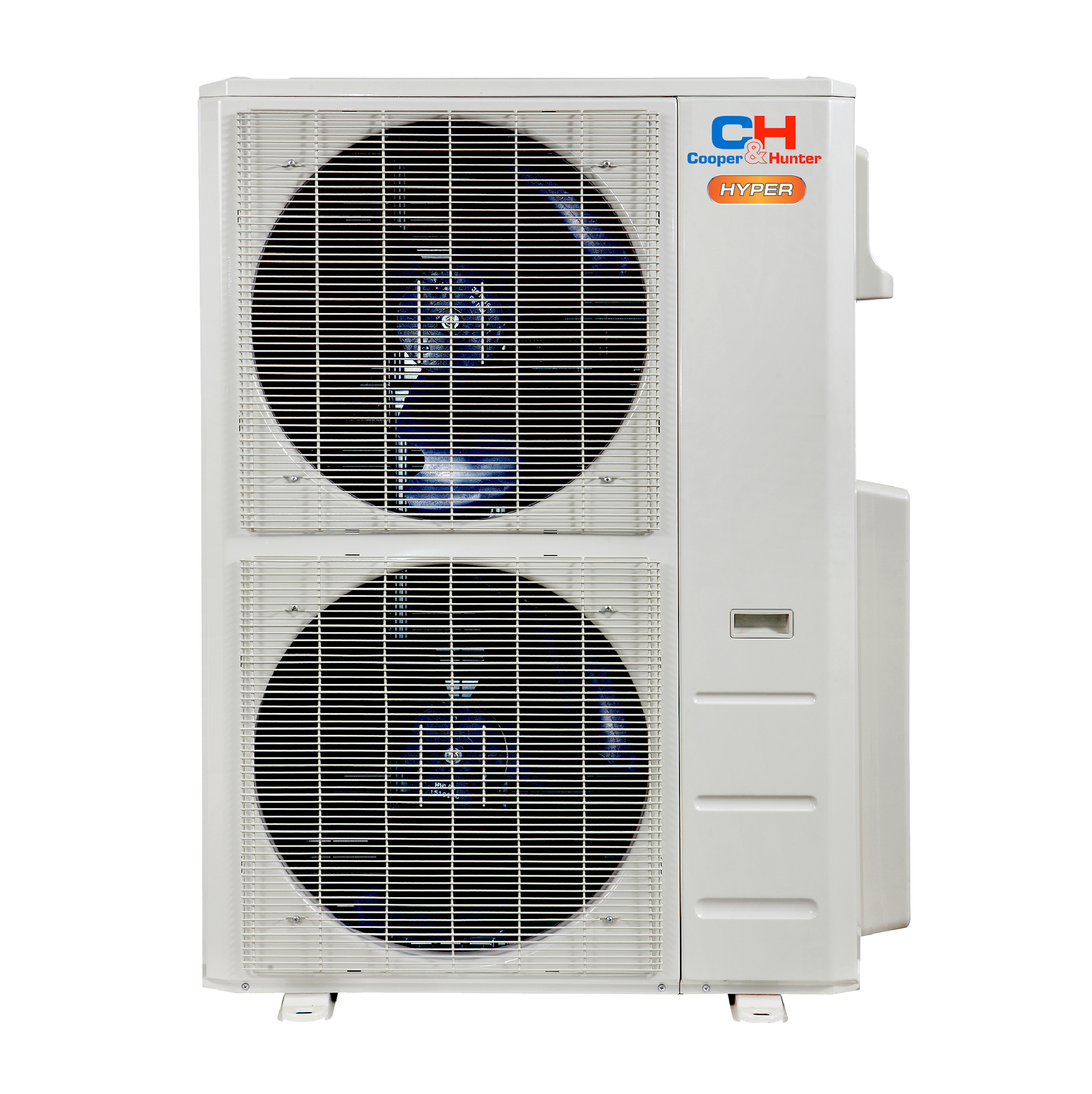

Outdoor Unit Specifications — CH-RHP55M-230VO

Outdoor Model CH-RHP55M-230VO
Power Supply Rated V, Ph, Hz 208-230V, 1Ph, 60Hz
Cooling Rated Capacity (range) Btu/h 51,000(19,000~59,000)
Heating Rated Capacity (range) Btu/h 55,000(20,000~59,000)
HSPF4 10.5
HSPF5 8.5
Minimum Circuit Ampacity (MCA) A 43
Max. Fuse A 45
Rated current (RLA) A 18.5(10.5~24)
Compressor Model EKPQ440D1UMUB
Compressor Type Twin-ROTARY
Compressor Brand GMCC
Compressor RLA A 28
Compressor Input W 3.43
Refrigerant oil oz VG75 44
Outdoor fan motor Qty 2
Outdoor fan motor Input W 85
Outdoor fan motor RLA A 2.5
Outdoor air flow (Max) CFM 4,502.8
Outdoor noise level (Max) dB(A) 65
Outdoor unit Dimensions (WxDxH) in 37.48 x 16.34 x 52.48
Outdoor unit Packing (WxDxH) in 43.11 x 19.49 x 58.27
Outdoor unit Net/Gross weight in 246.47/276.68
Refrigerant Type R454B
Precharge ft 150
Additional Charge (liquid pipe) oz 151.68
Design pressure PSIG 550/340
Refrigerant piping Liquid side/Gas side in 6x1/4" - 4x3/8"+2x1/2"
Max. length for all indoor units ft 262.4
Max. length for one indoor unit ft 114.8
Max. height difference between indoor and outdoor ft 49.2
Max. height difference between indoor units ft 33

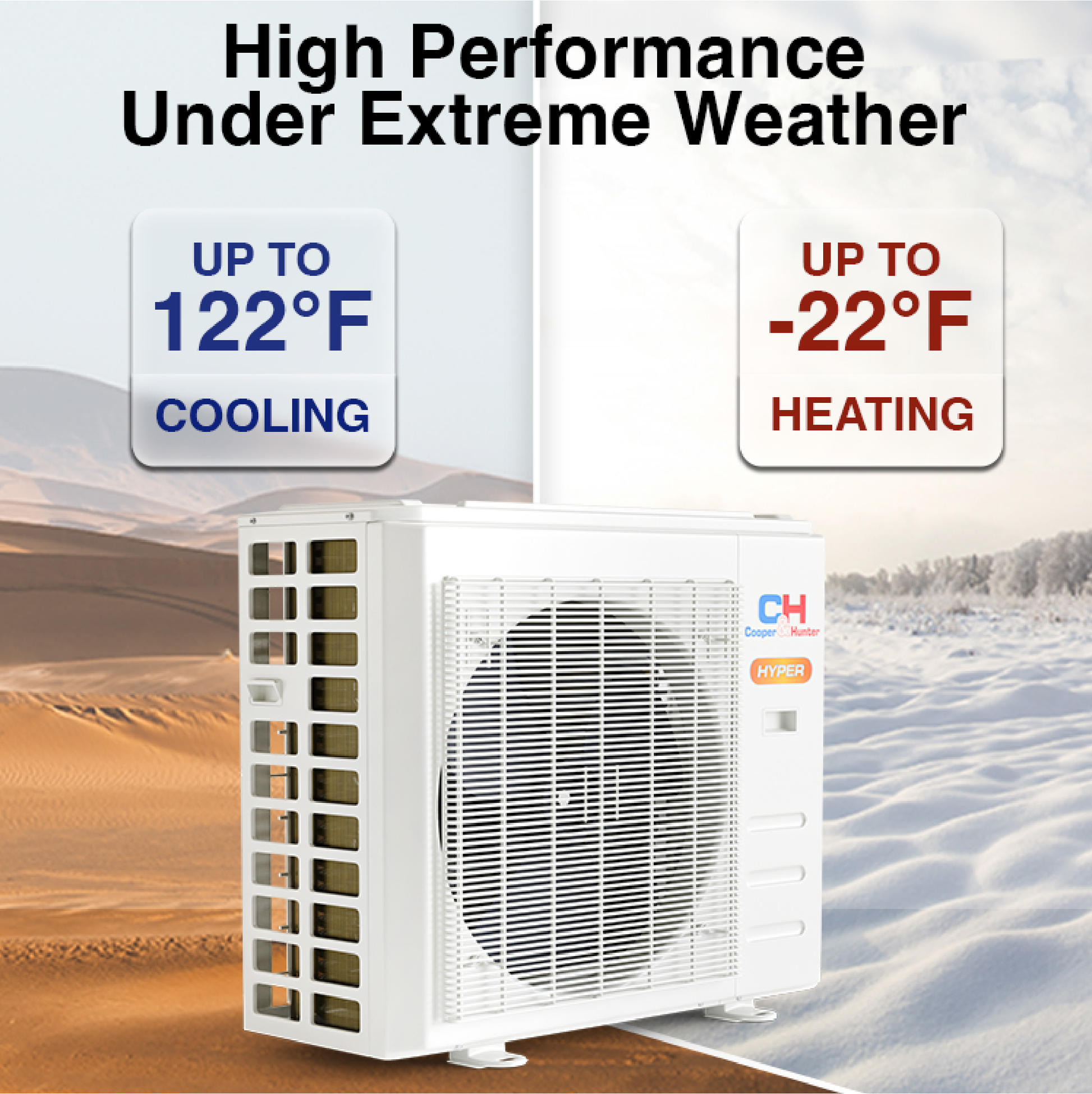

Ambient temperature Cooling F -22~122
Ambient temperature Heating F -22~75

Manuals

Submittals

Warranty information

  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
  • 1-Year Remote Control Warranty

Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.

Summary

Expand

The Cooper & Hunter Olivia Series system features a 55000 BTU outdoor unit paired with CH-RHP55M-230VO + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI + 2X CH-R18MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -22 F. The DC inverter heat pump provides independent control in 4 zones.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What can the Cooper & Hunter Remote app control?

On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.

Can multiple people control compatible Cooper & Hunter systems through the app?

Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.

How do I find the correct Cooper & Hunter manual or submittal for my unit?

Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.

Does Cooper & Hunter provide dedicated troubleshooting resources for installers?

Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.

Does Cooper & Hunter require licensed HVAC installation for warranty coverage?

Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.

What Cooper & Hunter support resources are available online?

Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.

Does Cooper & Hunter provide a product-selection or dealer-locator tool?

Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.

How can I check whether a Cooper & Hunter system qualifies for rebates or incentives?

Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.

Is a rebate guaranteed when purchasing a Cooper & Hunter system?

No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.

Which mobile app is used with compatible Cooper & Hunter systems?

Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.

Can any wireless adapter be used with a Cooper & Hunter system?

No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.

What standard warranty periods does Cooper & Hunter publish?

For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.

How is a Cooper & Hunter warranty claim started?

The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.

What information should be ready when contacting Cooper & Hunter Technical Support?

Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.

Does Cooper & Hunter offer technical support in multiple languages?

Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.

How can I contact Cooper & Hunter Technical Support?

Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.

Does Cooper & Hunter’s warranty cover labor or refrigerant costs?

Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.

How do I register my Cooper & Hunter product warranty?

Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.

How soon should a Cooper & Hunter system be registered for warranty?

Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.

What information is needed to register a Cooper & Hunter system?

Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.

Can moving a Cooper & Hunter system affect its warranty?

Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.

Can non-compatible or third-party components affect Cooper & Hunter warranty coverage?

Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.

Is a Cooper & Hunter Limited Warranty transferable to a new owner?

Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.

Are all Cooper & Hunter systems compatible with the Cooper & Hunter Remote app?

No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.

Customer Reviews Reviews & ratings Open verified customer feedback for this product.
