Cooper&Hunter Hyper Heat 5-Zone Ductless Mini Split AC & Heat Pump -- 48000 BTU (4.0 Ton) Without Shut-off Valves, Floor Console Units (9K+9K+9K+12K+12K) BTU, Inverter Technology, 230V, Heating & Cooling

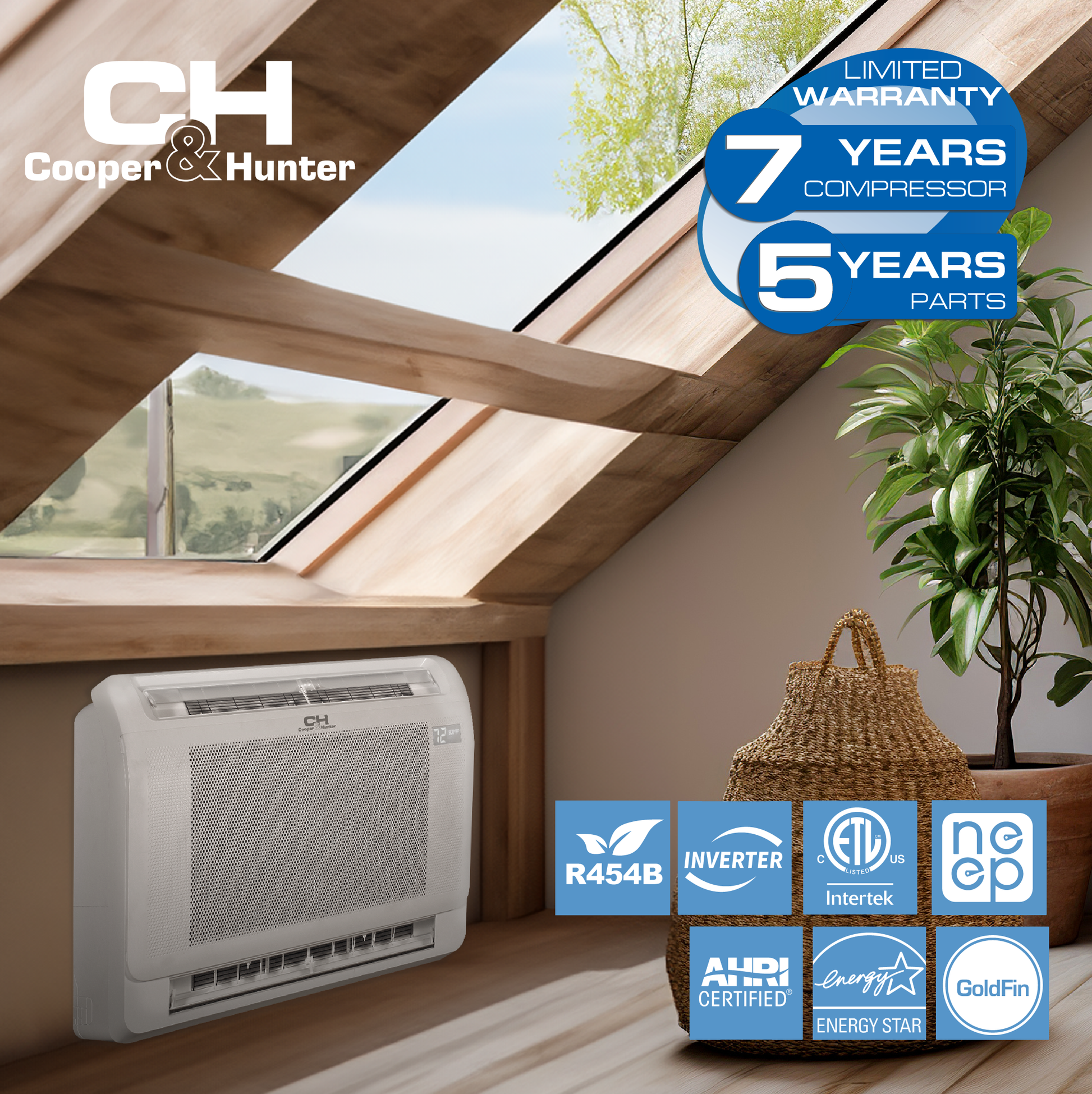

Enjoy targeted, freestanding comfort with the Cooper & Hunter Mini Floor Console system. A 48000 BTU outdoor condenser (No Shut-off Valves) powers compact floor consoles designed to tuck neatly under windows or along walls—ideal for rooms where a traditional wall mount isn’t the best fit. This inverter heat pump provides independent control in 5 zone(s) and delivers low-ambient heating performance down to -22 F.
Mini Floor Consoles feature twin-discharge airflow with a 65% larger upper outlet and a 94% wider lower outlet for more even distribution, plus a built-in Smart Kit for app control. This 2025 platform uses R454B refrigerant (low-GWP) and supports efficiency up to 23 SEER2. Equipped models include a refrigerant sensor and humidity sensor to help maintain comfortable indoor conditions.
Key features
Compact design for flexible placement
- Under-window / low-wall console format blends into a room without sacrificing comfort
- Great option for spaces where wall-mount placement is limited (glass, cabinetry, layout constraints)
- Designed for smaller spaces while still providing strong, even air delivery
Enhanced airflow distribution
- Twin-discharge airflow for balanced coverage
- 65% larger upper outlet for improved throw and mixing
- 94% wider lower outlet to reduce cold/hot spots near the floor
- Multiple fan speeds + Turbo mode for fast pull-down / warm-up
Comfort & control
- 5-zone independent temperature control
- Smart Kit built in with downloadable C&H app
- Remote control included
- Wall thermostat supported (purchased separately)
Sensors & durability
- Refrigerant sensor + humidity sensor (model dependent) for comfort optimization
- TU1 copper heat exchangers for long service life
- 2025 model platform designed for Regular or Hyper operation (model dependent)
At-a-glance
5
48000
23
-22 F
65 dB(A)
25.5 dB(A)
CH-RHP48M-230VO
No Shut-off Valves
Smart Kit + Remote
Warranty requires licensed HVAC installation and registration within 60 days (if required).

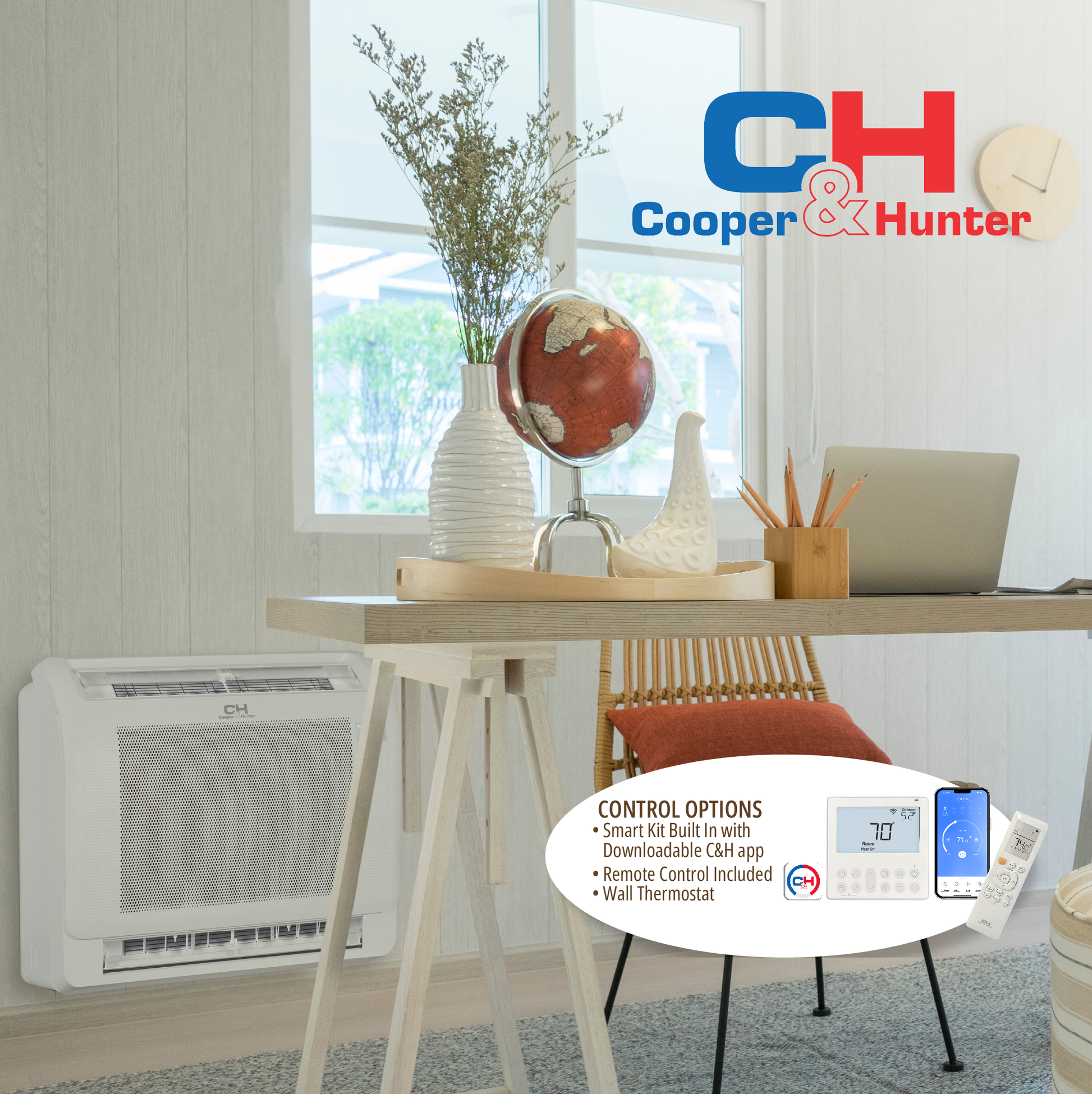

Control options
- Smart Kit built in with downloadable C&H app
- Remote control included
- Wall thermostat (purchased separately)
Product video
What’s included

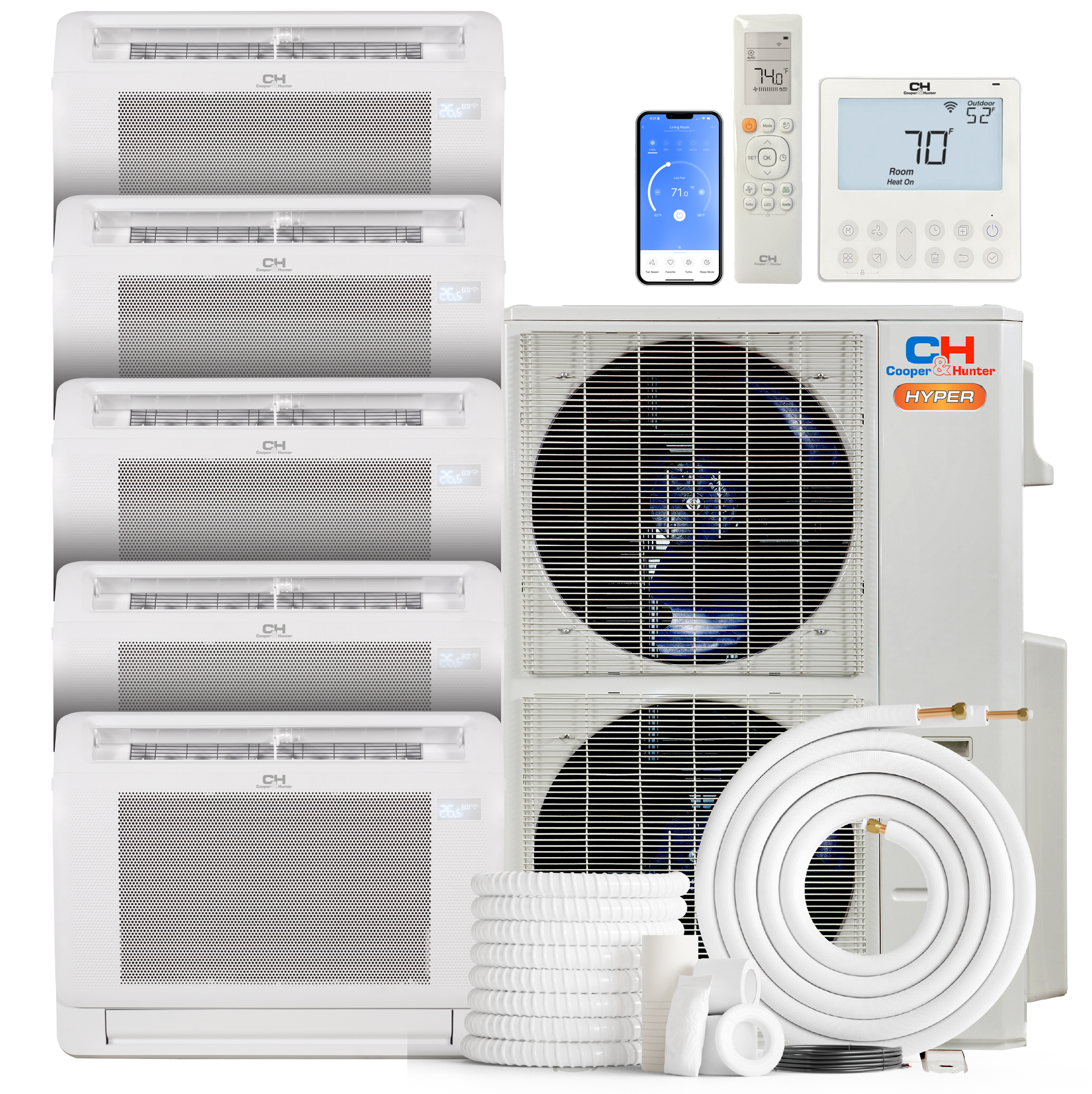

Cooper & Hunter Mini Floor Console Mini Split System

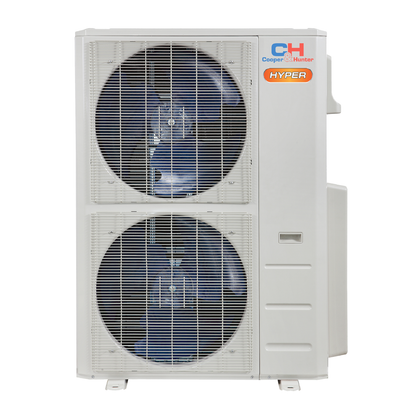

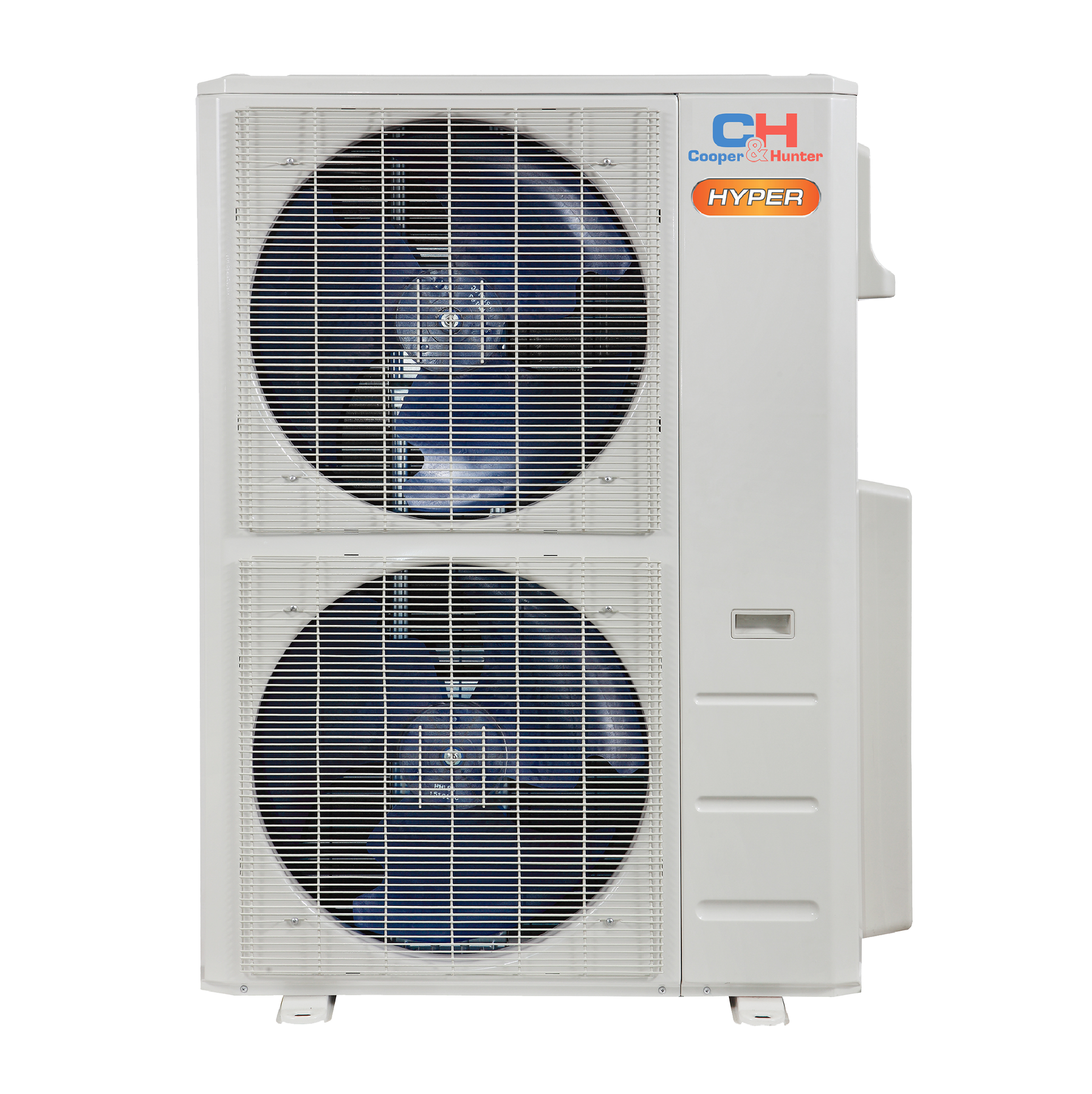

Outdoor Unit (No Shut-off Valves): 48000 BTU (1 pc) — Model: CH-RHP48M-230VO
Indoor Units (Mini Floor Console):

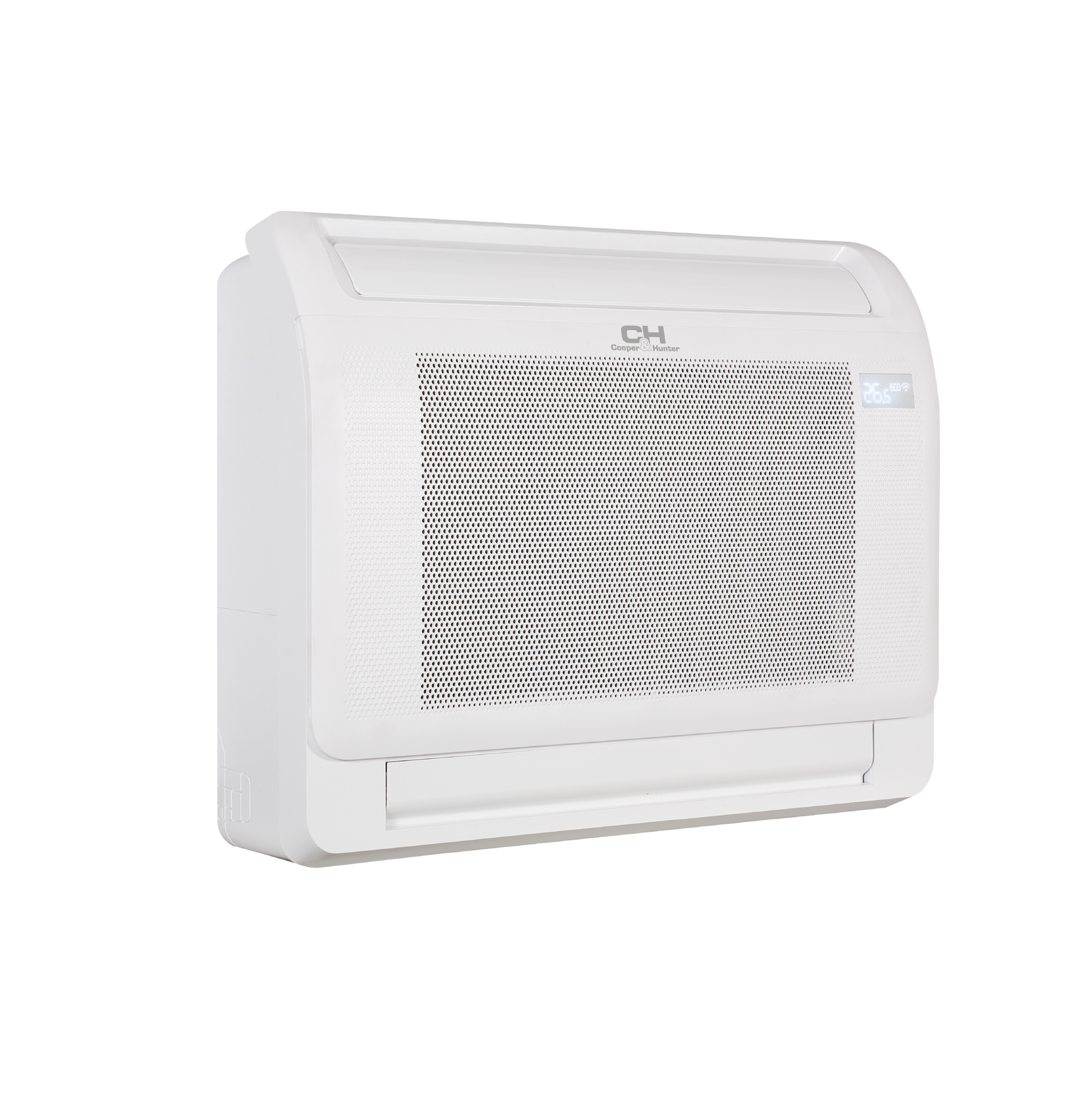

- 9,000 BTU (x3) — Model: CH-RSH09MMC
- 12,000 BTU (x2) — Model: CH-RSH12MMC
- Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, to be included)
- Wireless Remote Controls (5 remotes)
- Built-in Smart-Kit & C&H App control
- Wall Thermostat (purchased separately)
- Installation & User Manuals
- Manufacturer Warranty
Complete technical specifications — Indoor (Mini Floor Console)
Indoor Unit Specifications — CH-RSH09MMC
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| BTU Rated | 9 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 1.71 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 34.06 x 11.02 x 28.31 |
| Controller | remote controller |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 15.1 |
| SEER2 | 27.2 |
| Unit Net/Gross weight | 32.85/41.89 |
| Unit dimensions (W*H*D) | 31.26 x 7.87 x 24.45 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 41/37.5/25.5 |
| Indoor Air Flow | 441.4 / 376.7 / 323.7 / 188.4 |
| ESP Range | / |
| Drainage water pipe diameter | 5/8" |
Indoor Unit Specifications — CH-RSH12MMC
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| BTU Rated | 12 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.13 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 34.06 x 11.02 x 28.31 |
| Controller | remote controller |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 12.5 |
| SEER2 | 25 |
| Unit Net/Gross weight | 32.85/41.89 |
| Unit dimensions (W*H*D) | 31.26 x 7.87 x 24.45 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 40.5/37/26.5 |
| Indoor Air Flow | 441.4 / 376.7 / 323.7 / 188.4 |
| ESP Range | / |
| Drainage water pipe diameter | 5/8" |
Manuals
- https://media.cooperandhunter.us/4460/Owners-manual-CH-RSH09-16MMC-%28R454B%29-.pdf
- https://media.cooperandhunter.us/4461/Installation-manual-CH-RSH09-16MMC-%28R454B%29-.pdf
Submittals
Complete technical specifications — Outdoor (No Shut-off Valves)
Outdoor Unit Specifications — CH-RHP48M-230VO
| Rated V-Ph-Hz | 208-230V, 1Ph, 60Hz |
|---|---|
| Cooling Rated Capacity (range) Btu/h | 47,000(12,000~57,000) |
| Heating Rated Capacity (range) Btu/h | 49,000(13,000~57,000) |
| Heating at 47°F HSPF4 | 11 |
| Heating at 47°F HSPF5 | 9 |
| Minimum Circuit Ampacity (Outdoor unit) A | 43 |
| Max. Fuse (Outdoor unit) A | 45 |
| Cooling Rated Current A | 17.3(7~24) |
| Compressor Model | EKPQ440D1UMUB |
| Compressor Type | Twin-ROTARY |
| Compressor Brand | GMCC |
| Compressor RLA A | 27 |
| Compressor Input W | 3.43 |
| Refrigerant Oil oz | VG75 44 |
| Outdoor Fan Motor Qty | 2 |
| Outdoor Fan Motor Input W | 85 |
| Outdoor Fan Motor RLA A | 2.5 |
| Outdoor Air Flow (Max) CFM | 4,502.8 |
| Outdoor Noise Level (Max) dB(A) | 65 |
| Dimension (W×D×H) inch | 37.48 x 16.34 x 52.48 |
| Packing (W×D×H) inch | 43.11 x 19.49 x 58.27 |
| Net/Gross Weight lbs | 246.47/276.68 |
| Refrigerant Type/Charged oz | R454B/151.68 |
| Refrigerant Precharge ft | 150 |
| Design Pressure PSIG | 550/340 |
| Refrigerant Piping Liquid Side inch | 6 x 1/4” |
| Refrigerant Piping Gas Side inch | 4 x 3/8” + 2 x 1/2” |
| Max. Pipe Length ft | 262.4 |
| Max. Length for One Indoor Unit ft | 114.8 |
| Max. Height Difference in Level ft | 49.2 |
| Max. Height Difference Between Indoor Units ft | 33 |
| Ambient Temperature Cooling °F | -22~122 |
| Ambient Temperature Heating °F | -22~75 |
Manuals
Submittals
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
This Cooper & Hunter Mini Floor Console system uses a 48000 BTU outdoor condenser (No Shut-off Valves) with CH-RHP48M-230VO + 3X CH-RSH09MMC + 2X CH-RSH12MMC compact floor console head(s) for even, comfortable distribution. Twin-discharge airflow improves coverage, Smart Kit app control adds convenience, and low-ambient heating supports operation down to -22 F.
