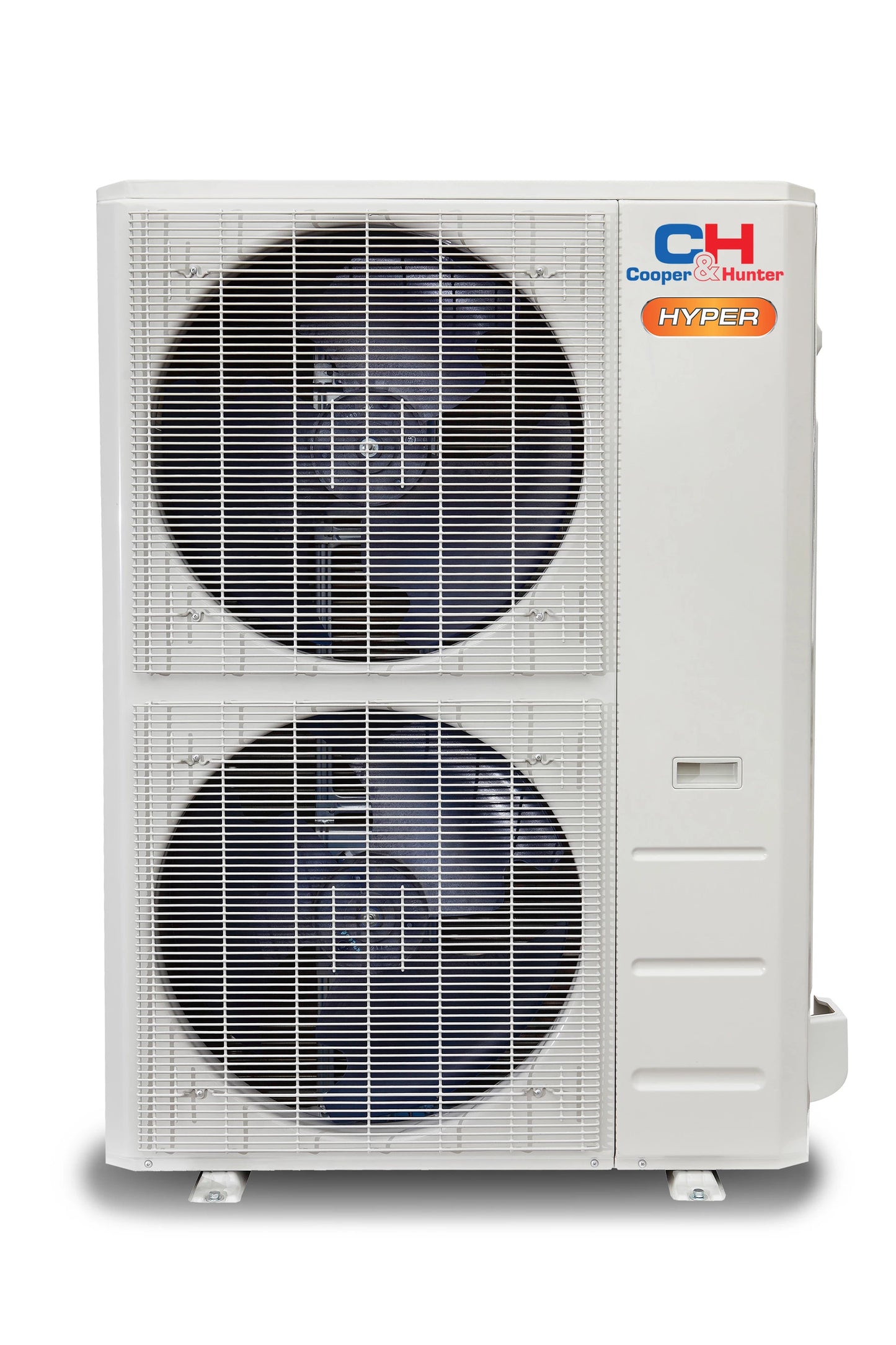

Cooper&Hunter Light Commercial Hyper Heat 48,000 BTU Single-Zone Outdoor Condenser (R-410A) – CH-HYP48LCUO
A powerful one-to-one light commercial solution for larger spaces—businesses, warehouses, workshops, and grow rooms—with cold-climate heating down to -22°F. Pairs with compatible 48K indoor unit styles: Ceiling Cassette, Universal Floor/Ceiling, Slim Duct, and Air Handler.
Why this is the right fit for larger spaces
- Built for demanding loads: 48K capacity for big open areas and light commercial applications.
- Cold-climate performance: operates in heating down to -22°F.
- Flexible indoor styles: pair one-to-one with cassette, floor/ceiling, slim duct, or air handler (see compatibility list below).
- Long line-set capability: up to 213 ft total line length and up to 98 ft elevation difference (verify install design).
- R-410A system: designed for R-410A matched components.
48,000 BTU (rated)
50,000 BTU (rated)
SEER 16.5
R-410A (148 oz)
What’s included
- (1) Outdoor condenser: CH-HYP48LCUO
- Manufacturer documentation (manuals/spec sheets as applicable)
Outdoor unit only: indoor unit, line set, and installation materials are sold separately unless your bundle selection includes them.
- MCA: 36.3A
- Max fuse/breaker: 50A
- Rated current (cooling / heating): 24.22A / 19.30A
Compatibility (Single-Zone / R-410A only)
Compatible R-410A indoor units (48K Light Commercial)
Universal Floor/Ceiling
- 48K Universal Floor/Ceiling Indoor: CH-48LCFC/I (panel: CJ-48LCFC-W)
Four-Way Ceiling Cassette
- 48K Ceiling Cassette: CH-N48LCCT-230VI (panel: CH-48LCCT-W)
Slim Duct
- 48K Slim Duct: CH-48LCDTU/I
Air Handler (AHU)
- 48K Air Handler: CH-48AHU
Key features
- Light commercial power: designed for larger spaces and higher demand environments
- Cold climate heating: operation down to -22°F (ambient)
- Indoor style flexibility: supports cassette, floor/ceiling, slim duct, and air handler configurations (1:1 only)
- Long piping capability: up to 213 ft line length; up to 98 ft elevation difference
- Durable rotary compressor with high airflow and robust performance
Tech specs (Outdoor Condenser: CH-HYP48LCUO)
| Cooling capacity (rated) | 48,000 BTU/h |
|---|---|
| Heating capacity (rated) | 50,000 BTU/h |
| SEER | 16.5 |
| EER | 8.3 |
| HSPF4 / HSPF5 @ 47°F | 10.7 / 9.2 |
| COP @ 47°F | 2.93 |
| Refrigerant | R-410A (factory charge 148 oz; pre-charge length 25 ft) |
| Operating temp (heating) | -22°F to 86°F |
| Operating temp (cooling) | -22°F to 122°F |
| Outdoor air flow | 4,470 CFM |
| Outdoor noise level | 65 dB(A) |
| Max line length | 213 ft |
| Max height difference | 98 ft |
| MCA | 36.3A |
| Max fuse/breaker | 50A |
| Dimensions (W×H×D) | 37.5 × 16.3 × 52.5 in |
| Net / Gross weight | 227.1 / 255.7 lbs |
| Design pressure | 550/340 PSIG |
| Additional refrigerant (3/8" liquid) | 0.32 (per ft, per manufacturer guidance) |
If your installed line length exceeds the factory pre-charge piping length (25 ft), additional refrigerant may be required per manufacturer procedure.
AHRI reference (as provided): 205282615.
FAQs
Is this a complete system?
No. This listing is for the outdoor condenser only. You must pair it with one compatible 48K R-410A indoor unit (see compatibility list above).
Can I connect multiple indoor units?
No. This is a single-zone condenser (max 1 indoor unit).
Can it replace CH-NHPR48LCU-230VO or CH-N48LCU-230VO?
Yes—this is a replacement option for those outdoor condensers in single-zone R-410A applications.
What indoor unit styles are supported?
One-to-one pairing with compatible Ceiling Cassette, Universal Floor/Ceiling, Slim Duct, or Air Handler indoor units.
