Cooper&Hunter Hyper Heat 3-Zone Ducted Mini Split AC & Heat Pump -- 55000 BTU (4.6 Ton) Without Shut-off Valves, Slim Ducts Units (6K+18K+24K) BTU, Inverter Technology, 230V, Heating & Cooling
Bring flexible, concealed comfort to your space with the Cooper & Hunter Slim-Duct system. A 55000 BTU outdoor condenser (No Shut-off Valves) powers slim-profile duct air handlers that disappear into ceilings, soffits, or chases for a clean, unobtrusive finish. This inverter heat pump provides independent control in 3 zone(s) and supports low-ambient heating performance down to -22 F.
Slim-Duct air handlers use TU1 copper tubing, medium / high static pressure blower performance, built-in Smart Kit connectivity, and R454B refrigerant (low-GWP) for efficient operation up to 22.2 SEER2. Equipped models include a refrigerant sensor to help maintain optimal operation.
Key features
Concealed comfort + ducted flexibility
- Slim-profile duct unit hides in ceilings/soffits for a clean finish
- Ideal for short duct runs to discreet registers/grilles
- Designed for Single-Zone or Multi-Zone applications (model dependent)
Performance
- 3-zone independent temperature control
- Medium static pressure models for standard duct layouts
- High static pressure models for longer runs / higher resistance (size dependent)
- High-efficiency operation up to 22.2 SEER2
- Quiet operation (Outdoor unit as low as 65 dB(A), No Shut-off Valves; Indoor as low as 32.5 dB(A))
- Reliable heating down to -22 F ambient
Built-in components
- TU1 copper tubing for durability and heat transfer efficiency
- Built-in Smart Kit with downloadable C&H app (where equipped)
- Refrigerant sensor (where equipped) for system monitoring
- Turbo mode for rapid conditioning
- 2025 model platform using R454B refrigerant (low-GWP)
Flexible installation

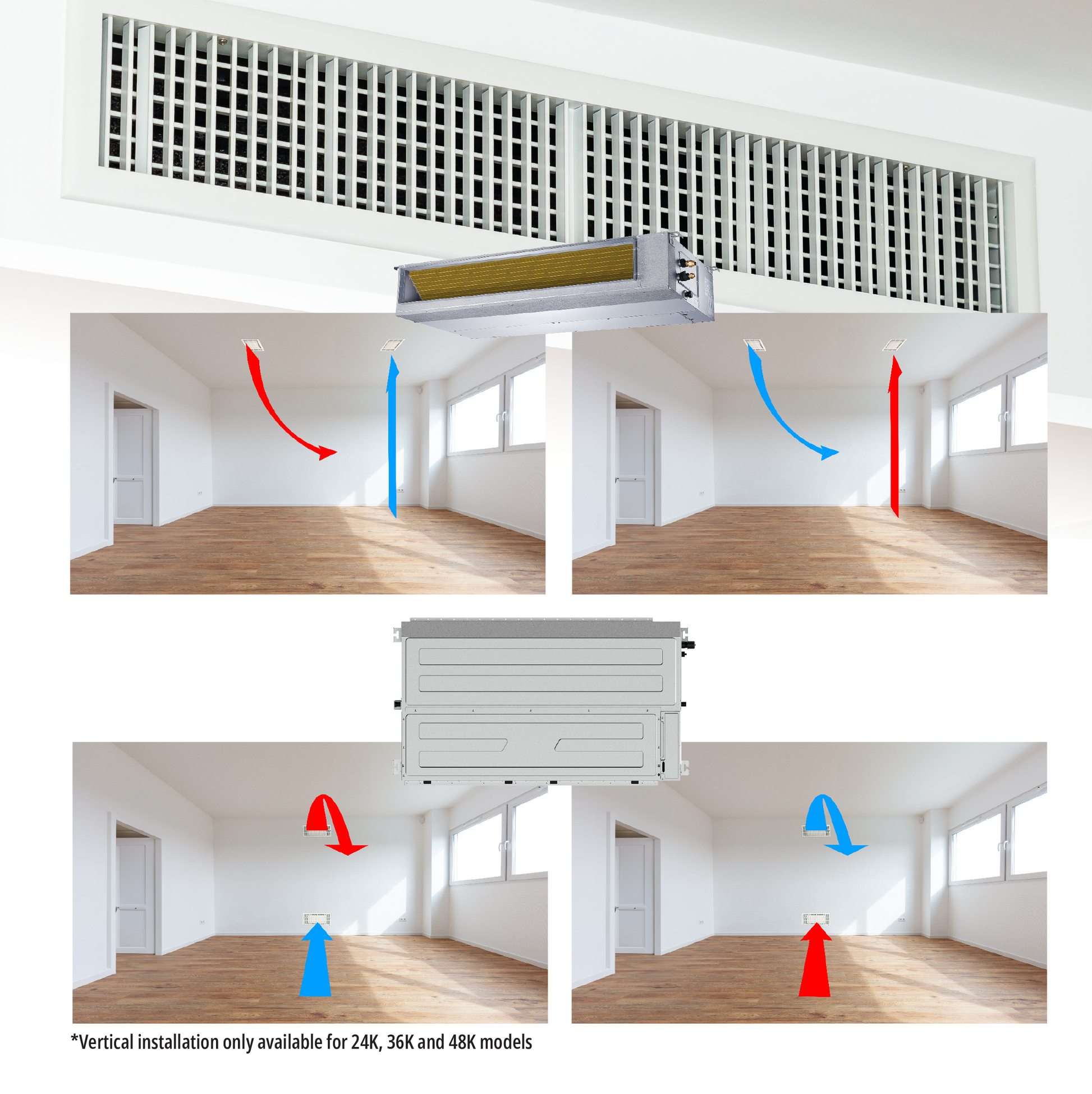

- Choose between horizontal and vertical installation (model dependent)
- Designed for tight spaces such as ceilings, soffits, or wall chases
Static pressure and install orientation vary by size (example: 24K can support high static pressure and flexible orientation). Confirm your model’s ESP range and dimensions in the indoor spec table below.
At-a-glance
3
55000
22.2
-22 F
65 dB(A)
32.5 dB(A)
CH-RHP55M-230VO
No Shut-off Valves
Remote + Thermostat
Warranty requires licensed HVAC installation and registration within 60 days (if required).
Control options
- Remote control included
- Wall thermostat included
- Wall thermostat should be connected on the unit for smart control functionality (where applicable).
Product video
What’s included

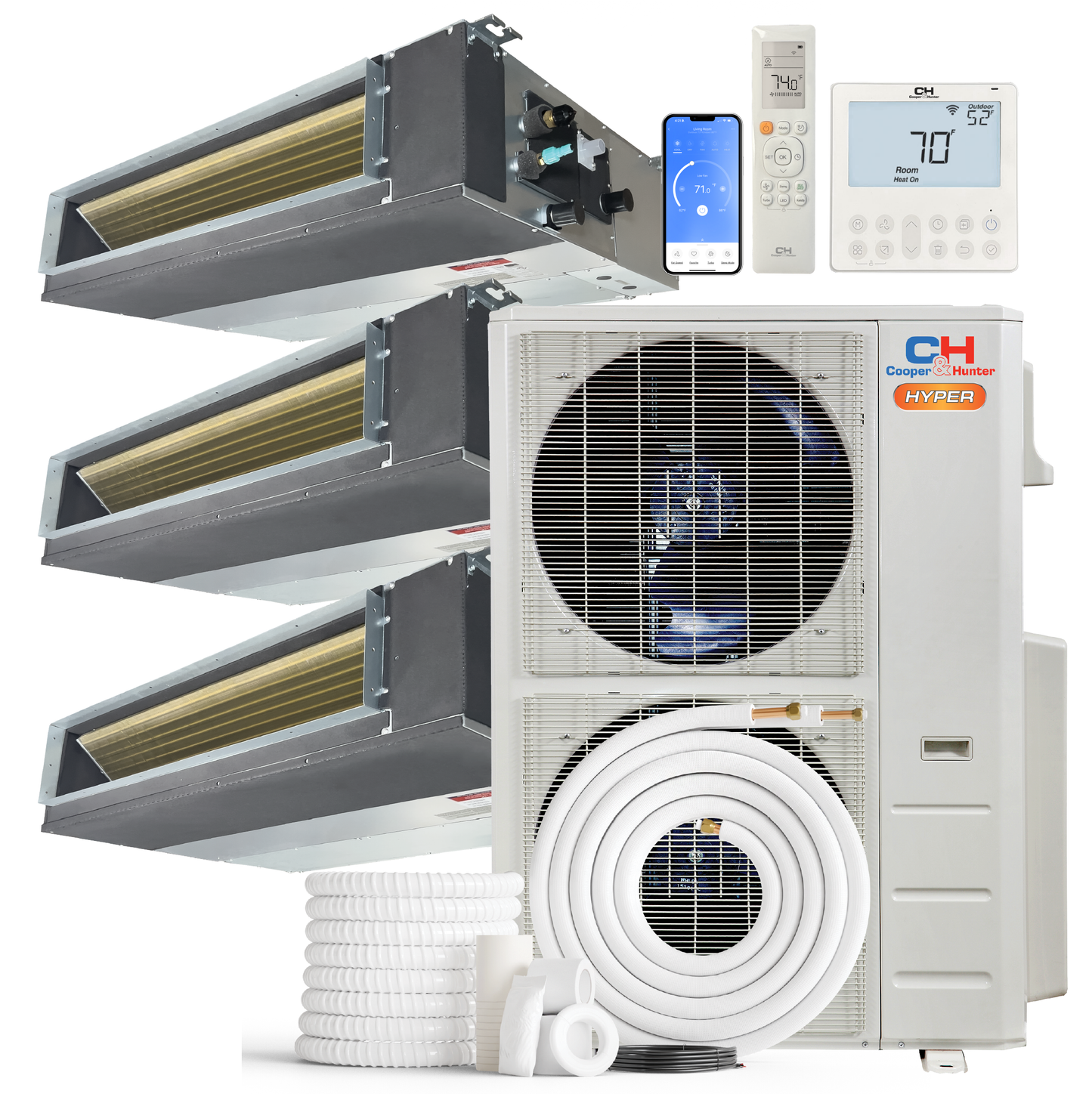

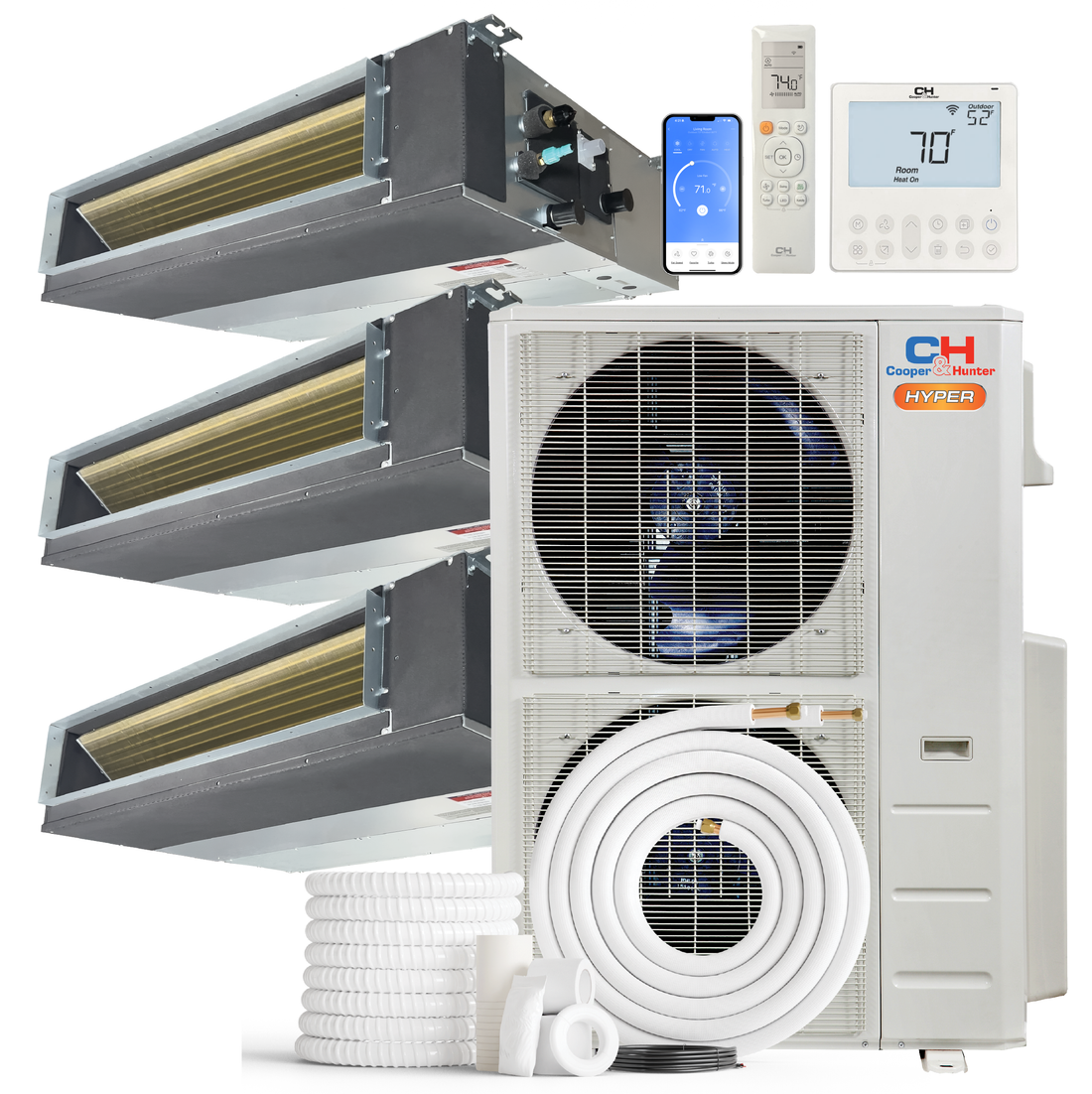

Cooper & Hunter Slim-Duct Mini Split System

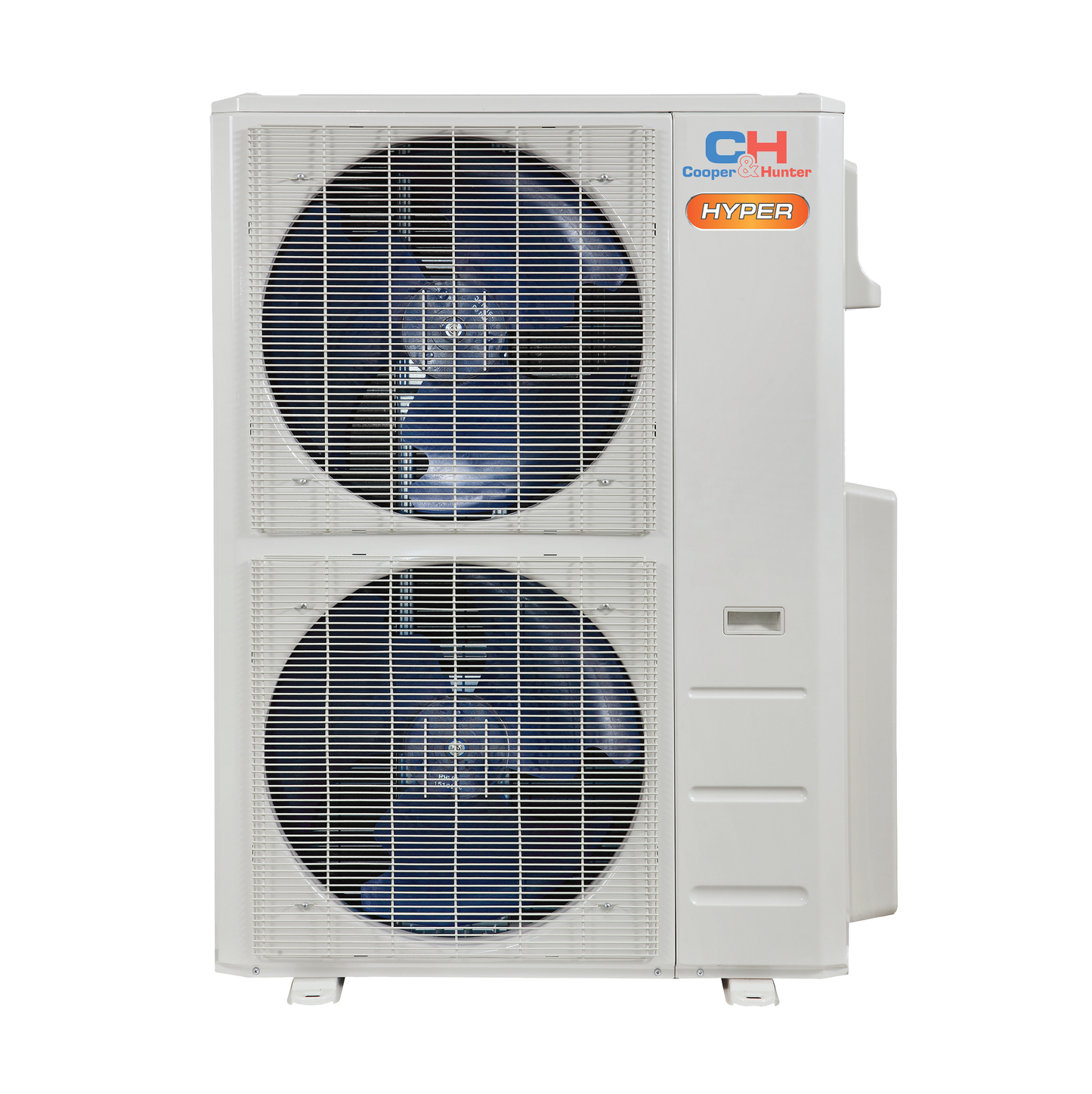

Outdoor Unit (No Shut-off Valves): 55000 BTU (1 pc) — Model: CH-RHP55M-230VO

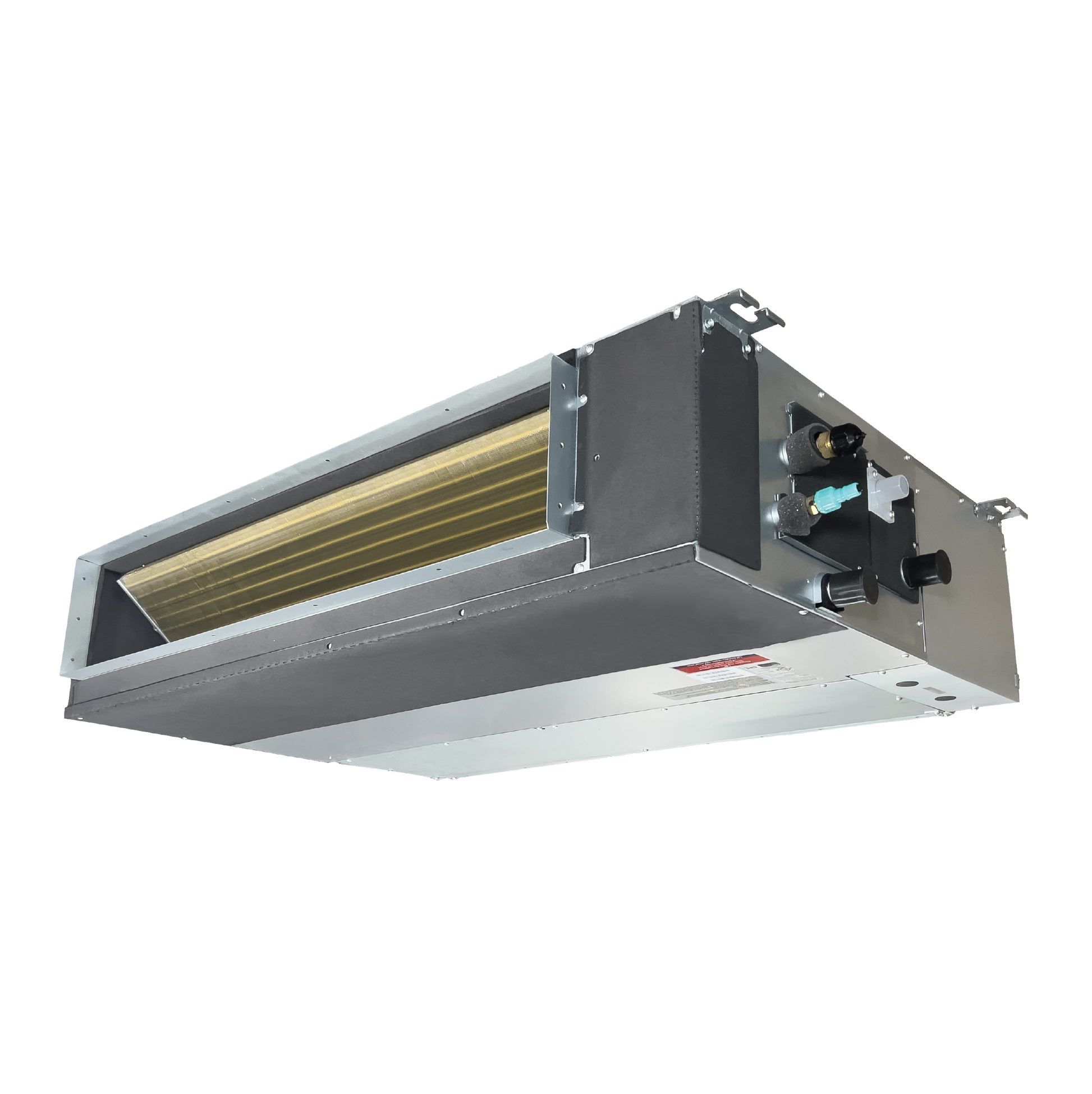

Indoor Units (Slim-Duct):
- 6,000-12,000 BTU (x1) — Model: CH-RS06-12MDT- MS
- 18,000 BTU (x1) — Model: CH-RS18MDT-MS
- 24,000 BTU (x1) — Model: CH-RS24MDT-HS
Capacity Selection (Dip-Switch ENC1)
- Set ENC1 from “0” to "1" → 6,000 BTU
- Set ENC1 from “0” to "2" → 9,000 BTU
- Set ENC1 from “0” to "3" → 12,000 BTU
- Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, to be included)
- Wireless Remote Controls (3 remotes)
- Built-in Smart-Kit & C&H App control
- Wall Thermostat
- Installation & User Manuals
- Manufacturer Warranty
6K–12K capacity selection (ENC1)
On supported 6K–12K Multiple Capacity Slim-Duct models, the ENC1 dip switch is used for capacity changes. When paired with single-zone condensers, the indoor unit can automatically adjust to match condenser capacity. When paired with multi-zone condensers, set ENC1 to select the desired indoor capacity.
- ENC1 from “0” to “1” → 6,000 BTU/H
- ENC1 from “0” to “2” → 9,000 BTU/H
- ENC1 from “0” to “3” → 12,000 BTU/H
If this product does not include a 6K–12K indoor unit, ignore this section. Your spec table and
Capacity Selection (Dip-Switch ENC1)
- Set ENC1 from “0” to "1" → 6,000 BTU
- Set ENC1 from “0” to "2" → 9,000 BTU
- Set ENC1 from “0” to "3" → 12,000 BTU
Complete technical specifications — Indoor (Slim-Duct)
Indoor Unit Specifications — CH-RS06-12MDT- MS
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| Filter dimensions (WxD) (inch) | 23.3x7.24 |
| BTU Rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 2.66 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 33.86 x 21.26 x 11.22 |
| Controller | wire controller + remote controller available |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 12 |
| SEER2 | 20 |
| Unit Net/Gross weight | 39.46/46.74 |
| Unit dimensions (W*H*D) | 27.56 x 19.92 x 7.87 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 36/34.5/32.5 |
| Indoor Air Flow | 400.2 / 323.7 / 264.9 / 176.6 |
| ESP Range | 0-0.4 |
| Drainage water pipe diameter | 1" |
Indoor Unit Specifications — CH-RS18MDT-MS
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| Filter dimensions (WxD) (inch) | 30.2x7.47 |
| BTU Rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.53 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42.13 x 28.54 x 11.02 |
| Controller | wire controller + remote controller available |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
| EER2 | 12 |
| SEER2 | 18 |
| Unit Net/Gross weight | 54.45/66.14 |
| Unit dimensions (W*H*D) | 34.65 x 26.54 x 8.27 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 40/39/38 |
| Indoor Air Flow | 600.4 / 559.2 / 500.3 / 441.4 |
| ESP Range | 0-0.4 |
| Drainage water pipe diameter | 1" |
Indoor Unit Specifications — CH-RS24MDT-HS
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| Filter dimensions (WxD) (inch) | 17.28x7.95 |
| BTU Rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.29 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42.13 x 28.54 x 11.02 |
| Controller | wire controller + remote controller available |
| Refrigerant piping Liquid/Gas side (inch) | 3/8"/5/8" |
| EER2 | 12 |
| SEER2 | 19 |
| Unit Net/Gross weight | 54.45/66.14 |
| Unit dimensions (W*H*D) | 34.65 x 26.54 x 8.27 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 40/37/35 |
| Indoor Air Flow | 853.5 / 706.3 / 618 / 500.3 |
| ESP Range | 0-0.8 |
| Drainage water pipe diameter | 1" |
Manuals
- https://media.cooperandhunter.us/4195/120N-wire-controller---owners-manual.pdf
- https://media.cooperandhunter.us/4197/Installation-Manual---Medium-static-Duct.pdf
- https://media.cooperandhunter.us/4199/Owner_s-Manual---Medium-static-Duct.pdf
- https://media.cooperandhunter.us/4200/SlimDuct-Leaflet-R454B.pdf
- https://media.cooperandhunter.us/4196/Installation-Manual---High-static-Duct.pdf
- https://media.cooperandhunter.us/4198/Owner_s-Manual---High-static-Duct..pdf
Submittals
- https://media.cooperandhunter.us/4201/CH-RHP06F9-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4202/CH-RHP09-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4203/CH-RHP12-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4210/CH-RES12-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4209/CH-RES09-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4204/CH-RHP18-230VO-%2B-CH-RS18MDT-MS.pdf
- https://media.cooperandhunter.us/4211/CH-RES18-230VO-%2B-CH-RS18MDT-MS.pdf
- https://media.cooperandhunter.us/4205/CH-RHP24-230VO-%2B-CH-RS24MDT-HS.pdf
- https://media.cooperandhunter.us/4212/CH-RES24-230VO-%2B-CH-RS24MDT-HS.pdf
Complete technical specifications — Outdoor (No Shut-off Valves)
Outdoor Unit Specifications — CH-RHP55M-230VO
| Outdoor Model | CH-RHP55M-230VO |
|---|---|
| Power Supply Rated V, Ph, Hz | 208-230V, 1Ph, 60Hz |
| Cooling Rated Capacity (range) Btu/h | 51,000(19,000~59,000) |
| Heating Rated Capacity (range) Btu/h | 55,000(20,000~59,000) |
| HSPF4 | 10.5 |
| HSPF5 | 8.5 |
| Minimum Circuit Ampacity (MCA) A | 43 |
| Max. Fuse A | 45 |
| Rated current (RLA) A | 18.5(10.5~24) |
| Compressor Model | EKPQ440D1UMUB |
| Compressor Type | Twin-ROTARY |
| Compressor Brand | GMCC |
| Compressor RLA A | 28 |
| Compressor Input W | 3.43 |
| Refrigerant oil oz | VG75 44 |
| Outdoor fan motor Qty | 2 |
| Outdoor fan motor Input W | 85 |
| Outdoor fan motor RLA A | 2.5 |
| Outdoor air flow (Max) CFM | 4,502.8 |
| Outdoor noise level (Max) dB(A) | 65 |
| Outdoor unit Dimensions (WxDxH) in | 37.48 x 16.34 x 52.48 |
| Outdoor unit Packing (WxDxH) in | 43.11 x 19.49 x 58.27 |
| Outdoor unit Net/Gross weight in | 246.47/276.68 |
| Refrigerant Type | R454B |
| Precharge ft | 150 |
| Additional Charge (liquid pipe) oz | 151.68 |
| Design pressure PSIG | 550/340 |
| Refrigerant piping Liquid side/Gas side in | 6x1/4" - 4x3/8"+2x1/2" |
| Max. length for all indoor units ft | 262.4 |
| Max. length for one indoor unit ft | 114.8 |
| Max. height difference between indoor and outdoor ft | 49.2 |
| Max. height difference between indoor units ft | 33 |
| Ambient temperature Cooling F | -22~122 |
| Ambient temperature Heating F | -22~75 |
Manuals
Submittals
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
