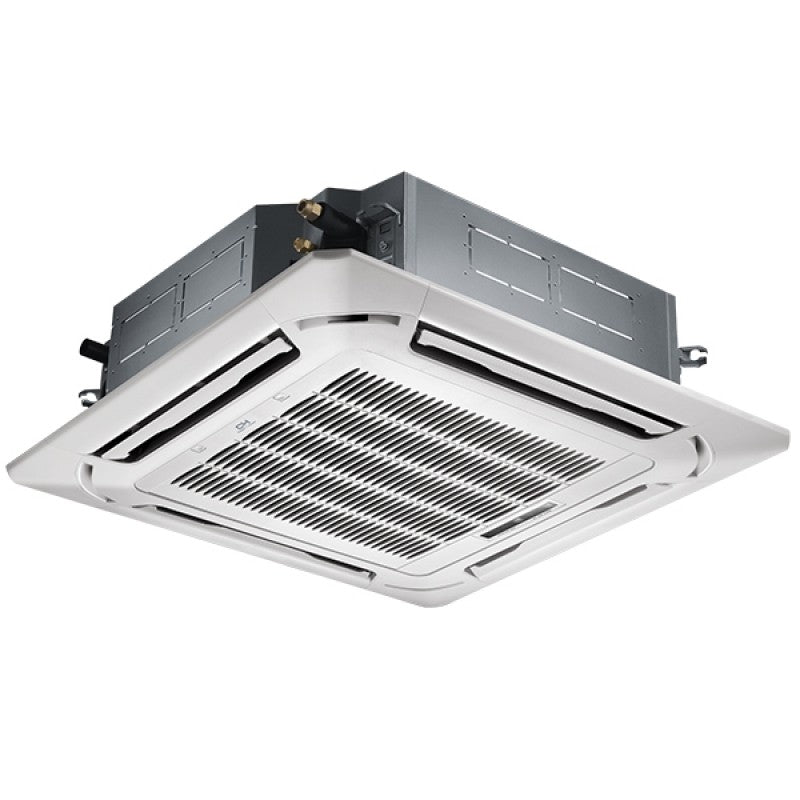

Cooper&Hunter 48,000 BTU Ceiling Cassette Indoor Unit – CH-48LCCT-230VI
A 48,000 BTU ceiling cassette indoor component designed for recessed overhead installation and omni-directional airflow. Uses R-410A and is compatible with the CH-N48LCU-230VO or CH-NHPR48LCU-230VO single-zone outdoor condenser.
Why customers choose this indoor unit
- 360° airflow panel: Distributes conditioned air toward every corner of the room.
- Built-in drain pump: Includes a float switch and a listed lift capability of up to 20.9 inches.
- Fresh-air intake: Supports fresh-air integration when installed according to manufacturer requirements.
- Comfort modes: Includes Sleep, Turbo, multiple fan speeds, timer, and auto-cleaning functions.
- Protection features: Includes refrigerant-leak detection, self-diagnosis, anti-cold-air operation, auto reset, and GoldFin coating.
48,000 BTU/h
Ceiling cassette
360° / omni-directional
Standard or Hyper Heat 48K
What’s included
- (1) Cooper&Hunter indoor unit: CH-48LCCT-230VI
- Manufacturer documentation and available product resources
Indoor component only: The compatible outdoor condenser, refrigerant line set, electrical wiring, drain materials, mounting hardware, and installation accessories are sold separately unless a corresponding product variant specifically includes them.
- Remote control: Supported
- Smart Kit: Ready for optional C&H app control
- External ports: Reserved on/off and alarm connections are described in the supplied product information
Compatibility – Single-Zone R-410A Systems
Compatible outdoor condensers
- CH-N48LCU-230VO or CH-NHPR48LCU-230VO
Key features
- 360° airflow panel: Distributes conditioned air toward every corner of the room.
- Built-in drain pump: Includes a float switch and a listed lift capability of up to 20.9 inches.
- Fresh-air intake: Supports fresh-air integration when installed according to manufacturer requirements.
- Comfort modes: Includes Sleep, Turbo, multiple fan speeds, timer, and auto-cleaning functions.
- Protection features: Includes refrigerant-leak detection, self-diagnosis, anti-cold-air operation, auto reset, and GoldFin coating.
- Service-friendly E-box: The internal electrical-box design supports a compact installation and easier maintenance access.
Technical specifications – CH-48LCCT-230VI
| Model | CH-48LCCT-230VI |
|---|---|
| Component type | Ceiling cassette indoor unit only |
| System configuration | Single-zone 1:1 match |
| Compatible outdoor units | CH-N48LCU-230VO; CH-NHPR48LCU-230VO |
| Refrigerant | R-410A |
| Voltage class | 230V |
| Matched-system cooling capacity | 48,000 BTU/h |
| Matched-system heating capacity | 50,000 BTU/h |
| Matched-system heating at +17°F | 35,410 BTU/h |
| Matched-system SEER | 16.8 |
| Matched-system EER | 9.5 |
| Matched-system HSPF4 at 47°F | 11 |
| Matched-system HSPF5 at 47°F | 9.4 |
| Matched-system COP at 47°F | 3.10 |
| Rated current, cooling | 23.1A |
| Rated current, heating | 21.6A |
| Minimum circuit ampacity | 2A |
| Maximum fuse / breaker | 15A |
| Liquid / gas pipe size | 3/8 in / 5/8 in |
| Indoor airflow | 1,176 / 1,029 / 853 CFM |
| Indoor noise level, H/M/L | 54.5 / 51.5 / 46.5 dB(A) |
| Room-temperature range, heating | 32°F to 86°F |
| Room-temperature range, cooling | 62°F to 90°F |
| Indoor operation range, heating / cooling | 62°F to 86°F |
| Drain connection | OD 25 mm |
| Design pressure | 550 / 340 PSIG |
| Additional refrigerant charge, 3/8 in liquid line | 0.32 (unit not specified in supplied data) |
| Unit dimensions | 33.07 x 33.07 x 11.30 in |
| Packing dimensions | 35.43 x 35.43 x 11.50 in |
| Net / gross weight | 63.27 / 72.53 lbs |
Performance-rating note: SEER, SEER2, EER, EER2, HSPF, COP, cooling-capacity, and heating-capacity values shown in manufacturer submittals are ratings for a specific approved indoor-and-outdoor equipment match. They are not standalone efficiency ratings for this indoor component.
Product resources
Submittal – CH-48LCU-230VO + CH-48LCCT-230VISubmittal Data Sheet – Sophia Ceiling CassetteCassette Leaflet 2024Ceiling Cassette Owner’s ManualCassette Indoor Unit User’s ManualCassette Installation / User ManualCeiling Cassette Quick Start GuideCassette Indoor Unit Installation ManualQuick Start GuideAccessories Leaflet 2023Confirm the selected outdoor model, approved match, and installation requirements before purchasing or installing.
Frequently asked questions
Is this a complete ceiling-cassette system?
No. This listing is for the CH-48LCCT-230VI indoor component only.
Which outdoor condensers are compatible?
The listed compatible single-zone condensers are CH-N48LCU-230VO and CH-NHPR48LCU-230VO.
Does the cassette provide four-way airflow?
The supplied product information describes a 360° omni-directional airflow panel.
Does it have a drain pump?
Yes. A built-in condensate pump with float switch and up to 20.9 inches of lift is described.
Are the SEER and capacity values standalone indoor-unit ratings?
No. Those values describe a specific approved indoor-and-outdoor match.
Product specifications, approved combinations, documentation, and warranty terms may be revised by the manufacturer. Verify compatibility and current technical requirements before installation.
