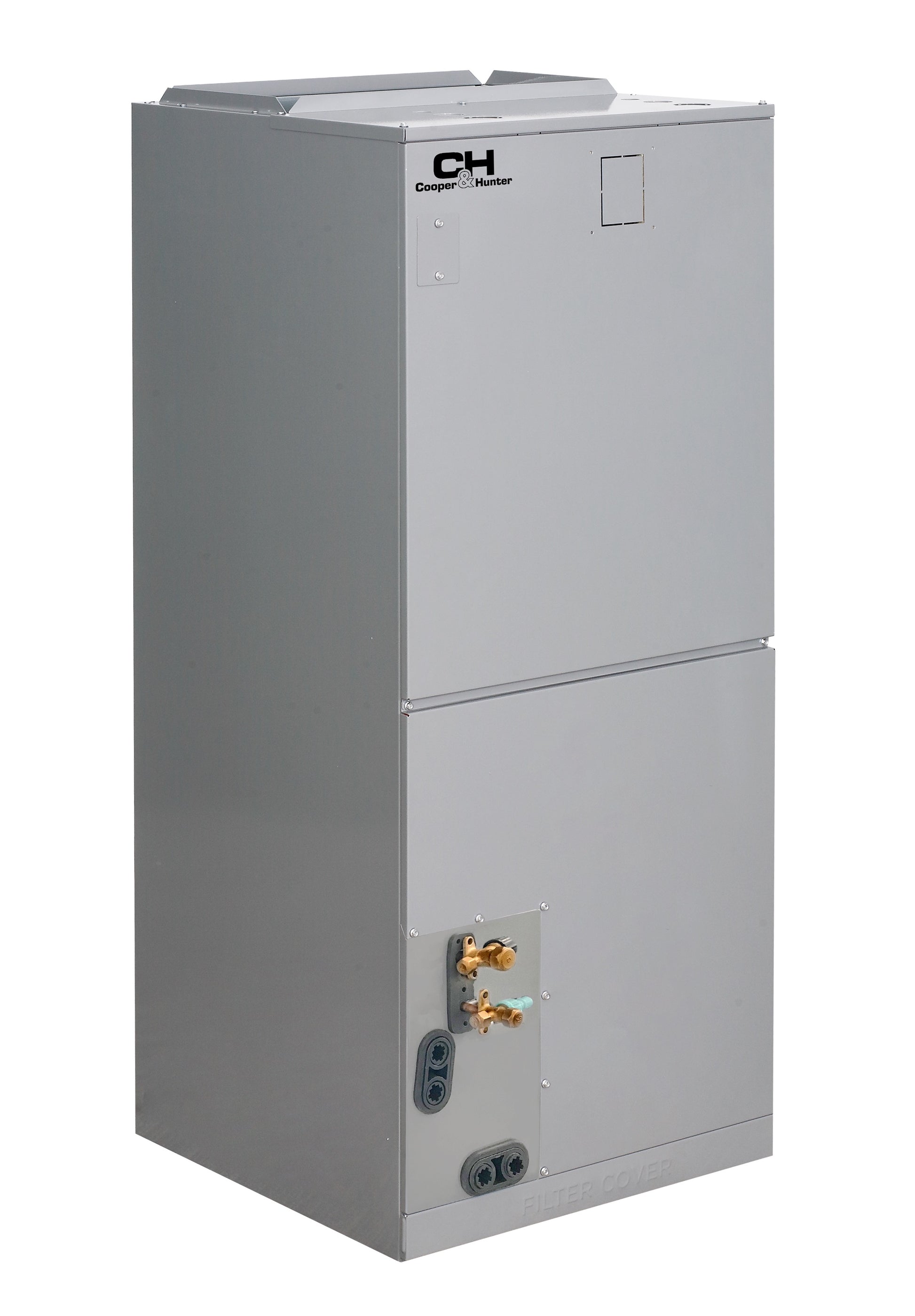

Cooper&Hunter 48,000 BTU Multi-Position Air Handler Indoor Unit – CH-48AHU
A 48,000 BTU multi-position air handler indoor unit for ducted single-zone applications. It uses R-410A, supports vertical or horizontal installation, and is compatible with the CH-N48LCU-230VO or CH-NHPR48LCU-230VO outdoor condenser.
Why customers choose this indoor unit
- True multi-position design: Supports horizontal or vertical upward/downward installation for flexible ducted layouts.
- Adjustable static pressure: Provides an external static pressure range of 0 to 0.8 in. w.g.
- Intelligent airflow: Multiple fan speeds allow static pressure to be adjusted automatically or manually.
- Anti-cold-air function: Delays fan operation during heating startup until the coil is warm.
- Fast cooling and heating: Runs at high output when room temperature is substantially different from the setpoint.
48,000 BTU
Ducted air handler
208-230V, 1Ph
Vertical / horizontal / downflow
What’s included
- (1) Cooper&Hunter indoor unit: CH-48AHU
- Manufacturer documentation and available product resources
Indoor component only: The compatible outdoor condenser, refrigerant line set, electrical wiring, drain materials, mounting hardware, and installation accessories are sold separately unless a corresponding product variant specifically includes them.
- 24V wall thermostat: Listed as included
- Remote control: Listed as included
- Internet Port Kit: Optional and not included
- Mobile app: Downloadable C&H Remote app requires compatible optional hardware
Compatibility – Single-Zone R-410A Systems
Compatible outdoor condensers
- CH-N48LCU-230VO or CH-NHPR48LCU-230VO
Key features
- True multi-position design: Supports horizontal or vertical upward/downward installation for flexible ducted layouts.
- Adjustable static pressure: Provides an external static pressure range of 0 to 0.8 in. w.g.
- Intelligent airflow: Multiple fan speeds allow static pressure to be adjusted automatically or manually.
- Anti-cold-air function: Delays fan operation during heating startup until the coil is warm.
- Fast cooling and heating: Runs at high output when room temperature is substantially different from the setpoint.
- Protection and convenience: Includes auto restart, refrigerant-leak detection, Sleep, Turbo, quiet operation, and GoldFin coating.
- Aluminum coil: Designed with fewer corrosion points than a conventional copper-coil configuration.
- Optional auxiliary heat: Compatible backup heater kits are described in 5, 10, 15, and 20 kW sizes and are sold separately.
Technical specifications – CH-48AHU
| Model | CH-48AHU |
|---|---|
| Component type | Ducted air handler indoor unit only |
| System configuration | Single-zone 1:1 match |
| Compatible outdoor units | CH-N48LCU-230VO; CH-NHPR48LCU-230VO |
| Refrigerant | R-410A |
| Rated capacity | 48,000 BTU |
| Power source | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253V |
| Controller | RG10D remote; 120X or 120N wired controller |
| Matched-system SEER2 | 16.2 |
| Matched-system EER2 | 8.6 |
| Dehumidification | 10.82 pints per day |
| Filter size | 19.40 x 20.35 in |
| Liquid / gas pipe size | 3/8 in / 5/8 in |
| Indoor airflow | 1,470.59 / 1,282.35 / 1,094.12 / 905.88 CFM |
| Indoor noise level, H/M/L | 53.5 / 47 / 43.5 dB(A) |
| External static pressure range | 0-0.8 in. w.g. |
| Indoor operating range, heating | 32°F to 86°F |
| Indoor operating range, cooling | 60°F to 90°F |
| Minimum circuit ampacity | 7.5A |
| Maximum fuse / breaker | 15A |
| Drain connection | 1 in |
| Unit dimensions | 21.02 x 21.02 x 49.02 in |
| Packing dimensions | 26.57 x 24.41 x 52.56 in |
| Net / gross weight | 132.50 / 155.87 lbs |
Performance-rating note: SEER, SEER2, EER, EER2, HSPF, COP, cooling-capacity, and heating-capacity values shown in manufacturer submittals are ratings for a specific approved indoor-and-outdoor equipment match. They are not standalone efficiency ratings for this indoor component.
The supplied technical data lists 208-230V power for this indoor unit. Confirm the product title, electrical data, and selected condenser before import or installation.
Product resources
Submittal – CH-N48LCU-230VO + CH-48AHUSubmittal – CH-NHPR48LCU-230VO + CH-48AHU120N Wired Controller Owner’s ManualAir Handler Remote ManualUser Manual – 36K to 60K Air HandlersAir Handler LeafletConfirm the selected outdoor model, approved match, and installation requirements before purchasing or installing.
Frequently asked questions
Is this a complete ducted heat-pump system?
No. This listing is for the CH-48AHU indoor air handler only.
Which outdoor condensers are compatible?
The listed compatible single-zone condensers are CH-N48LCU-230VO and CH-NHPR48LCU-230VO.
Is a 24V thermostat included?
The supplied control-options list states that a 24V wall thermostat is included.
Is the auxiliary heater included?
No. Auxiliary heat kits are optional, sold separately, and listed in 5, 10, 15, and 20 kW sizes.
Can it be installed horizontally?
Yes. The supplied product information describes horizontal and vertical upward/downward installation positions.
Product specifications, approved combinations, documentation, and warranty terms may be revised by the manufacturer. Verify compatibility and current technical requirements before installation.
