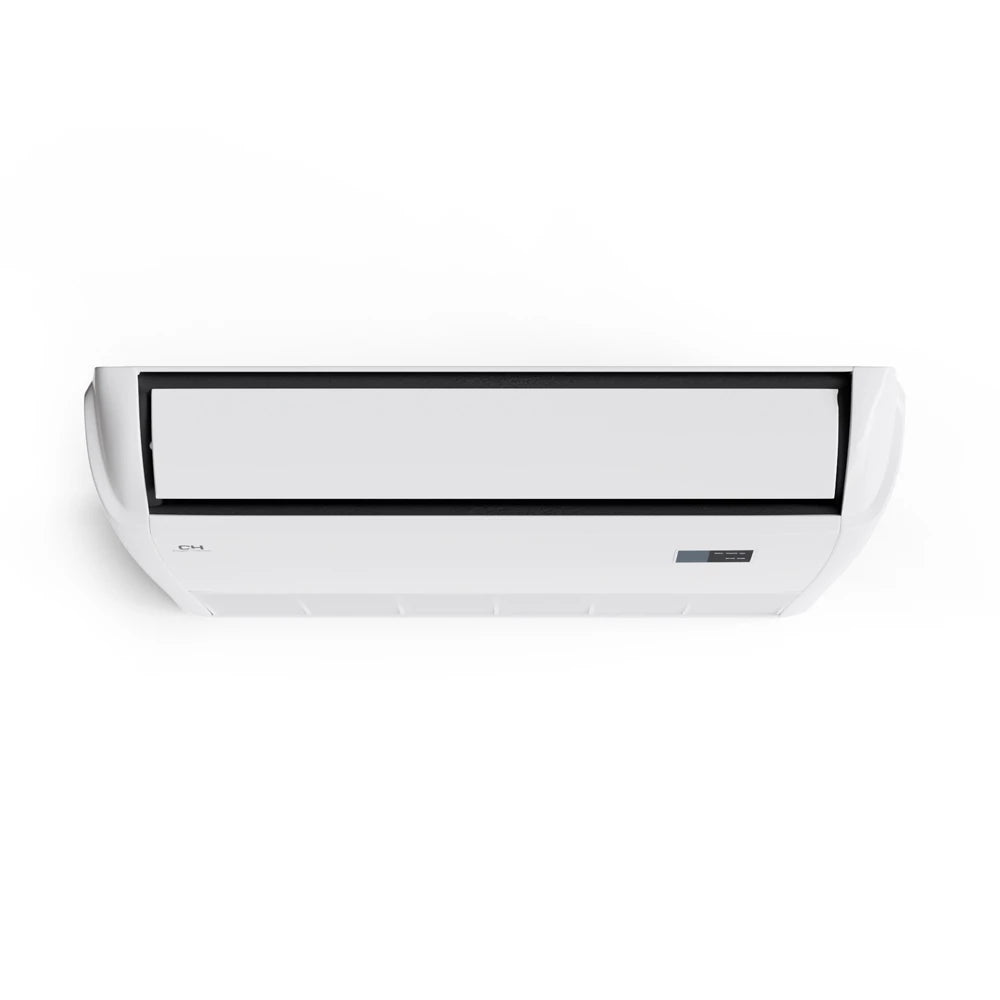

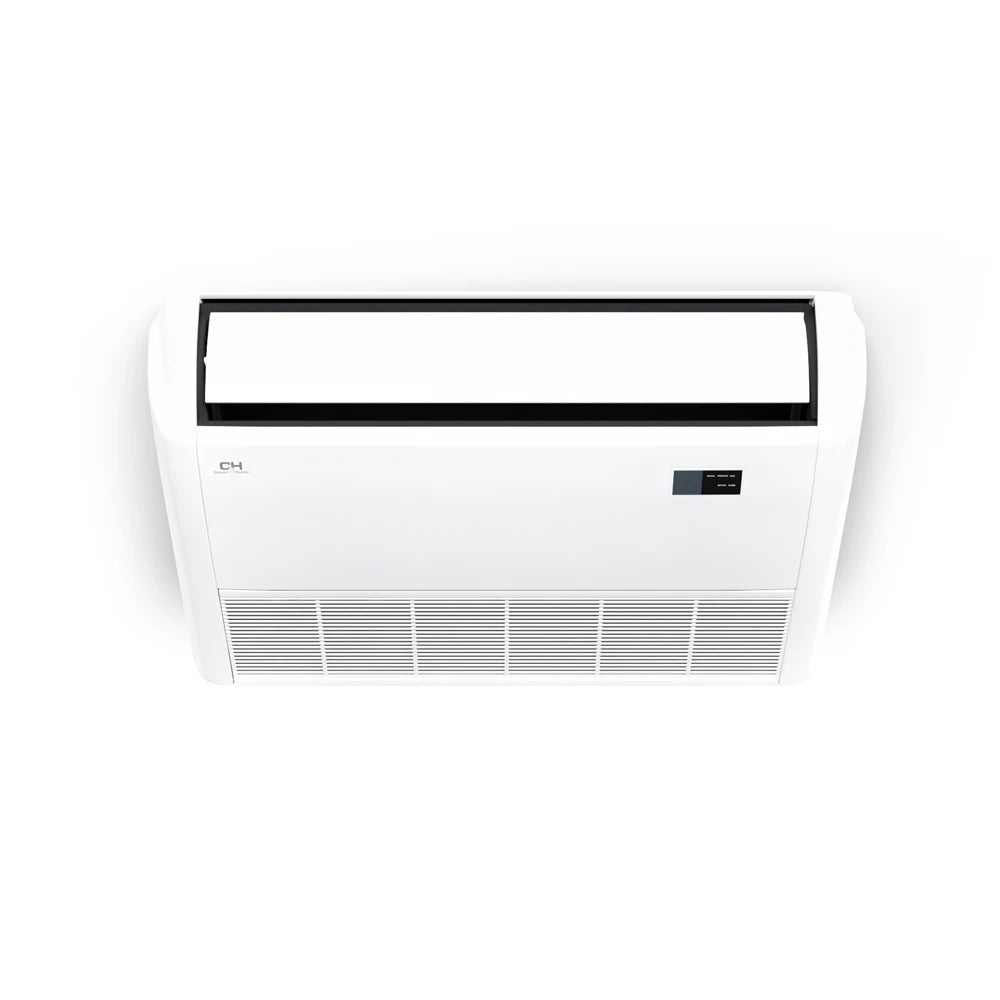

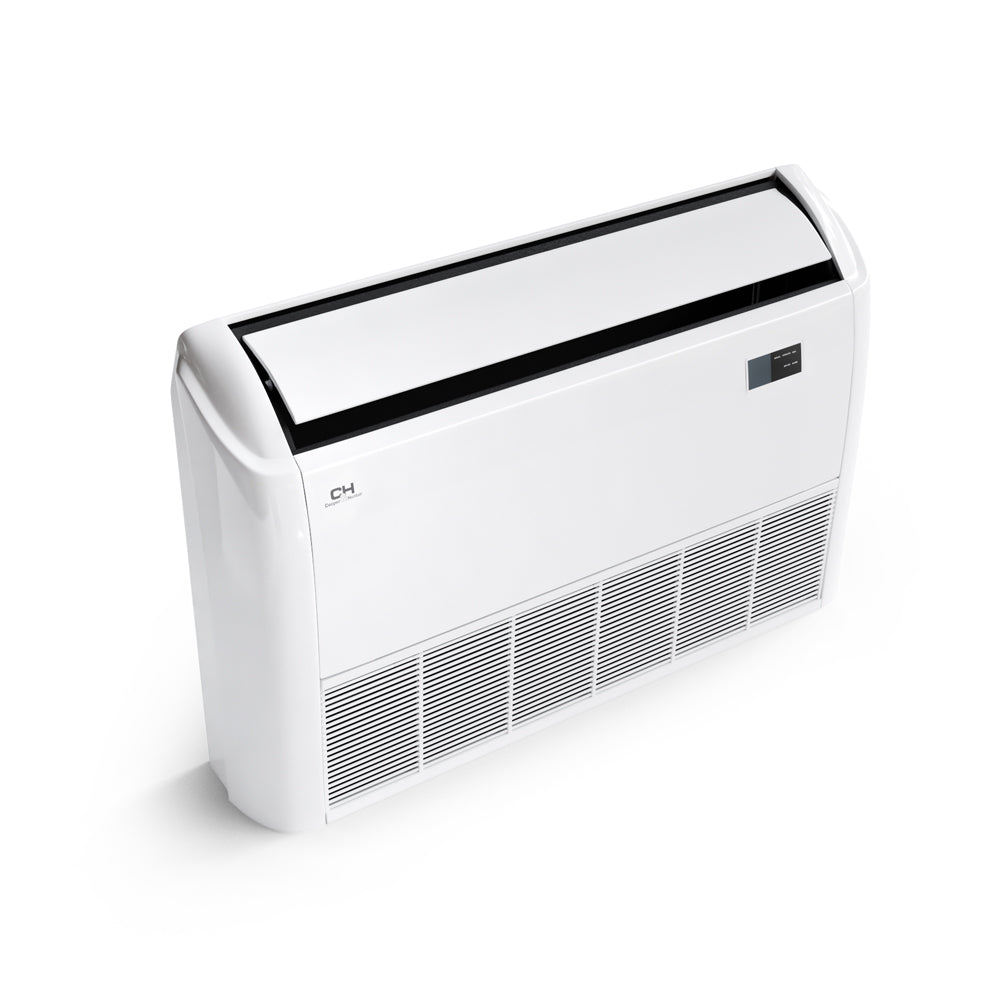

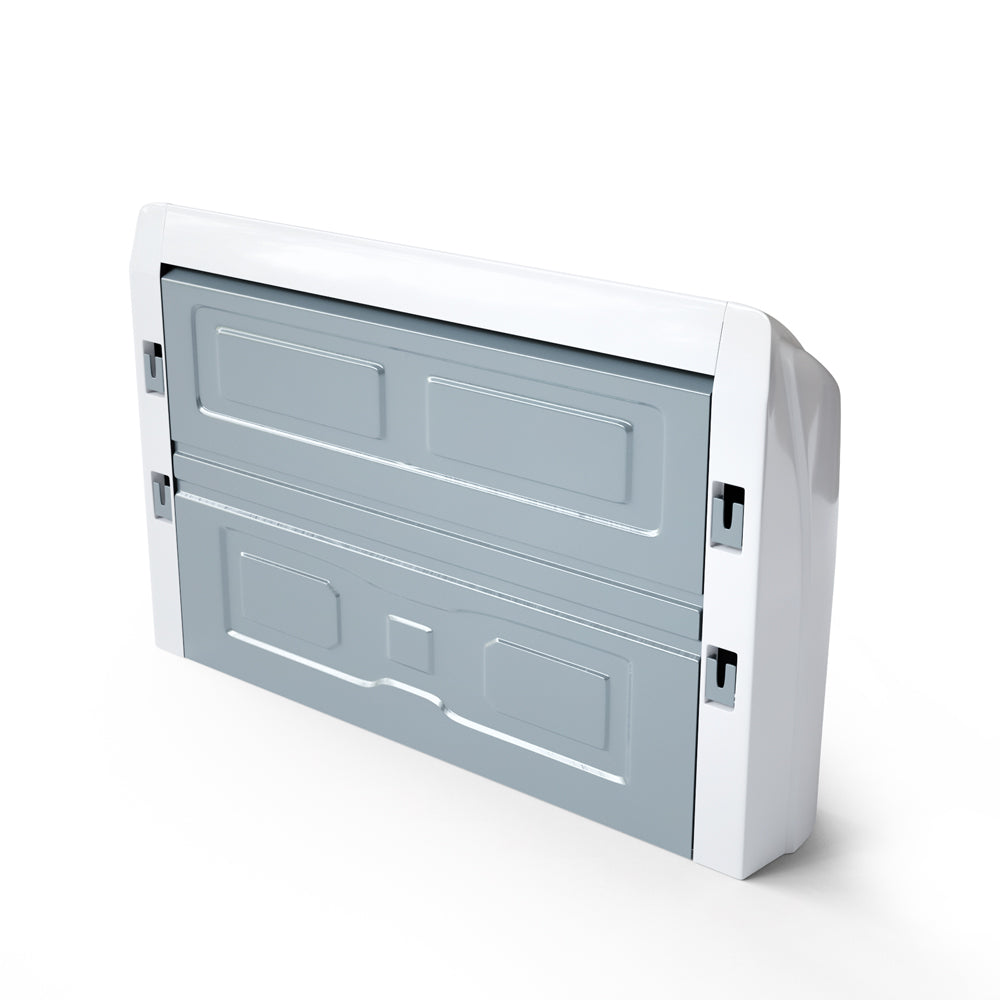

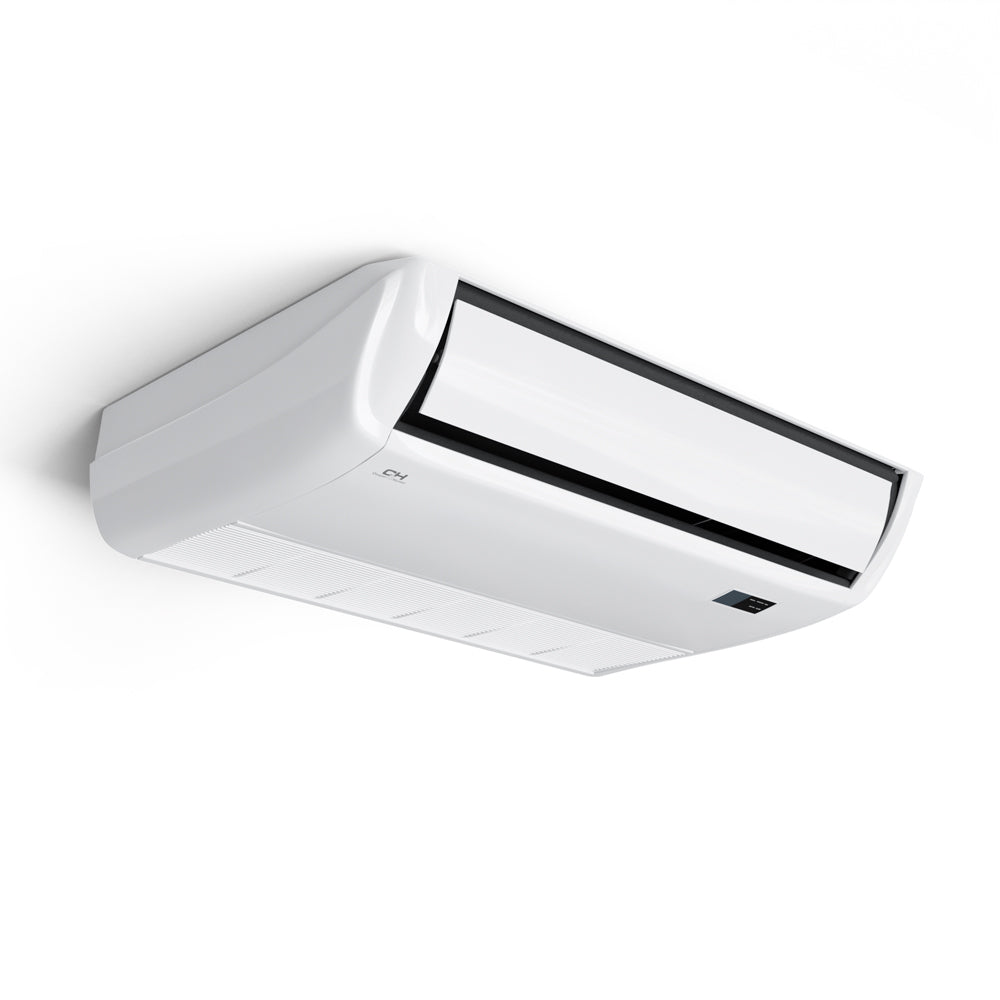

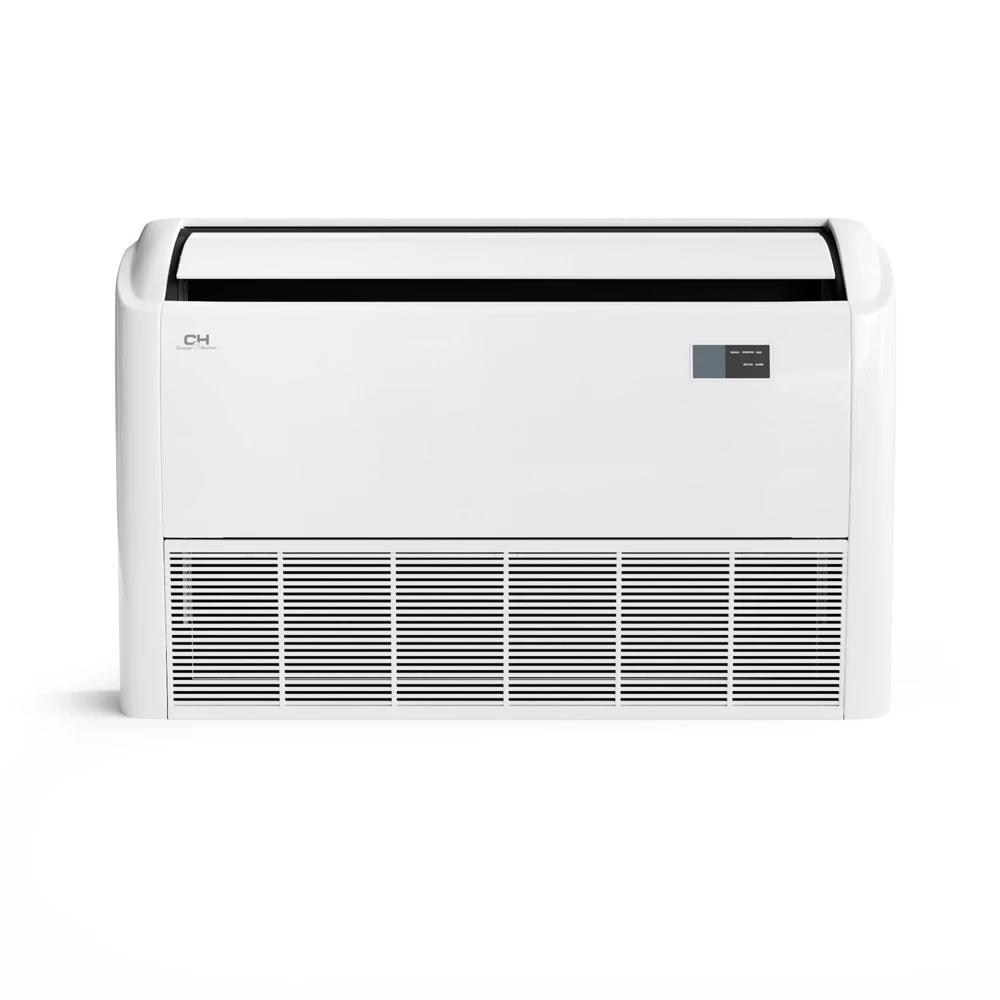

Cooper&Hunter 36,000 BTU Universal Floor/Ceiling Indoor Unit – CH-36LCFC-W
A versatile 36,000 BTU floor/ceiling indoor unit that can be mounted vertically on a wall or horizontally below a ceiling. Uses R-410A and is compatible with the CH-N36LCU-230VO or CH-NHPR36LCU-230VO single-zone outdoor condenser.
Why customers choose this indoor unit
- Flexible mounting: Installs horizontally below a ceiling or vertically on a wall to suit the available space.
- Multiple fan speeds: Provides adjustable airflow for changing comfort demands.
- Inverter-system compatibility: Operates as the indoor component of a matched inverter-driven heat-pump system.
- Electronic expansion valve: Supports precise refrigerant-flow management in the approved equipment match.
- Smart control ready: Optional app control is available through the Cooper&Hunter Smart Kit.
36,000 BTU
Floor / ceiling
208-230V, 1Ph
Vertical or horizontal
What’s included
- (1) Cooper&Hunter indoor unit: CH-36LCFC-W
- Manufacturer documentation and available product resources
Indoor component only: The compatible outdoor condenser, refrigerant line set, electrical wiring, drain materials, mounting hardware, and installation accessories are sold separately unless a corresponding product variant specifically includes them.
- Handheld remote: Included
- Wired controller support: RG10K remote and 120X or 120N wired controller are listed
- Smart Kit: Ready for optional C&H Remote app control
- Thermostat: Optional Cooper&Hunter thermostat support is listed
Compatibility – Single-Zone R-410A Systems
Compatible outdoor condensers
- CH-N36LCU-230VO or CH-NHPR36LCU-230VO
Key features
- Flexible mounting: Installs horizontally below a ceiling or vertically on a wall to suit the available space.
- Multiple fan speeds: Provides adjustable airflow for changing comfort demands.
- Inverter-system compatibility: Operates as the indoor component of a matched inverter-driven heat-pump system.
- Electronic expansion valve: Supports precise refrigerant-flow management in the approved equipment match.
- Smart control ready: Optional app control is available through the Cooper&Hunter Smart Kit.
- Remote and thermostat options: Supports the included handheld remote plus listed wired-control options.
Technical specifications – CH-36LCFC-W
| Model | CH-36LCFC-W |
|---|---|
| Component type | Universal floor/ceiling indoor unit only |
| System configuration | Single-zone 1:1 match |
| Compatible outdoor units | CH-N36LCU-230VO; CH-NHPR36LCU-230VO |
| Refrigerant | R-410A |
| Rated capacity | 36,000 BTU |
| Power source | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253V |
| Controller | RG10K remote; 120X or 120N wired controller |
| Matched-system SEER2 | 19 |
| Matched-system EER2 | 8.5 |
| Dehumidification | 10.40 pints per day |
| Liquid / gas pipe size | 3/8 in / 5/8 in |
| Indoor airflow | 1,075 / 1,036.47 / 917.06 / 637.65 CFM |
| Indoor noise level, H/M/L | 52.5 / 48.5 / 42.5 dB(A) |
| Indoor operating range, heating | 32°F to 86°F |
| Indoor operating range, cooling | 62°F to 90°F |
| Minimum circuit ampacity | 1.9A |
| Maximum fuse / breaker | 15A |
| Drain connection | 1 in |
| Unit dimensions | 50.59 x 26.57 x 9.25 in |
| Packing dimensions | 53.54 x 29.72 x 12.52 in |
| Net / gross weight | 69 / 81.57 lbs |
Performance-rating note: SEER, SEER2, EER, EER2, HSPF, COP, cooling-capacity, and heating-capacity values shown in manufacturer submittals are ratings for a specific approved indoor-and-outdoor equipment match. They are not standalone efficiency ratings for this indoor component.
Product resources
Submittal – CH-36LCU_O + CH-36LCFCISubmittal – CH-N36LCU-230VO + CH-36LCFCISubmittal – CH-NHPR36LCU-230VO + CH-36LCFCISophia Single-Zone User ManualQuick Start GuideAccessories Leaflet 2023Floor/Ceiling Leaflet 2024Confirm the selected outdoor model, approved match, and installation requirements before purchasing or installing.
Frequently asked questions
Is this a complete floor/ceiling system?
No. This listing is for the CH-36LCFC-W indoor component only.
Which outdoor condensers are compatible?
The listed compatible single-zone condensers are CH-N36LCU-230VO and CH-NHPR36LCU-230VO.
Can it be installed on a wall?
Yes. The unit is designed for vertical wall installation or horizontal ceiling installation.
Is Wi-Fi control included?
The unit is described as Smart Kit ready. The optional kit is required for app control.
Is an installation kit included?
Installation materials are included only when a corresponding product variant specifically states that they are included.
Product specifications, approved combinations, documentation, and warranty terms may be revised by the manufacturer. Verify compatibility and current technical requirements before installation.
