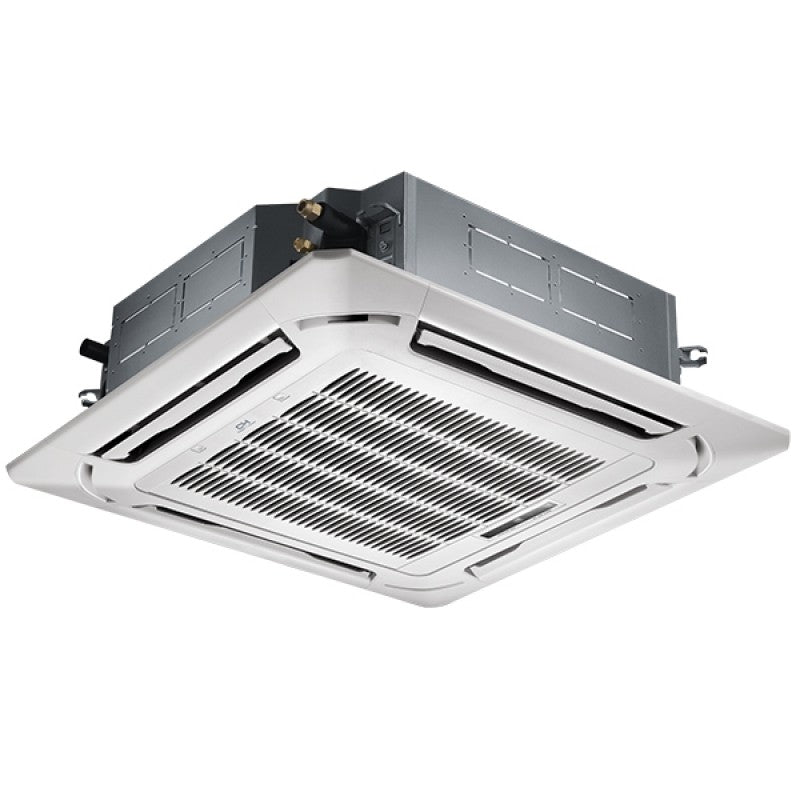

Cooper&Hunter 36,000 BTU Ceiling Cassette Indoor Unit – CH-36LCCT-W
A 36,000 BTU ceiling cassette indoor component designed for recessed overhead installation and omni-directional airflow. Uses R-410A and is compatible with the CH-N36LCU-230VO or CH-NHPR36LCU-230VO single-zone outdoor condenser.
Why customers choose this indoor unit
- 360° airflow panel: Distributes conditioned air toward every corner of the room.
- Built-in drain pump: Includes a float switch and a listed lift capability of up to 20.9 inches.
- Fresh-air intake: Supports fresh-air integration when installed according to manufacturer requirements.
- Comfort modes: Includes Sleep, Turbo, multiple fan speeds, timer, and auto-cleaning functions.
- Protection features: Includes refrigerant-leak detection, self-diagnosis, anti-cold-air operation, auto reset, and GoldFin coating.
36,000 BTU/h
Ceiling cassette
360° / omni-directional
Standard or Hyper Heat 36K
What’s included
- (1) Cooper&Hunter indoor unit: CH-36LCCT-W
- Manufacturer documentation and available product resources
Indoor component only: The compatible outdoor condenser, refrigerant line set, electrical wiring, drain materials, mounting hardware, and installation accessories are sold separately unless a corresponding product variant specifically includes them.
- Remote control: Supported
- Smart Kit: Ready for optional C&H app control
- External ports: Reserved on/off and alarm connections are described in the supplied product information
Compatibility – Single-Zone R-410A Systems
Compatible outdoor condensers
- CH-N36LCU-230VO or CH-NHPR36LCU-230VO
Key features
- 360° airflow panel: Distributes conditioned air toward every corner of the room.
- Built-in drain pump: Includes a float switch and a listed lift capability of up to 20.9 inches.
- Fresh-air intake: Supports fresh-air integration when installed according to manufacturer requirements.
- Comfort modes: Includes Sleep, Turbo, multiple fan speeds, timer, and auto-cleaning functions.
- Protection features: Includes refrigerant-leak detection, self-diagnosis, anti-cold-air operation, auto reset, and GoldFin coating.
- Service-friendly E-box: The internal electrical-box design supports a compact installation and easier maintenance access.
Technical specifications – CH-36LCCT-W
| Model | CH-36LCCT-W |
|---|---|
| Alternate model reference in supplied data | CH-36LCCT-230VI |
| Component type | Ceiling cassette indoor unit only |
| System configuration | Single-zone 1:1 match |
| Compatible outdoor units | CH-N36LCU-230VO; CH-NHPR36LCU-230VO |
| Refrigerant | R-410A |
| Power source | 208-230V, 1Ph, 60Hz |
| Matched-system cooling capacity | 36,000 BTU/h |
| Matched-system heating capacity | 38,000 BTU/h |
| Matched-system heating at +5°F | 28,000 BTU/h |
| Matched-system SEER | 17.5 |
| Matched-system EER | 9 |
| Matched-system HSPF4 at 47°F | 10.5 |
| Matched-system HSPF5 at 47°F | 9.1 |
| Matched-system COP at 47°F | 3.01 |
| Rated current, cooling | 16.7A |
| Rated current, heating | 16.93A |
| Minimum circuit ampacity | 1.9A |
| Maximum fuse / breaker | 15A |
| Liquid / gas pipe size | 3/8 in / 5/8 in |
| Indoor airflow | 1,095 / 958 / 809 CFM |
| Indoor noise level, H/M/L | 55 / 52 / 49 dB(A) |
| Room-temperature range, heating | 32°F to 86°F |
| Room-temperature range, cooling | 62°F to 90°F |
| Indoor operation range, heating / cooling | 62°F to 86°F |
| Drain connection | OD 25 mm |
| Design pressure | 550 / 340 PSIG |
| Additional refrigerant charge, 3/8 in liquid line | 0.32 (unit not specified in supplied data) |
| Unit dimensions | 33.07 x 33.07 x 9.65 in |
| Packing dimensions | 35.43 x 35.43 x 10.12 in |
| Net / gross weight | 58.2 / 66.14 lbs |
Performance-rating note: SEER, SEER2, EER, EER2, HSPF, COP, cooling-capacity, and heating-capacity values shown in manufacturer submittals are ratings for a specific approved indoor-and-outdoor equipment match. They are not standalone efficiency ratings for this indoor component.
Product resources
Ceiling Cassette Owner’s ManualCassette Indoor Unit User’s ManualCeiling Cassette Quick Start GuideCassette Installation / User ManualCassette Indoor Unit Installation ManualSophia Multi BookletCassette Leaflet 2024Accessories Leaflet 2023Multi-Zone Leaflet 2024Quick Start GuideSome general documents cover additional cassette or multi-zone models. For this listing, use only the approved single-zone outdoor matches shown above.
Frequently asked questions
Is this a complete ceiling-cassette system?
No. This listing is for the CH-36LCCT-W indoor component only.
Which outdoor condensers are compatible?
The listed compatible single-zone condensers are CH-N36LCU-230VO and CH-NHPR36LCU-230VO.
Does the cassette provide four-way airflow?
The supplied product information describes a 360° omni-directional airflow panel.
Does it have a drain pump?
Yes. A built-in condensate pump with float switch and up to 20.9 inches of lift is described.
Are the SEER and capacity values standalone indoor-unit ratings?
No. Those values describe a specific approved indoor-and-outdoor match.
Product specifications, approved combinations, documentation, and warranty terms may be revised by the manufacturer. Verify compatibility and current technical requirements before installation.
