BRAVO MILANO — Universal Floor/Ceiling (UFC)
Bravo Milano Series 3-Zone Ductless Mini Split AC & Heat Pump -- 30000 BTU (2.5 Ton), Universal Floor Ceiling Units (9K+9K+9K) BTU, Inverter Technology, 230V, Heating & Cooling
UFC indoor cabinet for low-wall or ceiling mount. Configuration: 3X BRV-M09FC-230VI. Outdoor capacity 30000 BTU. SEER2 up to 23.
Performance features
- Universal cabinet — floor (low wall) or ceiling
- Wireless remote control included
- Thermostat compatible for precise setpoint
- Multiple fan speeds, strong airflow
- Auto restart after power interruption
- Quiet operation
At-a-glance
3 rooms
30000
23
BRV-M30-230VO

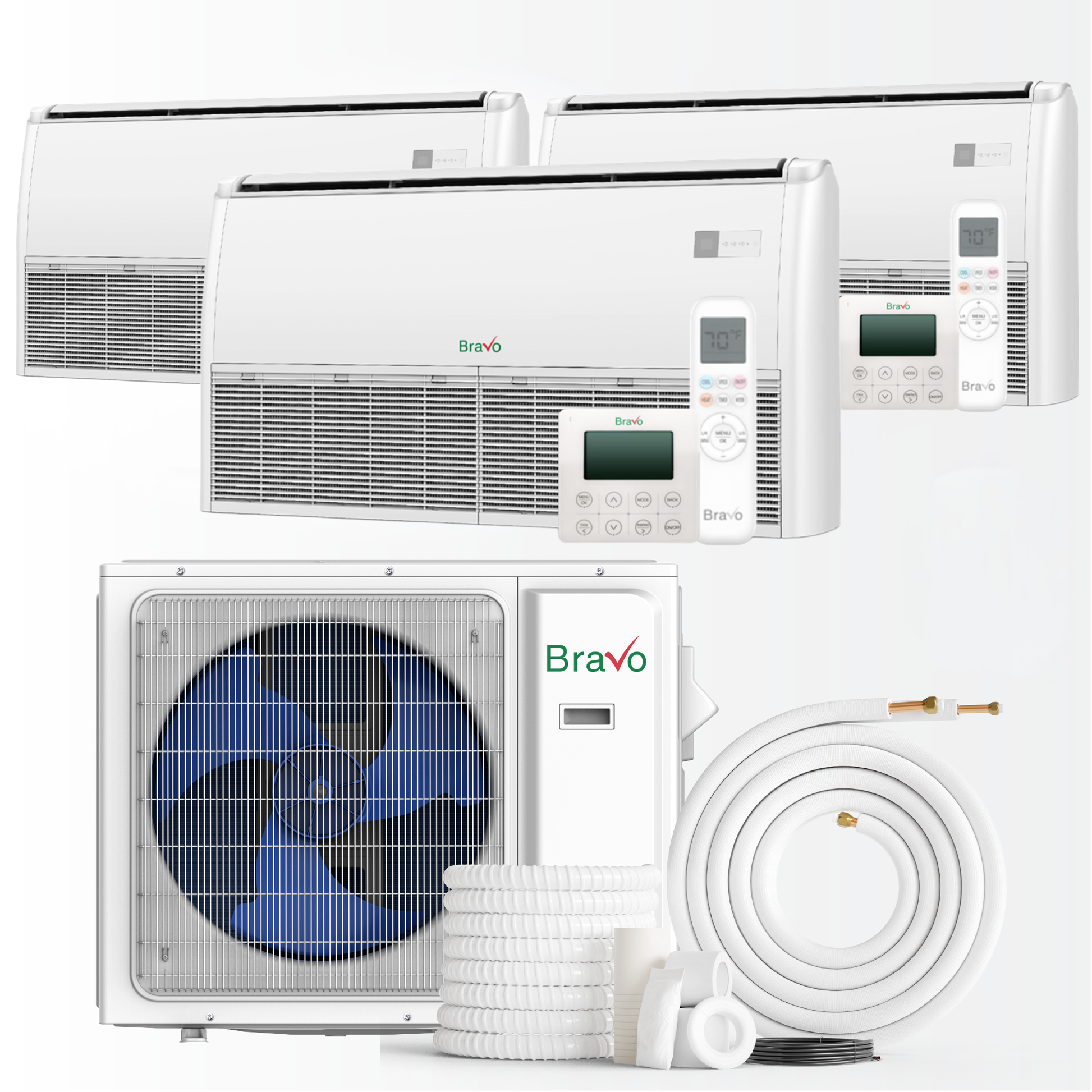

What’s included
- 9,000 BTU (3 pcs) - Model: BRV-M09FC-230VI
- Outdoor Condenser — BRV-M30-230VO
- Optional pre-flared 99% copper install kit (select length above)
- Wireless remote(s), installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor

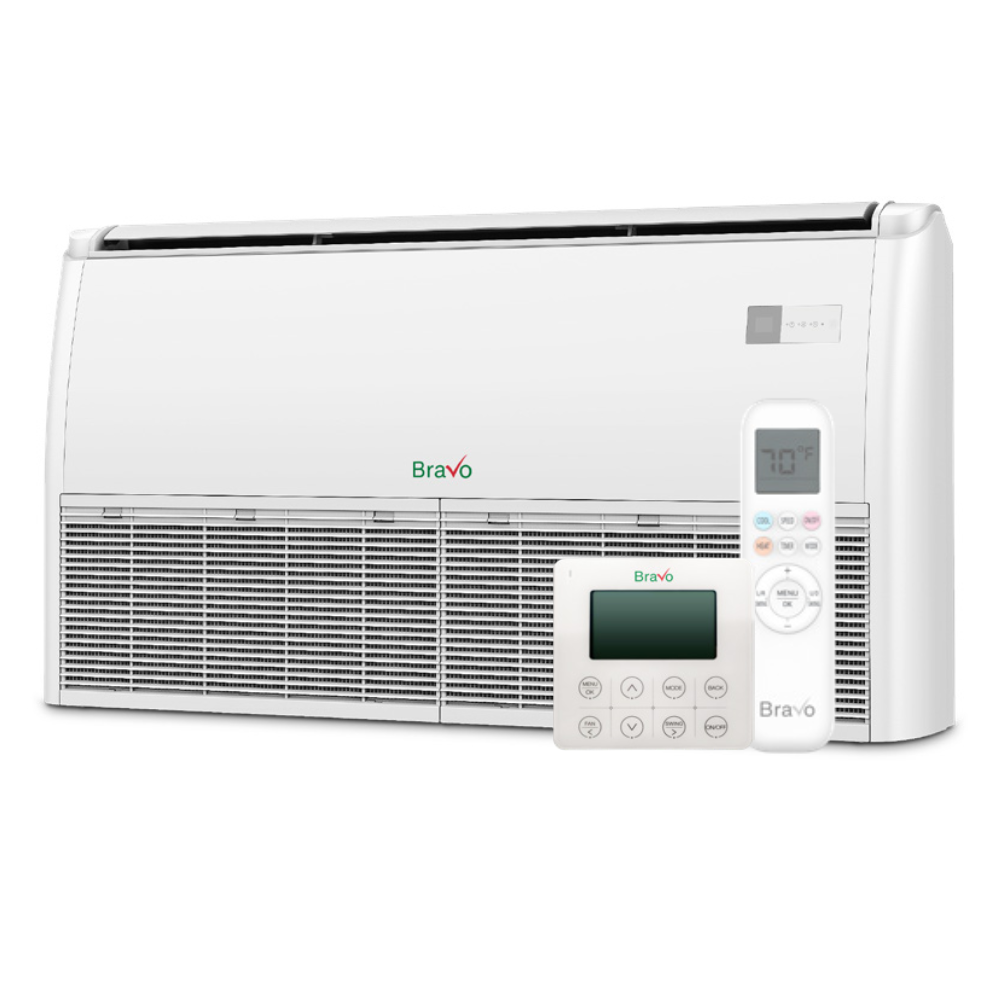

Indoor Unit: BRV-M09FC-230VI (9,000 BTU) x3
| brand name | BRAVO |
|---|---|
| series | Milano Universal Floor/Ceiling |
| model | BRV-M09FC-230VI |
| short description | Bravo Milano 9,000 BTU Universal Floor/Ceiling Indoor Unit |
| unit type | Ductless Mini-Split Indoor Unit |
| equipment type | Floor/Ceiling |
| tonnage | 0.75 |
| cooling capacity (BTU) | 9000 |
| heating capacity (BTU) | 11000 |
| voltage (V) | 208/230 |
| phase | 1 |
| cycle (Hz) | 60 |
| max fuse breaker (a) | 5 |
| indoor air flow (cfm) | 500 |
| indoor noise level (dba) | 39 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| operating temperature range (°f) | 60.8–89.6 |
| net width (in) | 39.37 |
| net depth (in) | 27.17 |
| net height (in) | 9.25 |
| packing width (in) | 42.52 |
| packing depth (in) | 30.32 |
| packing height (in) | 12.80 |
| net weight (lbs) | 57.3 |
| gross weight (lbs) | 67.2 |
Technical specifications — Outdoor

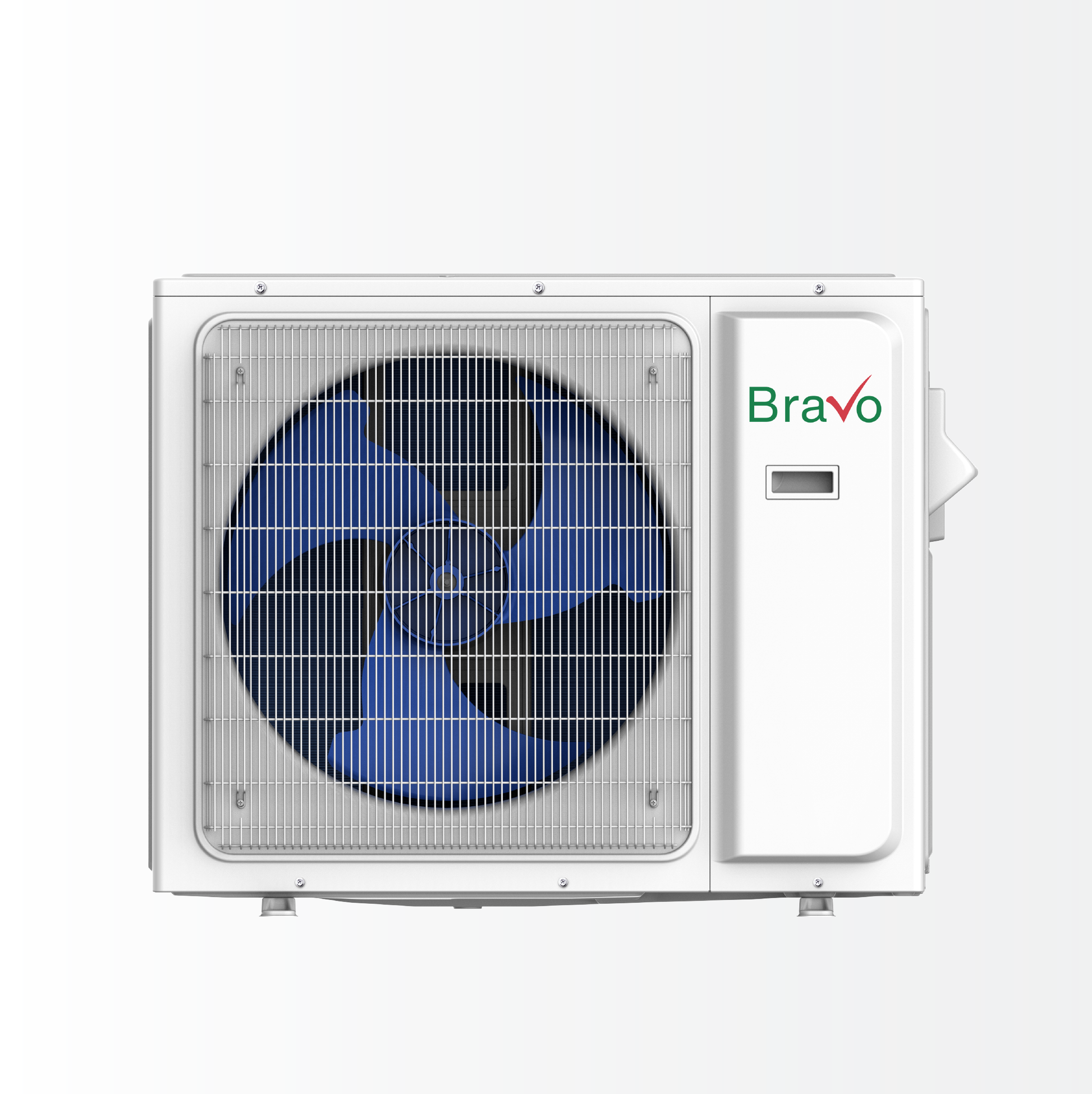

Outdoor Unit: BRV-M30-230VO (30,000 BTU)
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 41.18×17.91×31.81 |
| System type | Multi-zone unit |
| SEER2 up to | 23/20/21.5 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 4x1/4"- 4x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 43.50×19.49×34.84 |
| Outdoor noise level (dB) | 58 |
| Outdoor air flow (CFM) | 2,353 |
| Net/Gross weight (lb) | 148.8/157.6 |
| Minimum circuit ampacity (A) | 26 |
| Max. fuse (A) | 40 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8.5/7/7.75 |
| HSPF2-4 | 10/9.5/9.75 |
| Heating capacity (Min/Max) (Btu/h) | 30,000 (6,300-36,000) |
| EER2 up to | 12.5/12/12.25 |
| Dehumidification (Pnt/H) | / |
| COP | 3.9/4/3.95 |
| Cooling capacity (Min/Max) (BTU/h) | 30,000 (6,000-38,200) |
| BTU Rated | 30,000 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Important
The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
UFC indoor units deliver even air distribution and flexible placement. Pair with compatible Bravo Milano outdoor condensers. Smart control and inverter performance support steady comfort for residential or light commercial spaces.
