Bravo Milano Ductless Mini Split AC & Heat Pump – 24,000 BTU 230V, Ceiling Cassette Unit, Inverter, Heating & Cooling

Name: Bravo Milano Ductless Mini Split AC & Heat Pump – 24,000 BTU 230V, Ceiling Cassette Unit, Inverter, Heating & Cooling
Brand: Bravo
SKU: BRV-M24CT-230VI + BRV-PN24CT

SKU: BRV-M24CT-230VI + BRV-PN24CT

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$582.00

Sold out

Size NO INSTALLATION KIT 25FT

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Bravo Milano Ductless Mini Split AC & Heat Pump – 24,000 BTU 230V, Ceiling Cassette Unit, Inverter, Heating & Cooling

BRAVO - More than a compliment!

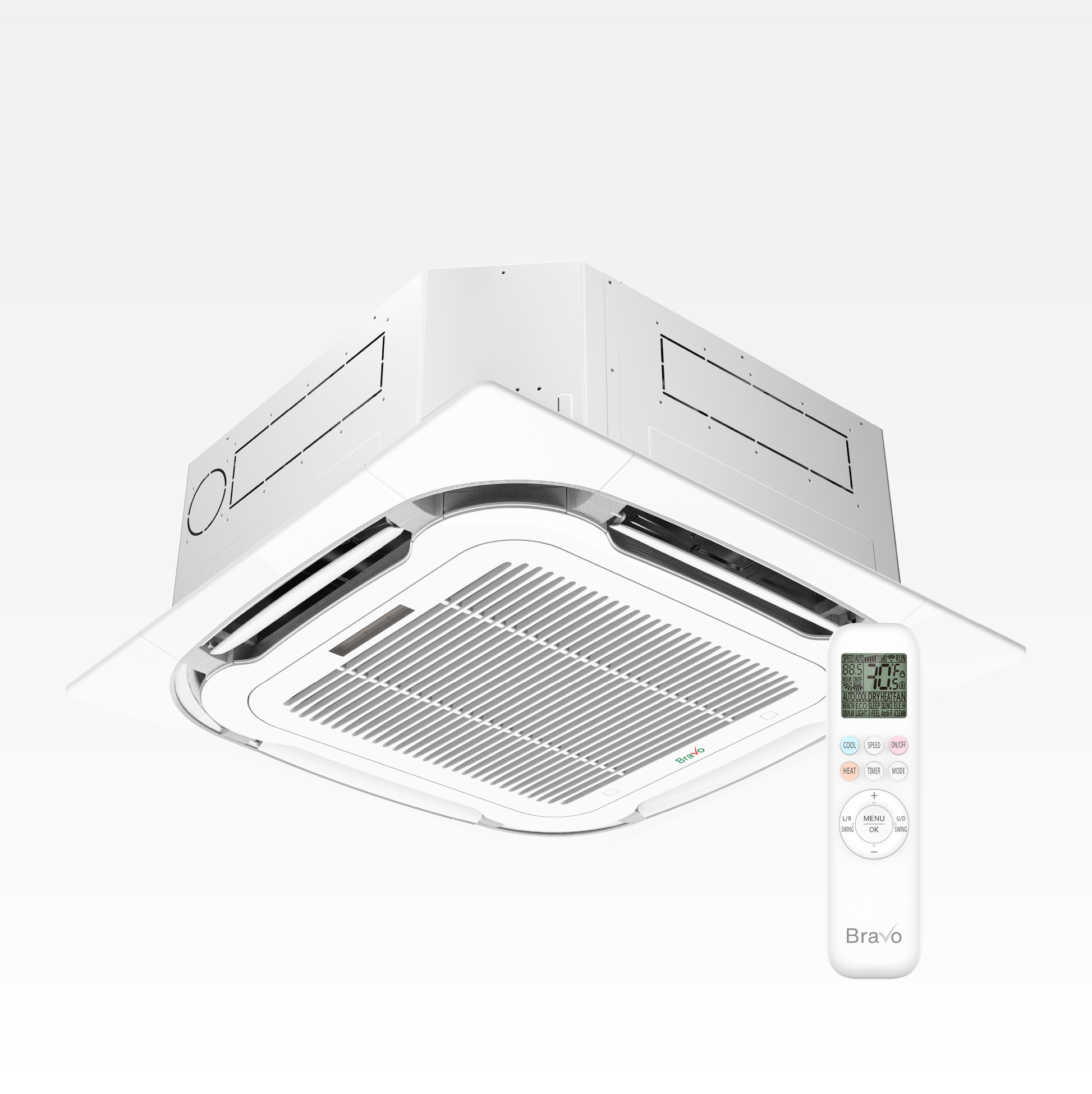

The Bravo Milano Single-Zone Ceiling Cassette Mini Split System is a discreet and powerful solution for cooling and heating individual rooms. Designed to mount flush with your ceiling, this system delivers 360° airflow distribution for even temperature control throughout the space—making it ideal for bedrooms, offices, and open living areas.

With capacities ranging from 9K to 24K Btu/h, it offers flexible sizing for rooms of various sizes. Its low-profile design keeps the unit out of sight, while the built-in SMART APP allows for convenient remote control of settings from any smart device.

With a SEER2 rating of up to 24, the Bravo Milano Ceiling Cassette system ensures efficient performance, quiet operation, and year-round comfort with a modern, unobtrusive design.

What's Included

Indoor Unit BRV-M24CT-230VI (24,000 BTU 230V Bravo Milano Indoor Ceiling Cassette Unit)

Indoor Unit Panel BRV-PN24CT (Bravo Milano Indoor Ceiling Cassette Panel)

Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.

Wireless Remote Controls

Installation Manual

User’s Manual

Manufacturer Warranty

Key Features:

Remote Control Included

Smart App: Connect from anywhere

Comfortable Sleep Mode

Super Mode

Eco Mode

Multiple Fan Speeds

Timer

Sleep Mode

Louver Auto Swing

Anti Mildew Mode

LED Display

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

Other Single Zone Bravo Milano Ceiling Cassette Units

Capacity	SKU
9,000 BTU	BRV-M09CT-230VI
12,000 BTU	BRV-M12CT-230VI
18,000 BTU	BRV-M18CT-230VI
24,000 BTU	BRV-M24CT-230VI

Warranty

3 year compressor limited warranty

3 year parts limited warranty (must be installed by a licensed HVAC technician)

Technical Information

Indoor Unit Specifications: BRV-M24CT-230VI

Indoor Model			BRV-M24CT-230VI
Panel Model Number			BRV-PN24CT
Power Supply		V-Ph-Hz	208-230-1-60
Cooling	Capacity	Btu/h	24,000
Heating	Rated Capacity	Btu/h	24,000
Max Fuse		A	5
Indoor Air Flow		CFM	824
Indoor Noise Level		dB(A)	47
Indoor Unit	Dimensions (WxDxH)	in	33.07x33.07x9.69
	Packing (WxDxH)	in	35.83x35.83x12.20
	Net Weight	lbs.	52.9/61.7
Panel	Dimensions (WxDxH)	in	37.40x37.40x2.17
	Packing (WxDxH)	in	39.37x39.37x3.94
	Net/Gross Weight	lbs.	11.7/17.2
Refrigerant Piping	Liquid Side/Gas Side	in	1/4" / 5/8"
Operation Temperature Range		°F	60.8~89.6

Certifications

Performance Data/Features

Sleek matte finish

Turbo Function

Silent Function

LED Display

Horizontal Auto Swing

Timer

Comfortable Sleep Mode

Multiple Fan Speeds

Self-Cleaning Function

Follow Me Function

Activated Carbon Filter
