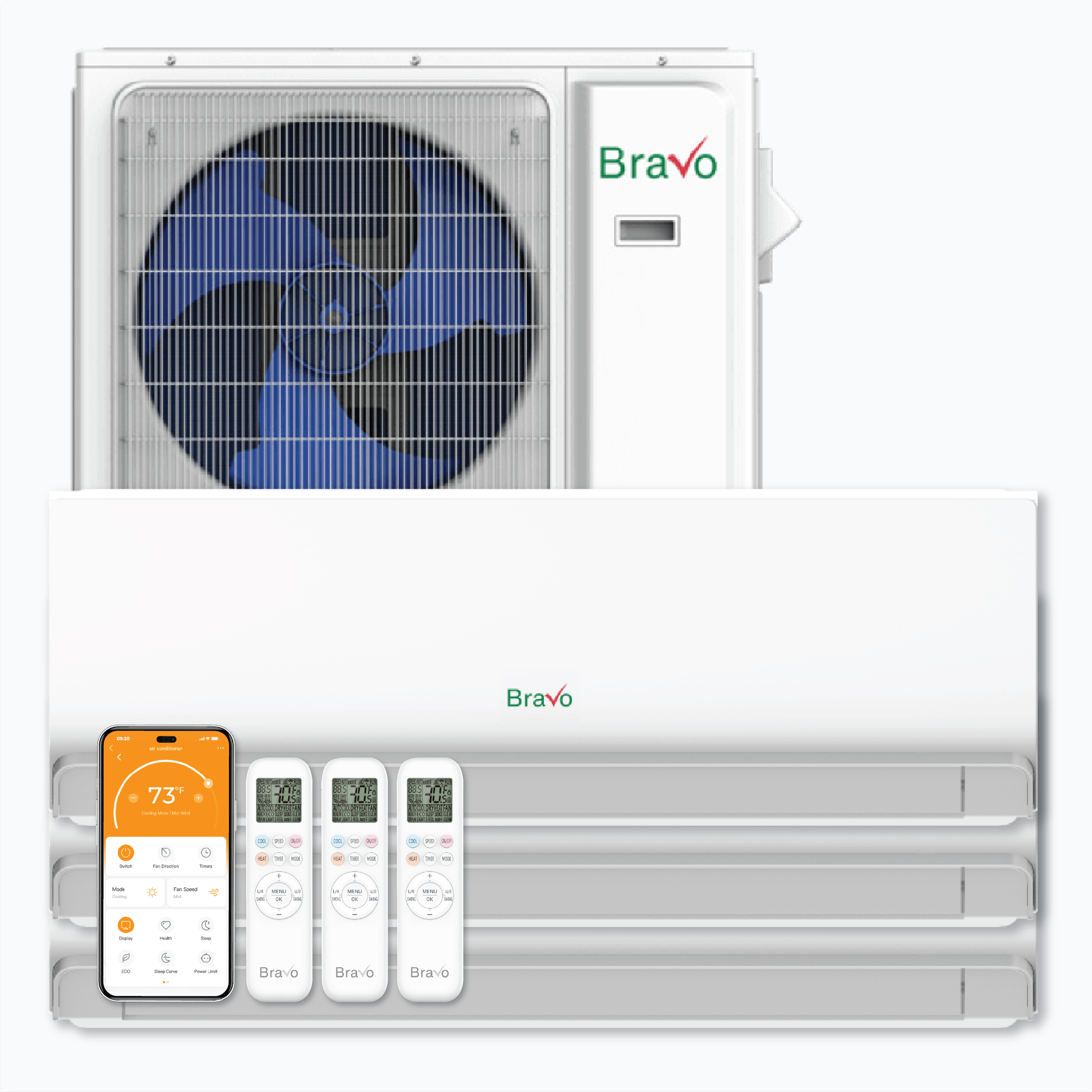

Bravo Milano 3-Zone Ductless Mini Split AC & Heat Pump -- 30000 BTU (2.5 Ton), Wall Mount Units (7K+7K+18K) BTU, Inverter Technology, 230V, Heating & Cooling
High-wall indoor unit for single-room or multi-zone systems. Configuration: BRV-M30-230VO + 2X BRV-M07WM-230VI + BRV-M18WM-230VI. Outdoor capacity 30000 BTU. SEER2 up to 23.
Performance features
- High-wall indoor unit for targeted comfort
- Optimized for multi-zone compatibility
- R32 refrigerant for lower environmental impact
- Built-in Smart App connectivity for remote control
- Wireless remote control included
- Eco, Super, and Sleep modes
- Auto-swing louvers and multiple fan speeds
- 24-hour timer and anti-mildew dry function
- Quiet operation with intuitive LED display
- Auto restart after power interruption
At-a-glance
3 rooms
30000
23
BRV-M30-230VO
What’s included
- 7,000 BTU (x2) — Model: BRV-M07WM-230VI
- 18,000 BTU (x1) — Model: BRV-M18WM-230VI
- Outdoor Condenser — BRV-M30-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wireless remote(s), installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor

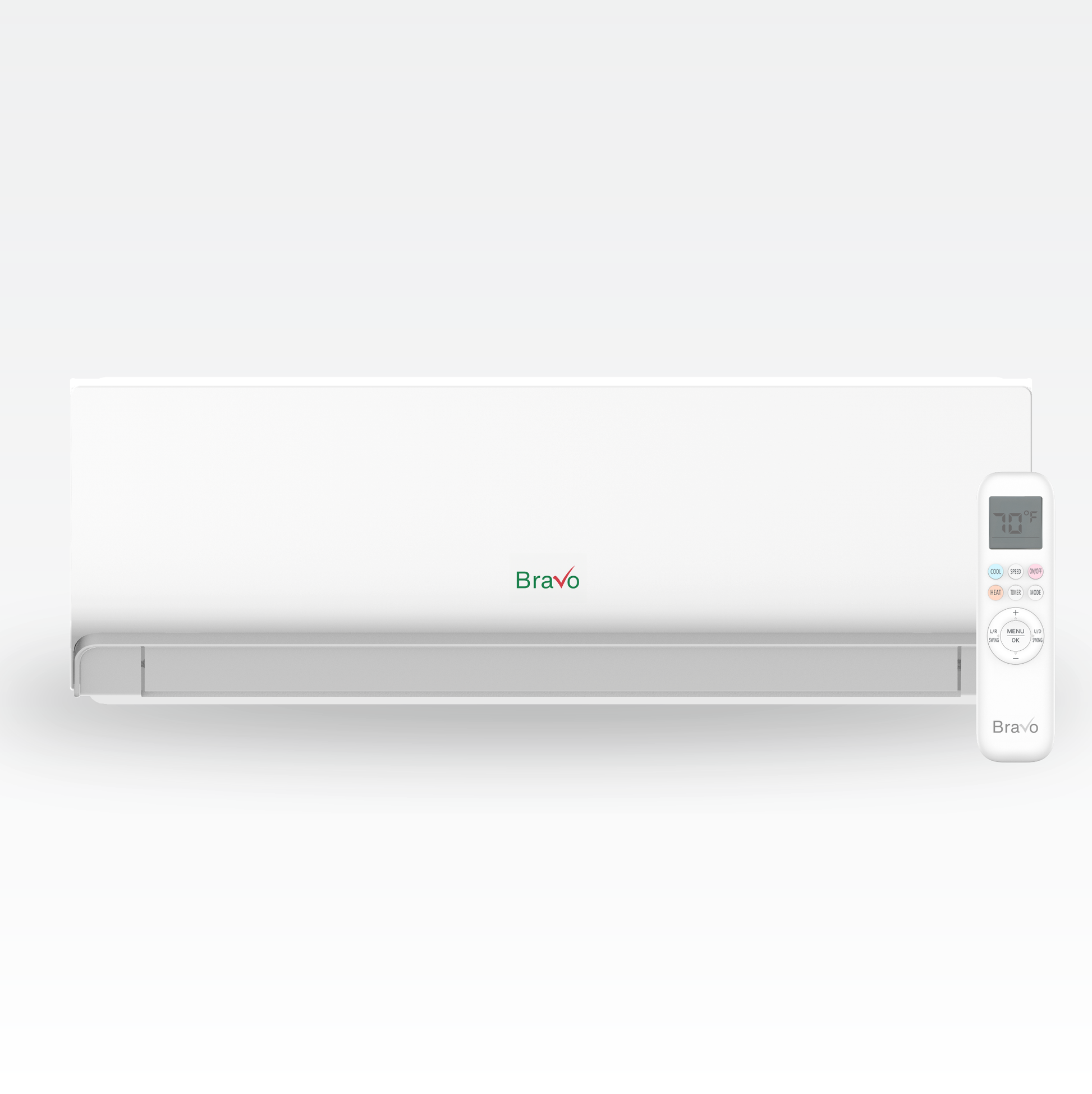

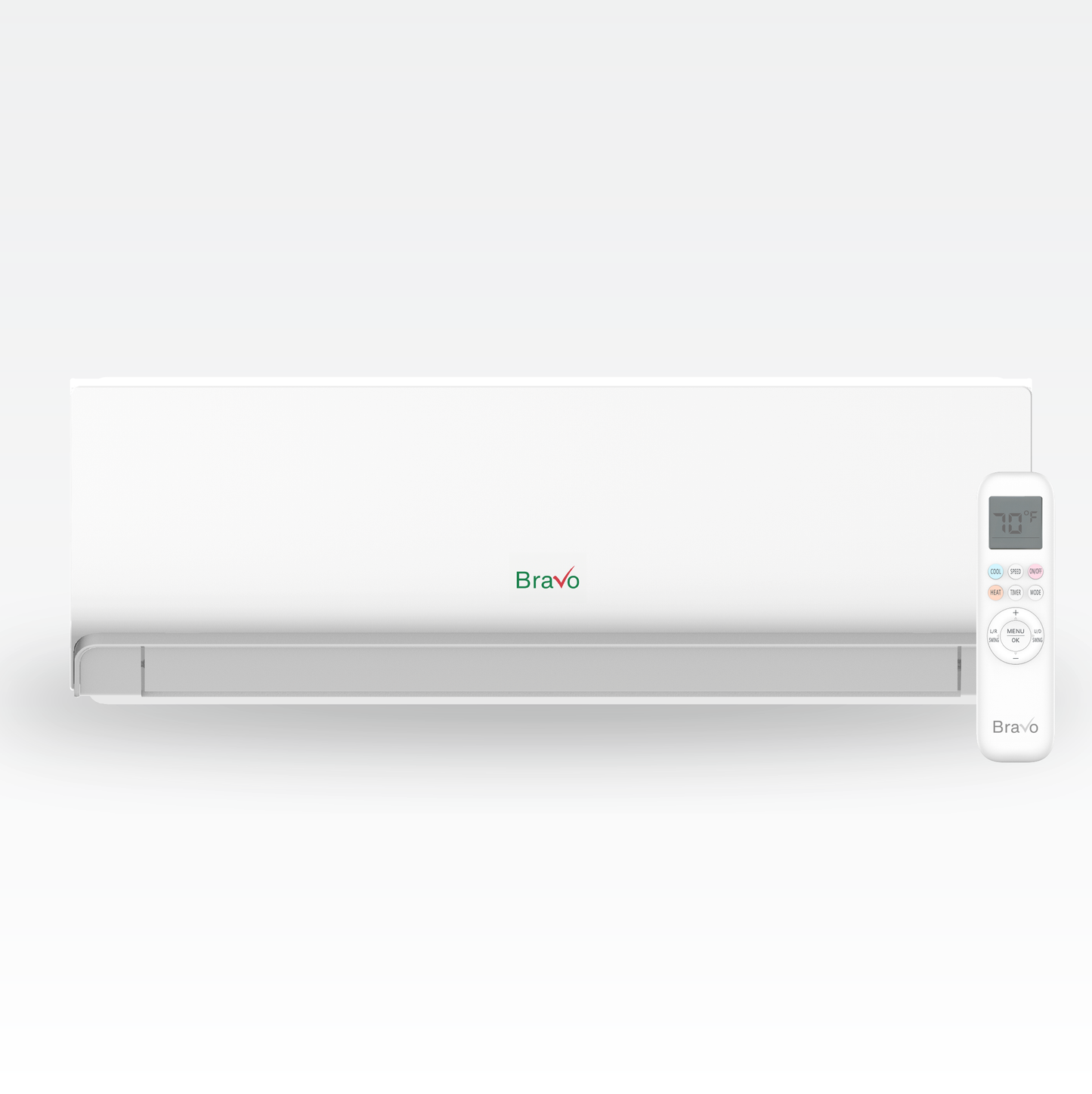

Indoor Unit Specifications — BRV-M07WM-230VI
| Voltage range (V) | 187-253 |
|---|---|
| Unit dimensions (WxDxH) | 31.02×11.50×7.80 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 34.65×14.57×11.42 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 17.60/22.00 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | / |
| Indoor noise level (Hi/Med/Lo) (dB) | 38/35/30 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | 2 pcs (11.34*11.02*0.169inch) |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 2/3" |
| Dehumidification (Pnt/H) | 1.48 |
| Controller | Remote controller |
| BTU Rated | 7,000 |
Indoor Unit Specifications — BRV-M18WM-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 38.82x12.40x8.86 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 42.13x15.16x12.28 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 26.45/32.26 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 45/40/35 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 618 |
| Filter dimensions (WxDxH) (inch) | 2 pcs (14.25*12.64*0.197inch) |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 3.38 |
| Controller | Remote controller |
| BTU Rated | 17,000 |
Manuals
- https://api.acbravo.com/storage/3717/Owners-Manual---Bravo-Milano-Wall-mount.pdf
- https://api.acbravo.com/storage/3720/Remote-Manual---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3721/SMART-App-Manual---Bravo-Milano.pdf
Documents
Technical specifications — Outdoor

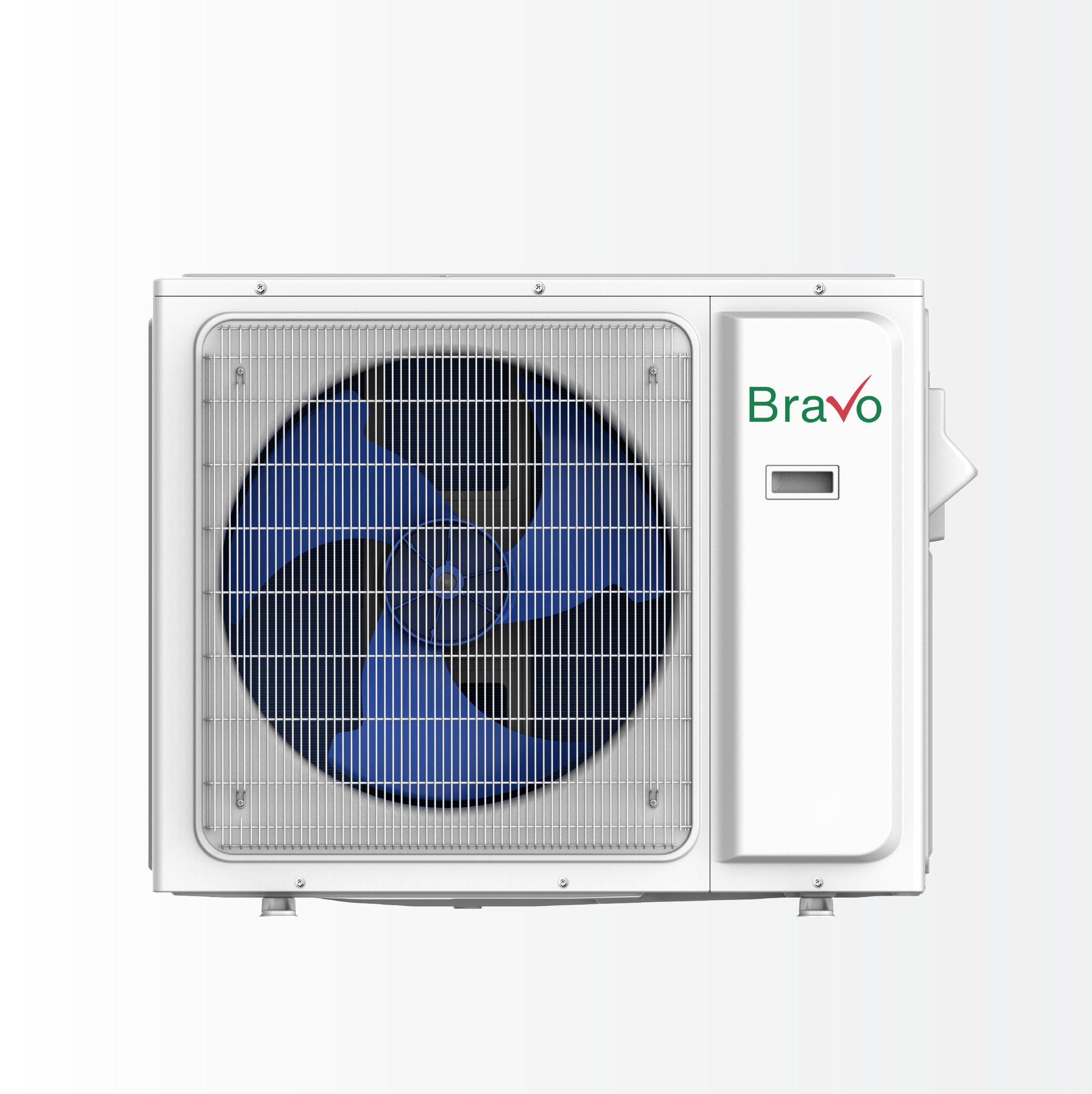

Outdoor Unit Specifications — BRV-M30-230VO
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 41.18×17.91×31.81 |
| System type | Multi-zone unit |
| SEER2 up to | 23/20/21.5 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 4x1/4"- 4x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 43.50×19.49×34.84 |
| Outdoor noise level (dB) | 58 |
| Outdoor air flow (CFM) | 2,353 |
| Net/Gross weight (lb) | 148.8/157.6 |
| Minimum circuit ampacity (A) | 26 |
| Max. fuse (A) | 40 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8.5/7/7.75 |
| HSPF2-4 | 10/9.5/9.75 |
| Heating capacity (Min/Max) (Btu/h) | 30,000 (6,300-36,000) |
| EER2 up to | 12.5/12/12.25 |
| Dehumidification (Pnt/H) | / |
| COP | 3.9/4/3.95 |
| Cooling capacity (Min/Max) (BTU/h) | 30,000 (6,000-38,200) |
| BTU Rated | 30,000 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Documents
Important
The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
Compact in size but big on performance, the 3 Bravo Milano Wall Mount Unit is a precise fit for targeted comfort in smaller spaces. Use it to upgrade a home office, guest bedroom, studio apartment, or a single room in a larger multi-zone setup.
Optimized for multi-zone systems, this high-wall unit uses R32 refrigerant for a more environmentally conscious solution without sacrificing efficiency. Control is flexible: use the included remote or manage settings from your phone or tablet with built-in Smart App connectivity.
Designed for everyday comfort, it includes Eco, Super, and Sleep modes, multiple fan speeds, auto-swing louvers, a 24-hour timer, and an anti-mildew function that helps keep the air feeling fresh. An intuitive LED display makes operation simple.
Whether you’re enhancing a cozy nook or supplementing a whole-home system, Bravo delivers performance and convenience in a modern, low-profile package. Bravo: More Than a Compliment — It’s Comfort with Purpose.
