Eight-way, 360-degree airflow
Conditioned air is delivered from all four sides and four corners of the cassette panel, helping cooling and heating reach the room more evenly instead of being concentrated in a single direction.
Bravo Pisa Series • Single-Zone Ceiling Cassette
Bravo Pisa 18,000 BTU Single-Zone Ceiling Cassette Heat Pump
High-efficiency heating and cooling with a discreet ceiling-recessed cassette, eight-way airflow, inverter performance, and R32 refrigerant.
18,000 BTUCooling class
22.0 SEER2High-efficiency performance
208–230VSingle-phase power
R32Refrigerant
Comfort without occupying the walls
Designed for balanced, room-wide comfort

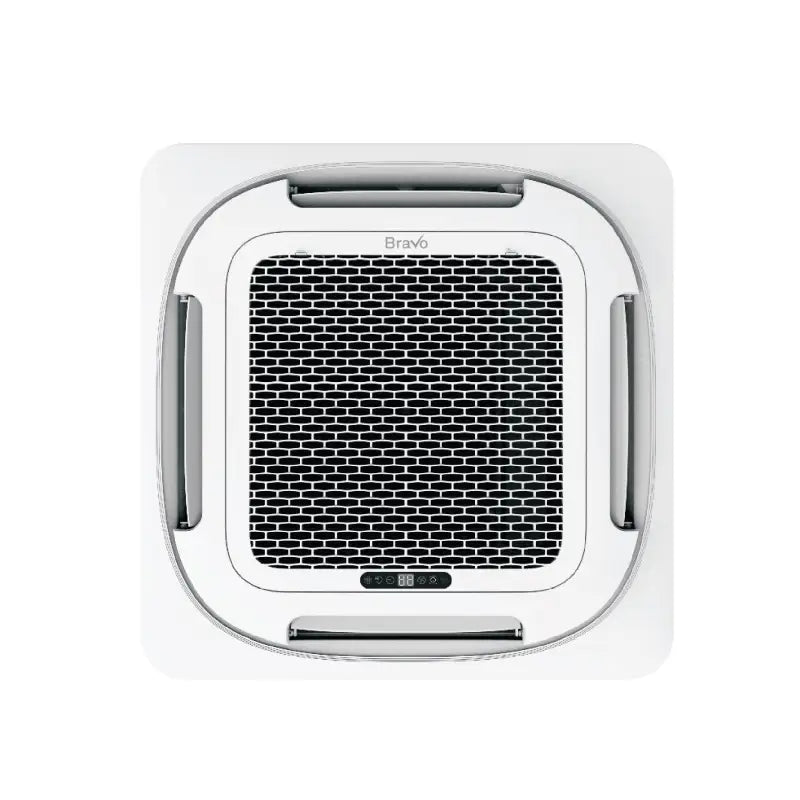

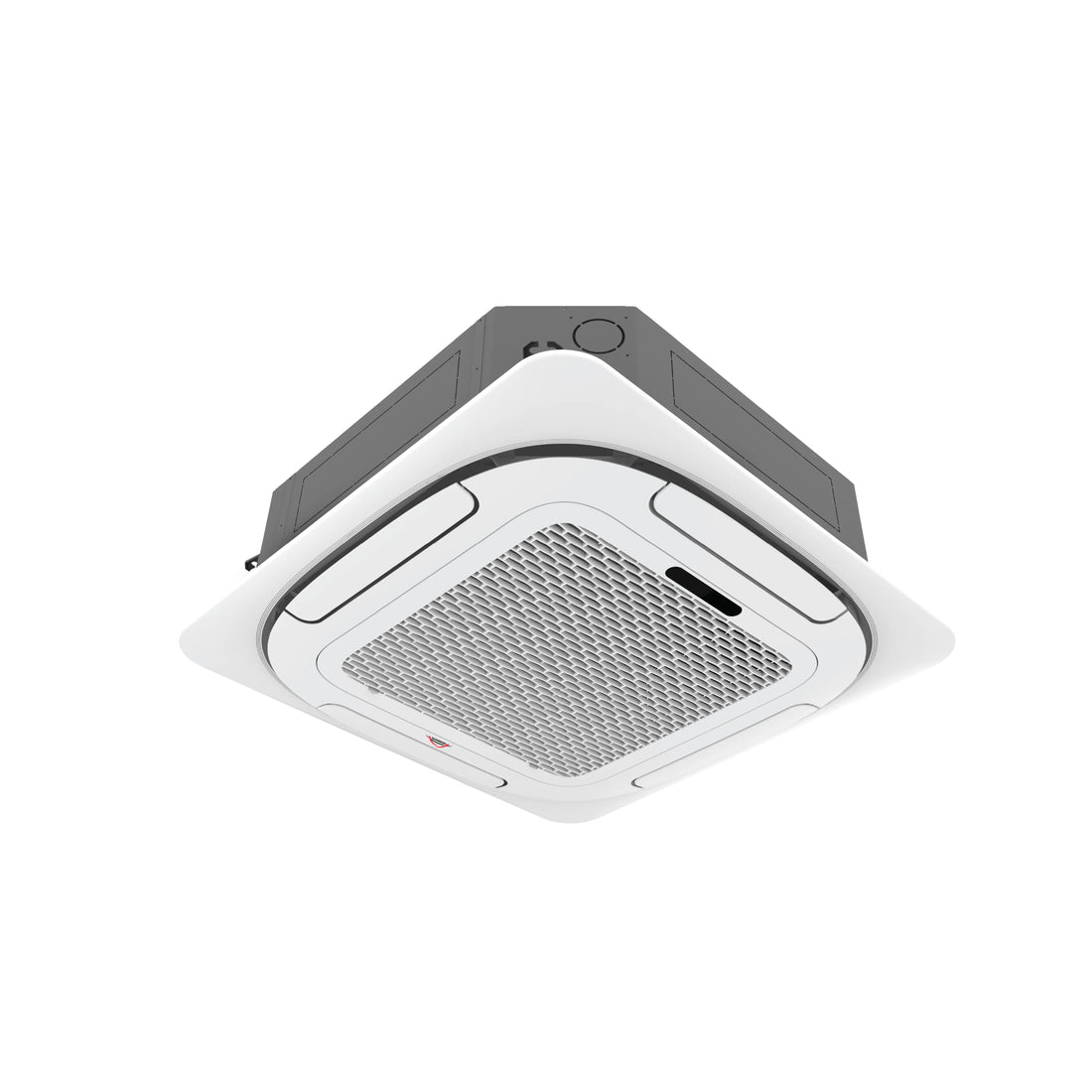

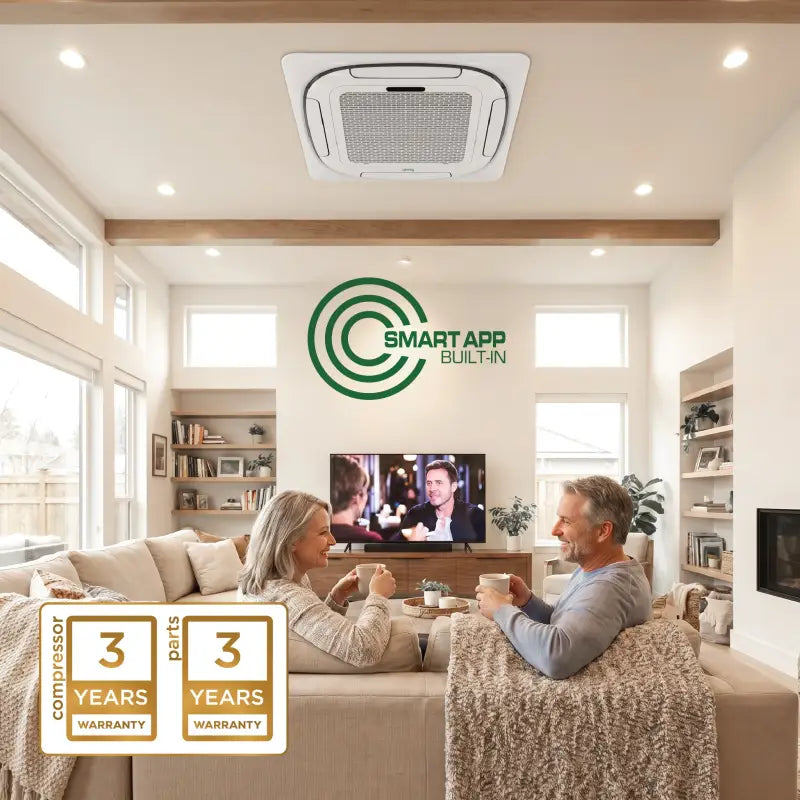

The Bravo Pisa Series pairs the BRV-P18CT-230VI ceiling cassette with the BRV-P18LS-230VO outdoor heat pump. The indoor unit recesses into the ceiling so only the finished panel remains visible, making it a strong fit for open rooms, offices, retail spaces, and applications where wall-mounted equipment is not preferred.
Variable-speed inverter operation automatically adjusts output as conditions change, helping the system maintain steadier temperatures while reducing unnecessary cycling.
Single-zone systemCooling & heatingEight-way airflowCeiling recessedRemote controllerMax. 65 ft line length
Purpose-built cassette performance
Comfort distributed from the center of the room
The Bravo Pisa combines the verified specifications of this Bravo system with the practical cassette features highlighted for the equivalent manufacturer platform.
Wide-angle air throw
The cassette’s broad louver operating range helps drape the room with cool air during summer operation and direct warm air into the occupied space during heating mode.
Built-in condensate pump
An integrated drain pump gives installers greater flexibility when routing condensate away from the ceiling cassette. Gravity drainage may also be used when the installation layout permits it.
Washable, easy-access filter
The reusable filter can be reached through the center grille, simplifying routine cleaning and helping the system continue capturing common airborne dust and debris.
Variable-speed inverter operation
The inverter-driven compressor adjusts output as room conditions change, reducing unnecessary on-and-off cycling while supporting steadier temperatures and efficient part-load performance.
Year-round operating range
The listed Bravo specifications support cooling from 5°F to 127°F outdoors and heating from -4°F to 75°F, providing dependable comfort across a broad range of seasonal conditions.
Matched system
Built around the correct Bravo Pisa pairing

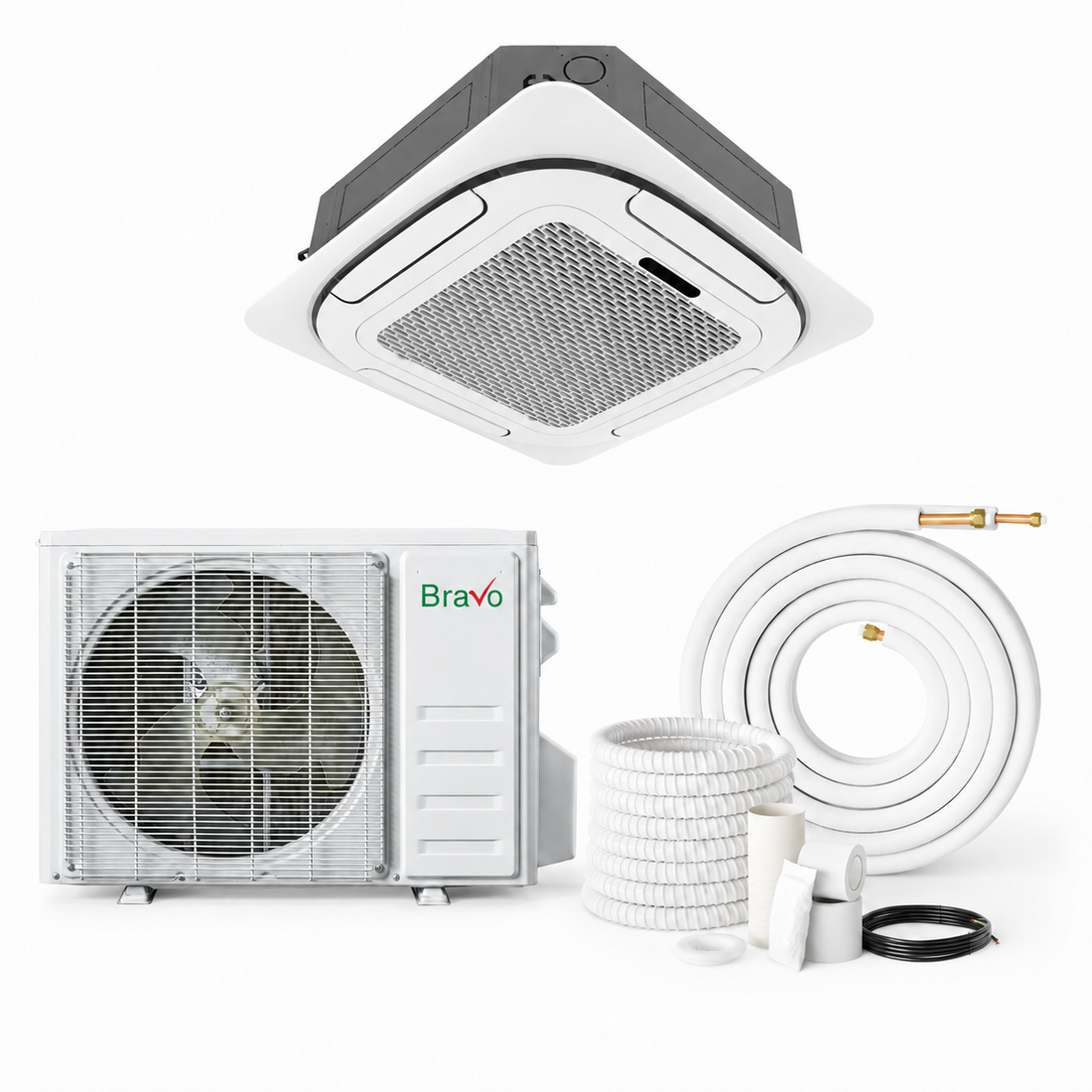

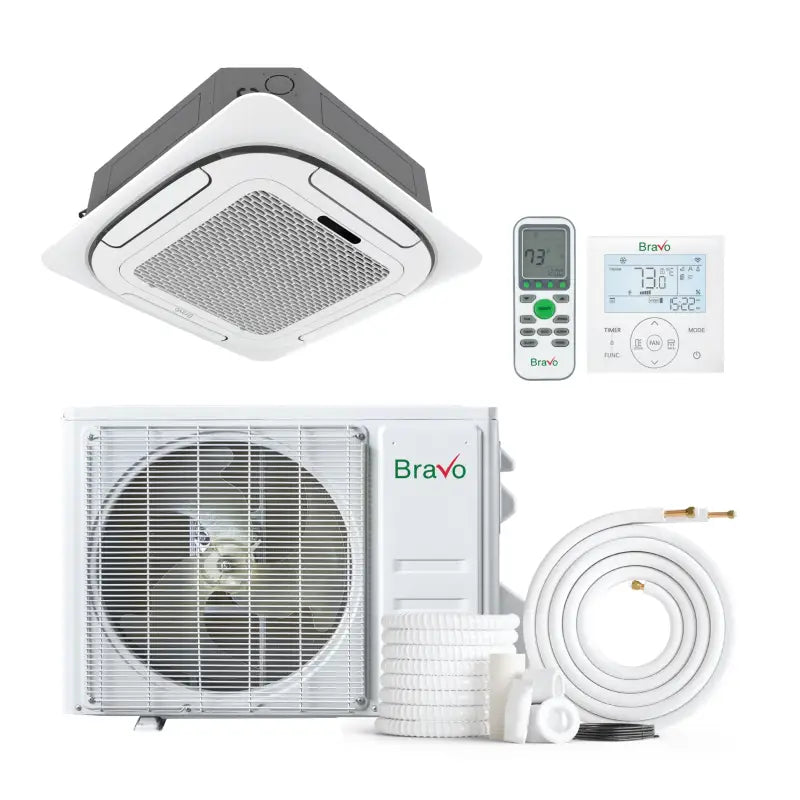

This listing is for the BRV-P18CT-230VI indoor ceiling cassette paired with the BRV-P18LS-230VO outdoor heat pump. It is an 18,000 BTU-class, 208–230V single-zone system using R32 refrigerant, rated up to 22.0 SEER2 and 9.5 EER2.
System typeSingle-zone heat pump
Indoor styleCeiling cassette
Efficiency22.0 SEER2 / 9.5 EER2
RefrigerantR32
What’s Included
Indoor unitBRV-P18CT-230VI
Outdoor unitBRV-P18LS-230VO
ControlRemote controller included
Installation kitIncluded 16FT
Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P18CT-230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Communication wiring | AWG 16x4 |
| Cooling capacity | 18,000 (6000~19400) BTU/h |
| Cooling input | 1365 W |
| Cooling rated current | 5.9 A |
| Heating capacity at 47°F | 4000~21400 BTU/h |
| Heating input at 47°F | 1640 W |
| Heating rated current at 47°F | 7.1 A |
| EER2 | 9.5 |
| SEER2 | 22.0 |
| COP | 2.9 W/W |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7.4 |
| Indoor fan motor qty | 1 |
| Indoor fan motor output | 30 W |
| Indoor fan motor RLA | 0.13 A |
| Indoor airflow | 441/394/335/282/253 CFM |
| Indoor noise level | 48/46/42/39/37 dB |
| Dehumidification | 4.64 Pints/h |
| Drain connection | 0.63 |
| Refrigerant piping | 1/4 in. liquid, 3/8 in. gas |
| Controller | Remote Controller |
| Room temperature range, cooling | 62~89°F |
| Room temperature range, heating | 32~86°F |
| Filter dimensions | 31-3/4"x7-1/4"x1/8" |
| Panel dimensions | 25 -5/8"×25 -5/8"×1 -1/8" |
| Unit dimensions (W x D x H) | 22 -1/2"×22 -1/2"×10 -1/4" |
| Packed dimensions (W x D x H) | 28 -1/4"×25 -7/8"×11 -7/8" |
| Net / gross weight | 31.9 lbs |
| Design pressure | 609/174 PSIG |
Outdoor Specs
| Spec | Details |
|---|---|

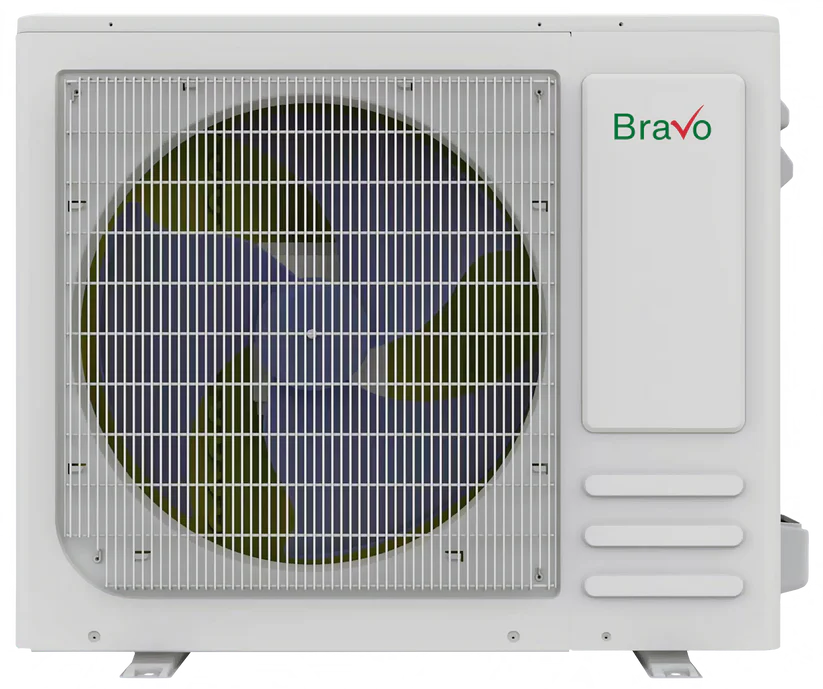

| Model | BRV-P18LS-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Minimum circuit ampacity | 12 A |
| Maximum fuse | 20 A |
| Compressor model | C-4RZ120H3AAF |
| Compressor type | Rotary |
| Compressor brand | SANYO |
| Compressor capacity | 15798 BTU/h |
| Compressor input | 850 W |
| Compressor rated current (RLA) | 3 A |
| Refrigerant oil / charge | 11.83 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor output | 33 W |
| Outdoor fan motor RLA | 0.15 A |
| Outdoor fan speed | 1000 r/min |
| Outdoor airflow | 882 CFM |
| Outdoor noise level | 55 dB |
| Throttle type | Capillary |
| Refrigerant type | R32 |
| Refrigerant amount | 37.74/2.35 |
| Factory precharge | 25 ft |
| Additional charge for 1/4 in. liquid pipe | 0.11 oz |
| Refrigerant piping | 1/4 in. liquid, 3/8 in. gas |
| Maximum level difference | 49 ft |
| Maximum pipe length | 65 ft |
| Ambient range, cooling | 5~127°F |
| Ambient range, heating | -4~75°F |
| Unit dimensions (W x D x H) | 33 -1/2"×13 -3/4"×23 -3/4" |
| Packed dimensions (W x D x H) | 35"×15 -1/8"×24 -3/4" |
| Net / gross weight | 66.8 lbs |
Documents & Downloads
Owner's Manual
Bravo Ceiling Cassette Manual
Controller Manual
Bravo Wired Remote Controller
Smart Controls
Smart Sync Manual
Important
Professional installation is recommended. Verify electrical requirements, line set sizing, refrigerant charge, drainage, clearances, and local code requirements before installation. Installation kits are not included unless selected through the product variant options.
FAQs
What refrigerant does this Bravo Pisa system use?
This system uses R32 refrigerant.
What voltage does this system require?
208-230V, 1Ph, 60Hz.
Is this a single-zone system?
Yes, this pairing is a single-zone system with one indoor unit and one outdoor unit.
What type of indoor unit is included?
This listing includes a ceiling cassette indoor unit, model BRV-P18CT-230VI.
What controls are included?
This system includes a Remote Controller.
What is the maximum line set length?
Maximum pipe length is 65 ft, with a maximum level difference of 49 ft.
Is an installation kit included?
Installation kits are included 16FT
