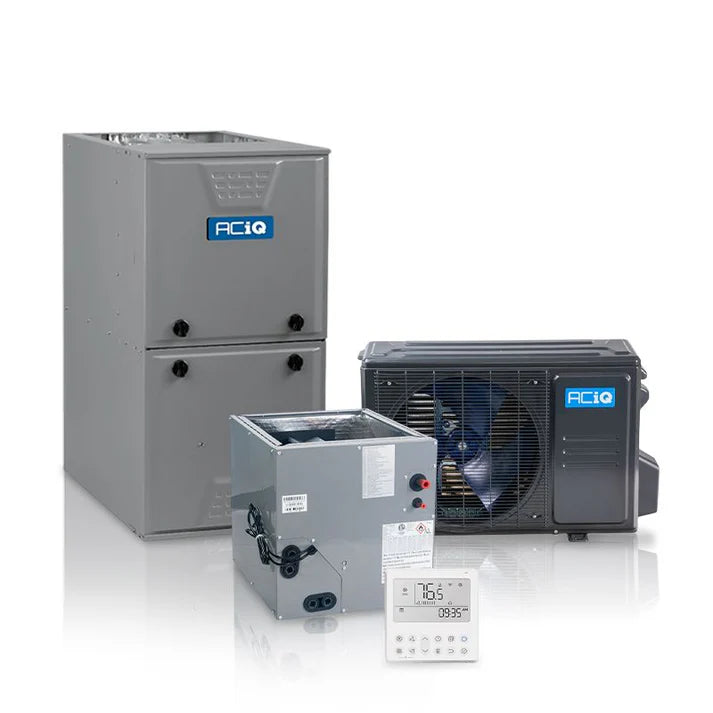

ACiQ Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ Furnace and High Efficiency Heat Pump System | Inverter - R454B - Multi-Positional
$4,821.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 24K room setups:
- Large living rooms
- Open areas
- Workshops
- Basements
- 24,000 BTU
- Cooling
- 24,000 BTU
- Heating
- See specs
- Quiet Inside
- See specs
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS
ACiQ Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ Furnace and High Efficiency Heat Pump System | Inverter - R454B - Multi-Positional
Summary
This ACiQ hybrid system combines a high-efficiency inverter heat pump condenser, a multi-positional evaporator coil, and a 96% AFUE two stage gas furnace for dependable year-round comfort. Designed for ducted applications, this system offers variable speed performance, adaptive operation, and flexible installation in upflow, downflow, or horizontal configurations. With R454B refrigerant, inverter-driven efficiency, and a variable speed blower motor, this package is built to deliver quiet operation, improved comfort, and strong heating and cooling performance across a wide range of outdoor conditions.
Included in Your Order:
ACiQ Hybrid Heat Pump + Coil + Furnace System
Outdoor Unit: 2 Ton High Efficiency Inverter Heat Pump Condenser (1pc) – Model: ACIQ-24-EHPD
Indoor Coil: 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil (1pc) – Model: ACIQ-24-ACL-B
Furnace: 96% AFUE 60,000 BTU Two Stage Gas Furnace (1pc) – Model: G96VTN0601716
Installation and Service Documentation
Manufacturer Warranty Information
Key Features:
- Inverter-driven 2 ton heat pump condenser
- Variable output operation based on demand
- Cooling capacity range of 12,000–24,000 BTU
- Heating capacity range of 12,000–26,000 BTU
- R454B refrigerant
- Reliable heating from -13°F to 75°F outdoor temperatures
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Variable speed blower motor with two stage furnace burner
- Multi-positional furnace and coil design
- Factory-installed TXV kit on coil for energy optimization
- Gold fin condenser coil coating for added durability
- Quiet operation and advanced learning / adaptive system performance
- Field-convertible furnace to propane with optional LP kit
- On-board furnace self-diagnostics
Important
All HVAC equipment must be installed by a trained and qualified technician. Proper installation is required for safe operation and to maintain manufacturer warranty coverage. Online registration may be required to receive the full manufacturer warranty.
Gas Furnace Safety Notice: This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
Safety Information: PROPOSITION 65 WARNING
System Components
| Component | Model / SKU |
|---|---|
| 2 Ton 18.1 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter | ACIQ-24-EHPD |
| 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil - R454B | ACIQ-24-ACL-B |
| 96% AFUE 60,000 BTU Two Stage Gas Furnace - 17.5" Width - Multi-Positional | G96VTN0601716 |
Warranty
- Condenser: 12 Years Compressor and 7 Years Parts with Online Registration
- Coil: 10 Years Parts Warranty with Online Registration
- Furnace: 5 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration
Technical Information
Outdoor Unit: ACIQ-24-EHPD
| Specification | Details |
|---|---|
| SKU | ACIQ-24-EHPD |
| Manufacturer | ACiQ |
| Replaces | ACiQ-24-EHPB |
| Product Features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 26,000 BTU |
| HSPF2 | 9.7 |
| SEER2 | 18.1 |
| Maximum CFM | 1765.7 |
| Decibel Level | 60 dBA |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V, 1 Phase, 60 Hz |
| Electric Phase | Single Phase |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 19 Amps |
| Tonnage | 2 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Ambient Temperature Range | -13°F - 122°F |
| Refrigerant Charge | 74.08 oz. |
| Height | 26.50" |
| Width | 35.04" |
| Depth | 13.46" |
| Weight | 109.13 lbs |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
Indoor Coil: ACIQ-24-ACL-B
| Specification | Details |
|---|---|
| SKU | ACIQ-24-ACL-B |
| Brand / Manufacturer | ACiQ |
| Configuration | Multi-Positional |
| Style | A-Coil |
| Tonnage | 2 Ton |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Certification | UL Listed |
| Height | 18" |
| Width | 17 1/2" |
| Depth | 21" |
| Weight | 50 lbs |
| Warranty | 10 Years Parts Warranty with Online Registration |
Furnace: G96VTN0601716
| Specification | Details |
|---|---|
| SKU | G96VTN0601716 |
| AHRI Certificate Number | 213148548 |
| Exhaust Flue Requirement | Plastic / PVC |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 60,000 |
| Blower Motor | Variable Speed |
| Maximum CFM | 1475 |
| Configuration | Upflow/Downflow/Horizontal |
| Energy Star | Yes |
| Electrical | 120 V, 1 Phase, 60 Hz |
| Burner Stages | Two |
| Fuel Type | Propane, Natural Gas |
| Height | 35" |
| Width | 17 1/2" |
| Depth | 29 1/2" |
| Weight | 139 lbs |
| Warranty | 5 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
Certifications
- UL Listed evaporator coil
- Energy Star furnace
- AHRI certified matched system documentation available
Manuals & Downloads
- Condenser Installation Manual
- Condenser Service Manual
- ACiQ ACL-B Coil Installation Manual
- ACiQ ACL-B Coil Service Manual
- AirQuest Condensing Gas Furnace Manual
- G96VTN / F96VTN Install Manual
- ACiQ G96VTN Spec Sheet
- Quick Start Guide
- 2 Ton EHPD / AHD AHRI Certificate
- 2 Ton EHPD / AHD Submittal
- 2 Ton EHPD / AHD Extended Performance Tables
- EHPD / HPD / AHD / PAH Nominal Capacity Performance Chart
- ACiQ 24 Volt Wiring Notice
- Submittal with ACiQ-18-EHPD
- Submittal with ACiQ-18-HPD
- Submittal with ACiQ-24-EHPD
- Submittal with ACiQ-24-HPD
- Extended Performance Table with ACiQ-18-HPD
- AHRI Certificate with ACiQ-18-EHPD
- AHRI Certificate with ACiQ-18-HPD
- AHRI Certificate with ACiQ-24-EHPD
- AHRI Certificate with ACiQ-24-HPD
- AirQuest Furnace Warranty
- Warranty
