ACIQ 9,000 BTU ACIQ Essentials Mobile Home 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16" Line Set - R454B | 230V
$759.99
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACiQ
ACIQ 9,000 BTU ACIQ Essentials Mobile Home 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 16" Line Set - R454B | 230V
Product Overview
OVERVIEW
ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining comfort in your home, including manufactured homes. The ACIQ-K09W-BL-HP230B-MH single zone air handler is ideal for smaller mobile home spaces, using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.
- The ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B-MH Mobile Home System is the perfect solution for heating and cooling a single room or area in your mobile home. With its sleek design and efficient capabilities, this system is sure to keep you comfortable all year round.
- This system features WiFi connectivity, allowing you to control the temperature and settings from anywhere using your smartphone or tablet. The 20 SEER2 rating ensures energy efficiency, helping you save on your mobile home utility bills while staying comfortable.
- The ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B-MH Mobile Home System is designed for quiet operation, ensuring a peaceful environment in your mobile home without distractions. Please note: This is not a DIY system and requires professional installation by a registered HVAC Technician to ensure proper function and warranty validity.

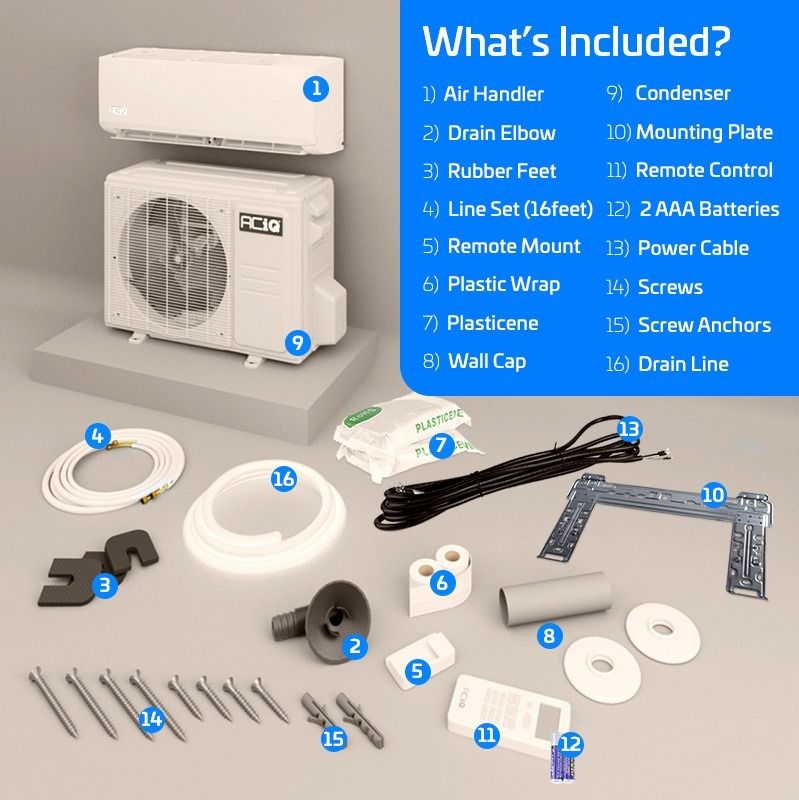

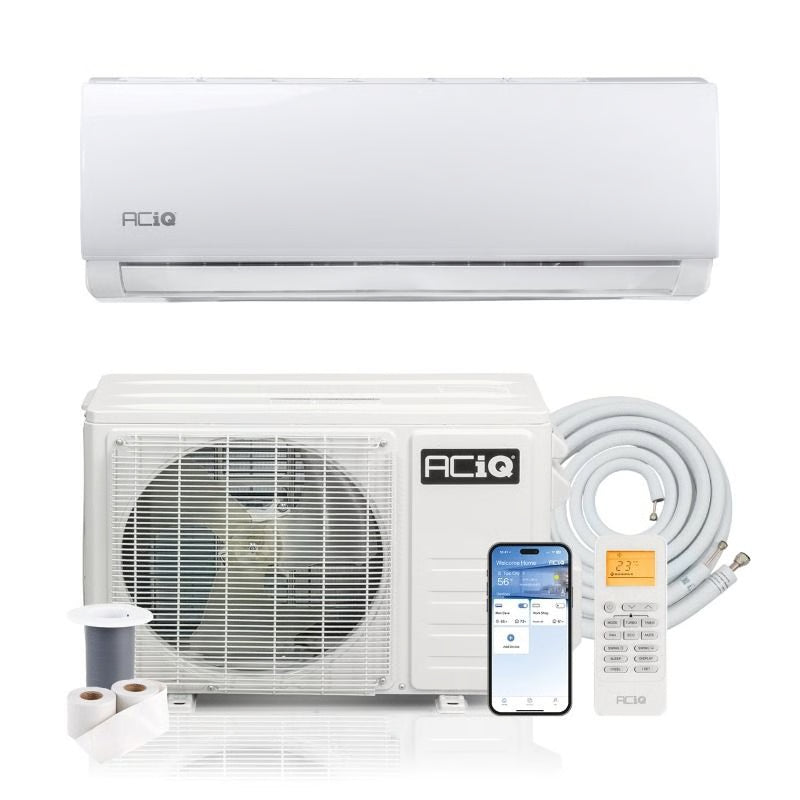

What is included in this bundle:

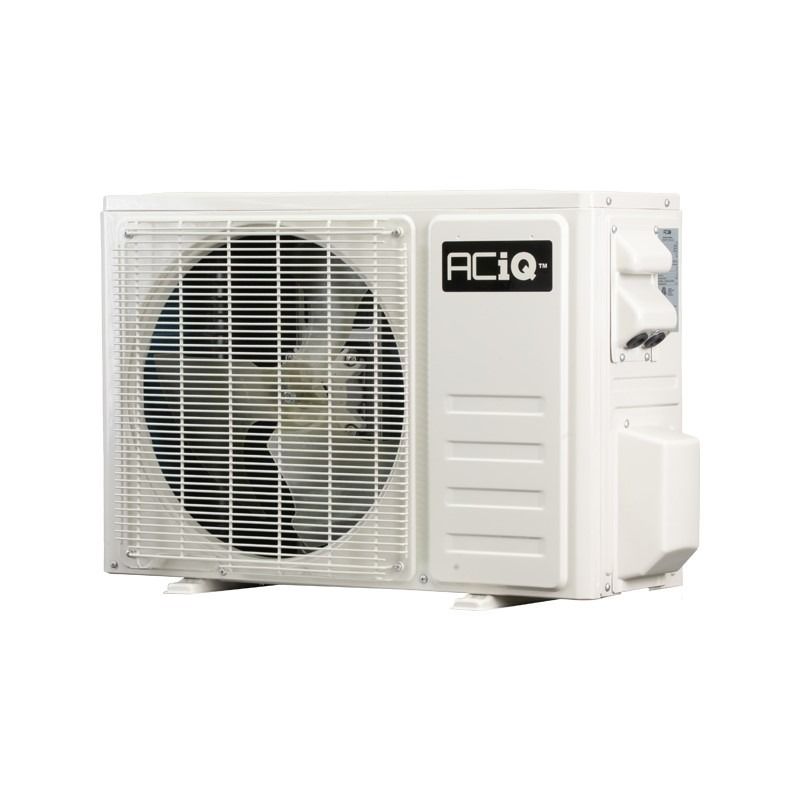

- 1 ACIQ Essentials Condenser
- 1 ACIQ Essentials Air Handler in White (ACIQ-K09W-BL-HP230B-MH)
- 1 ACIQ Essentials Remote Control
- Rubber Feet
- Plasticene
- Mounting Plate
- Plastic Wrap
- Screws (Short)
- Drain Elbow
- Drain Lines
- 2 AAA Batteries
- 16 foot Line Set (Not Precharged - Professional Installation Required for Refrigerant Handling)
- Wall Cap
- Anchors
- Power Cords
- Screws (Long)
Upgrade your mobile home's comfort with the ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B-MH Mobile Home System and enjoy reliable, efficient heating and cooling all year long.
The ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B-MH air handler is designed with a soft LED display on the front of the unit, giving you information at a glance about your mobile home's climate. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your mobile home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant, offering modern convenience for mobile living.
Please note that in order to function, this air handler must be installed with a condenser and other professional installation equipment, available at an additional cost if not already included in this product bundle, as this is a system designed for expert installation in mobile homes.

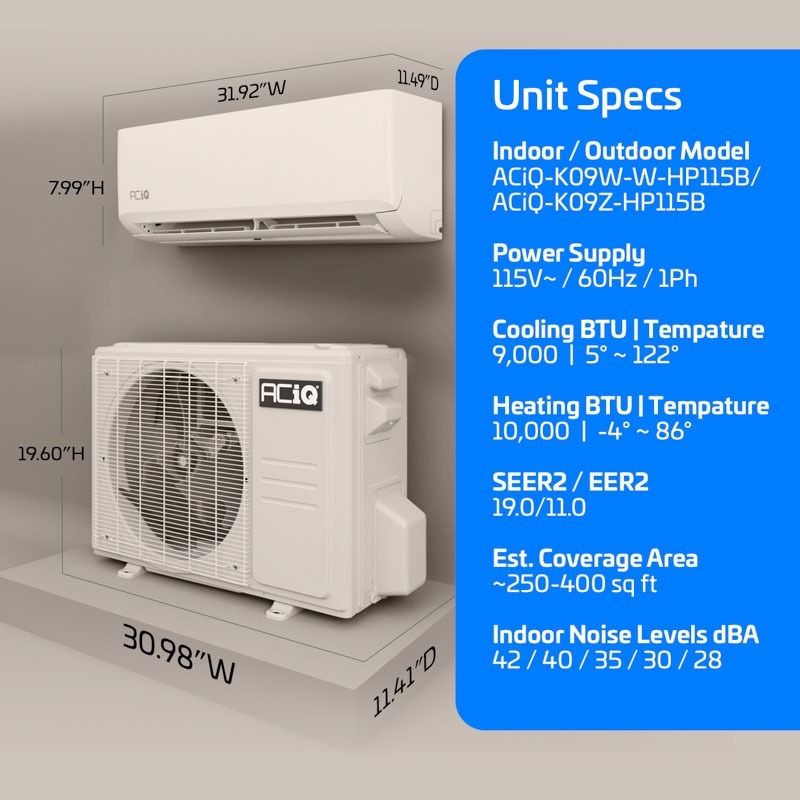

Technical Specifications — ACIQ-K09Z-HP230B
| sku | ACIQ-K09Z-HP230B |
|---|---|
| refrigerant charge | 23.28 oz. |
| weight | 58.400000 |
| manufacturer | ACiQ |
| product features | New Refrigerant Compliant |
| hspf2 | Region IV / Region V: 10.0 / 8.5 |
| cooling btu | 9000 BTU |
| heating btu | 10000 BTU |
| decibel level (dba) | 54 (Max) |
| energy star | Yes |
| refrigerant | R454B |
| seer bundle | 20 |
| seer2 | 20 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Ph, 60Hz |
| electric phase filter | Single Phase |
| max breaker size | MOP: 15A |
| min. breaker size | MCA: 10A |
| tonnage | 0.75 Ton |
| btu/tonnage | 9,000 BTU/0.75 Ton |

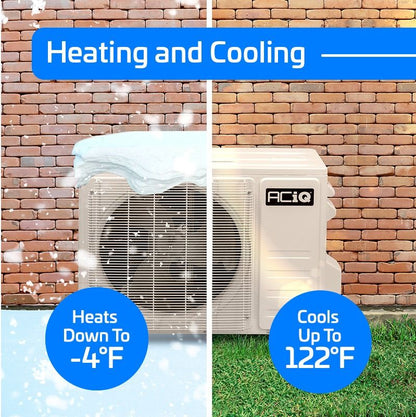

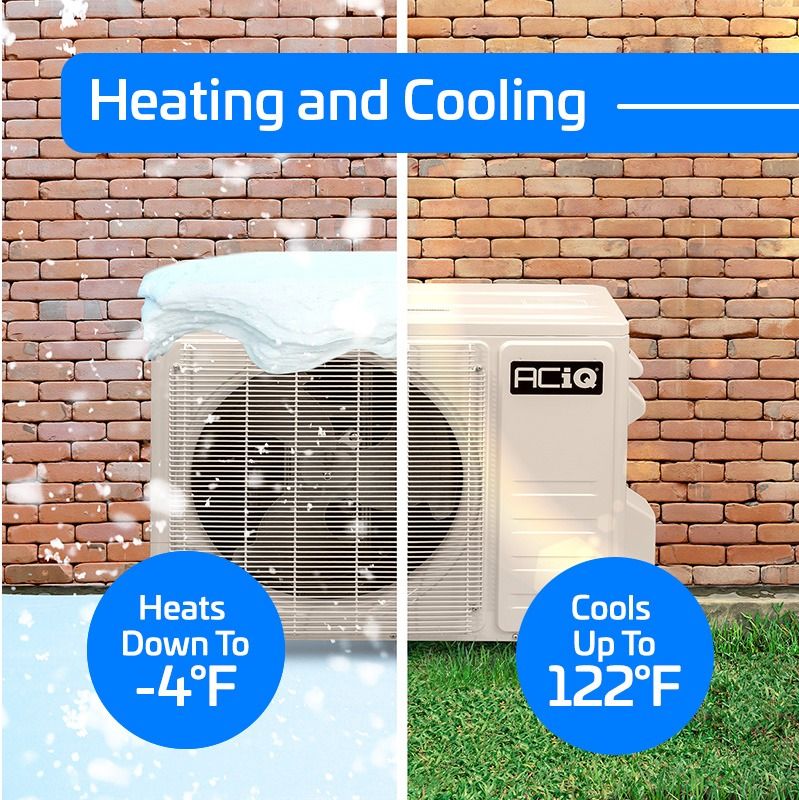

| min/max outdoor temp for heating | -4°F ~ 86°F |
| min/max outdoor temp for cooling | 5°F ~ 122°F |
| zone compatibility | Single Zone |
| height | 19.61" |
| width | 30.98" |
| depth | 11.42" |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
