Product Overview

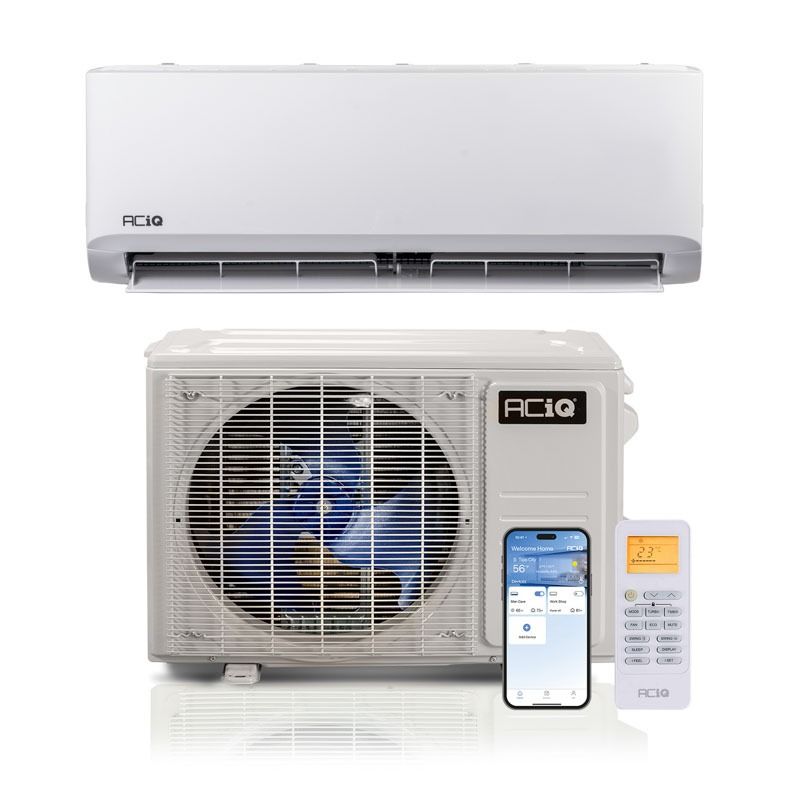

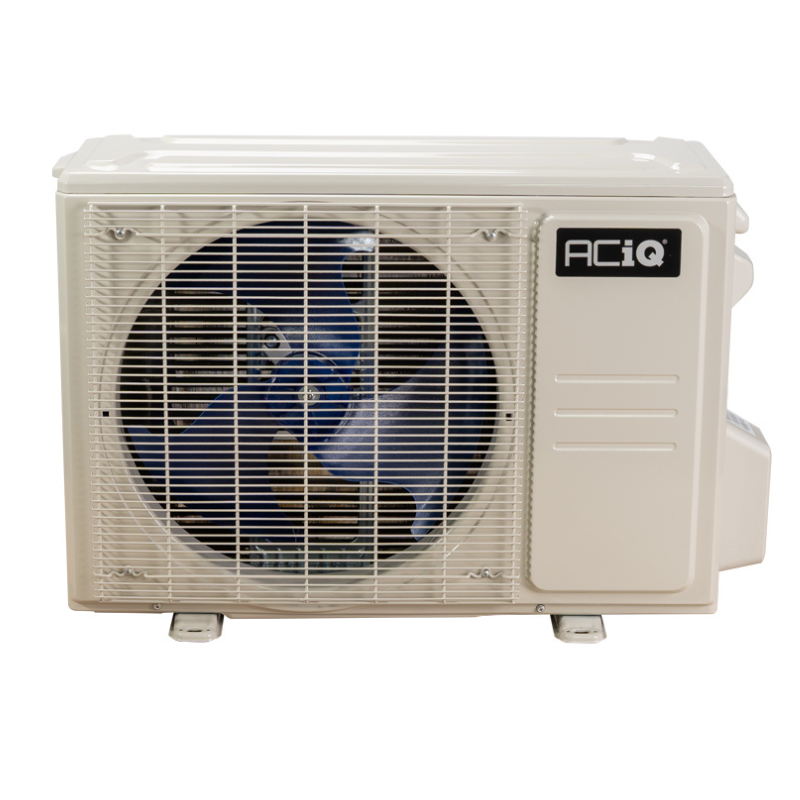

9,000 BTU ACIQ Single Zone Mini Split Heat Pump Condenser - R454B | 230V
OVERVIEW
The ACIQ Single Zone series ACIQ-09Z-HP230C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-09Z-HP230C uses as little power as possible without sacrificing comfort. That's why we say that ACIQ brings intelligence to your heating and cooling needs. NEW REFRIGERANT: R454B Model.
QUICK FACTS
- Intelligent comfort at an affordable cost
- Ideal for up to a small room (depending on climate)
- 9,000 BTU, 21.2 SEER2 wall mounted mini split
- Efficient cooling from -4 F to 122 F outdoor temperatures
- Efficient heating from -4 F to 57 F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads for a truly ACIQ experience
9,000 BTU, 21.2 SEER2
At a rated capacity of 9,000 BTU, the output of the ACIQ-09Z-HP230C when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-9Z-HP230C has an efficiency of 21.2 SEER2. With this system efficiency, the unit can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.
Warranty
The warranty on the ACIQ-09Z-HP230C is a 5 year parts and 7 year limited compressor warranty. With online registration and an installation following your state and local installation codes, the limited compressor warranty will increase to 12 years.
Durability and Reliability
ACIQ condenser coils are covered in a durable Gold Fin protective coating, providing enhanced resistance to corrosion even in harsh climates. Extended performance is a given with the ACIQ-09Z-HP230C with continued operation at outdoor temperatures down to -4°F.
Installation and Maintenance
ACIQ single zone condensers are pre-charged for up to 25' of line set. To provide low-maintenance operation, the ACIQ-09Z-HP230C is equipped with a self-cleaning function, allowing it to use airflow to clean the air handler's heat exchanger and other components when enabled. Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually in addition.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
9,000 BTU ACIQ Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
Enhanced Comfort
ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACIQ-09W-HP230C single zone air handler is built for smaller spaces, using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change throughout the day and night.
- Ideal for covering a small room in optimal conditions
- 9,000 BTU wall-mounted air handler with remote
- Intelligent comfort at an affordable cost
Intelligent Heating and Cooling
The ACIQ-09W-HP230C air handler features a soft LED display on the front of the unit, giving you clear information at a glance. The display shows the room temperature by default, but can also indicate setpoint adjustments and mode changes. To help ensure reliable operation over its lifetime, the display will also provide error codes from its self-diagnosing control board. The display can be turned off if preferred, and the included smart remote has a built-in LCD display to show these notifications as well.
WiFi Options
This unit does not have built-in WiFi compatibility, but it can be paired with the Cielo Breeze WiFi thermostat (available under Accessories). The Cielo Breeze is a universal third-party product that makes your system compatible with the free Cielo Home app, as well as popular smart home platforms like Google Home and Amazon Alexa. Upgrading to the Breeze gives you internet-based control of the unit from anywhere in the world.
Please note: This air handler requires installation with a compatible condenser and additional installation equipment, available separately if not already included in your product bundle. A separate Cielo Breeze thermostat will be required for each air handler you wish to control wirelessly.
Technical Specifications — ACIQ-09Z-HP230C
| sku | ACIQ-09Z-HP230C |
|---|---|
| refrigerant charge | 21.52 oz. |
| weight | 59.740000 |
| ahri certificate number | 216032327 |
| manufacturer | ACiQ |
| hspf2 | 9.1 |
| cooling btu | 9,000 BTU |
| heating btu | 10,000 BTU |
| maximum cfm | 1294.1 CFM |
| decibel level (dba) | 53.5 dBA |
| electric heat | Heat Pump |
| refrigerant | R454B |
| seer2 | 21.2 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 15 Amps |
| min. breaker size | 12.0 Amps |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| mini split type | Wall Mounted |
| height | 21.85" |
| width | 30.12" |
| depth | 11.93" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-09W-HP230C
| sku | ACIQ-09W-HP230C |
|---|---|
| refrigerant charge | 21.52 oz. |
| weight | 16.980000 |
| ahri certificate number | 216032327 |
| manufacturer | ACiQ |
| hspf2 | 9.1 |
| cooling btu | 9,000 BTU |
| heating btu | 10,000 BTU |
| maximum cfm | 105.9 |
| decibel level (dba) | 18.5 dBA |
| electric heat | Heat Pump |
| refrigerant | R454B |
| seer2 | 21.2 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| tonnage | 0.75 Ton |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone |
| height | 11.42" |
| width | 28.43" |
| depth | 7.36" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
