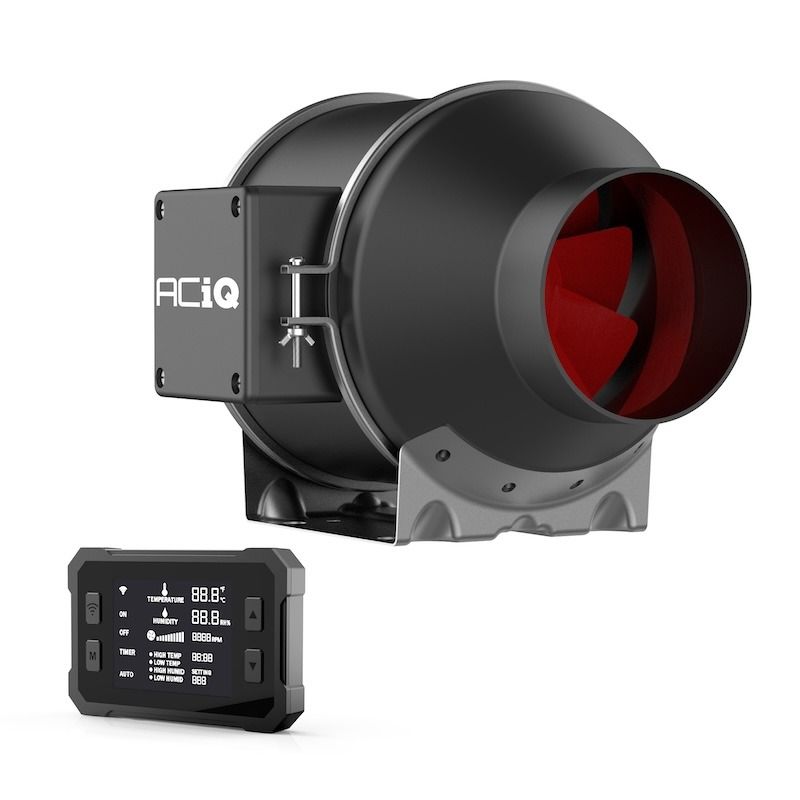

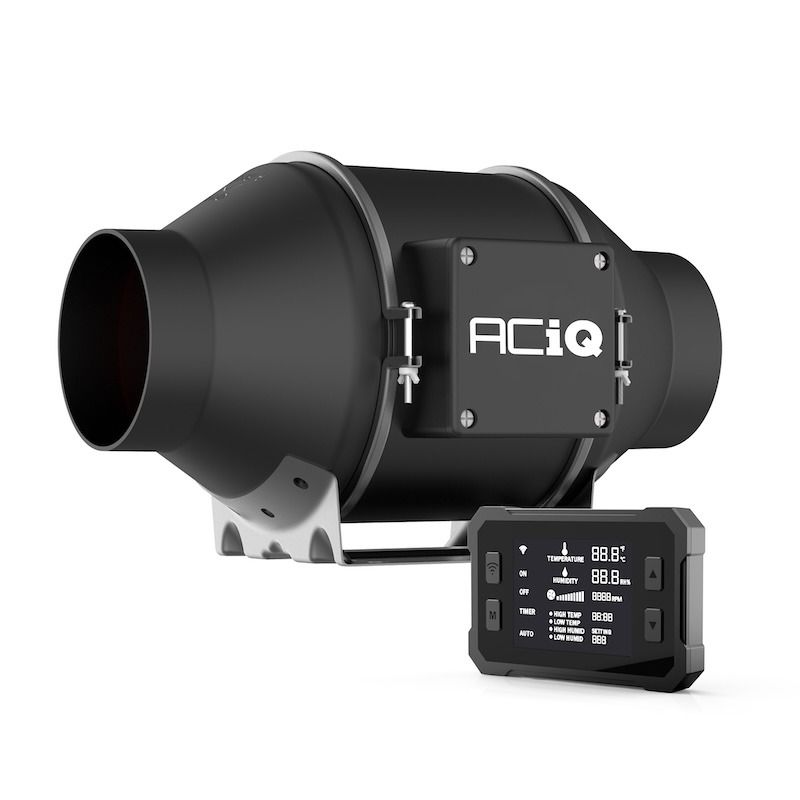

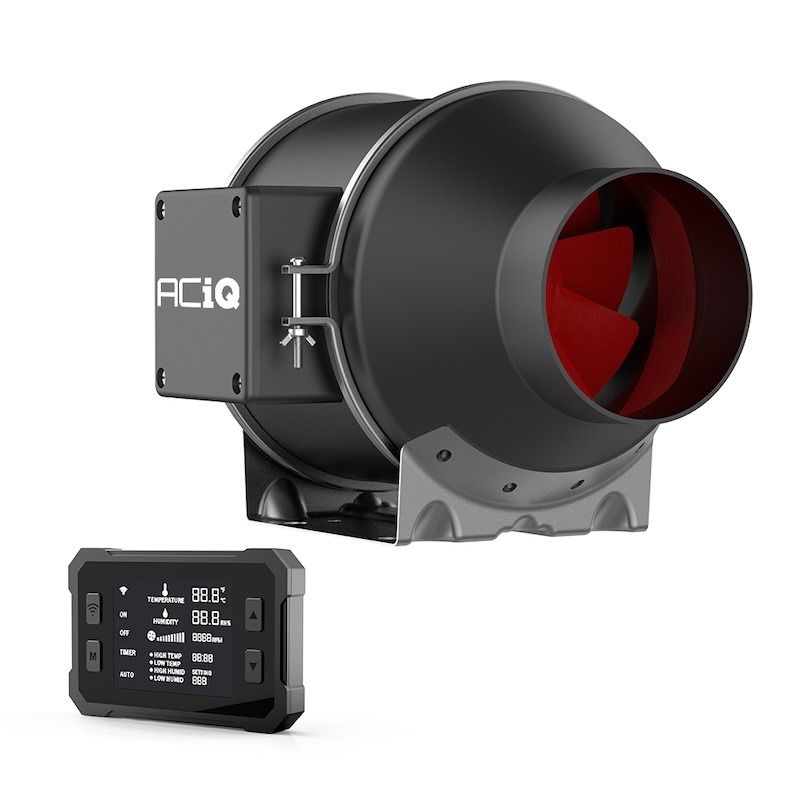

ACiQ 6 Inch Mixed Flow Inline Duct Fan with Temp & Humidity Control - Black
$202.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- See specs
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACiQ 6 Inch Mixed Flow Inline Duct Fan with Temp & Humidity Control - Black
Product Overview
OVERVIEW
The ACiQ AIMF Series Inline Duct Fans are mixed-flow ventilation fans designed to support air circulation, exhaust, and airflow balancing in ducted HVAC systems. Suitable for residential and light commercial environments. The AIMF series provides reliable performance for applications requiring continuous indoor ventilation.
Each AIMF model features a mixed-flow impeller design combined with an electronically commutated (EC) motor, delivering stable airflow while maintaining low noise and reduced vibration. This design allows the fan to operate efficiently in ducted systems with varying airflow resistance. The AIMF series is intended for inline installation with standard round ductwork and can be mounted in multiple orientations to accommodate different system layouts. These fans are commonly used to assist fresh air supply, improve exhaust performance, or enhance airflow distribution within ventilation systems.
Designed for continuous duty operation. ACiQ AIMF inline duct fans provide dependable airflow support for everyday indoor use when installed according to manufacturer guidelines.
This product includes temperature and humidity control that allows users to set adjustable temperature and relative humidity setpoints. The fan automatically responds to changing conditions to help maintain desired indoor comfort levels without manual operation.
Key Features
- Mixed-flow inline fan design for stable air movement
- Electronically commutated motor for efficient and quiet operation
- Low vibration and reduced operating noise
- Suitable for continuous indoor operation
- Compatible with standard round duct systems
Warranty Information
ACiQ (Manufacturer) warrants, from the date of purchase, to the original purchaser only, that the ACiQ AIMF Mixed Flow Inline Fan is free from defects in material and workmanship. This warranty applies only when the product is properly installed, operated, and maintained according to the manufacturer’s guidelines and local codes. Warranty coverage may be extended if the product is registered within the required timeframe; otherwise, the warranty period begins on the date of purchase. Refer to the manufacturer’s manual for full warranty details.
Premium Materials & Construction
The ACiQ AIMF Mixed Flow Inline Fan is a high-performance, mixed-flow ventilation fan designed for inline installation in round duct systems to support air circulation, exhaust, and airflow balancing in residential and light commercial environments. It is suitable for applications such as bathroom ventilation, fresh air intake assistance, kitchen and utility exhaust, and general indoor air movement needs.
Constructed with a mixed-flow impeller and durable housing, the AIMF series combines efficient airflow performance with low noise and reduced vibration, providing reliable continuous operation with minimal disruption. The fan is engineered for easy installation directly in line with standard round ductwork and can be oriented in multiple configurations to match system layouts.
These fans are optimized for continuous indoor ventilation, improving air movement in HVAC systems, assisting fresh air supply, and enhancing exhaust performance in homes, offices, and light commercial settings.
Why Choose the ACiQ AIMF Mixed Flow Inline Fan?
High-Efficiency Mixed-Flow Performance- Mixed-flow impeller design combines the benefits of axial and centrifugal airflow for strong static pressure performance and efficient air movement.

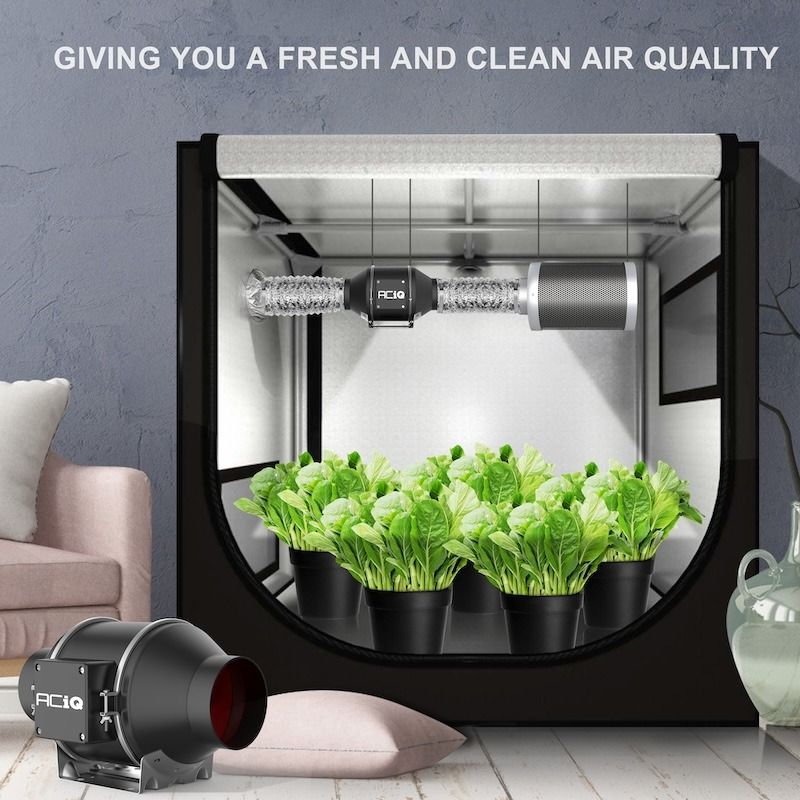

- Ideal for inline duct applications including bathroom exhaust, kitchen ventilation, fresh air supply, grow rooms, and general HVAC airflow boosting.
- Designed for use in residential and light commercial ventilation systems requiring reliable, continuous operation.
- Constructed with a durable, impact-resistant housing designed for long service life.
- Compact inline design allows installation directly within round duct systems.
- Removable motor and impeller assembly for simplified maintenance and cleaning.
- Engineered to reduce vibration and operating noise compared to standard axial fans.
- Balanced motor and blade assembly promotes stable airflow and dependable performance.
- Suitable for sound-sensitive indoor applications.
- Select models include an integral dial speed controller for adjustable airflow output.
- Compatible with standard round duct sizes for easy integration into existing HVAC systems.

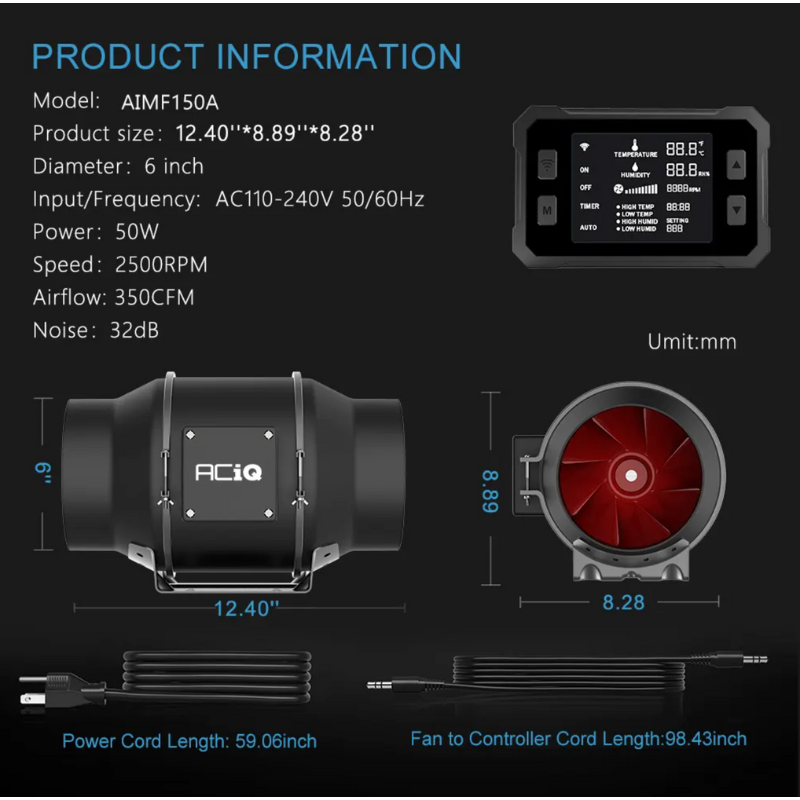

Technical Specifications — AIMF150A
| sku | AIMF150A |
|---|---|
| weight (in lbs) | 7.000000 |
| brand/manufacturer | ACiQ |
| controller | Included |
| maximum cfm | 350 |
| decibel level (dba) | 32 |
| motor rpm | 2500 |
| electrical | 110-240V | 50/60Hz |
| wattage | 50 |
| color | Black |
| duct diameter | 6" |
| length | 12.4" |
| height | 8.8" |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
