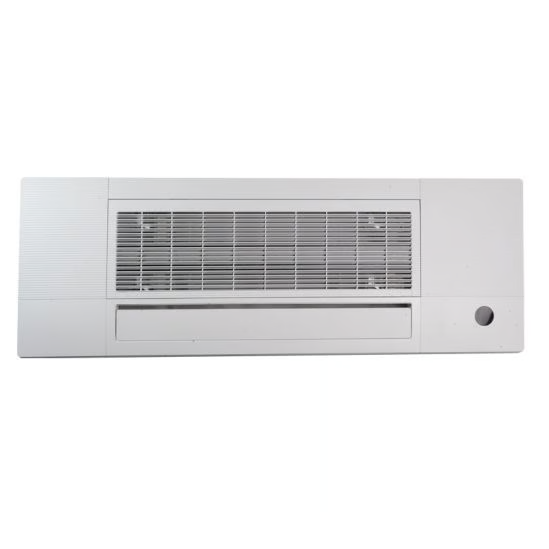

ACIQ 6,000-12,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler| R454B
$1,050.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 9K room setups:
- Small bedrooms
- Home offices
- Nurseries
- Small additions
- 12,000 BTU
- Cooling
- 12,000 BTU
- Heating
- See specs
- Quiet Inside
- See specs
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACIQ 6,000/12,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler| R454B
Product Overview

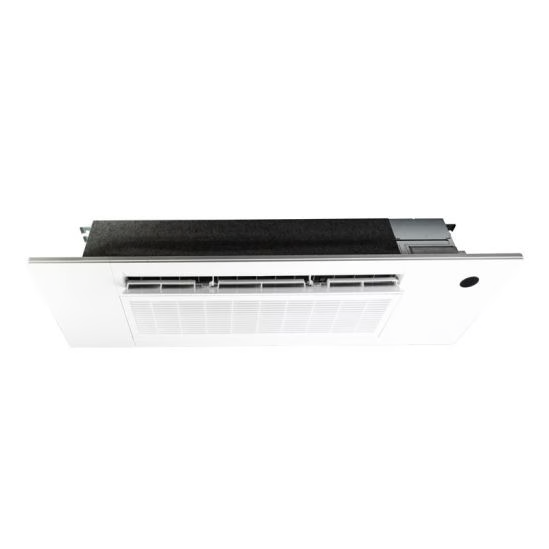

Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.
Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.
Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.
This Slim Ceiling Cassette is rated for 6K, 9K and 12K Condensers and has a switch that allows you to change between settings as needed to fit your system.
BTU Compatibility
- Rated for 6,000, 9,000, and 12,000 BTU applications
- R-454B refrigerant – efficient and environmentally friendly
- Compatible with ACIQ multi-zone systems
Switchable Sizing
- ACIQ Slim Cassette models are rated for 6,000, 9,000, and 12,000 BTU applications.
Installation Considerations

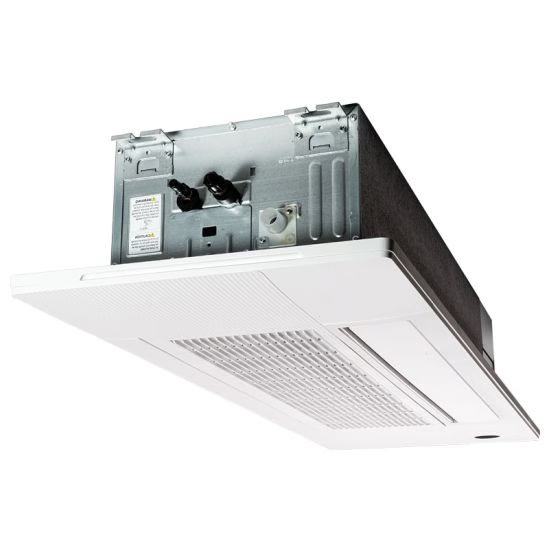

Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling Cassette is designed to fit between 16” on-center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall-mounted units.
FEATURES
- Narrow profile fits between 16 inch-on-center joists
- Rated for 6K, 9K, and 12K BTU – dip switch adjustable (model dependent)
- No-ladder filter cleaning – grille lowers on cables for easy access to filter

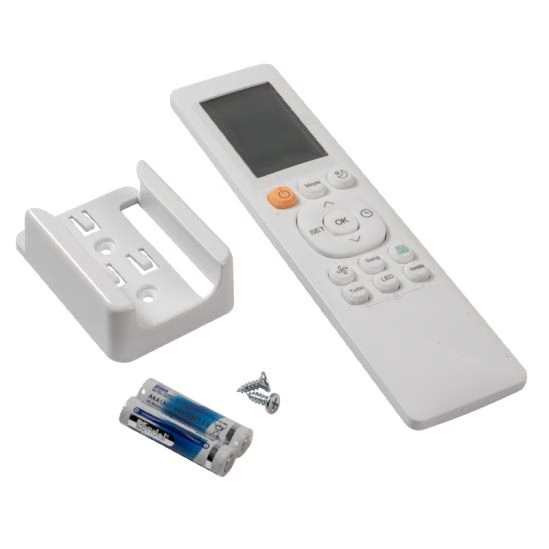

- Handheld remote included
- Decorative Grille included
Technical Specifications — SCC-0612-HH-MB
| sku | SCC-0612-HH-MB |
|---|---|
| weight | 82.450000 |
| manufacturer | ACiQ |
| controller | Wireless Included |
| cooling btu | 6,000 / 9,000 / 12,000 |
| heating btu | 6,000 / 9,000 / 12,000 |
| maximum cfm | Up to 353.20 CFM |
| decibel level (dba) | As low as 24.0 Decibels |
| refrigerant | R454B |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| mini split type | Slim Ceiling Cassette |
| zone compatibility | Single Zone, Multi Zone |
| height | 8.98" |
| width | 50.31" |
| depth | 13.19" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
