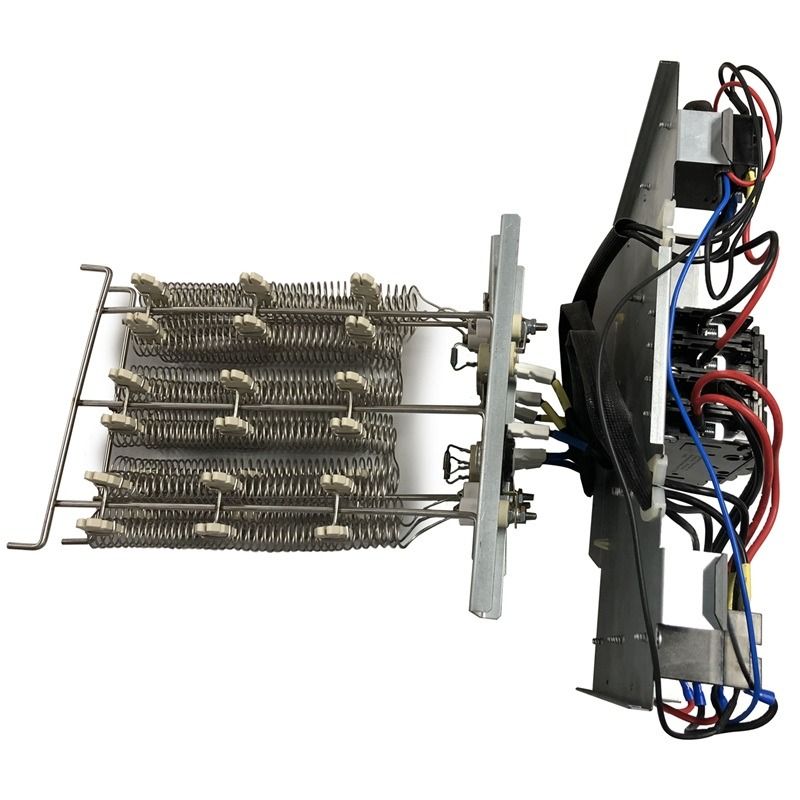

ACiQ 5 Kilowatt 16,200 BTU Heater Coil

Product Overview

The PEAH-05C(UL) is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Please note that this heater coil requires one 30 amp breaker to function.

Compatible Air Handlers

  • ACiQ-18-PAH
  • ACiQ-24-PAH
  • ACiQ-30-PAH
  • ACiQ-36-PAH

Technical Specifications — PEAH-05C(UL)

sku PEAH-05C(UL)
weight (in lbs) 12.130000
brand/manufacturer ACiQ
heating btu 16,200
electric heat 5 Kilowatts
electrical 208/230V, 1 Phase, 60Hz
phase Single Phase
max breaker size 25 / 30
min. breaker size 23 / 27
height 8.07"
width 22.00"
depth 10.59"
warranty 12 year compressor, 7 year parts with online registration
