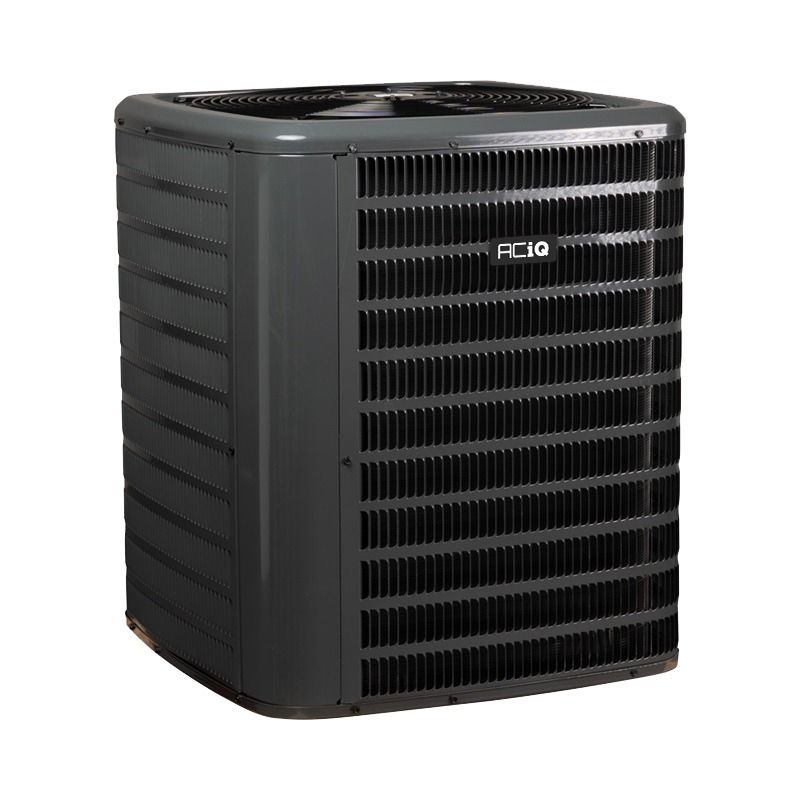

ACIQ 4 Ton 17.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Two Stage
$3,424.00
Currently unavailableContact us for lead time
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- Efficient
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACIQ 4 Ton 17.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Two Stage
Product Overview
OVERVIEW
Built with a superior design, ACiQ manufactured the AQ-GLXT7CA4810 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The AQ-GLXT7CA4810 is considered from the best of the best series of AC condenser that ACiQ has to offer, making it a top-quality unit to suit the all of your cooling needs.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 4 Ton, 17.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Two Stage
- Lowest possible sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
4 Ton
The ACiQ AQ-GLXT7CA4810 air conditioning condenser is rated for 4 tons, which can cover up to a small house in an ideal climate. In order to maintain the unit's efficiency, this condenser may be paired with a higher-tonnage coil.
17.2 SEER2
The ACiQ GLXT7CA condenser series is designed to be the most efficient AC series in ACiQ's lineup. Specifically, the AQ-GLXT7CA4810 is 17.2 SEER2, the highest efficiency rating offered by ACiQ. This unit will save you the most money when it comes to your energy bills, at a whopping approximate of 25% more efficient than the 13.4 SEER2 industry standard minimum.
Superior Comfort with Two Stages
The AQ-GLXT7CA4810 condenser is designed to be one of the quietest and most stable temperature output condensers made by ACiQ today. With its two stage Copeland UltraTech scroll compressor, temperature stability is at its peak, allowing the condenser to only use the highest output when needed, and using the lower output more often to prevent overshooting the desired temperature and lowering the amount of time that the fan is at its loudest. Further enhancing comfort, the two stage compressor also allows for a better dehumidification of your home. Moreover, the cabinet is insulated and the compressor has a built-in foam compressor sound blanket, further decreasing the unit's sound output.
Warranty
With ACiQ's standard 10 year parts warranty, the AQ-GLXT7CA4810 provides a peace of mind in the rare occurrence that something goes wrong on your unit. On top of this, ACiQ also offers an astounding lifetime warranty on the unit's compressor when it is paired with a new coil or air handler that is a ACiQ-certified configuration. All of ACiQ's warranties require a professional installation that follows your state and local codes and an online registration within 60 days of your installation through the manufacturer.
Durability and Reliability
With its durable galvanized-steel cabinet and its painted finish that is approved for 500 hours of salt spray, the AQ-GLXT7CA4810 condenser stands up to ACiQ's high durability standards. The durable design of the cabinet also makes it 2010 Florida building code integrity requirements for hurricane-type winds compliant when it is properly anchored.
Installation and Maintenance
With its compact footprint and rust-resistant coated screws, the AQ-GLXT7CA4810 is designed to be suitable in almost any installation location. For easier installation, ACiQ designed the gauge ports and service valves to be easily accessible and with sweat connections. The cabinet has a maintenance access panel on both the top and the side of the unit. All of this allows you to keep money in your pocket and have a lower resolution time if a rare system issue occurs, providing comfort with a peace of mind.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
Technical Specifications — AQ-GLXT7CA4810
| sku | AQ-GLXT7CA4810 |
|---|---|
| weight (in lbs) | 281.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| cooling btu | 48,000 |
| decibel level (dba) | 73 |
| horsepower | 0.333 HP |
| energy star | Yes |
| refrigerant | R32 |
| seer2 (efficiency) | 17.2 |
| condenser stages | Two Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 1 1/8" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 50 Amps |
| min. breaker size | 31.6 Amps |
| tonnage | 4 Ton |
| connection | Sweat |
| height | 41 5/8" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts and Lifetime Compressor with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here., |
Submittals
Warranty
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.What types of products does ACiQ offer?
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
How can I contact ACiQ technical support or customer service?
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
What information is needed to register an ACiQ product?
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
How can I request a replacement part for an ACiQ product?
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Where can I find manuals and technical documents for an ACiQ product?
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
How do I start an ACiQ warranty claim?
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
What diagnosis is required for an ACiQ warranty issue?
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
Does an ACiQ warranty claim cover labor and shipping costs?
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
How do I register an ACiQ product for warranty coverage?
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
How can I check an ACiQ warranty registration or coverage status?
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
Does every ACiQ product have the same warranty coverage?
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
