ACIQ 4 Ton 15.2 SEER2 R32 Heat Pump Split System - Multi-Positional
$4,357.00
Currently unavailableContact us for lead time
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- Rated
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACIQ 4 Ton 15.2 SEER2 R32 Heat Pump Split System - Multi-Positional
Product Overview
4 Ton 14.3 SEER2 Single Stage Heat Pump Condenser - R32
OVERVIEW
The ACiQ AQ-GLZS4BA4810 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of ACiQ's equipment, the AQ-GLZS4BA4810 is manufactured with high-quality materials to provide a superior comfort in your home.
Utilizing advanced technology, the ACiQ heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Ideal size to cover a medium to large house in ideal climates
- 4 ton, 14.3 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
4 Ton
The ACiQ AQ-GLZS4BA4810 heat pump has a capacity of 4 tons. In an ideal climate, this tonnage will normally cover up to a medium to large house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.
14.3 SEER2
At 14.3 SEER2, the AQ-GLZS4BA4810 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.
Warranty
The AQ-GLZS4BA4810 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The ACiQ AQ-GLZS4BA4810 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.
Installation and Maintenance
The ACiQ AQ-GLZS4BA4810 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.
Comfort in Mind
With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the AQ-GLZS4BA4810 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

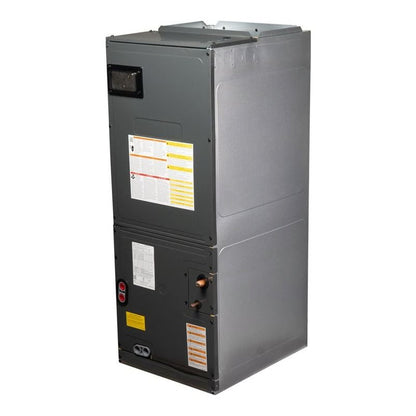

4 Ton Multi-Positional Air Handler - R32
OVERVIEW
The ACiQ AQ-AMST48CU1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, ACiQ upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 4 ton air handler
- Electric heat compatible
- Optimized for use with R32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
4 Tons
The ACiQ AQ-AMST48CU1300 air handler is rated for an output of 4 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AQ-AMST48CU1300 comes with ACiQ standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the ACiQ AQ-AMST48CU1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The ACiQ AQ-AMST48CU1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AQ-AMST48CU1300 air handler lives up to ACiQ comfort expectations with its multi-speed ECM motor, which provides a more precise and efficient temperature control.
Technical Specifications — AQ-GLZS4BA4810
| sku | AQ-GLZS4BA4810 |
|---|---|
| weight (in lbs) | 284.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSZ140481, GSZB404810 |
| product features | New Refrigerant Compliant |
| hspf2 | 7.8 |
| cooling btu | 48,000 |
| heating btu | 48,000 |
| decibel level (dba) | 74 |
| horsepower | 1/4 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 1 1/8" |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/230v 1 Phase 60 Hz |
| max breaker size | 40 Amps |
| min. breaker size | 25.5 Amps |
| tonnage | 4 Ton |
| connection | Sweat |
| height | 36 1/2" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| resources | GLZS4B Installation ManualGLZS4B Specifications SheetGLZS4B Service ManualGoodman Condenser WarrantyYou will need Adobe® Acrobat® Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-AMST48CU1300
| sku | AQ-AMST48CU1300 |
|---|---|
| weight (in lbs) | 153.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| blower motor | Multi-Speed Direct Drive ECM Motor |
| maximum cfm | 1495 |
| horsepower | 0.75 HP |
| electric backup heat capabilities (optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 19 Kilowatts |
| refrigerant | R32 |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/240v 1 Phase 60Hz |
| max breaker size | 15 Amps |
| min. breaker size | 7.1 Amps |
| tonnage | 4 Ton |
| connection | 3/4" FPT |
| height | 58" |
| width | 21 1/8" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here., |
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.What types of products does ACiQ offer?
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
How can I contact ACiQ technical support or customer service?
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
What information is needed to register an ACiQ product?
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
How can I request a replacement part for an ACiQ product?
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Where can I find manuals and technical documents for an ACiQ product?
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
How do I start an ACiQ warranty claim?
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
What diagnosis is required for an ACiQ warranty issue?
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
Does an ACiQ warranty claim cover labor and shipping costs?
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
How do I register an ACiQ product for warranty coverage?
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
How can I check an ACiQ warranty registration or coverage status?
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
Does every ACiQ product have the same warranty coverage?
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
