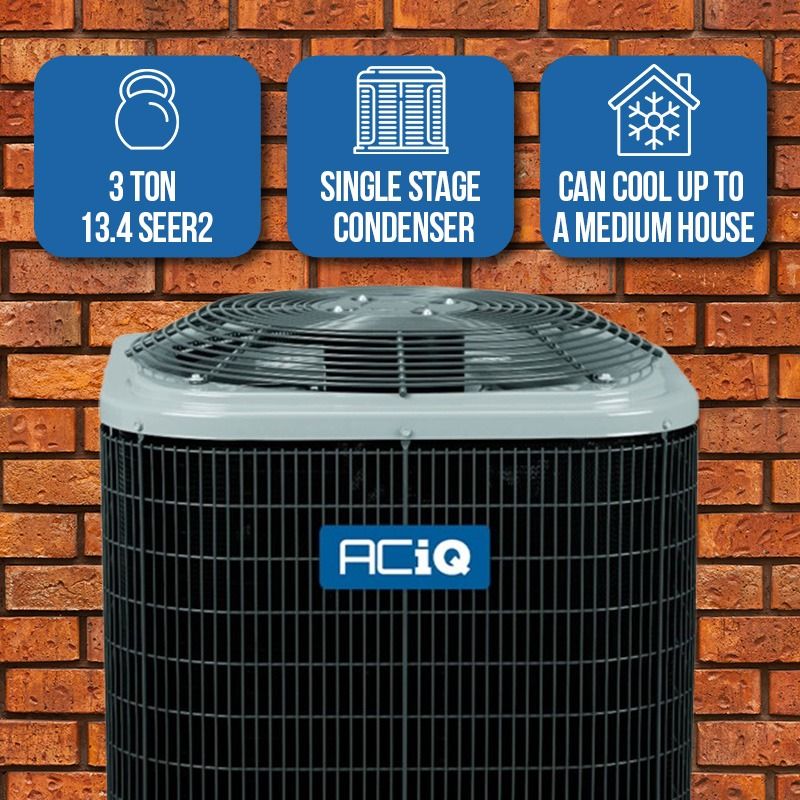

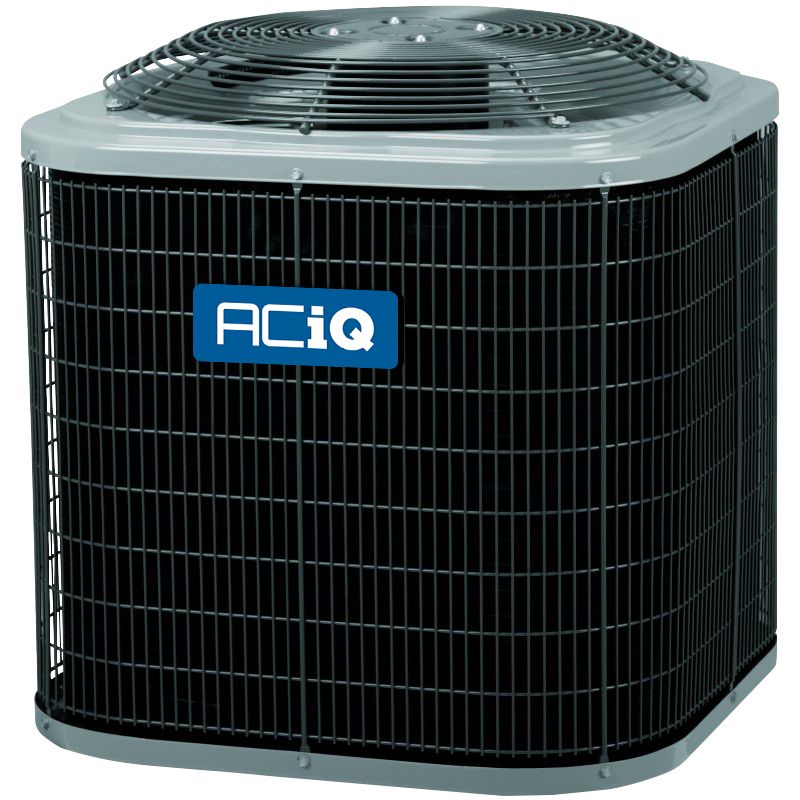

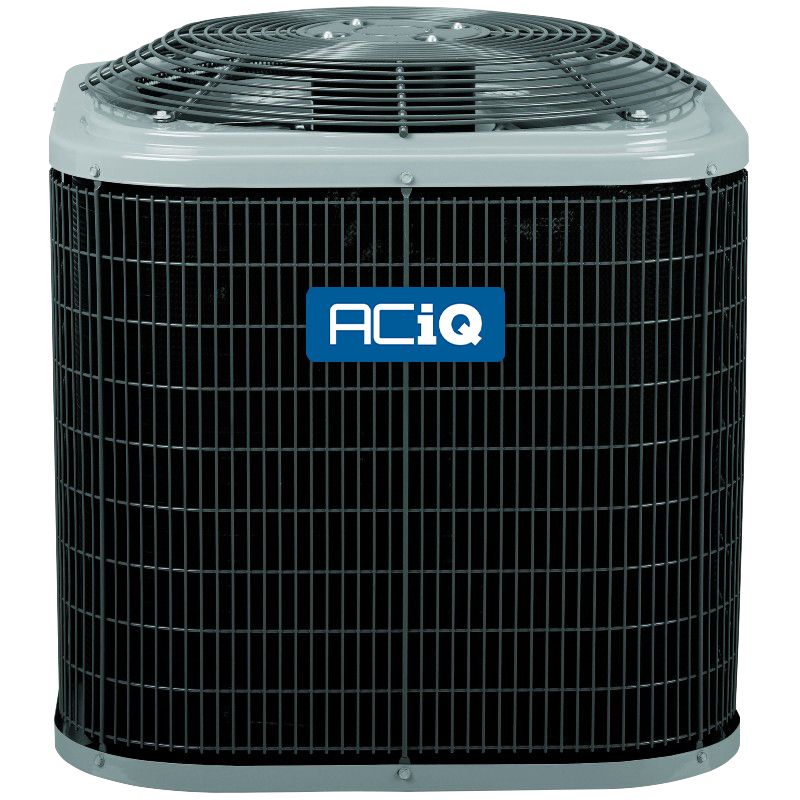

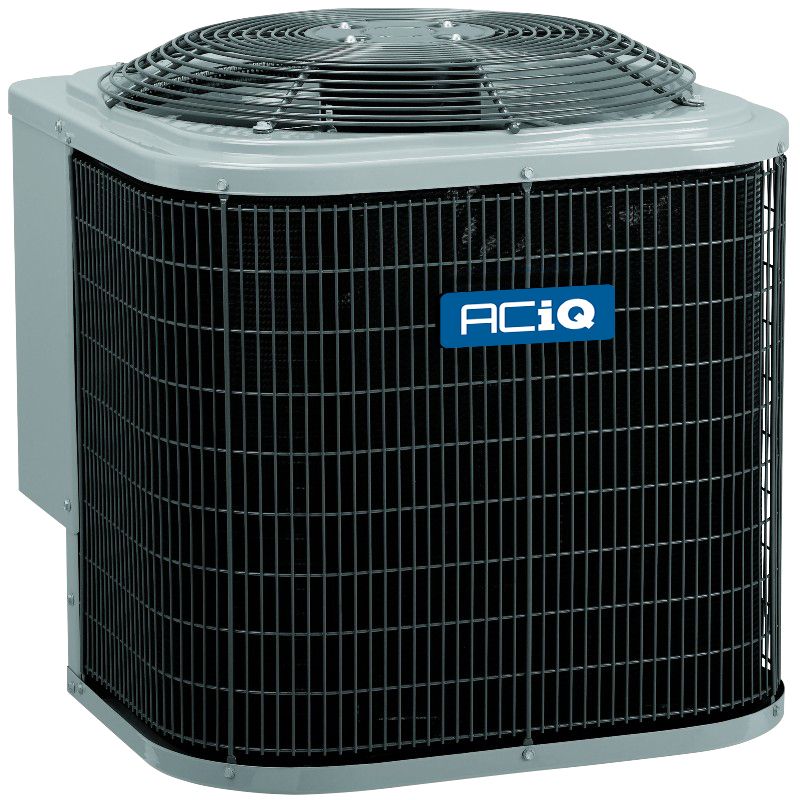

ACiQ 3 Ton 13.4 SEER2 ACiQ Air Conditioner Condenser - R454B

Name: ACiQ 3 Ton 13.4 SEER2 ACiQ Air Conditioner Condenser - R454B
Brand: South Mini Splits
SKU: R5A4S36AKANA
Price: 2190.0 USD
Availability: InStock

SKU: R5A4S36AKANA

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$2,190.00

Sold out

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

OVERVIEW

The ACiQ R5A4S36AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

3 ton, 13.4 SEER2 AC-only condenser
Can cool a medium-sized house in average conditions
Single stage compressor
Filter drier included to be field-installed

3 Tons

The ACiQ R5A4S36AKANA air conditioner condenser has an output of 3 tons, generally enough to cool a medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.4 SEER2

The ACiQ R5A4S36AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.

This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.

Warranty

ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACiQ units are extremely durable. On the R5A4S36AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

Product Specifications


3 Ton 13.4 SEER2 ACiQ Air Conditioner Condenser - R454B
SKU	R5A4S36AKANA
Weight	153.000000
Manufacturer	ACiQ
Replaces	R4A4S36AKANA
Equivalent	Carrier Equivalent: 24ABB336ABN3 Tempstar Equivalent: R4A336GKH Bryant Equivalent: 113ANA036000
Cooling BTU	36000
Maximum CFM	2800
Decibel Level (dBA)	73 Decibels
Motor RPM	825
Horsepower	1/10 HP
Refrigerant	R454B
SEER2	13.4
Condenser Stages	Single Stage
Compressor Type	Scroll
Liquid Valve Size	3/8"
Suction Valve Size	7/8"
Electrical	208/230v 1 Phase 60 Hz
Max Breaker Size	30 Amps
Min. Breaker Size	17.5 Amps
Tonnage	3 Ton
Connection	Sweat
Certification	UL Listed
Height	28 1/4"
Width	31 3/16"
Depth	31 3/16"
Warranty	10 Years Parts Warranty with Online Registration
Resources	R5A4S Owner's Manual R5A4S Specifications Sheet ACiQ Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
