ACiQ 24,000 BTU Floor or Ceiling Mounted Mini Split Air Handler with Heat Pump, R454B Refrigerant, Multi-Zone Compatible

Name: ACiQ 24,000 BTU Floor or Ceiling Mounted Mini Split Air Handler with Heat Pump, R454B Refrigerant, Multi-Zone Compatible
Brand: ACiQ
SKU: ACiQ-24FM-HH-MD
Price: 1245.0 USD
Availability: InStock

SKU: ACiQ-24FM-HH-MD

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$1,245.00

Sale Sold out

Installation Kit No Installation Kit

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

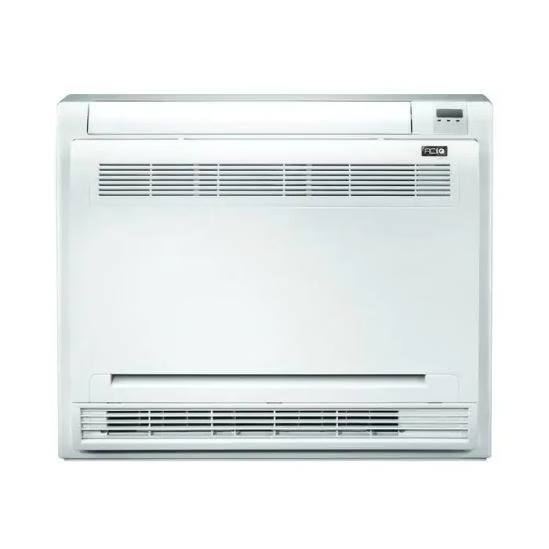

ACiQ 24,000 BTU Floor or Ceiling Mounted Mini Split Air Handler with Heat Pump, R454B Refrigerant, Multi-Zone Compatible- ACiQ-24FM-HH-MD

Summary

The ACiQ 24K BTU Floor Console air handler provides an innovative solution for challenging spaces like sun porches, attic rooms, and areas with limited wall space. This versatile unit can be mounted either floor-standing, low on the wall, or even ceiling-mounted, making it perfect for spaces below windows or rooms with angled surfaces.

Unlike traditional units, this system uses threaded rod mounting that allows the air handler to be level even when walls are not, accommodating all geometry angles. With its unique ability to work with gaps as small as one inch between ceiling and roof, it's ideal for metal buildings and three-season rooms.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above.

What's Included

Indoor Unit (24,000 BTU Floor Console Air Handler)
Optional Installation Kit (must be selected separately)
Wireless Remote Control
Installation Manual
Owner's Manual
Manufacturer Warranty

Key Features

24,000 BTU cooling (22,000 BTU) / 26,000 BTU heating capacity
Multiple fan speeds (Turbo/High/Medium/Low/Silent)
Ultra-quiet operation (as low as 29 dBA in silent mode)
Energy Star certified for efficiency
R454B environmentally friendly refrigerant
Adjustable mounting for unlevel surfaces
24-hour timer function
Self-cleaning operation
Auto-restart after power failure
Optional door-open sensor compatibility
Pre-wired for 240VAC condensate pump

Technical Specifications

Cooling/Heating Capacity	22,000 BTU cooling / 26,000 BTU heating
Maximum Air Flow	735.8 CFM
Noise Level	As low as 29 dBA
Dimensions (W×D×H)	42.05" × 26.57" × 9.25"
Refrigerant	R454B
Line Set Connections	3/8" liquid, 5/8" gas
Electrical Requirements	208/230V, 1 Phase, 60Hz
BTU/Tonnage	24,000 BTU/2 Ton
Warranty	12 year compressor, 7 year parts (with registration)

Special Installation Features

Threaded rod mounting system accommodates angled surfaces
Can be installed with just 1" ceiling-to-roof gap
Floor mounting option avoids wall modifications
Can be elevated 2" from floor for under-window installation
All connections can run through wall or floor
Ideal for brick/marble surfaces where wall drilling is undesirable

Warranty

12 year compressor limited warranty (with registration)
7 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control warranty

Manuals & Downloads

Safety Information: PROPOSITION 65 WARNING

Performance Features

Upward airflow for optimal heating in winter
Automatic shutoff with optional door-open sensor
Self-diagnosis system for easy troubleshooting
Intelligent pre-heating function
Follow-me temperature sensing
Sleep mode for quiet nighttime operation
Turbo mode for rapid cooling/heating
Multiple filter options for air purification

Ideal Applications

Sun porches with limited wall space below windows
Attic remodels with knee-walls
Rooms with angled or unlevel surfaces
Metal buildings with minimal ceiling clearance
Three-season rooms
Spaces where wall drilling is undesirable (brick/marble surfaces)
