Product Overview
24,000 BTU 18.7 SEER2 ACIQ Essentials Single Zone Wall Mounted Mini Split System w/ WiFi - 230V
The ACIQ Essentials 24,000 BTU Single Zone Wall Mounted Mini Split System (ACIQ-K24Z-HP230B / ACIQ-K24W-W-HP230B) is a powerful and reliable solution for cooling and heating larger rooms or open spaces. Ideal for living rooms, large bedrooms, offices, or areas up to 1,000 square feet, it’s backed by the same trusted manufacturing partners behind major HVAC brands—delivering premium performance without the premium price tag.

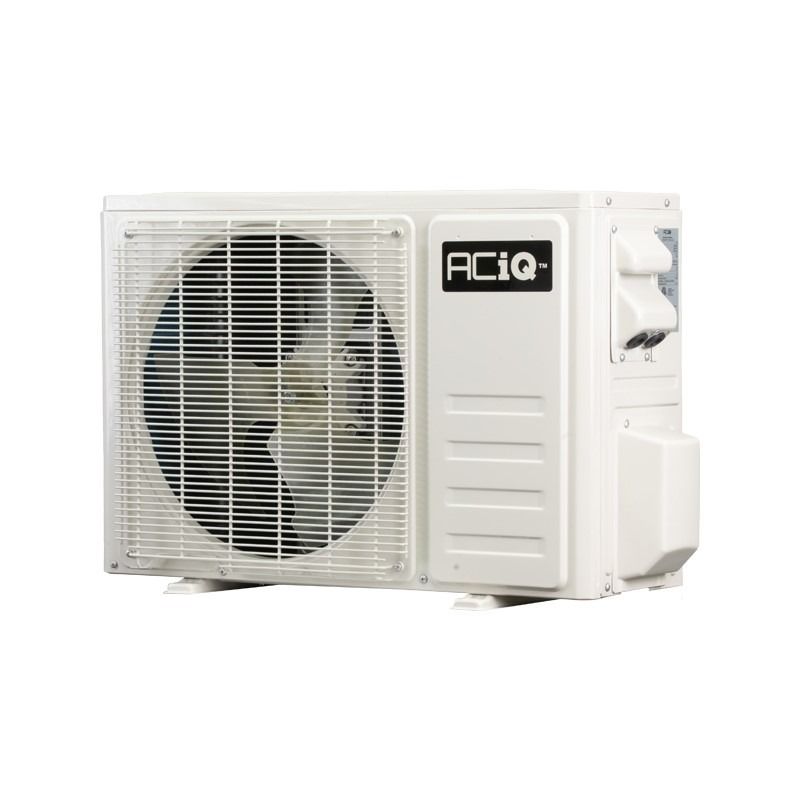

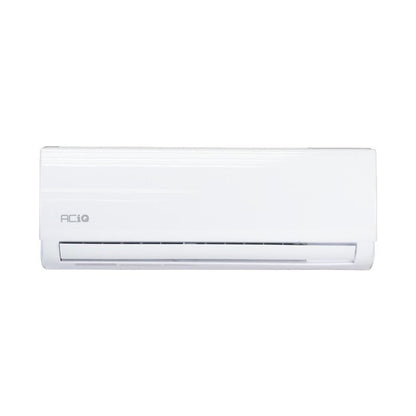

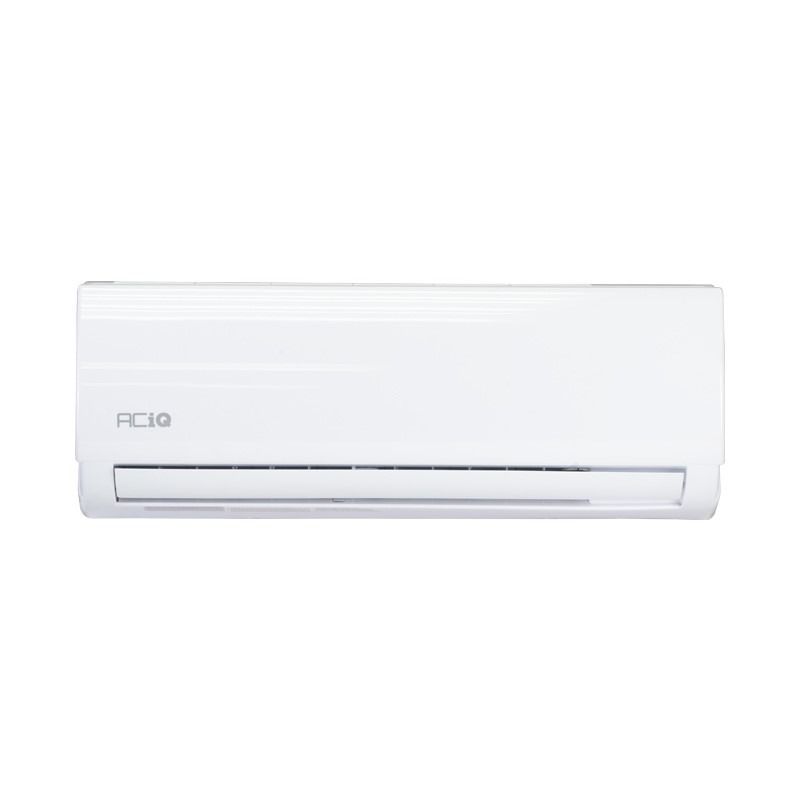

With a 18.7 SEER2 efficiency rating, built-in WiFi control, and quiet operation, this system provides year-round comfort while keeping energy costs low. Designed for professional installation, the ACIQ-K24Z-HP230B outdoor condenser and ACIQ-K24W-W-HP230B indoor air handler ensure dependable, efficient performance and long-lasting durability.

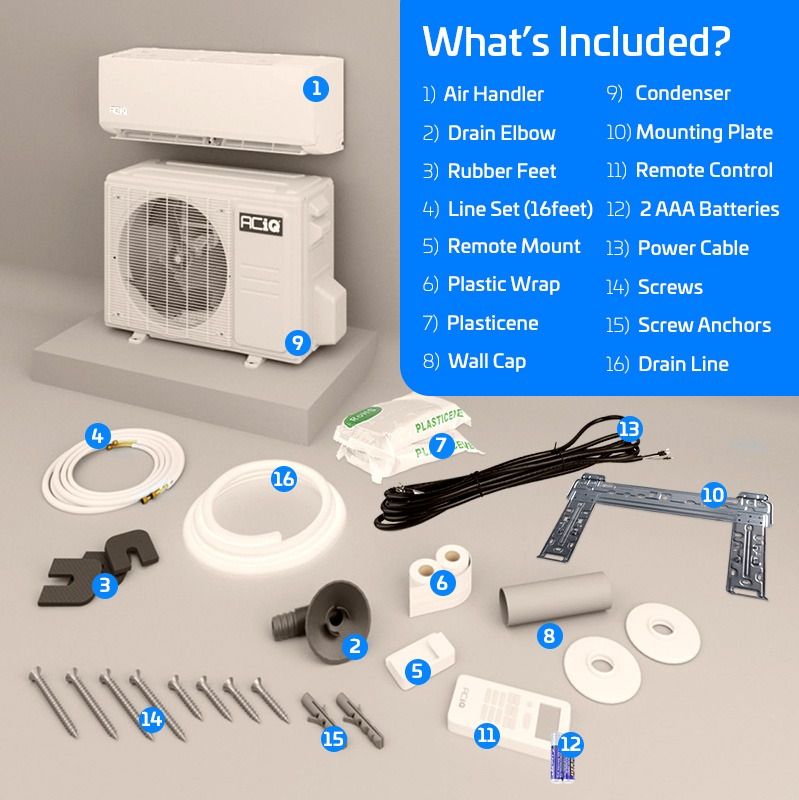

Everything You Need In One Kit
ACIQ Essentials mini splits arrive with the essential components you’ll need for a complete, professional installation! Included with each system are 16ft line sets, mounting hardware, and other accessories—so you won’t have to source extra parts. While you’ll still need a licensed HVAC technician to handle setup and refrigerant connections, this all-in-one package keeps things simple and hassle-free, ensuring your new system is up and running smoothly in no time.
Electrical lines must be purchased separately from this system
24,000 BTU: Perfect for spaces up to 1,000 square feet
are a great fit for larger spaces around 1,000 square feet. These would work perfectly for:
Single Room Applications
|
Supplemental Home Locations
|

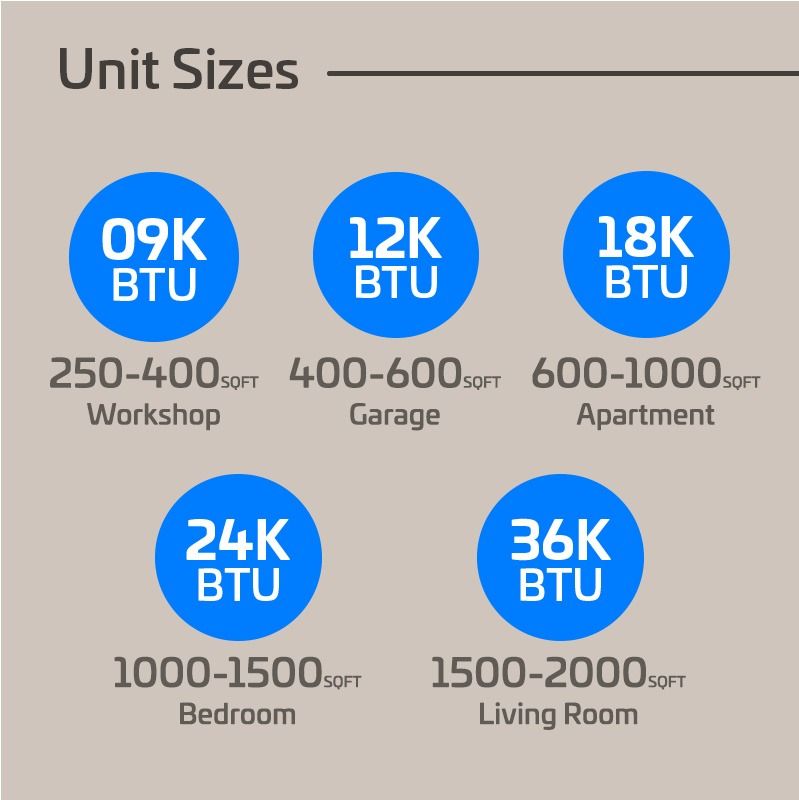

Find Your Perfect Fit
ACIQ Essentials are designed to fit your space perfectly. With multiple BTU sizes available, our single-zone systems make it simple to choose the right level of comfort—whether you’re outfitting a small bedroom, a medium living area, or a larger open-concept space.
Up to 600 Square Feet
Perfect for mid-sized spaces—like a larger bedroom, a small living room, or a one-bedroom apartment—ACIQ Essentials 12,000 BTU Single Zone Wall Mounted Mini Split Systems deliver the comfort and efficiency you need in one complete solution.
Up to 1,000 Square Feet
Ideal for bigger areas—like open-plan living and dining rooms or finished basements up to 1,000 square feet—ACIQ Essentials 18,000 BTU Single Zone Wall Mounted Mini Split Systems are the perfect solution for year-round comfort.
Up to 1,500 Square Feet
IA solid choice for large spaces—such as a small home, large basement, or spacious loft up to 1,500 square feet—ACIQ Essentials 24,000 BTU Single Zone Wall Mounted Mini Split Systems provide the power and comfort you need in a single, efficient solution.
Up to 2,000 Square Feet
Your go-to for serious coverage—perfect for whole floors, open-concept homes, or large garages up to 2,000 square feet—ACIQ Essentials 36,000 BTU Single Zone Wall Mounted Mini Split Systems deliver powerful, efficient comfort in one complete solution.
Premium Performance, Without the Premium Price
ACIQ Essential Single Zone Mini Split Systems deliver efficient cooling and heating. Showcasing powerful performance, but with an affordable price, ACIQ Essential mini splits help keep your energy costs in check.
High Efficiency, High Satisfaction
With SEER2 performance ratings that rival or outperform many conventional systems, these units offer serious energy savings in a compact, easy-to-install package. That means lower utility bills, less installation hassle, and smarter comfort, without the premium price tag
A Warranty You Can Take Comfort In
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
Comfort That Adapts to You
ACIQ Essentials delivers targeted comfort with smart features like Auto Mode, I FEEL temperature sensing, and multi-directional airflow, all designed to keep you comfortable without the guesswork. Whether you’re cooling a single room or heating a space quickly with Turbo Mode, your system adjusts to match your needs. And with ECO Mode, you’ll save energy without sacrificing performance.
Clean, Quiet, and Easy to Live With
Breathe easier with PureClean air sterilization and optional Self-Clean mode, which help maintain a healthier indoor environment with less maintenance. Enjoy peace and quiet thanks to Sleep Mode, MUTE function, and ultra-quiet operation as low as 25 decibels. Add in programmable timers, Dry Mode, Child Lock, and LED display control, and you’ve got effortless, everyday comfort built right in.
Looking for Something More? ACIQ Still Has You Covered!
While ACIQ Essentials is perfect for single-zone comfort, ACIQ offers a wide selection of systems and series for every need. Enjoy the peace of mind of extended warranties, or enjoy precise comfort in every room with a multi-zone setup. All while still saving energy over traditional systems.
Single Zone Systems
Dual Zone Systems
Tri Zone Systems
Quad Zone Systems
Five Zone Systems
Six Zone Systems
Technical Specifications — ACIQ-K24Z-HP230B
| sku | ACIQ-K24Z-HP230B |
|---|---|
| refrigerant charge | 45.15 oz. |
| weight | 101.400000 |
| manufacturer | ACiQ |
| hspf2 | Region IV / V: 9.5 / 8.2 |
| cooling btu | 24000 BTU |
| heating btu | 24600 BTU |
| decibel level (dba) | 58 (Max) |
| refrigerant | R454B |
| seer bundle | 21 |
| seer2 | 21 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Ph, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | MOP: 25A |
| min. breaker size | MCA: 17A |
| tonnage | 2 Ton |
| tonnage bundle | 2 Ton |
| btu/tonnage | 24,000 BTU/2 Ton |
| min/max outdoor temp for heating | -4°F ~ 86°F |
| min/max outdoor temp for cooling | 5°F ~ 122°F |
| zone compatibility | Single Zone |
| height | 27.52" |
| width | 36.50" |
| depth | 14.96" |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-K24W-W-HP230B
| sku | ACiQ-K24W-W-HP230B |
|---|---|
| weight | 36.400000 |
| manufacturer | ACiQ |
| replaces | ACiQ-K24W-HP230 |
| hspf2 | 9.5 |
| cooling btu | 24000 BTU |
| heating btu | 24000 BTU |
| decibel level (dba) | 52 |
| refrigerant | R454B |
| seer2 | 21 |
| liquid line | 1/4" |
| suction line | 1/2" |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone |
| height | 10.23 |
| width | 46.93 |
| depth | 14.17 |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
