A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

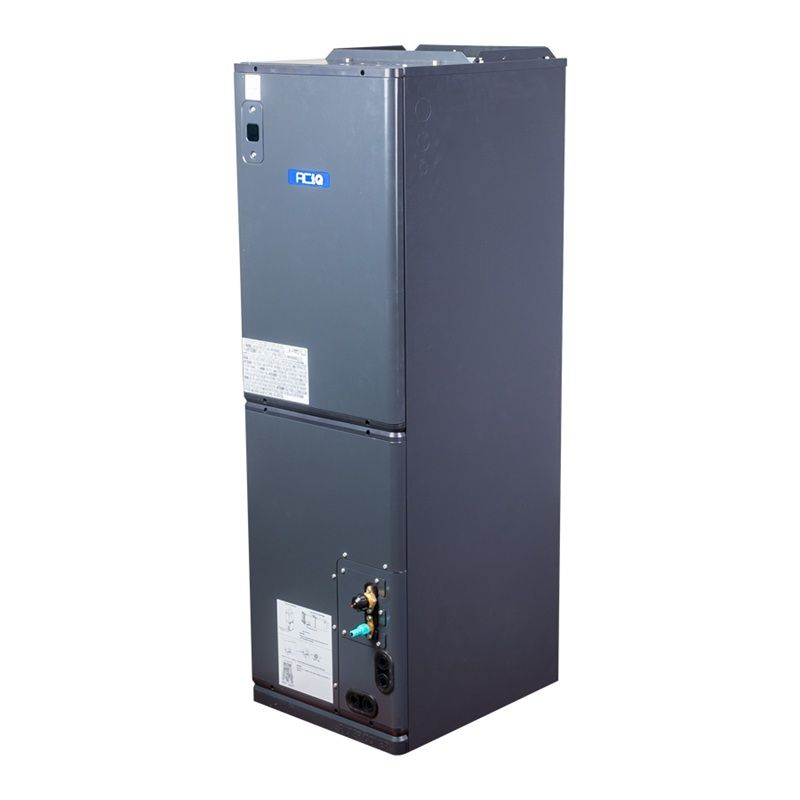

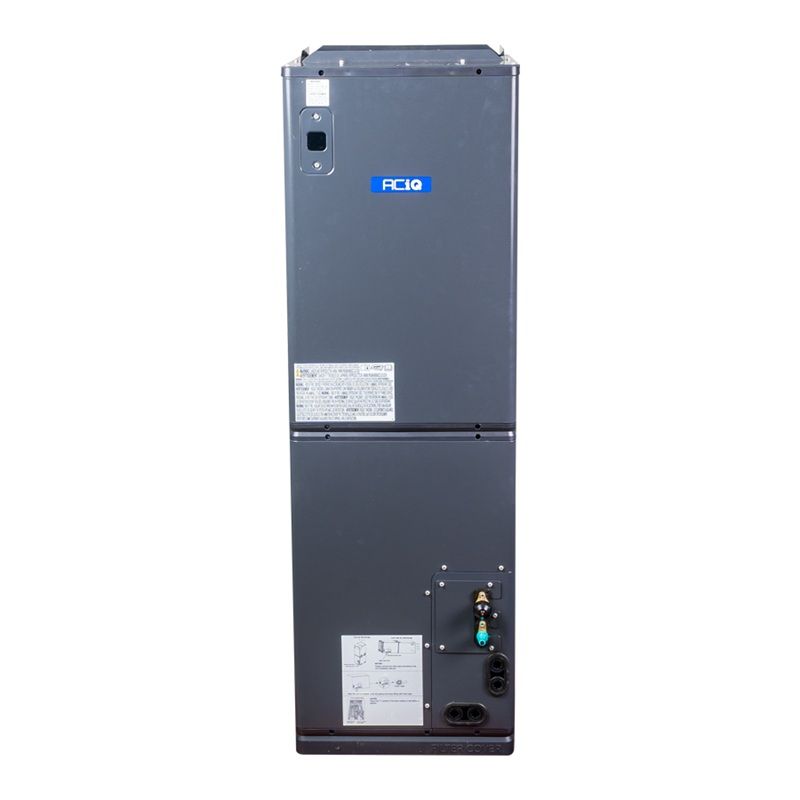

The ACIQ-24-PAH Extreme+ ducted air handler is one of the best multi-positional air handlers on the market today. Featuring a variable speed DC blower, communicating technology, and the best possible performance in any climate, comfort and efficiency levels hit extreme peaks well above the standard maximums from other typical air handlers. Your thermostat communicates with the inverter condenser outside and this air handler inside, telling the system when to self-adjust its BTU output in order to maximize efficiency while providing your desired level of comfort.

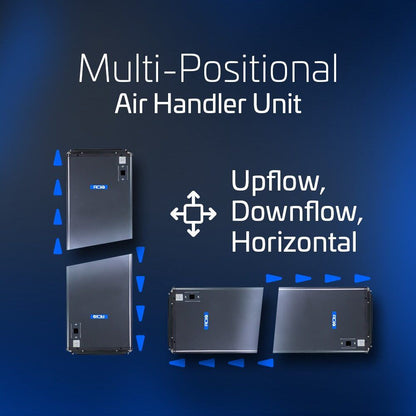

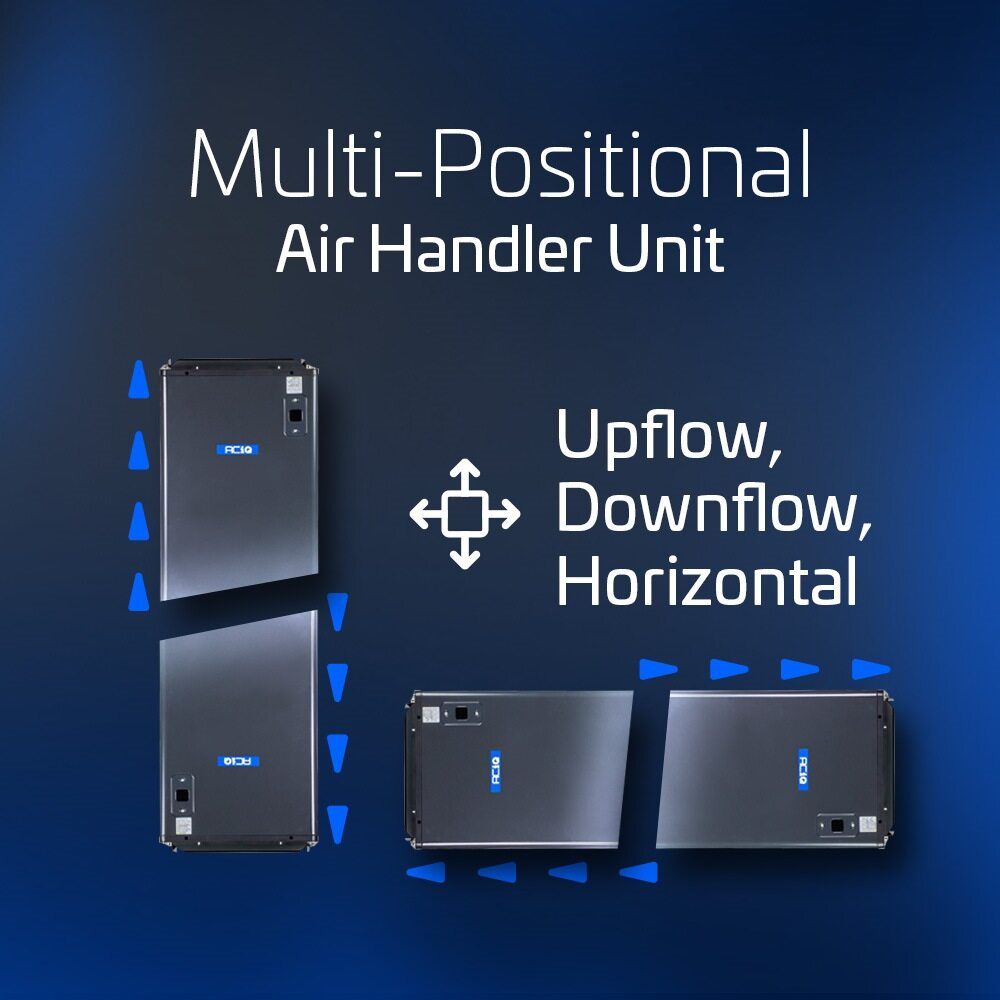

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat, and communication connections as well as connect the air handler to your return and supply ductwork. The ACIQ Extreme+ central ducted air handler is multi-positional (upflow, downflow or horizontal) and utilizes a narrower cabinet than other air handlers, making it a very versatile, easy-to-install air handler. Any 24v thermostat with 2 stages of heating can control the system. Supplemental electric heat kits are available as a backup heat source for the coldest days of the year. If any maintenance is required, the intelligent control board in the air handler displays fault codes in case any part of the system experiences issues.
Please note - in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heat kit is necessary and is also available at an additional cost.
| sku | ACiQ-24-PAH |
|---|---|
| weight | 123.020000 |
| manufacturer | ACiQ |
| cooling btu | 24,000 BTU |
| maximum cfm | 824 |
| decibel level (dba) | Up to 47.5 Decibels |
| electric backup heat capabilities (optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
| configuration | Multi-Positional |
| refrigerant | R454B |
| liquid line | "3/8"" |
| suction line | "3/4"" |
| electrical | 208/230V 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 5.5 Amps / 3.5 Amps |
| tonnage | 2 Ton |
| btu/tonnage | 24,000 BTU/2 Ton |
| mini split type | Multi-Positional |
| zone compatibility | Single Zone |
| connection | Flared |
| height | "49.7"" |
| width | "17.5"" |
| depth | "21.5"" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNING |
