Product Overview
OVERVIEW

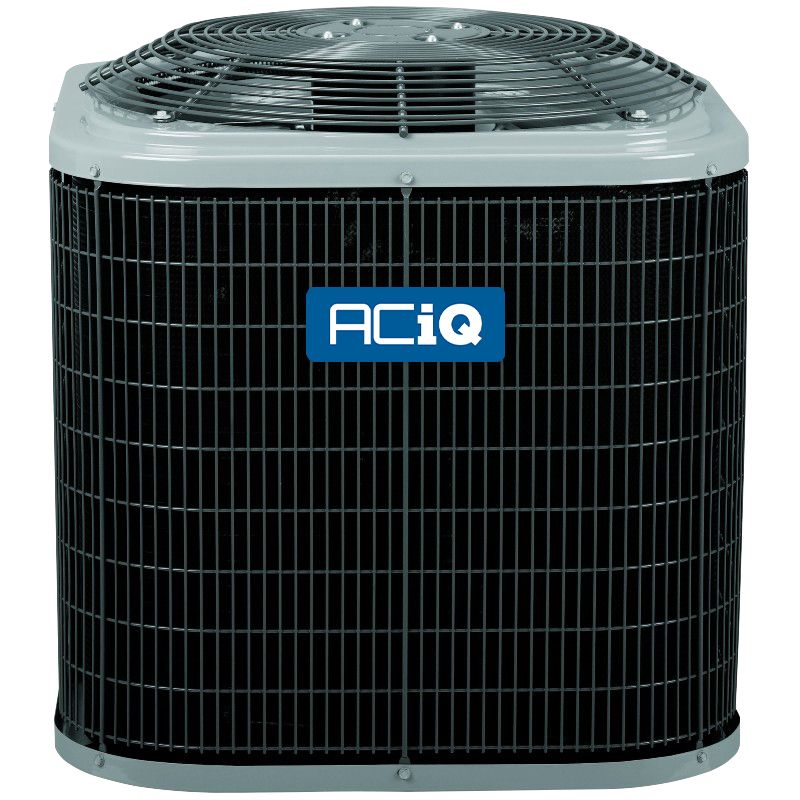

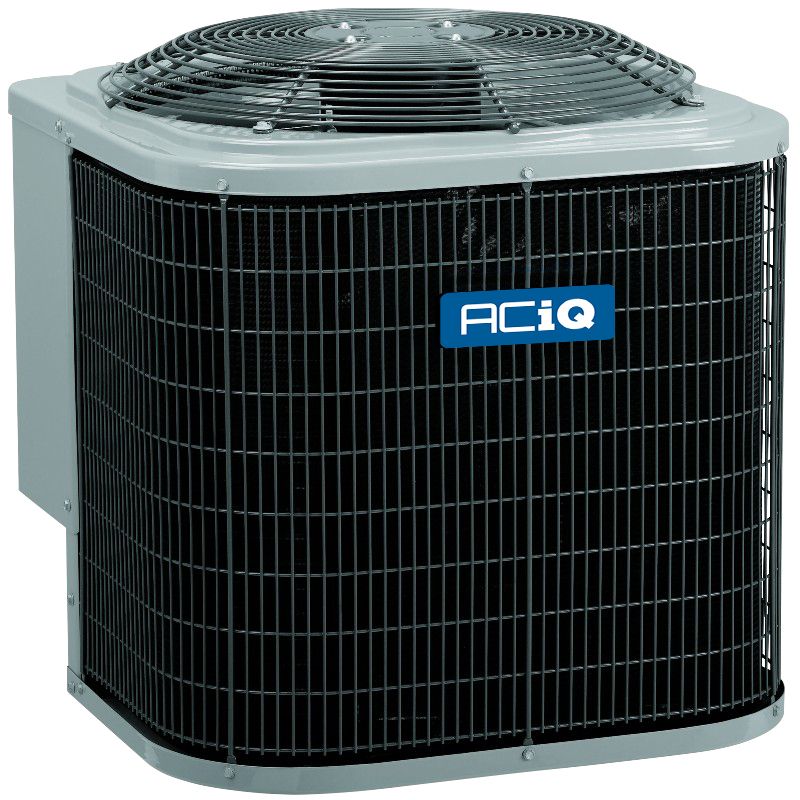

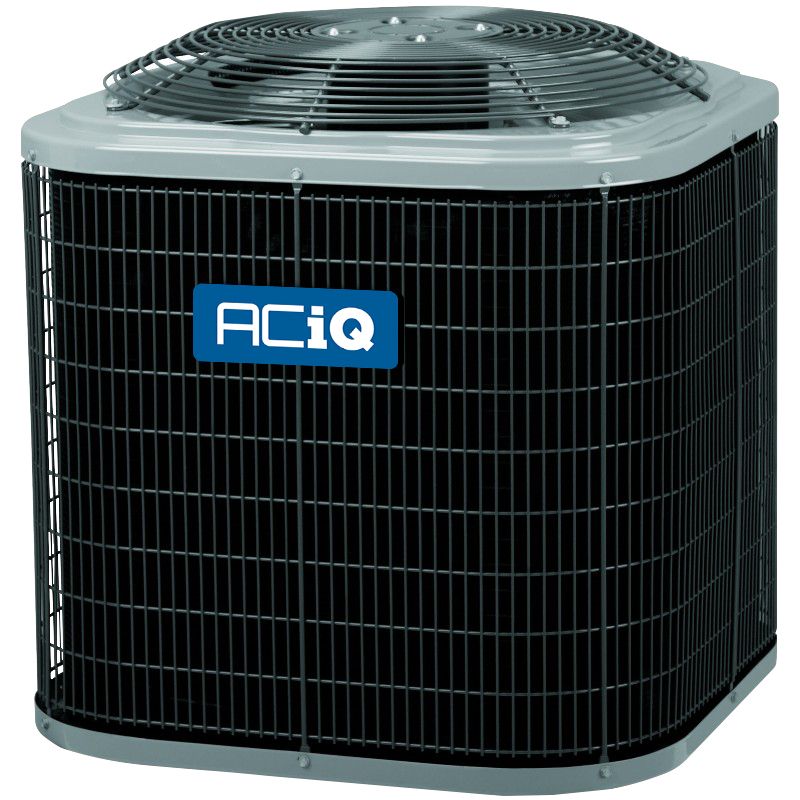

The ACIQ R5H5S24AKAAA-MH is a standard mobile home heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 2 ton, 14.3 SEER2 mobile home heat pump condenser
- Can heat and cool up to a small house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed
2 Tons
The ACIQ R5H5S24AKAAA-MH mobile home heat pump condenser has an output of 2 tons, generally enough to heat and cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.
14.3 SEER2
The ACIQ R5H5S24AKAAA-MH mobile home air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
All ACIQ mobile home condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.
High Efficiency
ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.
Longer life, longer warranty
ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.
Mobile Home Buying & Sizing Guide
- Mobile home approved product types
- Product differences
- Figuring out the right size unit for your needs
- Determining factors
- Repair vs. replace
Technical Specifications — R5H5S24AKAAA-MH
| sku | R5H5S24AKAAA-MH |
|---|---|
| refrigerant charge | 15' |
| weight (in lbs) | 195.000000 |
| brand/manufacturer | ACiQ |
| replaces | R4H5S |
| product features | New Refrigerant Compliant |
| hspf2 | 7.5 - 7.8 |
| cooling btu | 24,000 |
| heating btu | 24,000 BTU |
| maximum cfm | 3500 |
| decibel level (dba) | 71 |
| motor rpm | 825 |
| horsepower | 1/10 HP |
| refrigerant | R454B |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid valve size | 3/8" |
| suction valve size | 5/8" |
| electrical | 208/230v 1Ph 60Hz |
| max breaker size | 20 Amps |
| min. breaker size | 13.5 Amps |
| tonnage | 2 Ton |
| height | 35 1/16" |
| width | 31 3/16" |
| depth | 31 3/16" |
| warranty | 10 Year Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
