ACiQ 18,000 BTU Wall Mounted Platinum Multi Zone w/ WiFi | R454B

Name: ACiQ 18,000 BTU Wall Mounted Platinum Multi Zone w/ WiFi | R454B
Brand: ACiQ
SKU: ACIQ-18W-HH-MD
Price: 588.0 USD
Availability: InStock

SKU: ACIQ-18W-HH-MD

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$588.00

$588.00 ~~$245.00~~

Sale Sold out

Installation Kit No Installation Kit

save $-343.00

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

ACiQ 18,000 BTU Wall Mounted Platinum Multi Zone w/ WiFi | R454B - ACIQ-18W-HH-MD

Summary

The ACiQ Platinum air handlers can be used with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This 18,000 BTU wall-mounted air handler can handle medium to large sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside. The unit is WiFi capable using the free Net Home Plus app, Google Home, or Alexa, and includes features like Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This air handler must be installed with a compatible condenser and other installation equipment for proper operation.

What's Included

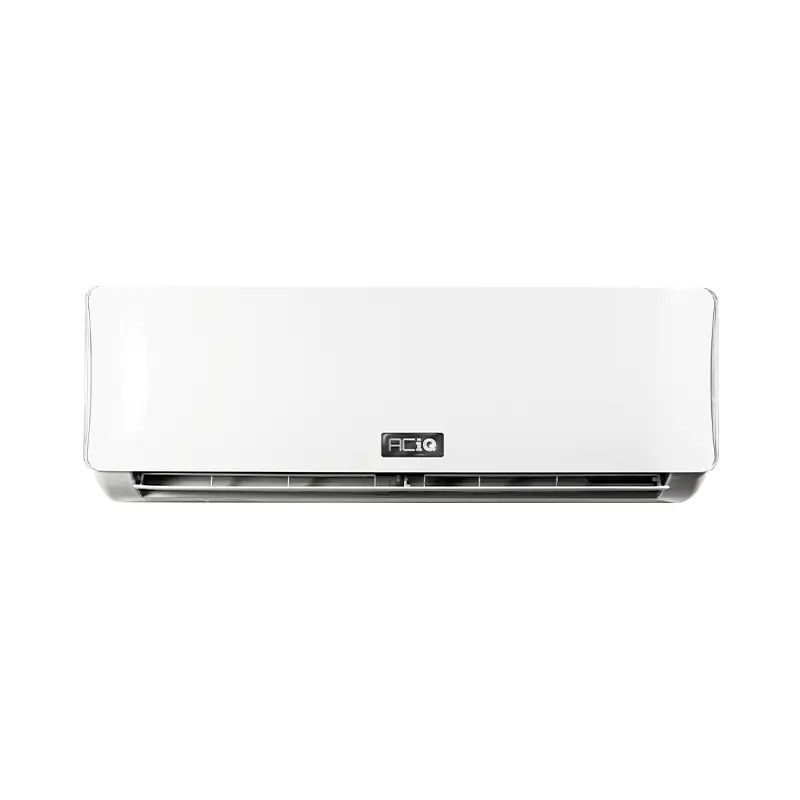

18,000 BTU Wall Mounted Air Handler (Model ACIQ-18W-HH-MD)
Wireless Remote Control
Wi-Fi Adapter
Installation Manual
User's Manual
Manufacturer Warranty

Features

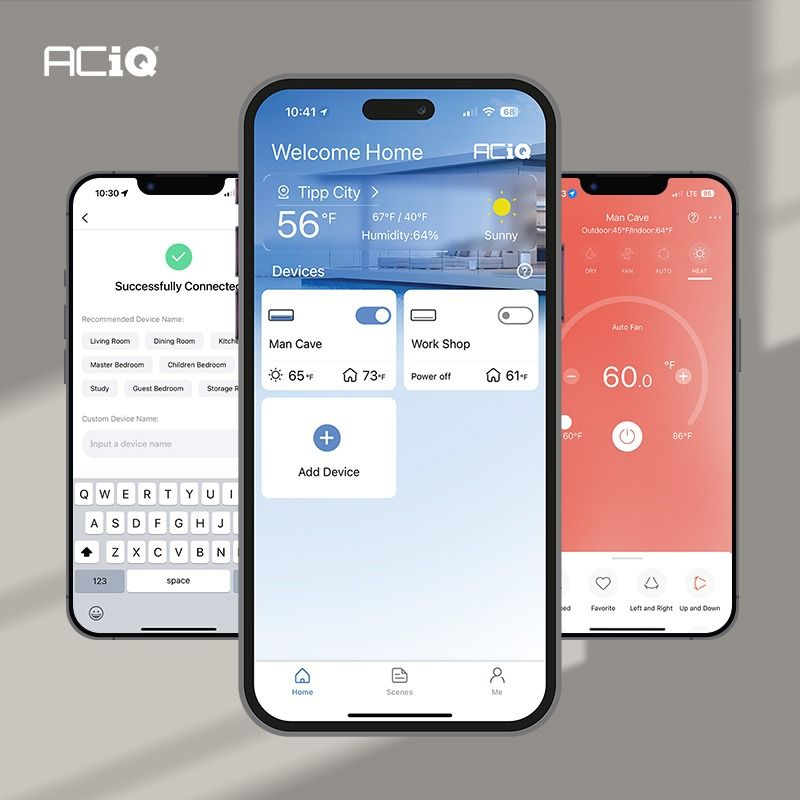

WiFi capable using free Net Home Plus app, Google Home, or Alexa
Soft LED display with room temperature and system status
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Self-diagnosing control board with error code display
Easy Maintenance and Installation

Technical Specifications

SKU	ACIQ-18W-HH-MD
Weight	35.71 lbs
Cooling BTU	18,000 BTU
Heating BTU	18,000 BTU
Maximum CFM	Up to 635.7 CFM
Decibel Level (dBA)	Up to 49.5 Decibels
Refrigerant	R454B
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	18,000 BTU/1.5 Ton
Dimensions (HxWxD)	12.6" x 40.06" x 9.72"

Performance Data

SEER2 Rating	Up to 22 SEER2
HSPF2 Rating	Up to 10 HSPF2
Operating Temperature Range (Cooling)	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F

Warranty

7 year parts limited warranty with online registration (must be installed by a licensed HVAC technician)

Manuals & Downloads

Safety Information

PROPOSITION 65 WARNING

Intelligent Heating and Cooling

The ACiQ-18W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.
