ACIQ 18,000 BTU 20 SEER2 ACiQ Single Zone Ceiling Cassette Mini Split System | Extreme Series - R454B | 230V

SKU ACIQ-18ZPL-HP230C + ACIQ-18CC-HH-MC Ceiling Cassette21.4 SEER2208-230V
$2,249.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K-18K room setups:
  • Large bedrooms
  • Living rooms
  • Garages
  • Additions
18,000 BTU
Cooling
18,000 BTU
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

ACIQ
Support Number
1-877-909-ACiQ
Official Site
ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.
ACIQ

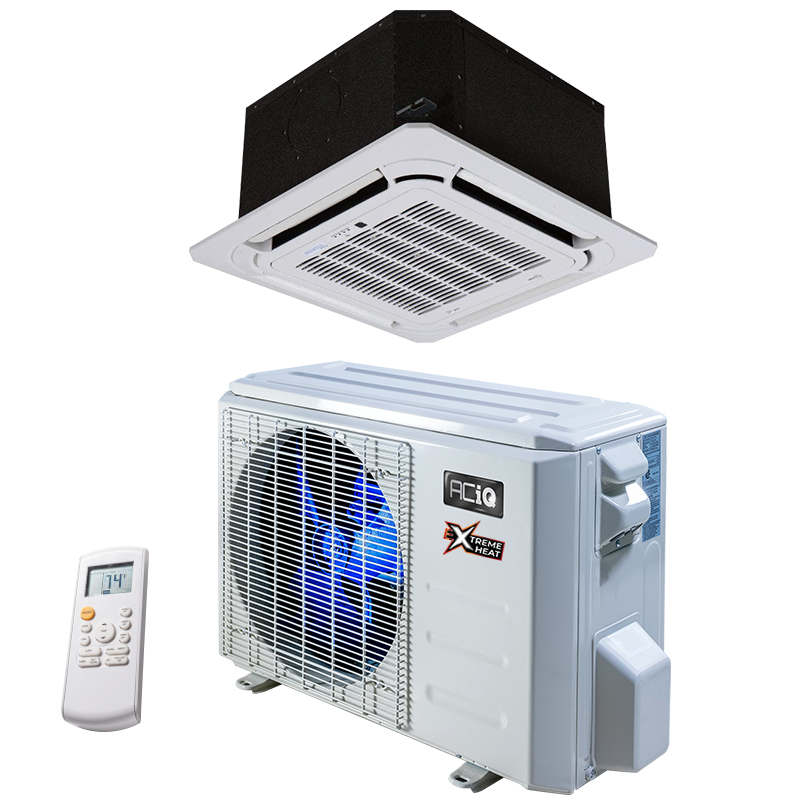

ACIQ 18,000 BTU 20 SEER2 ACiQ Single Zone Ceiling Cassette Mini Split System | Extreme Series - R454B | 230V

Product Overview

The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

Technical Specifications — ACIQ-18ZPL-HP230C

sku ACIQ-18ZPL-HP230C
refrigerant charge 55.38 oz.
weight 107.800000
manufacturer ACiQ
product features Low Ambient Heating
hspf2 11.0
cooling btu 18,000 BTU
heating btu 18,000 BTU
maximum cfm 1764.70
decibel level (dba) 59.0
electric heat Heat Pump
energy star Yes
refrigerant R454B
seer2 21.4
compressor type Rotary
liquid line 1/4"
suction line 1/2"
electrical 208/230V, 1 Phase, 60 Hz
electric phase filter Single Phase
max breaker size 20A
min. breaker size 19A
tonnage 1.5 Ton
btu/tonnage 18,000 BTU/1.5 Ton
min/max outdoor temp for heating -22~75 °F / -30~24 °C
min/max outdoor temp for cooling -22~122 °F / -30~50 °C
zone compatibility Single Zone
operating mode Heating/Cooling
certification Energy Star, NEEP, UL AHRI
height 26.50"
width 35.04"
depth 13.46"
warranty 12 year compressor, 7 year parts with online registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.

Technical Specifications — ACIQ-18CC-HH-MC

sku ACIQ-18CC-HH-MC
weight 41.890000
manufacturer ACiQ
controller Wireless Included
product features WiFi
cooling btu 18,000 BTU
heating btu 18,000 BTU
maximum cfm Up to 447.3 CFM
decibel level (dba) As low as 23.5 Decibels
electric heat Heat Pump
refrigerant R454B
liquid line 1/4"
suction line 1/2"
electrical 208/230V, 1 Phase, 60Hz
electric phase filter Single Phase
btu/tonnage 18,000 BTU/1.5 Ton

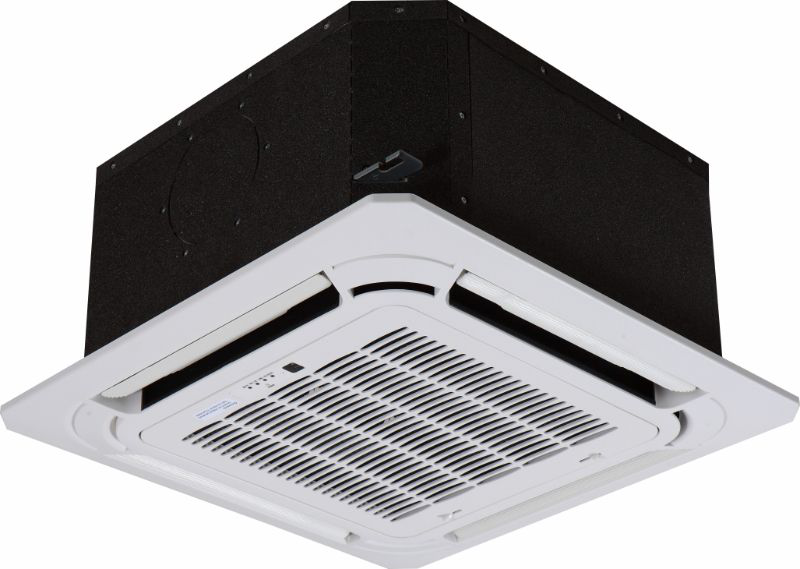

mini split type Ceiling Cassette
zone compatibility Single Zone, Multi Zone
height 9.65"
width 22.44"
depth 22.44"
warranty 12 year compressor, 7 year parts with online registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What types of products does ACiQ offer?

ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.

How can I contact ACiQ technical support or customer service?

ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.

What information is needed to register an ACiQ product?

ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.

How can I request a replacement part for an ACiQ product?

Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.

Where can I find manuals and technical documents for an ACiQ product?

Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.

How do I start an ACiQ warranty claim?

Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.

What diagnosis is required for an ACiQ warranty issue?

ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.

Does an ACiQ warranty claim cover labor and shipping costs?

ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.

How do I register an ACiQ product for warranty coverage?

Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.

How can I check an ACiQ warranty registration or coverage status?

Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.

Does every ACiQ product have the same warranty coverage?

No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
